Identifying Minis by Engine/Power Unit

There are some common questions associated with Mini power units that can be answered easily by a quick visual inspection: “A-series or A+?” and “Verto or pre-Verto clutch?”. See the simple answers below.

The rest of engine identification gets a bit more difficult. Not only does one have to be concerned with the many Mini engines, but transverse engines from many other English cars of the periods found their way into Minis. Early on, the 1100 and 1300 series of cars were the favorites (e.g., in the U.S., the MG1100 and Austin America). In later years, the Metro engines were, and are, common transplants.

If the engine ID plate is still on the block (look just below the number one spark plug), and the plate is original or correct for the engine, then the problem gets a little bit easier. All you need is to be able to read the code! Below you will find sections on Mini engine numbers and Metro engine numbers. If the engine doesn’t turn up in the Mini or Metro sections, or the engine ID plate is missing there is a section that will help you figure it out.

A versus A+

The A+ version of the venerable A-series engine showed up around 1980 and a common identification question is, “How can I tell the difference between an A and A+ engine?". Here are a couple of ways. There are more.

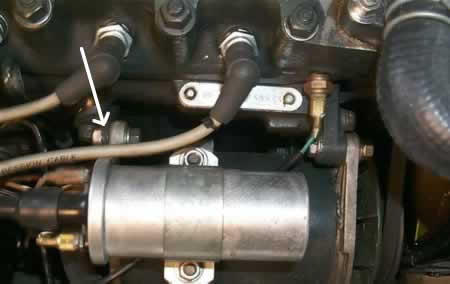

Alternator bracket. This one is the easiest and can usually be done even from a photograph of an engine in a car. The A-series engine started life using a generator, which is a couple of inches longer than a Mini alternator . The rear (clutch end) mount was bolted to the side of the engine block a comfortable generator length from the front mounting spot on the water pump – about 6” or so.

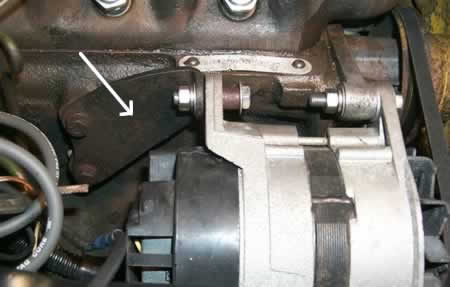

By January 1973, when alternators finally became standard on Minis, the mounting points on the block weren’t changed so the bracket had to have an extension to bridge the gap caused by the alternator being about 2” shorter.

When the A+ block was designed, the shorter alternator was taken into account and the mounting points for use of a smaller bracket were moved forward on the block towards the alternator.

So, look for a generator (A-series), or an alternator with a bridging rear bracket (A-series), or an alternator without the bridging rear bracket (A+).



Distributor mount . With the advent of the A+, the method of mounting the distributor to the block was changed. Look for a distributor clamp with two bolts holding it to the block (A-series) or only one bolt (A+). This is easy to see if there is no big water shield in the way and if you can get you head under the bonnet, but it usually doesn’t show up in typical engine photographs.

Pre-Verto versus Verto Clutch

In 1980, the Mini’s clutch underwent a major change. The internal clutch/ flywheel assembly changed as well as almost all of the external, connecting bits as far back as the master cylinder. They are pretty easy to tell apart with just a quick look inside the engine compartment. Here are two ways. There are others.

Clutch arm. The clutch arm for the Verto set up is a short, stubby little thing. The exposed length is only about 2” while the pre-Verto clutch arm is closer to 6”. Easy to tell. No need to measure.

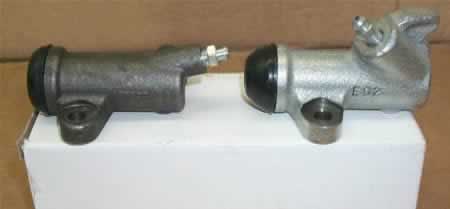

Clutch slave cylinder mounting. The pre-Verto clutch slave is mounted horizontally directly onto the flywheel housing about level with the top of the long clutch arm. With the Verto, the clutch slave cylinder is mounted on a bracket which is mounted on the flywheel housing allowing the clutch slave to point downwards at an angle to meet up with the clutch arm rod coming off the end of the very short clutch arm. The slave cylinders are visibly different, too.



Engine ID for Standard Mini Engines

There were many versions of the A and A+ series of engines used in Minis over the 42 years they were produced. If the engine ID tag is still in place then a quick check of the beginning of the engine number will tell you what the engine size is. (If the ID tag is missing, see “Engine ID If the Engine Tag Is Missing.”) The short version follows. If the engine number begins with:

engine # prefixengine type
8 848cc
9 998cc (non Cooper)
10 1098cc
12 1275cc (non Cooper S), except 12H397 and 12H398. These are S.
9F/Sa/H 101 – 19200
9F/Sa/H 20411 – 26376
997cc Cooper
9FA/Sa/H (or L)
9FD/Sa/H (or L) except 33661 - 33948
9FD/Xe/H (or L)
99H/377C (or 378C)/H (or L)
998cc Cooper
9F/Sa/X
9FD/Sa/X
9FE/Sa/X
970 Cooper S
9F/Sa/H 19201 – 20410 and 26501 – 33660
9FD/Sa/H 33661 - 33948
1071cc Cooper S
9F/Sa/Y
9FD/Sa/Y
9FE/Sa/Y
9F/Xe/Y
12H397F
12H398F
1275cc Cooper S



For more details, see on the web site under Articles & News/Calver’s Corner/Engine, “ Identification data UPDATED.”

Engine ID for Standard Metro Engines

The Austin, MG, and Mini Metro used various A+ engines for a number of years in 848, 998, and 1275cc forms. These are easily transplanted into Minis and that swap has been popular for a number of years.

Note that 99H and 12H engine numbers were also used for Minis, and also note, that Metro Engines with HE and HF were equipped with lead free fuel compatible heads.

The short version for spotting a Metro engine from the ID tag is as follows. If the engine number starts with:

engine # prefix
engine type
85H

848cc engine

(It is unlikely one is going to find one of these. There were not many produced and they were intended for export outside of the UK.)

99H
99HA
99HB
99HD
99HE
998cc engine
12H
12HA
12HB
12HC
12HD
12HE
12HF
1275cc engine



For more details on the Metro engines built up until October 1984, see on the web site under Articles & News/Calver’s Corner/Engine, “ Engine – Metro engine identification data.” From October 1984 there were about 100 more variations on the Metro engine theme!

Engine ID If the ID Tag Is Missing

If you want to identify the engine in your car and the engine ID tag is missing, all is not lost. You won’t be able to come up with a detailed identification of what is inside, but, in most cases you can come up with the engine series (A or A+ as discussed above), and the engine size.

Large bore versus small bore . A quick look will tell you if the engine is a “large bore” or “small bore” engine. With a rare, South African engine exception, the large bore engines are all Cooper S (970, 1071, and 1275cc) and all non Cooper S 1275cc engines. Small bore is everything else, 848, 997, 998 (Cooper and non-Cooper), and 1098cc engines.

Another large bore/small bore quick check is to look at the heater hose outlet on the clutch end of the head. (The majority of the engines had an outlet there, but late cars did not.) This assumes that the head has not been switched between large bore and small bore. It is possible to put a large bore head onto a small bore engine with a little extra work. It is not common, but is done.

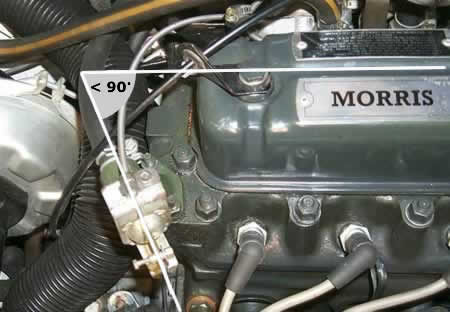

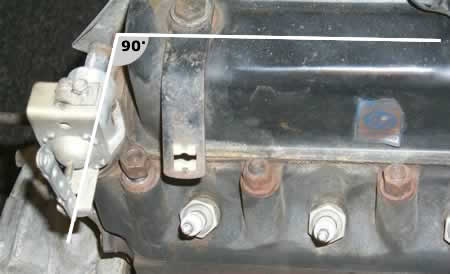

If the heater hose outlet mount is at right angles to the center line of the engine, the engine is a small bore engine. If the outlet mount (or holes to mount the outlet) is at less than right angles to the centerline (the front of the outlet points a little more towards the radiator end of the engine) than you have a large bore engine.



If you need more specific information than can be provided by the quick visual clues above, follow the decision tree at “Engine ID for Transverse Engines.”
