 Posted: Oct 15, 2014 05:08AM
Total posts: 2100
Last post: Oct 22, 2023
Member since:May 1, 2007
Cars in Garage: 1
Photos: 220
WorkBench Posts: 0
US
Quote:
Originally Posted by ff4311

Can someone post an up close pic or two of where their heater box mounts under the switch panel in MK 3/4 cars. When I try to put mine in it just doesn't seem right. It won't mount flush. seems like there is a little "extra" piece of bracket that gets in the way.

Facts:

1976 NZ car that originally had a recirculating heater that I didn't like and sold to a member on this board.

The heater I got is a MK4. (Connections on the right hand side and really close together)

Am I missing something or is this the wrong heater?

Yes, it is the wrong heater.

Not trying to be wise, but you're putting a heater into a car that it wasn't made for. Not saying it won't work, but you certainly can't expect it to be "plug-and-play." You may have to get creative and adapt, modify or fabricate to get it to fit.

 Posted: Oct 15, 2014 04:03AM
Total posts: 4134
Last post: Oct 13, 2020
Member since:Oct 8, 2011
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US

Sorry, not sure why I was thinking 10/32 1/4 NF of course is correct. Not that it matter here, but the later heaters have a notch in the rear to clear the later brake cross over tube. I had to make a coupe of straps to support the rear of my heater below the tube. This reduced the toe room for a LHD gas pedal. That's a mini giving a little here for a little over there. Steve (CTR)

 Posted: Oct 14, 2014 07:47AM
mur
Total posts: 5840
Last post: Nov 1, 2019
Member since:Nov 12, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0

the studs are quarter inch UNF. They allow the heater to be mounted with a bias to the right for LHD or to the left if you have a RHD car. I expect having the heater hoses on the right hand side will be a problem if your car is still RHD. In any case there are four openings below the switch panel in the sheet metal, and you can snap those lame clips that accept screws over the openings you need to fasten the front of the heater. It is probably all covered up as the NZ market used different stuff for their original heaters.

 Posted: Oct 14, 2014 06:45AM
Total posts: 2523
Last post: Mar 24, 2024
Member since:Dec 1, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US

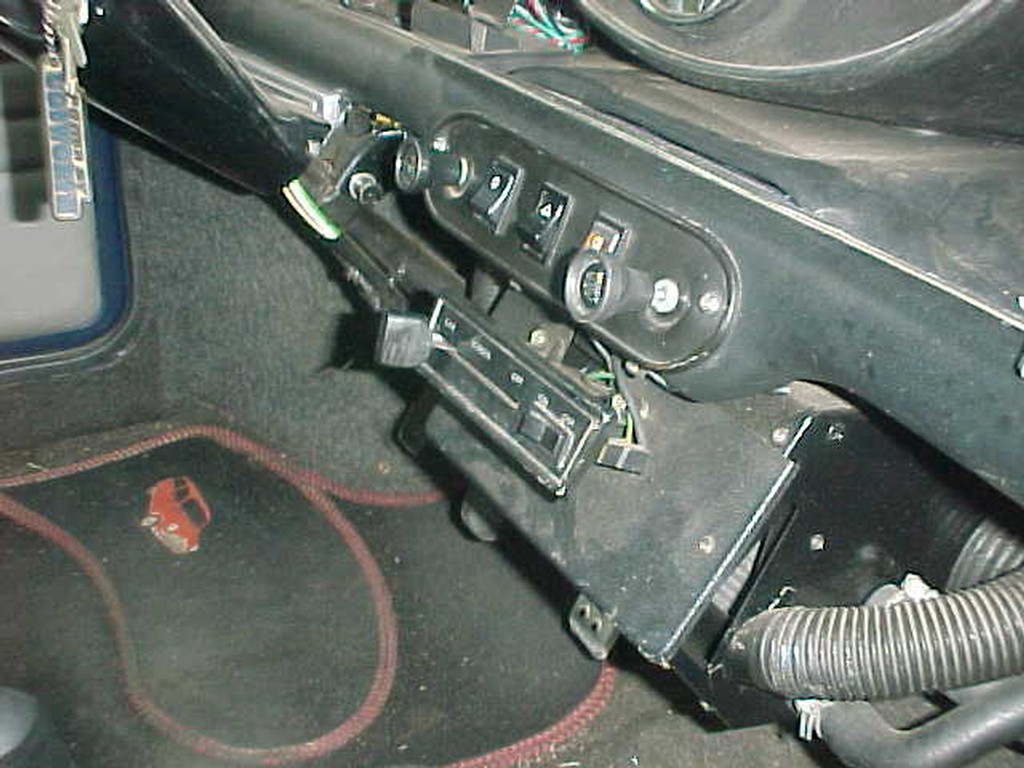

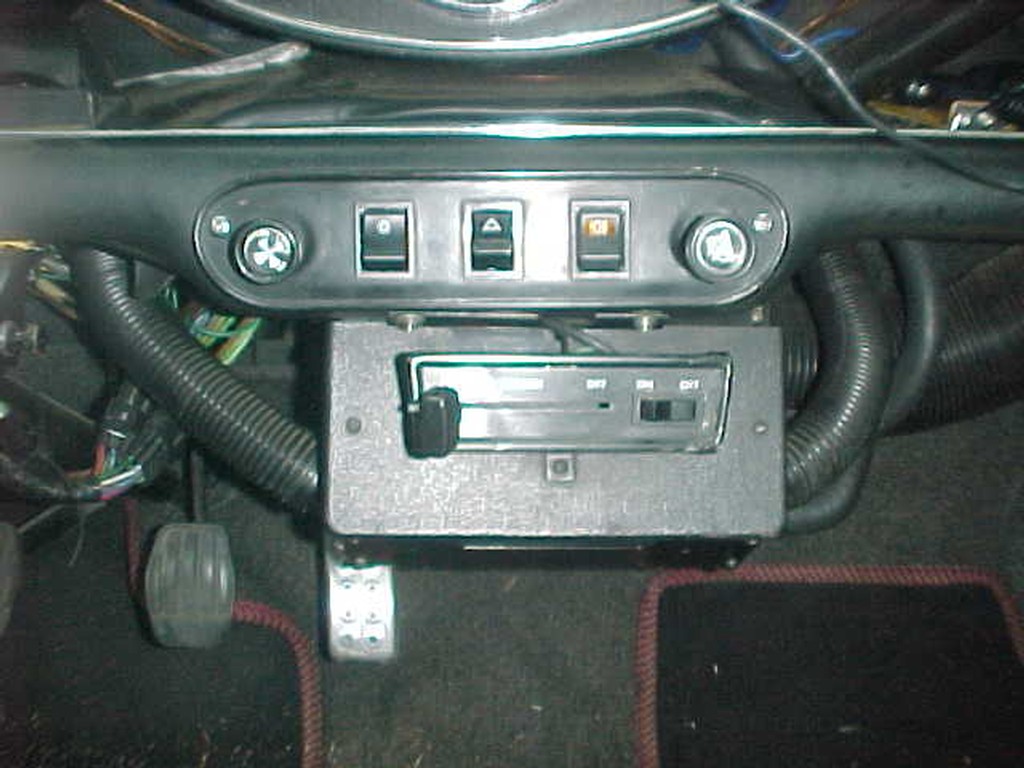

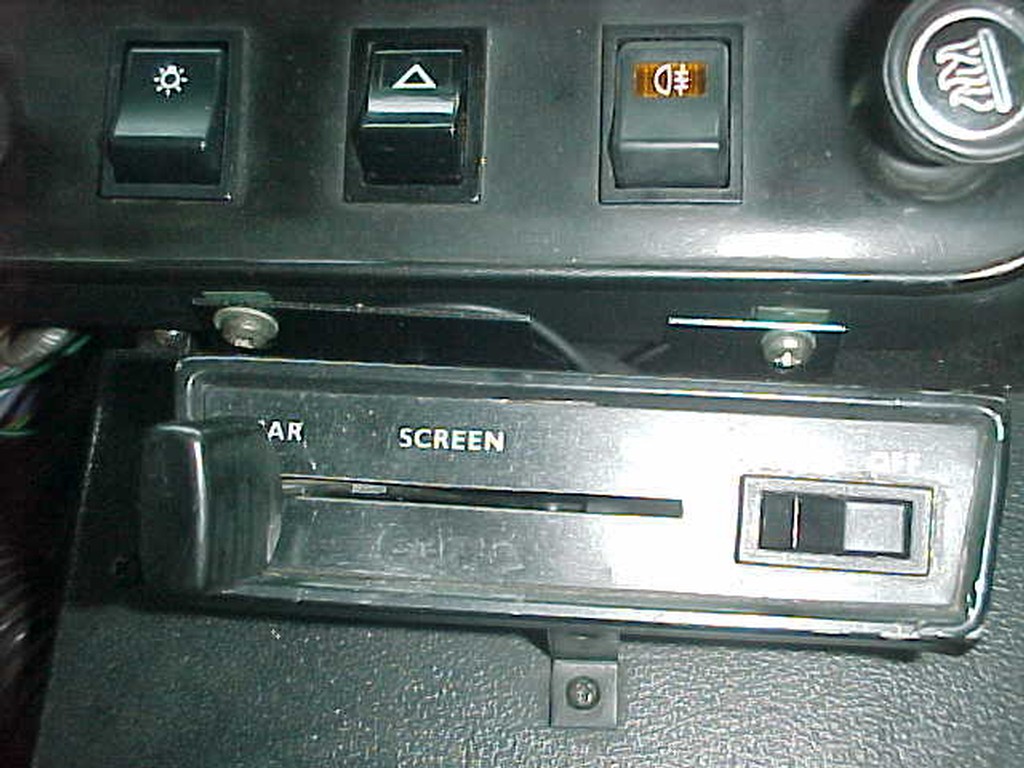

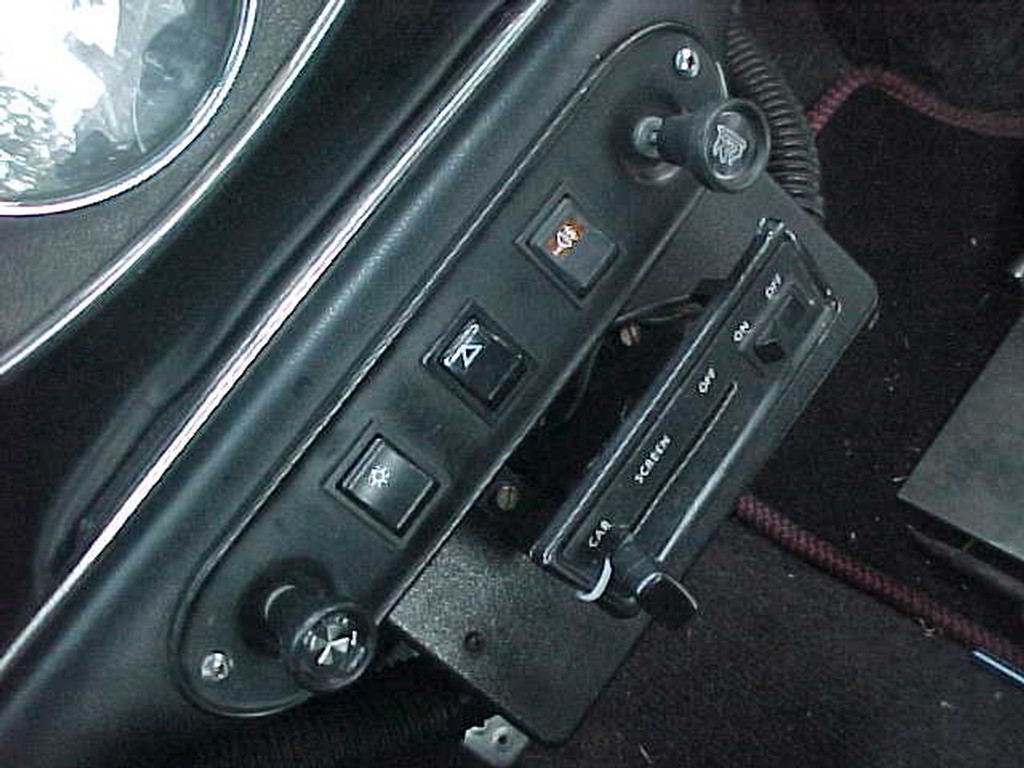

Image Gallery

Photos from CooperTune.

"How can anything bigger be mini?"

 Posted: Oct 14, 2014 03:46AM
Total posts: 4134
Last post: Oct 13, 2020
Member since:Oct 8, 2011
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US

Not sure I follow your question. When I built out 85 1000 E from a bare shell I did not like the late model lower dask pad. I did not install it and reinstalled the heater. The rear of the unit had a couple of lengths of 10/32 all thread one out each side of the heater to hang on a couple of brackets attached to the fire wall. The front of the heater is held to the lower dash rail with two screws going up though a sheet metal angle running across the heater housing. Due to the lask of a lower dash rail the heater controls stick out further than the rail. It looked funny at first but after driving it for 13 years and it does put out heat ( only mini I have ever had that you have to reduce heat on a 20 degree day once warmed up ) I can live with it. This may not be what you are talking about. I'll see if I can get a picture posted. Steve (CTR)

 Posted: Oct 13, 2014 02:49PM
Total posts: 870
Last post: Oct 10, 2020
Member since:Feb 14, 2007
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US

Did a Mk5 a few weeks ago, and from what I remember....on a RHD car....left side of heater has a protruding bolt which fits into a HOLE, and then the Right side bolt drops into a SLOT. It was not a difficult job. Can't imagine they changed much from Mk3 to 5?.

Saor Alba

 Posted: Oct 13, 2014 12:47PM
Total posts: 121
Last post: Mar 13, 2018
Member since:Nov 13, 2011
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US

Can someone post an up close pic or two of where their heater box mounts under the switch panel in MK 3/4 cars. When I try to put mine in it just doesn't seem right. It won't mount flush. seems like there is a little "extra" piece of bracket that gets in the way.

Facts:

1976 NZ car that originally had a recirculating heater that I didn't like and sold to a member on this board.

The heater I got is a MK4. (Connections on the right hand side and really close together)

Am I missing something or is this the wrong heater?

Question: What's it like driving a mini?

My Answer: Like riding around on an angry leaf blower.
