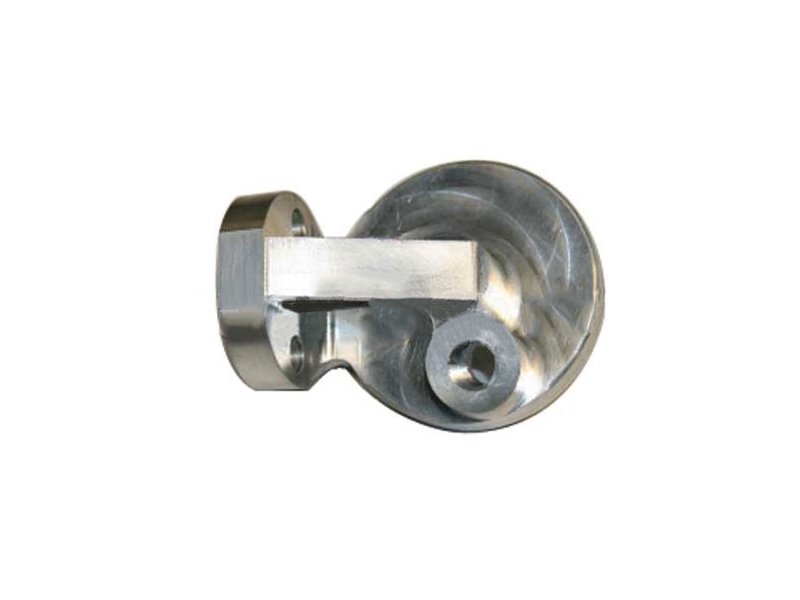

Spin on oil filter housing for performance engines-uses 88G402 gasket-made out of billet alloy it has a strong mating face to the block where oil leakage occurs from high revving engine vibrations, is slightly shorter offering more clearance and has the bypass valve omitted for increased safety. Looks great as well but should be used with our braided hose kit for safety. Can be used as a direct replacement for TAM2097 which was for pre 12A engine blocks. Pre 12A motors use TAM2106BRAIDED hose.

Pre 1992 engines have 5/8" block union and 1/4" npt thread for the filter head

12A engines from 1992 on have 11/16"UNF block and filter head

This filter head has a 1/4NPT thread which is basically a half inch hole restricting down to a 3/8" size hole. Uses 88G402 gasket not the later one.

See LPX10026RACE for larger 11/16" oil hole housing as used on later 12A engines which uses MOC1018 braided pipe hose

.
Classic Mini, Sprite & Midget Spin On Oil Filter Housing, Race Or Road

Classic Mini, Sprite & Midget Spin On Oil Filter Housing, Race Or Road

Classic Mini, Sprite & Midget Spin On Oil Filter Housing, Race Or Road
Part No: 12A2032RACE
$143.95
Qty:
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
Alternate Products
Classic Austin Mini spin-on oil filter housing, race type 1991 & Later
$154.95 Classic Austin Mini spin-on oil filter housing, race type 1991 & Later
Classic Mini spin-on oil filter head
$28.95 Classic Mini spin-on oil filter head

Spin on oil filter housing for performance engines-uses 88G402 gasket-made out of billet alloy it has a strong mating face to the block where oil leakage occurs from high revving engine vibrations, is slightly shorter offering more clearance and has the bypass valve omitted for increased safety. Looks great as well but should be used with our braided hose kit for safety. Can be used as a direct replacement for TAM2097 which was for pre 12A engine blocks. Pre 12A motors use TAM2106BRAIDED hose.

Pre 1992 engines have 5/8" block union and 1/4" npt thread for the filter head

12A engines from 1992 on have 11/16"UNF block and filter head

This filter head has a 1/4NPT thread which is basically a half inch hole restricting down to a 3/8" size hole. Uses 88G402 gasket not the later one.

See LPX10026RACE for larger 11/16" oil hole housing as used on later 12A engines which uses MOC1018 braided pipe hose

.
