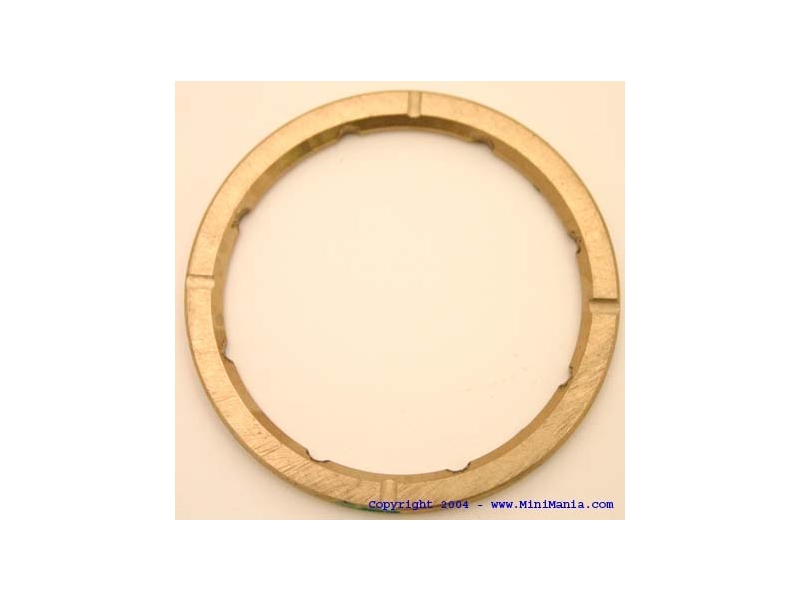

Classic Austin Mini Thrust Washer For 1275 Primary Gear .119

Classic Austin Mini Thrust Washer For 1275 Primary Gear .119

Classic Austin Mini Thrust Washer For 1275 Primary Gear .119
Qty:
$69.95
Part No: DAM6488
Internet Price $69.95
Primary gear thrust washers are made in varying sizes to take up the play. Standard gap size should be between 3-6 thou. See DAM6486, DAM6487, DAM6489, DAM6490 and DAM6492 for alternatives. This type is for the 1275cc crankshaft only which has a raised step for the primary gear to sit on. Race applications can be increased plus 3 thou. Thrust washer 0.118-120”(2.99-3.04mm). The measurement is taken as plus or minus one to the size hence the two thou tolerance on each part number.
Loading...
Loading...
Loading...
Related Technical Articles:
ENGINE TRANSPLANTS - Engine to gearbox fitment
Created: November 01, 2000
Assembling the engine to gearbox (transmission) is explained and simplified in this article. Contrary to popular mis-guidance, all BBUs will fit all four-syncro gearboxes. It was only the three-syncro boxes that varied in casting dimensions causing hassles where 1275s were applied to 850/998 gearbox casings. The longer throw and bigger crank and rod assembly dimensions fouled the sculpted areas in the gearbox case,
