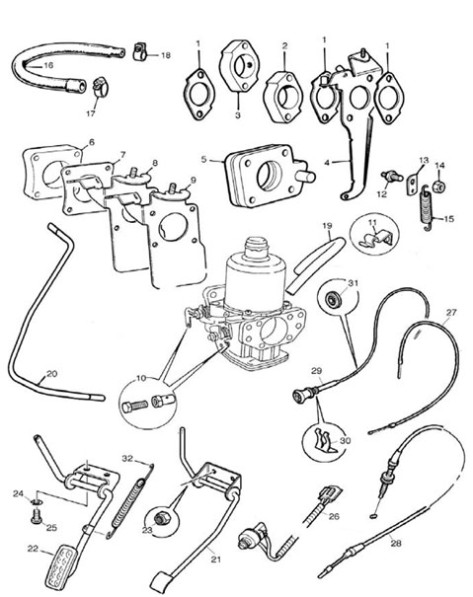

Classic Mini Cooper Emission, Carburettor Fittings & Engine Controls
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | AEC2083 | 3 | Gasket for HS4 carburettor Or as required |
| 2 | 12H1389 | 1 | Aluminum spacer for HS4 carburettor |
| 3 | MFA338 | 1 | Plastic spacer with vacuum take off, HS4 when required |
| 4 | 12G766 | 1 | Abutment plate for HS6 carburettor Use U-12G766 |
| 5 | LZX1582 | 1 | Spacer with cold start induction assist No Longer Available |
| 6 | TAM1068 | 1 | Plastic spacer, 0.265”thick HIF44- use GUG705964GM Use 12B561 |
| 6 | GUG705964GM | 1 | Plastic spacer, 0.432”thick HIF44 with gaskets on |
| 6 | MAX10002 | 1 | Plastic spacer, 0.435”thick HIF38 with gaskets on |
| 6 | MFA446 | 1 | Plastic spacer with vacuum take off, HIF44 when required |
| 7 | 88G429B | 3 | Gasket for HIF and HS6 Or as required |
| 7 | GUG705561GM | 3 | Gasket for HIF and HS6 Genuine Or as required |
| 8 | TAM1401 | 1 | Abutment bracket HIF Turbo only Use CAM4942 |
| 9 | CAM4942 | 1 | Abutment bracket HIF38 and HIF44 carburettor |
| 10 | AUE34 | 1 | Trunnion and screw set for choke cable Or as required |
| 11 | CZK6491 | 1 | Clip for choke cable HIF only |
| 12 | ACC5062 | 1 | Throttle lever pin HS4 only |
| 13 | 12A4 | 1 | Anchor tab for throttle spring |
| 14 | GFK3211 | 1 | Plain nut 1/4” for throttle lever pin |
| 15 | 1E5537 | 1 | Throttle return spring HS4 only |
| 16 | 12A1735 | 1 | Hose from carburettor to breather HS4 only (to Y piece on HIF44) |
| 17 | GHC405 | 1 | Clip for breather end of hose Use ACH5854 |
| 18 | ACH5854 | 1 | Clip for carburettor end of hose |
| 19 | LP630 | 1 | Hose from carburettor to Y piece, was MAP10055 - 8mm bore No Longer Available |
| 20 | 37H4229M | 1 | Vacuum pipe with rubber ends 26”(660mm)long |
| 21 | NAM3108 | 1 | Throttle Pedal and bracket assembly RHD Except MPI |
| 21 | NAM3107 | 1 | Throttle Pedal and bracket assembly LHD Except MPI |
| 22 | SAB101220MUN | 1 | Throttle pedal and bracket assembly, silver colour RHD No Longer Available |
| 22 | SAB101210MUN | 1 | Throttle pedal and bracket assembly, silver colour LHD No Longer Available |
| 23 | GFK3321 | 2 | Lock nut 1/4”unf to hold pedal assembly RHD |
| 24 | SH604041 | 2 | Screw 1/4”unf 1/2”long to hold pedal assembly LHD |
| 25 | GFK1124 | 1 | Spring washer 1/4” Use GHF331 |
| 26 | NNS10001 | 1 | Throttle pedal input switch SPI ONLY |
| 27 | NAM7914 | 1 | Throttle cable HS4 carburettor C-AHT85 longer |
| 28 | SBB10099 | 1 | Throttle cable HIF carburettor RHD |
| 28 | SBB10126 | 1 | Throttle cable HIF carburettor LHD |
| 28 | SBB10186 | 1 | Throttle cable SPI Injection LHD |
| 28 | SBB10187 | 1 | Throttle cable SPI Injection RHD |
| 28 | SBB103400 | 1 | Throttle cable MPI Injection RHD |
| 28 | SBB103720 | 1 | Throttle cable MPI Injection LHD |
| 29 | 21A2329 | 1 | Choke cable, pull and twist to 1987 998cc |
| 29 | SBF10027 | 1 | Choke cable, 32”long, ratchet type 998cc 1987-1990 Used with ADU5065 clip |
| 29 | SBF10031 | 1 | Choke cable, 36”long, ratchet type 1275cc 1990-1992 Used with ADU5065 clip |
| 30 | ADU5065 | 1 | Clip for choke cable at dash end |
| 31 | CAM5969 | 1 | Grommet for choke cable through body |
| 32 | SAH10004 | 1 | Throttle spring No Longer Available |
