 Posted: Sep 26, 2022 06:47AM
Total posts: 13954
Last post: Sep 26, 2022
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA
It did indeed work.  Tach works and gauge lights work



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge







 Posted: Sep 20, 2022 01:42AM
Total posts: 10150
Last post: Sep 30, 2022
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB
Nice one !!
(assuming it works :) )

 Posted: Sep 12, 2022 01:37PM
Total posts: 8539
Last post: Sep 27, 2022
Member since:Sep 30, 2002
Cars in Garage: 4
Photos: 40
WorkBench Posts: 2
CA
Raise one for us !

  ~ 30 minutes in a Mini is more therapeutic than 3 sessions @ the shrink. ~

  Mike  Cool  NB, Canada

 Posted: Sep 12, 2022 01:18PM
Total posts: 13954
Last post: Sep 26, 2022
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA
Tha ks everyone.  Having a pint before reassembly



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge







 Posted: Sep 12, 2022 12:37PM
Total posts: 9182
Last post: Sep 30, 2022
Member since:Aug 14, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
CA
Nice work!

No, the copper path below it supplies electricity to the bulb holder (removed in the pic). Take out the adjacent bulb holder to see the pattern. Each bulb hole as two copper areas for the bulb holder to contact - one for power and one for ground.

.

"Hang on a minute lads....I've got a great idea."

 Posted: Sep 12, 2022 08:27AM
Total posts: 13954
Last post: Sep 26, 2022
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA

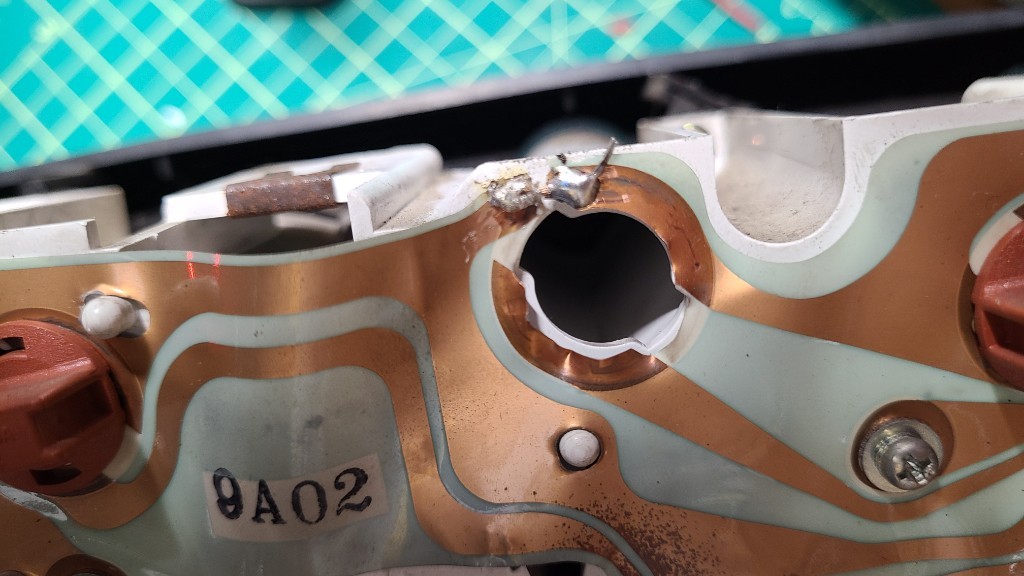

Not pretty.....but

Soldered in a small...about 1cm....piece of wire.
Now....is that piece right below it supposed to be connected??



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge







 Posted: Sep 10, 2022 04:40PM
Total posts: 1297
Last post: Sep 15, 2022
Member since:Jan 28, 2005
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
A heated window grid repair kit might do the job. Fix the backing and then use the kit to restore the conductive grid.

DLY
 Posted: Sep 10, 2022 11:48AM
Total posts: 2015
Last post: Sep 29, 2022
Member since:Aug 29, 2001
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Go to your local Radio Shack ( does it still exist? ) , get some electrically conductive epoxy ( I think it has silver particles) and glue a small fine gauge copper wire between the gaps. If you are worried about how much current it carries it is not much. You could glue two small wires.

I did this on a "real" circuit board. Admittedly not getting shook down the road in a mini

 Posted: Sep 10, 2022 07:05AM
Total posts: 8539
Last post: Sep 27, 2022
Member since:Sep 30, 2002
Cars in Garage: 4
Photos: 40
WorkBench Posts: 2
CA
Man, I am chatty today. LOL.  Non functioning (older) tachs are often the result of a dried out (pooched) electrolytic capacitor or other failures of this type.  Could always be a bad spring, wire coil, etc. too for all I know.

Tell us about the non functioning tach.

  ~ 30 minutes in a Mini is more therapeutic than 3 sessions @ the shrink. ~

  Mike  Cool  NB, Canada

 Posted: Sep 10, 2022 06:57AM
 Edited:  Sep 10, 2022 07:08AM
Total posts: 8539
Last post: Sep 27, 2022
Member since:Sep 30, 2002
Cars in Garage: 4
Photos: 40
WorkBench Posts: 2
CA
If you want to attempt this fix or buy a new 'board', those are likely your 2 best avenues to get this working.
It looks like the ground may also feed your tach, but as I don't know what the cluster looks like on the front, I can't say for sure.
Was your tach always broken or ?

I will extend my offer as a 3rd option, knowing I'll just try my best, but no guarantee, to repair it for you, for free, if you want to mail (just the plasticky board) to me here in NB.

  ~ 30 minutes in a Mini is more therapeutic than 3 sessions @ the shrink. ~

  Mike  Cool  NB, Canada

 Posted: Sep 10, 2022 06:06AM
Total posts: 8539
Last post: Sep 27, 2022
Member since:Sep 30, 2002
Cars in Garage: 4
Photos: 40
WorkBench Posts: 2
CA
p.p.s-I do see at least 2 soldered connections to this cursed plasticky circuit board, (lower central part of the 'board') so at least
we now know it's "possible" to do.

do not attempt without flux, nor with your biggazz Weller soldering gun and a roll of plumbers solder.  You'll just melt the frack out of it and be left with a blob that wire won't stick to

  ~ 30 minutes in a Mini is more therapeutic than 3 sessions @ the shrink. ~

  Mike  Cool  NB, Canada

 Posted: Sep 10, 2022 05:36AM
 Edited:  Sep 10, 2022 05:37AM
Total posts: 8539
Last post: Sep 27, 2022
Member since:Sep 30, 2002
Cars in Garage: 4
Photos: 40
WorkBench Posts: 2
CA
p.s.-I put my reading glasses on.  That looks like it's likely the ground for a bulb.

I do notice a small washer and screw is missing that goes over to a connector near the tach/speedo

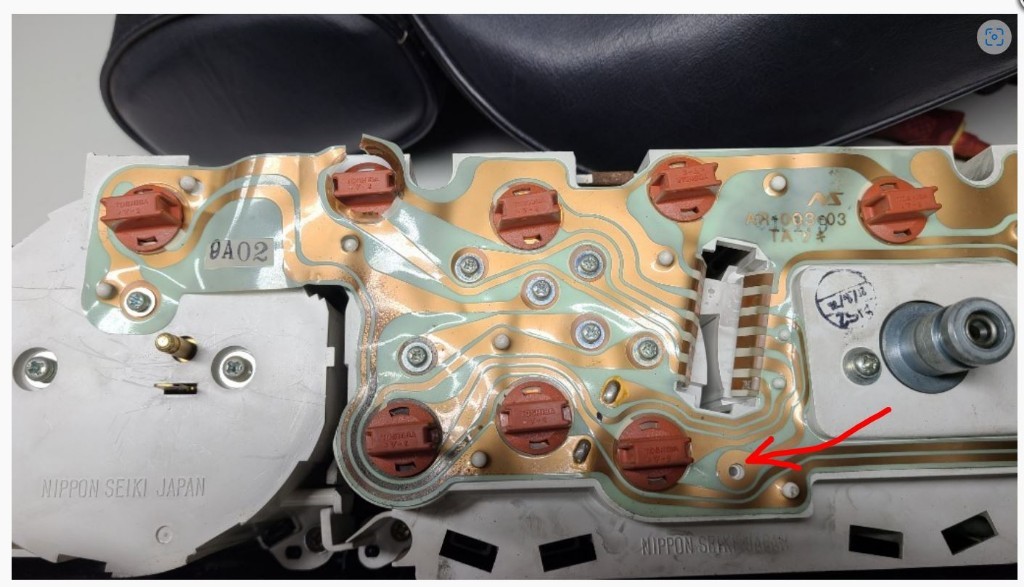

See the red arrow I added to your photo>>>

(can we get a picture of the front of it too please?_)

  ~ 30 minutes in a Mini is more therapeutic than 3 sessions @ the shrink. ~

  Mike  Cool  NB, Canada

 Posted: Sep 10, 2022 05:29AM
 Edited:  Sep 10, 2022 05:40AM
Total posts: 8539
Last post: Sep 27, 2022
Member since:Sep 30, 2002
Cars in Garage: 4
Photos: 40
WorkBench Posts: 2
CA
Although I won't disagree with Dan, I think that it looks like it's not an actual circuit BOARD per se, but one of those flexible plasticky layers that mimicks an actual board.  Extremely hard to solder to.  Might not be impossible with some TLC when doing it, but if it were me, I'd scrape ever-so-gently to see if I could get down to the very thin embedded copper "layer" , use some liquid flux and a super fine 60/40 solder with a warm-to-hot iron turned down quite low and see if I could get a teeny-tiny #28 or something gauge wire stuck across the broken sections.

If that doesn't work, out there in internet lands, you can probably find some thin copper "tape" that sticky but conductive and do the same scraping and bridge the connection with tape.

Neither repair would be easy nor guaranteed.

I hate this plastic stuff.

If it was a "real" circuit board (which I don't THINK it is) I'd say mail it to me and I'll fix it for you, but that right there is the type of stuff that kinda makes me shudder.

<edit, disregard this now deleted sentence if you saw it...I saved the picture, then was able to zoom in>

  ~ 30 minutes in a Mini is more therapeutic than 3 sessions @ the shrink. ~

  Mike  Cool  NB, Canada

 Posted: Sep 10, 2022 04:46AM
Total posts: 9182
Last post: Sep 30, 2022
Member since:Aug 14, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
CA
Quote:
Originally Posted by 62 Cooper S
That needs to be soldered. Unless there's more screws that aren't in the picture, I don't see how tying the two screws together with wire will do anything.
The two screws I mentioned ground the instruments to the printed circuit board (subject to Spitz confirming they are grounding screws). They would/should have good connection to the PCB ground trace, which is broken. The wire, with the correct terminals making good contact with the screws would bridge the gap. providing ground for the tach and related lights. Soldering to a PCB is not easy, but not impossible, but without the right technique you either get poor contact or damage the trace further.

Alex's suggestion of a new PCB would be the best solution. Nice to know they are available.

.

"Hang on a minute lads....I've got a great idea."

 Posted: Sep 10, 2022 01:21AM
Total posts: 10150
Last post: Sep 30, 2022
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB
https://www.minimania.com/part/CDU3247/Classic-Mini-Triple-Instrument-Printed-Circuit-Board-1986---1996

Soldering or crimping or croc-clipping isn't always successful, but they circuit boards have been remanufactured.

 Posted: Sep 9, 2022 07:02PM
 Edited:  Sep 9, 2022 07:08PM
Total posts: 550
Last post: Sep 9, 2022
Member since:May 29, 2001
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
That needs to be soldered. Unless there's more screws that aren't in the picture, I don't see how tying the two screws together with wire will do anything.

 Posted: Sep 9, 2022 01:55PM
Total posts: 9182
Last post: Sep 30, 2022
Member since:Aug 14, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
CA

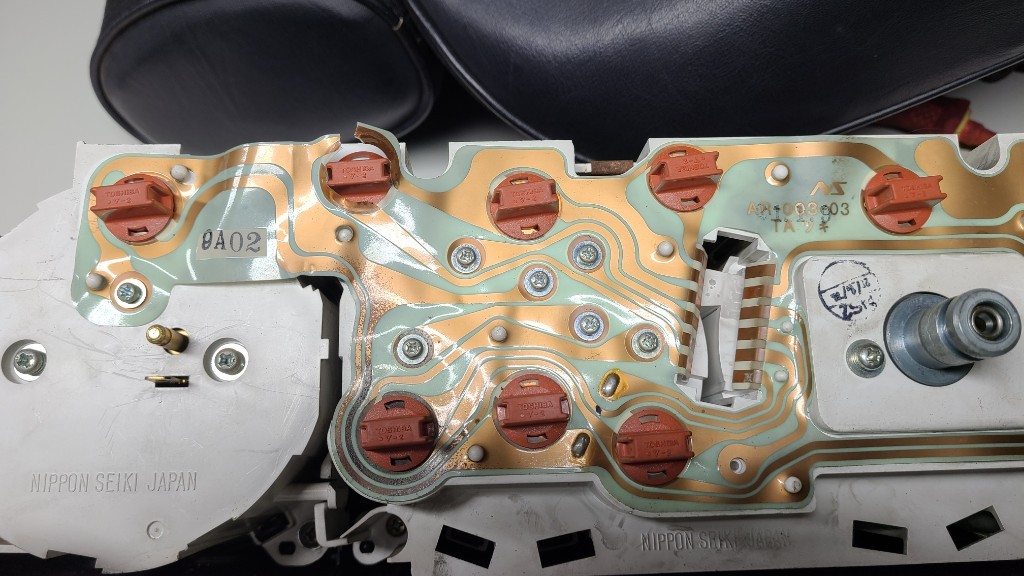

It looks to me that that copper trace is a ground for several lights and the tach, judging by the screw through it at the tach end. There is also a screw through the same trace in the middle of the photo (speedometer) directly below the third lamp socket from the left. You could run a small wire with eye or U terminals from one screw to the other. That would tie the ground across the break. Be careful that the wire terminals don't touch anything else.

.

"Hang on a minute lads....I've got a great idea."

 Posted: Sep 9, 2022 12:51PM
 Edited:  Sep 9, 2022 01:15PM
Total posts: 13954
Last post: Sep 26, 2022
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA
T  If it's just the light for the tach I don't care.  If it makes the tach work, I need to fix.  Broke it removing the gauges.



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
