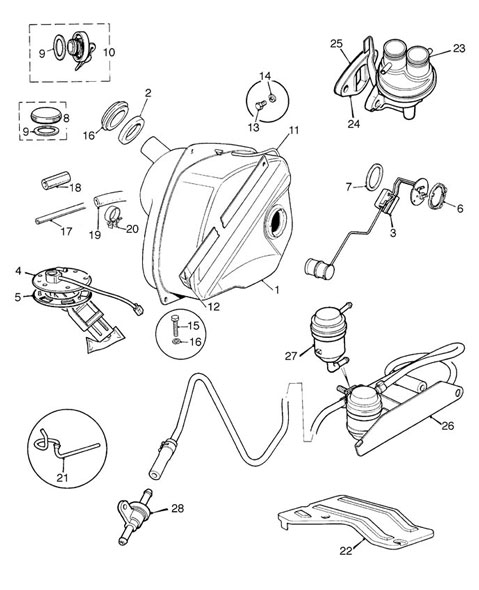

Classic Mini Cooper Fuel Tanks and Pumps

MINI Catalog Page 7-45
Records - of

#

Part No

Qty

Description

ARP1043 1
Petrol tank 7.5 gallons, standard filer neck
998cc
WFE10093 1
Petrol tank 7.5 gallons, restricted neck for lead free
No Longer Available
WFE10420 1
Petrol tank 7.5 gallons, restricted neck (open loop)
No Longer Available
WFE104530 1
Petrol tank 7.5 gallons, restricted short neck (Germany)
No Longer Available
WFE106140 1
Petrol tank 7.5 gallons, restricted neck was WFE10278
No Longer Available
WFE106090 1
Petrol tank 7.5 gallons, restricted short neck was WFE10401
SPI & MPI
2A2069 1
Seal, cushion for tank to body
XNB10007 1
Fuel tank sender unit with seal (7) and ring (6) Pre injection
Use AHU1029
XNB100380 1
Fuel tank sender unit less seal (7) and ring (6)
Injection only
WFX100810 1
Fuel pump, was WFX10045 for SPI
SPI & MPI
EDP9317 1
Seal, fuel pump to tank
Injection only
ARA1501 1
Locking ring for sender unit to tank seal
ARA1502 1
Seal, sender unit to tank
WLD10027 1
Fuel cap, black non vented was NAM3927
21A2109 1
Seal for petrol caps
10  WLD100660 1
Fuel cap, locking stainless steel, non vented
11  CRC7575 1
Vent pipe for tank
11  GWW202M 1
Vent pipe for tank 3/16” (4.7mm) plastic tube
Sold per metre
12  21A2838 1
Strap for petrol tank
13  GFK5184 1
Bolt 5/16” UNF x 3/4” long for strap to seat pan
Use GHF120
14  WL2051 1
Lock washer 5/16”
15  GFK5187 1
Bolt 5/16” UNF x 2” fully threaded to help pre shape strap
16  14A7057 1
Seal for standard neck length to body, pre 1996
16  WGG100010 1
Seal for short neck to body, thin type fitted to WFE106090
All MPI
17  21A919 1
Fuel line pipe 96” long, 998cc Pre 1990 1/4” bore
Use PP29
18  6K838 1
Protection sleeve for Fuel line was WZF10002
No Longer Available
19  21A2332 1
Braided petrol hose 5/16” bore 2.5” long
As required
19  PPK1 1
Braided petrol hose, 1/4” bore 2.5” long
As required
19  PPK2 1
Braided petrol hose, 1/4” bore 5” long
As required
19  PPK3 1
Braided petrol hose, 1/4” bore 7.5” long
As required
19  PPK4 1
Braided petrol hose, 1/4” bore 10” long
As required
19  PPK5 1
Braided petrol hose, 1/4” bore 12” long
As required
19  PPK6 1
Braided petrol hose, 1/4” bore 15” long
As required
19  PPK7 1
Braided petrol hose, 1/4” bore 22” long
As required
20  ACH5854 2
Clip for braided hose (alternative GHC406 worm drive clip)
As required
21  WFH10066 1
Hose, moulded fuel line, tank to feed pipe under floor 1990on
No Longer Available
22  WJX10010 1
Protector for fuel lines 1990 on
No Longer Available
23  AZX1818 1
Mechanical fuel pump 998cc
23  AZX1817 1
Mechanical fuel pump 1275cc HIF44 carb 1990 on
23  WND10005 1
Mechanical fuel pump 1275cc HIF38 carb (open loop)
5/16” pump inlet
24  GUG705603GM 1
Spacer block with gaskets for pump to block
25  GUG705779GM 2
Gasket only for spacer block to pump or block
26  WFU100560 1
Bracket on fuel tank for fuel cut off valve
No Longer Available
27  WLV10007 1
Fuel cut off valve
No Longer Available
28  WLV10009 1
Valve, 2 way
No Longer Available
