Whats a typical Oil pressure
Orig. Posting Date | User Name | Edit Date |
Apr 19, 2016 06:25PM | Spitz | |
Apr 19, 2016 05:20PM | DyeLooper | |
Feb 1, 2016 06:16PM | malsal | |
Feb 1, 2016 06:01PM | Spitz | |
Feb 1, 2016 05:47PM | triggerboy | |
Feb 1, 2016 05:12PM | DyeLooper | |
Jan 31, 2016 07:14PM | 1963SV2 | |
Jan 31, 2016 03:12PM | malsal | Edited: Feb 1, 2016 07:23AM |
Jan 31, 2016 02:27PM | DyeLooper | |
Jan 31, 2016 09:36AM | triggerboy | |
Jan 31, 2016 09:30AM | Hunter2 | |
Jan 31, 2016 08:53AM | tmsmith | |
Jan 31, 2016 08:36AM | dimitris | Edited: Jan 31, 2016 08:40AM |
Jan 31, 2016 08:31AM | Spitz | Edited: Jan 31, 2016 09:21AM |
Jan 30, 2016 10:55PM | minimans | |
Jan 30, 2016 09:12PM | dimitris | |
Jan 30, 2016 08:59PM | Spitz | |
Jan 30, 2016 07:29PM | DyeLooper | |
Nov 7, 2013 04:25PM | DyeLooper | |
Nov 7, 2013 03:11PM | minimans |
Found 26 Messages
Total posts: 13978
Last post: Jan 15, 2024 Member since:Jan 22, 2003
|
Cars in Garage: 4
Photos: 381 WorkBench Posts: 1 |
|
That I'm not sure about.  erhaps grit lodged on the relief valve(?)…can't remember if that and the spring was replaced
Others will know better than I
Sounds like you have a healthy running engine though
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
Total posts: 232
Last post: Mar 17, 2019 Member since:Oct 8, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks for all the input everyone, much appreciated.
Jason
Total posts: 8382
Last post: Jan 13, 2022 Member since:Feb 7, 2006
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
It should raise it. You could install a washer of the correct thickness to see if it does raise it while you are waiting for the new spring to arrive or install an adjustable valve.

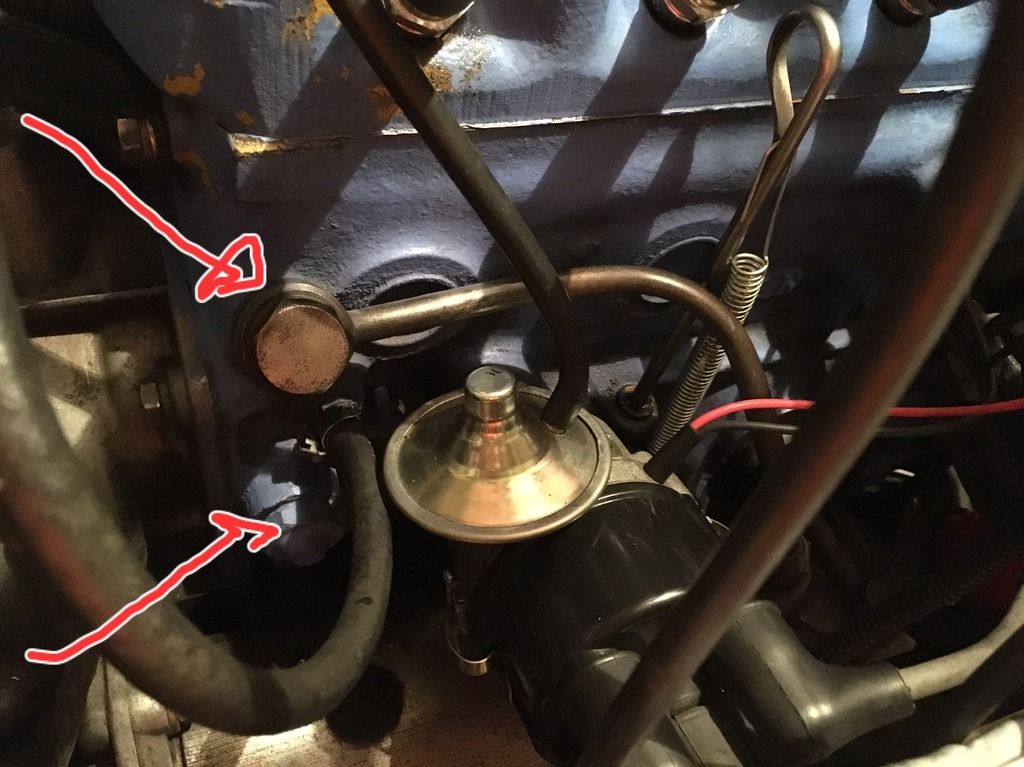

Sir Mal, where is the spring located? Im not quite familiar with that spring,I may need to check mine too.
Two arrows, which one? Thanks
The lower one tb, it's in the Haynes manual or the factory workshop manual.
If in doubt, flat out. Colin Mc Rae MBE 1968-2007.
Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.
Total posts: 13978
Last post: Jan 15, 2024 Member since:Jan 22, 2003
|
Cars in Garage: 4
Photos: 381 WorkBench Posts: 1 |
|
One other thing MightDog......
Good oil and a good filter will also reflect a better/constant pressure.
Many use VR1 20/50 or Castrol 4 stroke Motorcycle 20/50.
Use a good filter....WIX or K&N come to mind
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
Total posts: 431
Last post: Mar 28, 2016 Member since:Oct 2, 2015
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
It should raise it. You could install a washer of the correct thickness to see if it does raise it while you are waiting for the new spring to arrive or install an adjustable valve.
Sir Mal, where is the spring located? Im not quite familiar with that spring,I may need to check mine too.
Two arrows, which one? Thanks
Total posts: 232
Last post: Mar 17, 2019 Member since:Oct 8, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks Ian....Looks like I will not change anything untill I start running it down the road. Time to hit the wheel bearings/rotors next. Winter projects, love'em!
Thanks again.
Jason
Total posts: 1716
Last post: Oct 18, 2020 Member since:Oct 18, 2011
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
There are known knows ..and unknown unknowns..and...
Your spring MAY be shorter because someone replaced the standard plunger with a ball ??? A shorter spring MAY lower oil pressure if its allowing the shuttle to come off its seat ..or maybe the bearings are worn??
The numbers you quote in your original post look fine by me.  eople quote all sorts of numbers at "idle"... but that may mean anything from 600+ to 1200 rpm.. the difference will have quite an impact on what the gauge shows.
You will see 10psi/thousands revs quoted as ideal.. this probably means 60 psi at 6K. However, I don't think I've seen a (healthy Mini engine that doesn't register its maximum pressure once you get to about 3K revs.
Mine runs a tidge over 25 at idle (900 rpm) and the same over 75 at anything over 2.5k rpm once the engine is warm. I set it that way when the engine was built over 20 years ago and it doesn't vary.
Before you go and buy one of the fancy adjustable fittings just be aware that you can get the same result from a couple of copper sump plug washers....
Good luck, Ian
Total posts: 8382
Last post: Jan 13, 2022 Member since:Feb 7, 2006
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
It should raise it. You could install a washer of the correct thickness to see if it does raise it while you are waiting for the new spring to arrive or install an adjustable valve.
If in doubt, flat out. Colin Mc Rae MBE 1968-2007.
Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.
Total posts: 232
Last post: Mar 17, 2019 Member since:Oct 8, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks everyone for the great information, I should of seen that in the manual. Once I get the car back on the ground, I will be able to tell more. I do know that my spring is shorter then what is recommended by the Haynes manual (72.5mm/2.854") and should be replaced according to the Haynes manual. So If I do replace it with a longer spring, this will lower the idle pressure?
Jason
Total posts: 431
Last post: Mar 28, 2016 Member since:Oct 2, 2015
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Mine was kinda way down to 15lbs on hot idle , but the car pulls strong i dont see any irregularity in the performance or any rougness, so i remove that tiny nut that holds the copper tube to back of the oil pressure gauge and to my surprise i saw some dust, and some strands of i dunno what that was, i clean it thouroughly and put it back together, now my pressure at hot idle is back to 40-50lbs.
Total posts: 6469
Last post: Sep 29, 2022 Member since:Nov 2, 2006
|
Cars in Garage: 4
Photos: 1354 WorkBench Posts: 2 |
|
My 998, 1380 were 70-75 psi at startup 60ish at highway cruise and 45-50ish at hot idle. Can't tell with the 1098, no Oil Press gauge.
However, my early experience with the 998 headed south to MMW in Vallejo in 1997 was that as Coolant Temp rose towards very hot as indicated by Smith's gauge, the running oil pressure would drop significantly below 30 psi as indicated by the Smith's gauge...this was while climbing the steeper hills on I5 in southern Oregon in very warm weather.
Being an older fraidy cat I added both an oil cooler and an extra radiator to better manage engine coolant/oil temps and oil psi as needed in the circumstances (like Mojave Desert, climbing the Halleran Grade to Los Vegas etc.). Also added extra radiator in Australia, saw steady 45 C/113 F crossing the Kimberley in Western Australia with loaded Van. Worked.
Total posts: 3749
Last post: Mar 26, 2024 Member since:Jun 23, 2000
|
Cars in Garage: 1
Photos: 201 WorkBench Posts: 0 |
|
I don't think you will really be able to warm the oil without running on the road.
I have noticed in our new build that the oil temp lags behind the coolant temp on my way to work in the morning.
Oil temp will modulate oil pressure at some point. Certainly there is a drop in pressure after the first 5 minutes of running even at a standstill, so a little bit of temp increase will cause a drop in pressure.
Total posts: 2022
Last post: Jan 14, 2022 Member since:Mar 8, 2002
|
Cars in Garage: 0
Photos: 1 WorkBench Posts: 1 |
|
Dunno Matt my segment is from a Rover manual..maybe they got it wrong! interesting this cross check
"MINI WORKSHOP MANUAL
Publication Number RCL 0193ENG - 2nd Edition Date: 12/96 "
Total posts: 13978
Last post: Jan 15, 2024 Member since:Jan 22, 2003
|
Cars in Garage: 4
Photos: 381 WorkBench Posts: 1 |
|

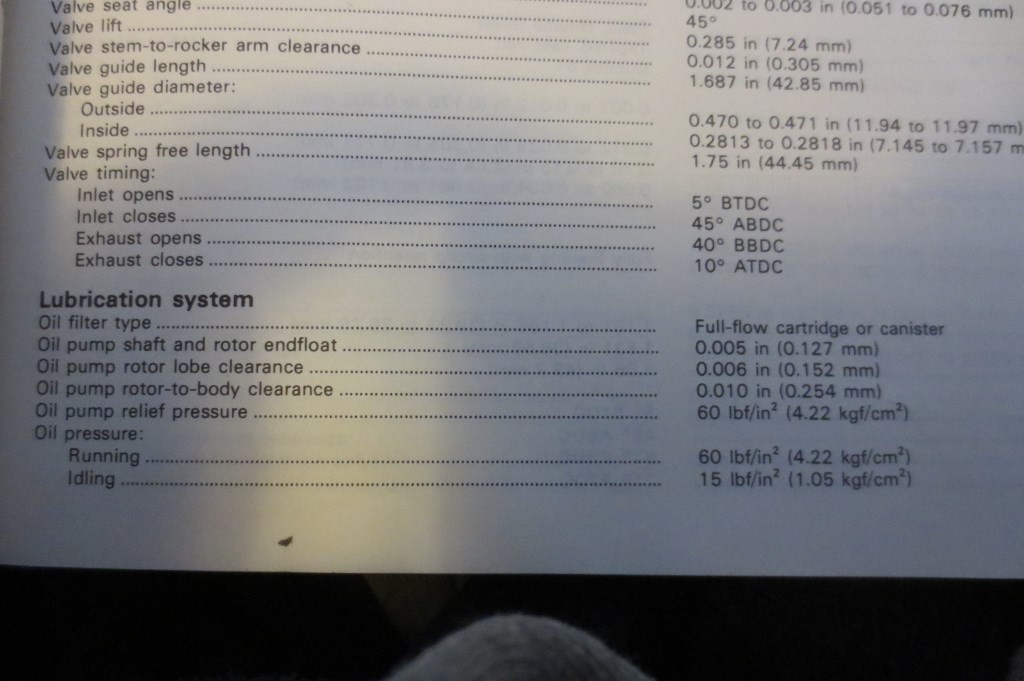

I checked two different Haynes....both say 15lb @ idle. Idle and fast idle range from 500 - 1200 for different years
Also checked a 1978 Driver's Handbook....15lb @ 750-950 rpm and 40 - 60lb normal running
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
Total posts: 1404
Last post: Jun 21, 2018 Member since:Oct 8, 2013
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
a quick look at the manual says
Pressure at idle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 bar
thats around 7lbs
7Ibs??? That's way to low. At 25Ibs I'm thinking rebuild time. But as long as the pressure comes up off idle to at least 50Ibs I'd be happy to run it on the road. My sons mgb shows zero at idle and 50max hot and he's run it like that for years! Still doesn't rumble at all and he's got no money to rebuild it anyway..........
Mini's are like buses they come along in a bunch
Total posts: 2022
Last post: Jan 14, 2022 Member since:Mar 8, 2002
|
Cars in Garage: 0
Photos: 1 WorkBench Posts: 1 |
|
a quick look at the manual says
Pressure at idle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 bar
thats around 7lbs
Total posts: 13978
Last post: Jan 15, 2024 Member since:Jan 22, 2003
|
Cars in Garage: 4
Photos: 381 WorkBench Posts: 1 |
|
Your numbers in your original post are normal.
Haynes does indeed state oil pressure in the engine section....at least mine does. I think their hot idle presure is 15lb
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
Total posts: 232
Last post: Mar 17, 2019 Member since:Oct 8, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |

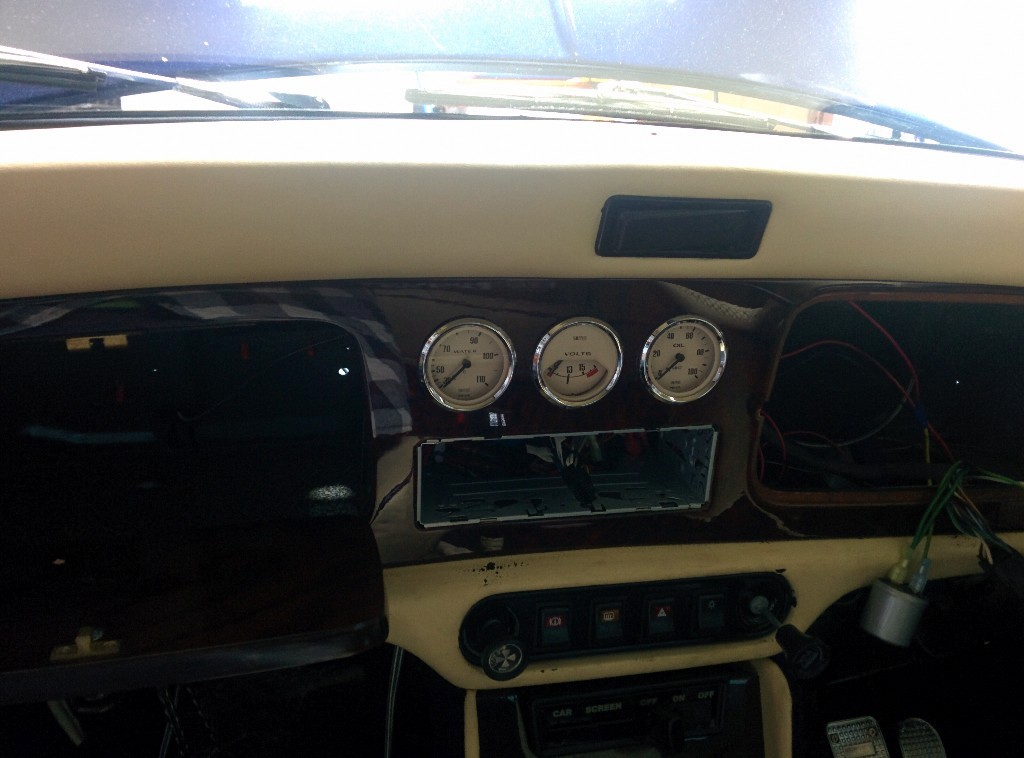

So...Finally added a Smith analog oil pressure gauge. Fired it up today, I'm getting 70PSI cold idle. Then sits at 70PSI after being warmed up. Did not take it for a cruise due to the fact I have not no front wheels (front wheel bearing changes/rotor/brake pads/ etc, etc, etc). 70 PSI cold and warmed up? To high? Any information would be greatly appreciated. Once I have feet on the ground I can see what's really happening and make adjustments accordingly...
Thanks in advance...
Jason
Jason
Total posts: 232
Last post: Mar 17, 2019 Member since:Oct 8, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Cylinder pressure has nothing to do with oil pressure. It depends on the static compression ratio and the duration of the cam PLUS the sealing of the rings and valves. 205psi is a high number indicating a high static CR and/or not a long duration cam. For comparison I get 175psi on a somewhat stock Cooper S 1275 with a 260ish duration cam. I would imagine your motor requires high test gas .... to prevent detonation.
I was not sure if the cylinder compression numbers would be needed, so I just posted them. I do run hi test in it though. I hope my numbers come in around what I have seen already...Thanks all.
Jason
Total posts: 1404
Last post: Jun 21, 2018 Member since:Oct 8, 2013
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
My 1275 s runs 100psi cold idle, 75psi cruise hot, and 30psi hot idle Not sure about the 100psi cold will have to check the relief valve me thinks......
Mini's are like buses they come along in a bunch
