Alternator Wiring Help
Created by: Rosebud
Orig. Posting Date | User Name | Edit Date |
Oct 12, 2017 09:12PM | Rosebud | |
Oct 11, 2017 11:42PM | Alex | |
Oct 11, 2017 07:04PM | Rosebud | |
Oct 11, 2017 05:56PM | dklawson | |
Oct 11, 2017 05:01PM | Rosebud | Edited: Oct 11, 2017 05:13PM |
Total posts: 1368
Last post: Jul 20, 2023 Member since:Jul 15, 2008
|
Cars in Garage: 0
Photos: 117 WorkBench Posts: 1 |
|
Quote:
Originally Posted by Alex
Quote:
Must be a slip of the finger between brain and keyboard, but you most definitely say there is a black wire coming out of your old alternator plug in pic 1 - I'm sure you meant brown.

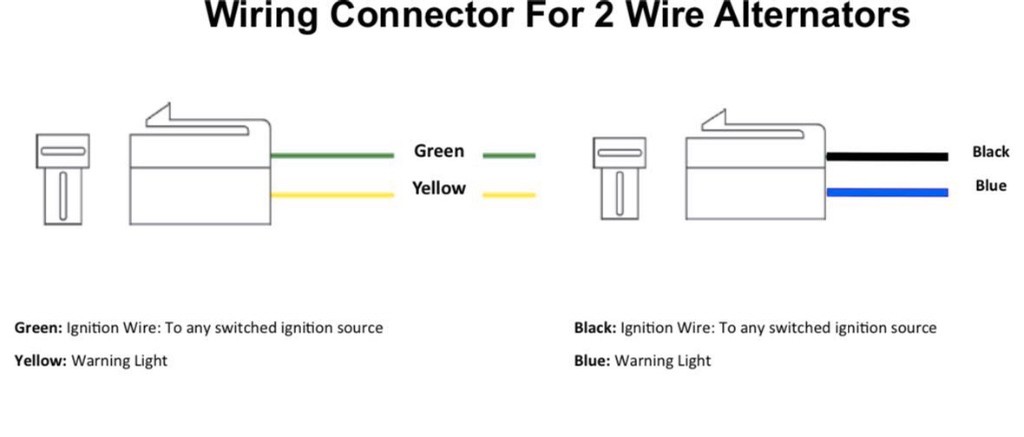

The RAC902 plug comes in two flavours, yellow & green and blue & black - the Powerlite page has some very clear wiring instructions for both types. //www.powerlite-units.com/products/rac902/ and //media.powerlite-units.com/uploads/files/2015/04/24/RAC902_Ch5bwIX.pdf
Must be a slip of the finger between brain and keyboard, but you most definitely say there is a black wire coming out of your old alternator plug in pic 1 - I'm sure you meant brown.
The RAC902 plug comes in two flavours, yellow & green and blue & black - the Powerlite page has some very clear wiring instructions for both types. //www.powerlite-units.com/products/rac902/ and //media.powerlite-units.com/uploads/files/2015/04/24/RAC902_Ch5bwIX.pdf
Total posts: 10238
Last post: Apr 26, 2024 Member since:Mar 24, 1999
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Quote:
Originally Posted by Rosebud

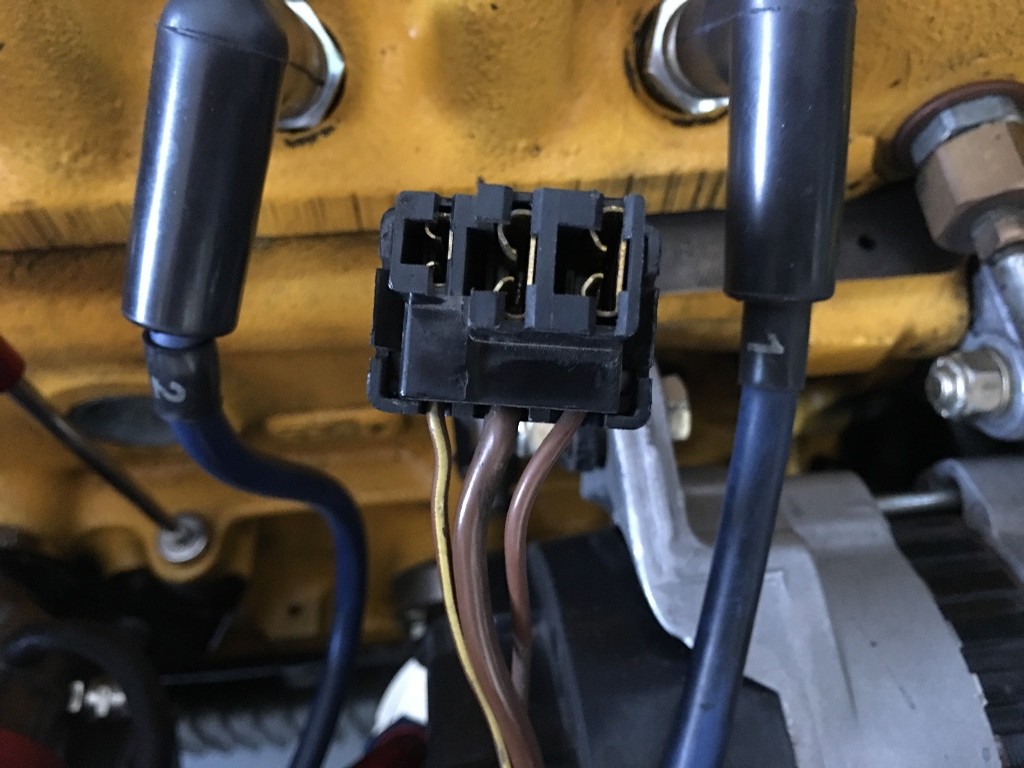

Received my new alternator today w/ no wiring instructions. Anyone familiar with this setup? My original alternator has a (3) wire plug coming from my wiring loom; (1) large gauge brown wire, (1) small gauge brown wire w/ yellow stripe, (1) small gauge black wire (see pic 1).
My new alternator has a (2) wire plug with a black wire and a blue wire and (1) large copper screw terminal coming from the side of the alternator (see pic 2). What goes where? I'm not very handy with a multimeter, but I have one if needed. Thanks!
My new alternator has a (2) wire plug with a black wire and a blue wire and (1) large copper screw terminal coming from the side of the alternator (see pic 2). What goes where? I'm not very handy with a multimeter, but I have one if needed. Thanks!
The RAC902 plug comes in two flavours, yellow & green and blue & black - the Powerlite page has some very clear wiring instructions for both types. //www.powerlite-units.com/products/rac902/ and //media.powerlite-units.com/uploads/files/2015/04/24/RAC902_Ch5bwIX.pdf
Total posts: 1368
Last post: Jul 20, 2023 Member since:Jul 15, 2008
|
Cars in Garage: 0
Photos: 117 WorkBench Posts: 1 |
|
Quote:
Originally Posted by dklawson
I don't see a black wire in your pictures.
Quote:
Originally Posted by dklawson
The brown wires in the old plug will both connect to the threaded stud on your alternator. To figure out the other two you are going to have to look up what your alternator is (Denso or?)
In general, one of the two wires on the new alternator gets connected to the old brown/yellow wire. That connection gives you the dash warning light. The remaining wire is generally called a sense wire. It is either connected to the threaded stud on the alternator OR to a switched terminal on the ignition switch. You need to look up your alternator to see which connection is right for what you have.
After reading your post and looking at Haynes I understand that both brown wires from the loom/plug should be attached to the threaded stud on the new alternator. I also know for a fact that the brown/yellow loom wire goes to the dash light. That leaves the (2) wires; blue and black from the new alternator. As you have said, one is the dash light, the other is the sense wire. The question is: which one is which?
The new alternator is a Powerlite RAC068. It's British made and identified as a "Lucas type lightweight high output alternator" [link]. Their online wiring digram is no help as they show the wires from their plug as yellow & green. Mine are blue & black. I assume I don't need to worry about the sense wire as I didn't have one on the old alternator.
So, blue to brown/yellow... or black to brown/yellow. Is this something I can verify w/ my multimeter?
Total posts: 9241
Last post: Aug 17, 2023 Member since:Jun 5, 2000
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
I don't see a black wire in your pictures. Black wires should be for ground connections so perhaps someone ran a back wire from the old alternator case to the engine block. Shouldn't really be needed.
The brown wires in the old plug will both connect to the threaded stud on your alternator. To figure out the other two you are going to have to look up what your alternator is (Denso or?)
In general, one of the two wires on the new alternator gets connected to the old brown/yellow wire. That connection gives you the dash warning light. The remaining wire is generally called a sense wire. It is either connected to the threaded stud on the alternator OR to a switched terminal on the ignition switch. You need to look up your alternator to see which connection is right for what you have.
The brown wires in the old plug will both connect to the threaded stud on your alternator. To figure out the other two you are going to have to look up what your alternator is (Denso or?)
In general, one of the two wires on the new alternator gets connected to the old brown/yellow wire. That connection gives you the dash warning light. The remaining wire is generally called a sense wire. It is either connected to the threaded stud on the alternator OR to a switched terminal on the ignition switch. You need to look up your alternator to see which connection is right for what you have.
Doug L.
Total posts: 1368
Last post: Jul 20, 2023 Member since:Jul 15, 2008
|
Cars in Garage: 0
Photos: 117 WorkBench Posts: 1 |
|
Received my new alternator today w/ no wiring instructions. Anyone familiar with this setup? My original alternator has a (3) wire plug coming from my wiring loom; (1) large gauge brown wire, (1) small gauge brown wire w/ yellow stripe, (1) small gauge black wire (see pic 1).
My new alternator has a (2) wire plug with a black wire and a blue wire and (1) large copper screw terminal coming from the side of the alternator (see pic 2). What goes where? I'm not very handy with a multimeter, but I have one if needed. Thanks!
My new alternator has a (2) wire plug with a black wire and a blue wire and (1) large copper screw terminal coming from the side of the alternator (see pic 2). What goes where? I'm not very handy with a multimeter, but I have one if needed. Thanks!
