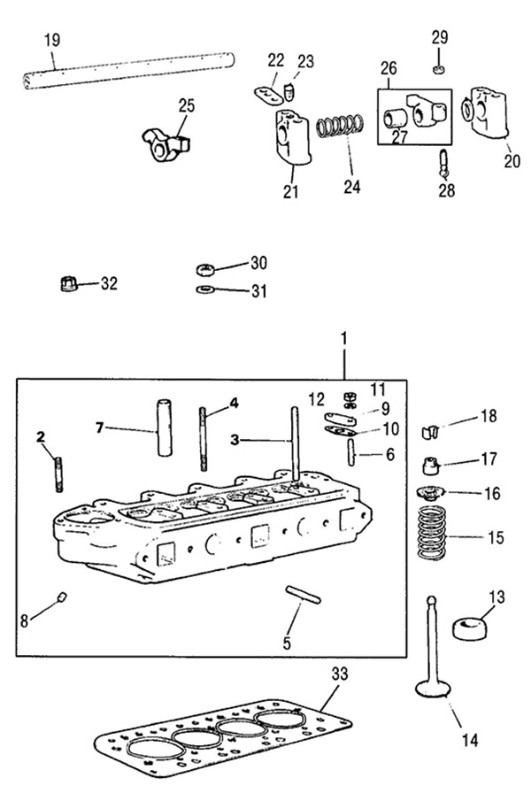

Classic Mini Cooper Cylinder Head, 998CC, 'A' Plus 1980 on
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | CAM6517 | 1 | Cylinder head L.C. |
| 1 | CAM6812 | 1 | Cylinder head - use TAM2168 H.C. Triple collet groove |
| 1 | TAM2168 | 1 | Cylinder head Lead free |
| 1 | GCG1007 | 1 | Rebuilt Small Bore Head For Unleadd Fuel Based on the CAM4810 late model casting |
| 1 | C-AHT88 | 1 | Large Valve Performance Small Bore Head 23.5cc Chambers |
| 2 | CHS2515 | 3 | Stud, water elbow |
| 3 | 51K885 | 2 | Stud, rocker cover long |
| 4 | 51K1473 | 2 | Stud, rockers short |
| 5 | 53K487 | 6 | Stud, manifold |
| 6 | 53K402 | 2 | Stud, heater tap valve take-off |
| 7 | 12G1111 | 8 | Valve guide, was 2A608 12G1963 alternative |
| 8 | RU612123 | 1 | Oil hole plug |
| 9 | 2A180 | 1 | Blanking plate, heater take-off If required |
| 10 | 88G221 | 1 | Gasket |
| 11 | GHF200 | 2 | Nut |
| 12 | GHF331 | 2 | 1/4" Lock washer for nut |
| 13 | AEA762 | 4 | Intake Valve Seat |
| 13 | TAM2152 | 4 | Intake Valve Seat Lead free |
| 13 | AEA763 | 4 | Valve insert exhaust, was 2A640 Use TAM2068 |
| 13 | TAM2068 | 4 | Valve Seat exhaust Lead free |
| 14 | TAM1062 | 4 | Inlet valve H.C. and lead free Triple collet groove |
| 14 | TAM1770 | 4 | Exhaust valve H.C. and lead free Triple collet groove |
| 14 | CAM6502 | 4 | Inlet valve, collett groove put up .140 thou from valve tip Use 12G1015 spring |
| 14 | CAM6503 | 4 | Exhaust valve collett grve put up .140 thou from valve tip Use 12G1015 spring |
| 14 | CAM6505 | 4 | Exhaust valve collett grve put up .140 thou from valve tip Lead free, chrome stem |
| 14 | CAM6391 | 4 | Inlet valve, top of collett groove .220 thou from valve tip Use AEA311 spring |
| 14 | 12A1987 | 4 | Exh valve, top of collett groove .220 thou from valve tip Use AEA311 spring |
| 15 | 12G1015 | 8 | Valve spring for all triple collett valves Plus CAM6502/3/5 |
| 15 | AEA311 | 8 | Valve spring For 12A1987/CAM6391 |
| 16 | 88G617 | 8 | Top cap, single groove |
| 16 | AHU1897 | 8 | Top cap, triple groove |
| 17 | ADU4905 | 8 | Valve oil seal |
| 18 | 88G459 | 8 prs | Cotter Single groove valve |
| 18 | CAM6975 | 8 prs | Cotter Triple groove valve |
| 19 | 12A1950 | 1 | Rocker shaft |
| 20 | 12G1926 | 3 | Rocker shaft post with oil feed hole |
| 21 | 12G1927 | 1 | Rocker shaft post tapped |
| 22 | 2A515 | 1 | Rocker shaft post locking plate NLA use 2A259 |
| 23 | 2A258 | 1 | Locating plate plug |
| 24 | 6K556 | 3 | Rocker spacer spring |
| 25 | CAM289 | 8 | Rocker sintered |
| 26 | 12G1221 | 8 | Rocker forged Alternative in sets |
| 27 | 2A21 | 8 | Rocker bush Not fitted to CAM289 |
| 28 | AEG167 | 8 | Adjusting screw |
| 29 | NT605061 | 8 | Adjusting nut |
| 30 | 51K1193 | 9 | Cylinder head nut, until CAM4545 |
| 31 | GHF302 | 9 | Washer, until CAM4545 fitted |
| 32 | CAM4545 | 9 | Head nut with built in washer |
| 33 | GUG2506HG | 1 | Cylinder head gasket, was TAM2121B and AJM302 |
