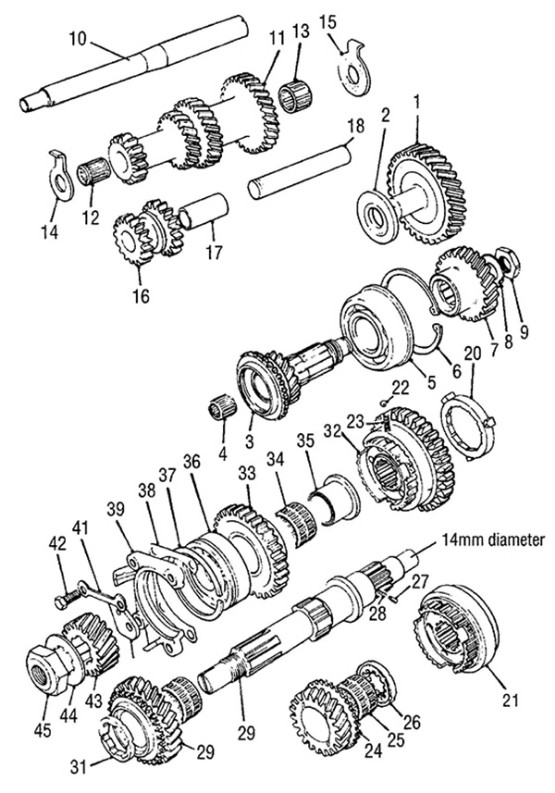

Classic Mini Cooper 4 Synchro Gears Up to 1979 with 14MM Nose Mainshaft
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | 22G943 | 1 | Gear idler, 31 teeth shaft diameter .750" (19.05mm) |
| 2 | 22A1545 | 2 | Thrust washer idler gear .130-131" (3.30-3.32mm) Green code |
| 2 | 22A1546 | 2 | Thrust washer idler gear .132-133" (3.35-3.37mm) Black code |
| 2 | 22A1547 | 2 | Thrust washer idler gear .134-135" (3.40-3.42mm) White code |
| 2 | 22A1548 | 2 | Thrust washer idler gear .136-137" (3.45-3.47mm) Blue code |
| 2 | 22A1549 | 2 | Thrust washer idler gear .138-139 Red code |
| 3 | 22G1093 | 1 | 1st motion shaft 17 teeth Except 1275GT/’S’ |
| 3 | 22G1371 | 1 | 1st motion shaft 18 teeth 1275GT/’S’ |
| 4 | CHM172 | 1 | Roller needle bearing |
| 5 | ADU7619 | 1 | 1st motion ball bearing |
| 6 | 22G850 | 1 | Circlip bearing |
| 6 | 22G851 | 1 | Circlip bearing |
| 7 | 22G849 | 1 | 1st motion gear shaft drive 24 teeth |
| 8 | DAM4000 | 1 | Washer locktab |
| 9 | 2A3548 | 1 | Nut |
| 10 | 22G931 | 1 | Layshaft |
| 11 | 22G927 | 1 | Laygear 15.20, 25.29 teeth Except 1275GT/’S’ |
| 11 | 22G1040 | 1 | Laygear 15.20, 25.29, smaller diameter 29 teeth area 1275GT/’S’ |
| 12 | 88G396 | 1 | Needle roller bearing |
| 13 | CHM141 | 1 pr | Needle roller bearing, was 22G855 |
| 14 | 22G856 | 1 | Thrust washer laygear .123-124" (3.12-3.14mm) |
| 14 | 22G857 | 1 | Thrust washer laygear .125-126 |
| 14 | 22G858 | 1 | Thrust washer laygear .127-128 |
| 14 | 22G859 | 1 | Thrust washer laygear .130-131 |
| 15 | 22G860 | 1 | Thrust washer laygear, large |
| 16 | 22G1034 | 1 | Reverse idler gear Remote change |
| 16 | 22G1852 | 1 | Reverse idler gear Rod chang |
| 17 | 22G825 | 1 | Bush (single one piece bush) |
| 18 | DAM8038 | 1 | Reverse idler gear shaft |
| 19 | 22G833 | 1 | 3rd motion shaft with small end nose .550" (13.97mm) |
| 20 | 22G2033 | 4 | Baulk ring |
| 21 | 22G2264 | 1 | 3rd and 4th synchronizer hub BL# DAM7456 |
| 22 | BLS107 | 6 | Ball for synchronizer hub (3 per hub) |
| 23 | 22G2262 | 6 | Spring for synchronizer hub (3 per hub) |
| 24 | 22G1095 | 1 | 3rd speed gear (21 teeth) |
| 25 | AAU1816 | 1 | 3rd gear roller needle bearing was 88G496 |
| 26 | 22G947 | 1 | Retaining washer for 2nd gear |
| 27 | 22G843 | 3 | Peg 2 on 2nd gear |
| 28 | 22G154 | 2 | Spring |
| 29 | 22G1094 | 1 | 2nd speed gear 26 teeth |
| 30 | AAU1816 | 1 | Roller needle bearing was 88G495 |
| 31 | 22G839 | 1 | Thrust washer |
| 32 | DAM7455 | 1 | 1st and 2nd synchronizer hub was 22G2263 |
| 33 | 22G1096 | 1 | 1st speed gear 31 teeth |
| 34 | AAU1815 | 1 | Roller needle bearing was 88G494 |
| 35 | 22G837 | 1 | 1st speed gear journal |
| 36 | AAU1365-RHP | 1 | 3rd motion shaft ball bearing |
| 37 | 22G72 | 1 | Spring ring |
| 38 | 2A3714 | A/R | Shim, 2 thou |
| 38 | 2A3715 | 1 | Shim, 10 thou |
| 39 | 2A3581 | 1 | Locating plate |
| 40 | 22A522 | 1 | 3rd motion bearing retainer, remote type CWE |
| 40 | 22G2726 | 1 | 3rd motion bearing retainer, rod change NLA |
| 41 | DAM2377 | 2 | Locktab washer |
| 42 | SH505061 | 4 | Retainer screw |
| 43 | 22A399 | 1 | Final drive pinion 17 teeth 3.76:1 ratio |
| 43 | 22A413 | 1 | Final drive pinion 18 teeth 3.44:1 ratio |
| 44 | DAM6140 | 1 | Locktab washer |
| 45 | 22G48 | 1 | Retaining pinion nut |
