Forum Width:     Forum Type:

 Posted: Jul 19, 2019 07:50AM
Total posts: 13770
Last post: Sep 19, 2019
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA
Wasnt enough of an edge to grab.  Although it looks like I was rough...lol...I was careful to avoid the aluminum



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge







 Posted: Jul 17, 2019 07:23AM
 Edited:  Jul 17, 2019 12:15PM
Total posts: 8139
Last post: Sep 20, 2019
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Why didn't you press it out?


If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

 Posted: Jul 16, 2019 03:10PM
Total posts: 13770
Last post: Sep 19, 2019
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA

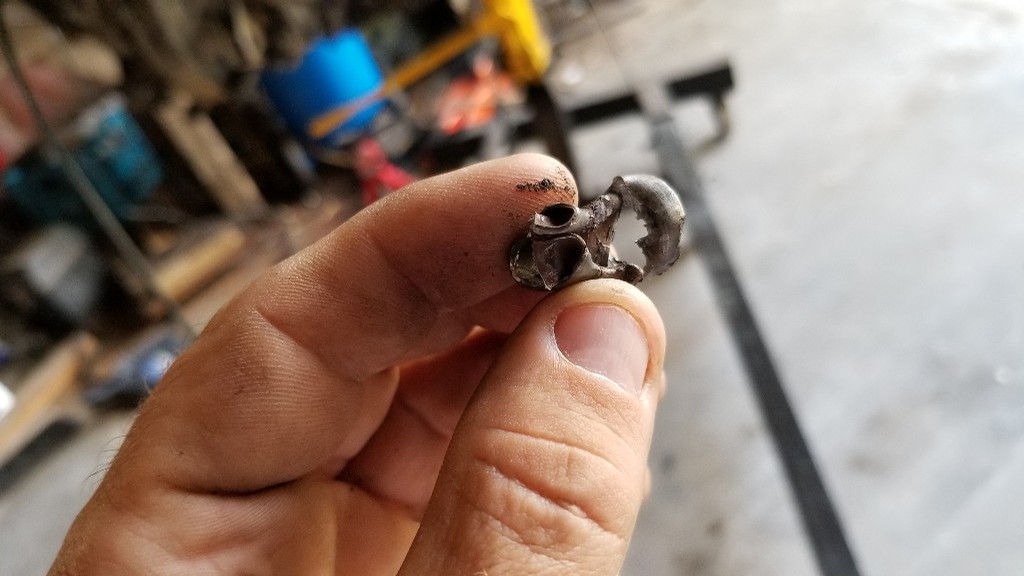

Success



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge







 Posted: Jul 5, 2019 08:58AM
 Edited:  Jul 17, 2019 07:06AM
Total posts: 8139
Last post: Sep 20, 2019
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by Spitz
Thanks
May try a punch after a little heat.  Tough to differentiate where the two meet
I would be careful it would not take much to break the aluminum mount off the casing then you are in for a load of work pulling the engine and gearbox.
Try pressing it out it is a lot more controllable than hitting it with a punch/drift and a hammer.


If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

 Posted: Jul 4, 2019 07:45PM
Total posts: 8642
Last post: Jul 5, 2019
Member since:Oct 27, 2000
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
I leave the outer steel sleeve and drill the rubber remains out.
Then I turn a new bush from HDPE. Unlike the rubber bush, A series oil doesn't rot it.

Kevin G

1360 power- Morris 1300 auto block, S crank & rods, Russell Engineering RE282 sprint cam, over 125HP at crank, 86.6HP at the wheels @7000+.

 Posted: Jul 4, 2019 05:08PM
Total posts: 13770
Last post: Sep 19, 2019
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA
Thanks
May try a punch after a little heat.  Tough to differentiate where the two meet



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge







 Posted: Jul 3, 2019 12:11PM
Total posts: 8139
Last post: Sep 20, 2019
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
I worked on one Mini where they used a piece of hose around the bolt to take up the slack, looked like a side of the road repair that had been on there for a while.

If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

 Posted: Jul 3, 2019 05:03AM
Total posts: 3910
Last post: Sep 10, 2019
Member since:Oct 8, 2011
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
I'm going out on a limb here. My first meeting with a rod change tranny the outer sleeve was there but the guts were gone. I used a 1/4 inch punch rounded tip shaped like half a ball. Coming from the rear of the car I drove the sleeve side into it's self being careful to drive straight in. Once it began to fold into it's self tap out from the side. I have since found a tiny socket a larger socket and a bolt to remove them correctly. I keep a hand full of spares and replace each job. Steve (CTR)

 Posted: Jul 2, 2019 04:59AM
Total posts: 9940
Last post: Sep 17, 2019
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB
Rod change gearbox where the stationary rod attaches.

 Posted: Jul 1, 2019 01:47PM
Total posts: 9029
Last post: Sep 15, 2019
Member since:Jun 5, 2000
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Showing my ignorance....
Where does that one go?  Is that the anchor point for the forward facing steady on later cars?

Doug L.
 Posted: Jul 1, 2019 05:35AM
Total posts: 9940
Last post: Sep 17, 2019
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB

11mm 1/4" drive Craftsman socket iirc to press it out.  You'll probably have to heat the casing too.  I did a tech article on it about 18 months ago.

Hammers are likely to break things.

 Posted: Jun 30, 2019 10:21PM
 Edited:  Jul 1, 2019 07:22AM
Total posts: 8139
Last post: Sep 20, 2019
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
I have removed a couple before with drifts and chisels but it is not the best way and can break the casting surrounding it.
Next time i will use a nut and bolt with suitable spacers and washers and tighten the nut up until it forces the locating tube out enough to get a grip on it with some vice grips.
A little heat on the cast aluminum may help as it expands quicker than the steel collar but remember it is fragile.


If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

 Posted: Jun 30, 2019 02:51PM
Total posts: 13770
Last post: Sep 19, 2019
Member since:Jan 22, 2003
Cars in Garage: 4
Photos: 381
WorkBench Posts: 1
CA

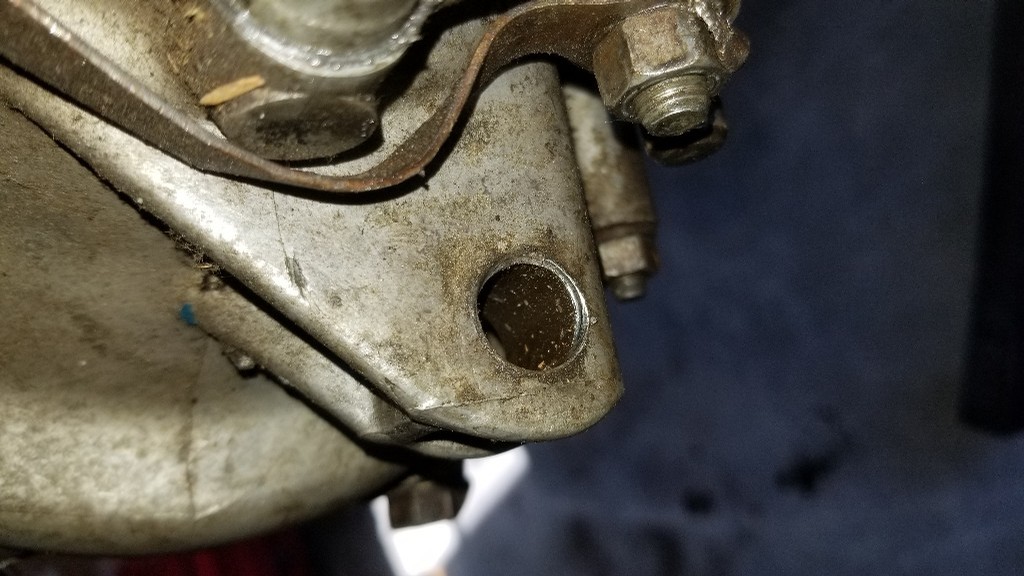

How the hell does one remove the oute
R race to install a new one.?
Tried hitting with a socket of same/smaller size



"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May

"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
