trevor94
Created by: trevor94
Orig. Posting Date | User Name | Edit Date |
Aug 14, 2019 07:36PM | 1963SV2 | |
Aug 14, 2019 12:13PM | 66Cooper'S | |
Aug 13, 2019 10:01AM | Dan Moffet | |
Aug 13, 2019 09:10AM | onetim | |
Aug 13, 2019 05:34AM | jedduh01 | |
Aug 13, 2019 04:34AM | onetim | |
Aug 12, 2019 01:09PM | trevor94 | |
Aug 11, 2019 02:54PM | 66Cooper'S | Edited: Aug 11, 2019 04:39PM |
Aug 11, 2019 11:25AM | Dan Moffet | |
Aug 11, 2019 08:44AM | thewerewolf | |
Aug 11, 2019 08:10AM | trevor94 |
Total posts: 1716
Last post: Oct 18, 2020 Member since:Oct 18, 2011
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Quote:
1....the plastic blade fan is typically very effective in application...
2....Run less "antifreeze in your mix, More water, add water wetter too!
3.....Keep your heater plumbed up (more water capacity)
4......A heater core (aftermarket) added in system is an easy extra rad too to consider = run it for the hot months,. remove for the cooler.
2. Most (if not everyone) can do without antifreeze for most ..and in many cases ..all of the year. It snowed here the other day but I haven’t used antifreeze for years.
3. I don’t ever stop the water flow through the heater. With the fan off and the windows open you won’t notice the small extra heat sink...
4. The core from a Mini heater makes an excellent additional radiator..
And I deleted the comment about alloy radiators .... But there are (at least) 4 different radiators made especially for Minis (ignoring the later front mounted versions).
5. An electric fan can be useful if you spend a lot of time stuck in traffic but can reduce air flow in normal driving conditions..
Cheers, Ian
Total posts: 3523
Last post: Jul 9, 2023 Member since:Feb 26, 1999
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|

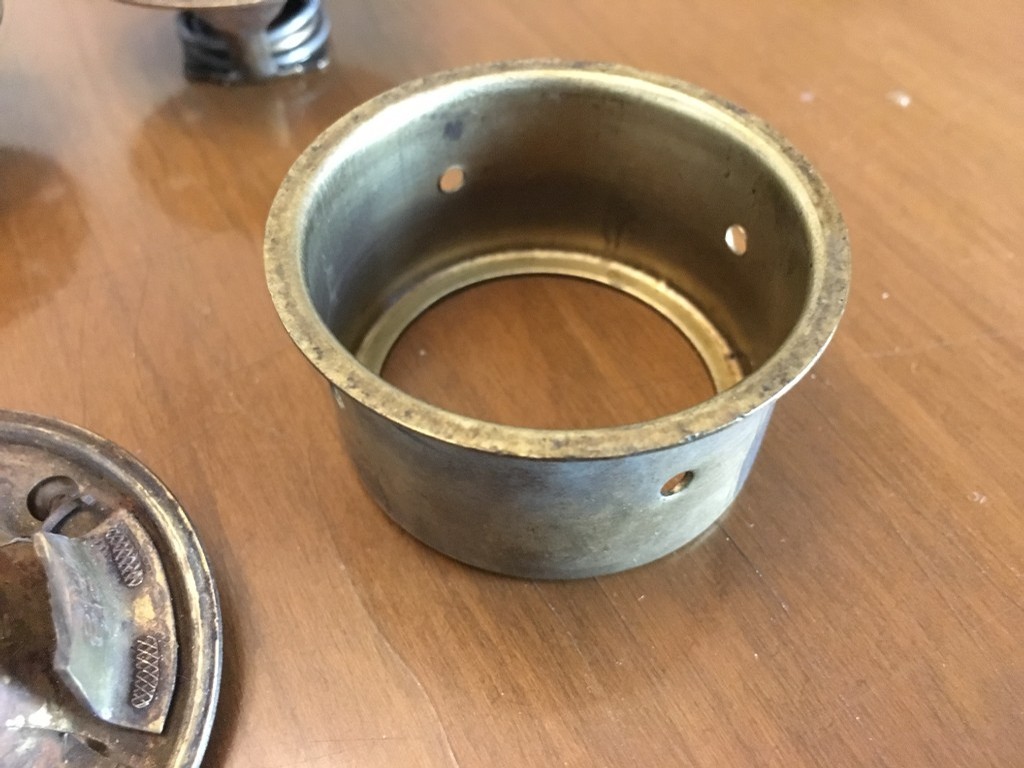

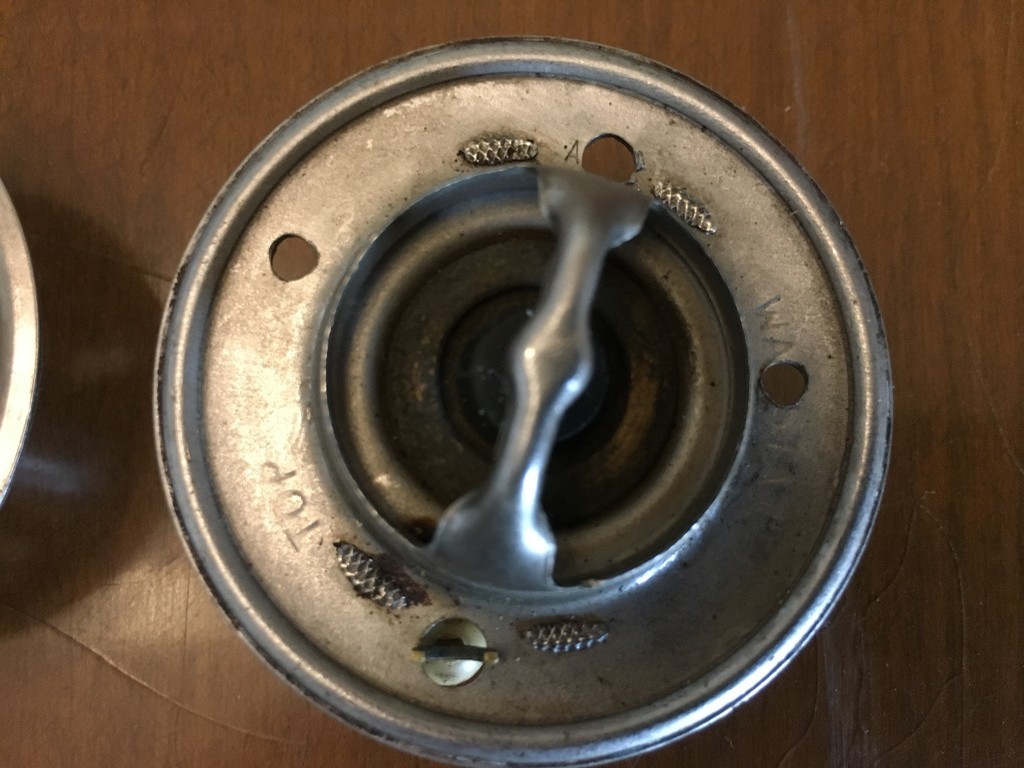

From your original question - picture of the holes drilled in the thermostat

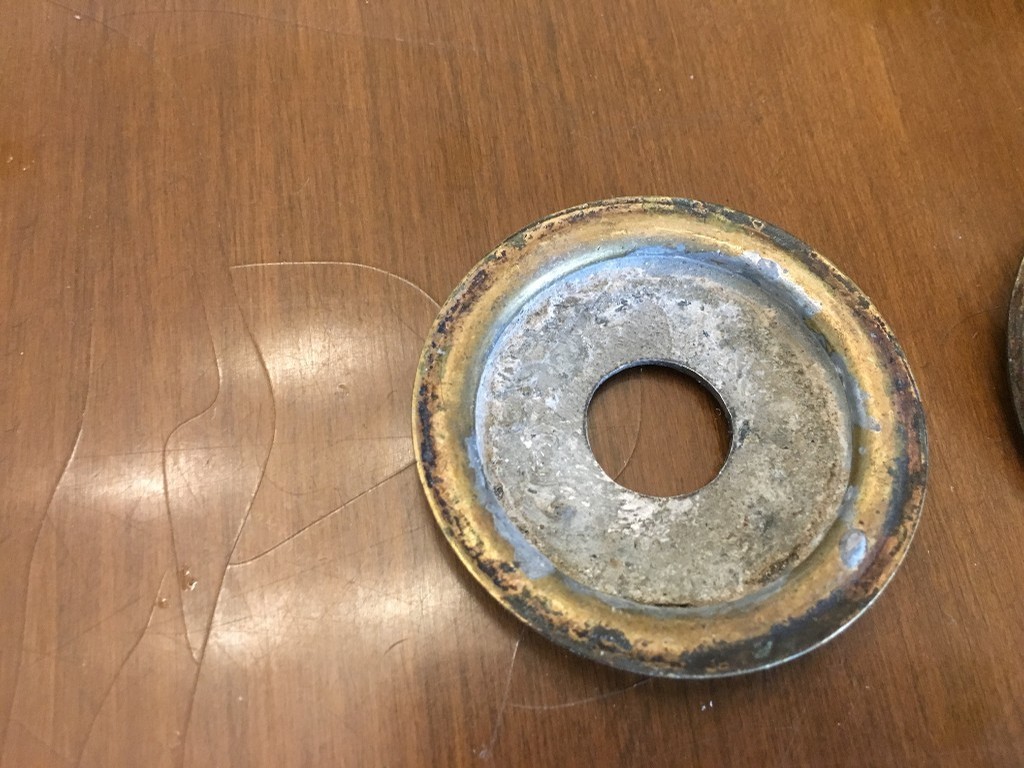

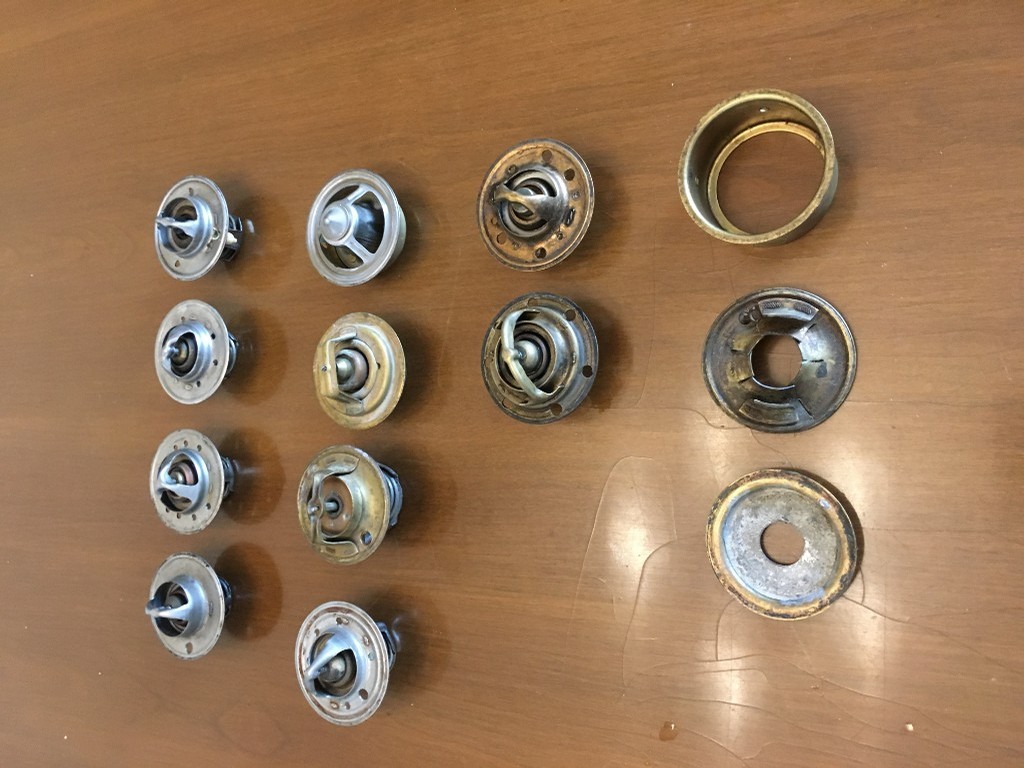

picture of various thermostats right to left - blanking plate, 165 degree, 180 degree, and 190 degree. Also shown are two experimental ones next to the blanking plate ( from an article by Keith Calver in Mini Magazine ) You will also note a "Mr. Gasket 180 degree thermostat" available at AutoZone. Believe it is for a Chevy.
picture of various thermostats right to left - blanking plate, 165 degree, 180 degree, and 190 degree. Also shown are two experimental ones next to the blanking plate ( from an article by Keith Calver in Mini Magazine ) You will also note a "Mr. Gasket 180 degree thermostat" available at AutoZone. Believe it is for a Chevy.
Total posts: 9528
Last post: Mar 27, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
I found it much easier to make a 1/4" aluminum plate spacer between the pulley hub and fan. It moved the fan out into the opening of the shroud, making the fan even more effective. Now I can use the Mini to blow leaves out of the garage.
.
"Hang on a minute lads....I've got a great idea."
Total posts: 1007
Last post: Jul 19, 2022 Member since:Jul 24, 2014
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |

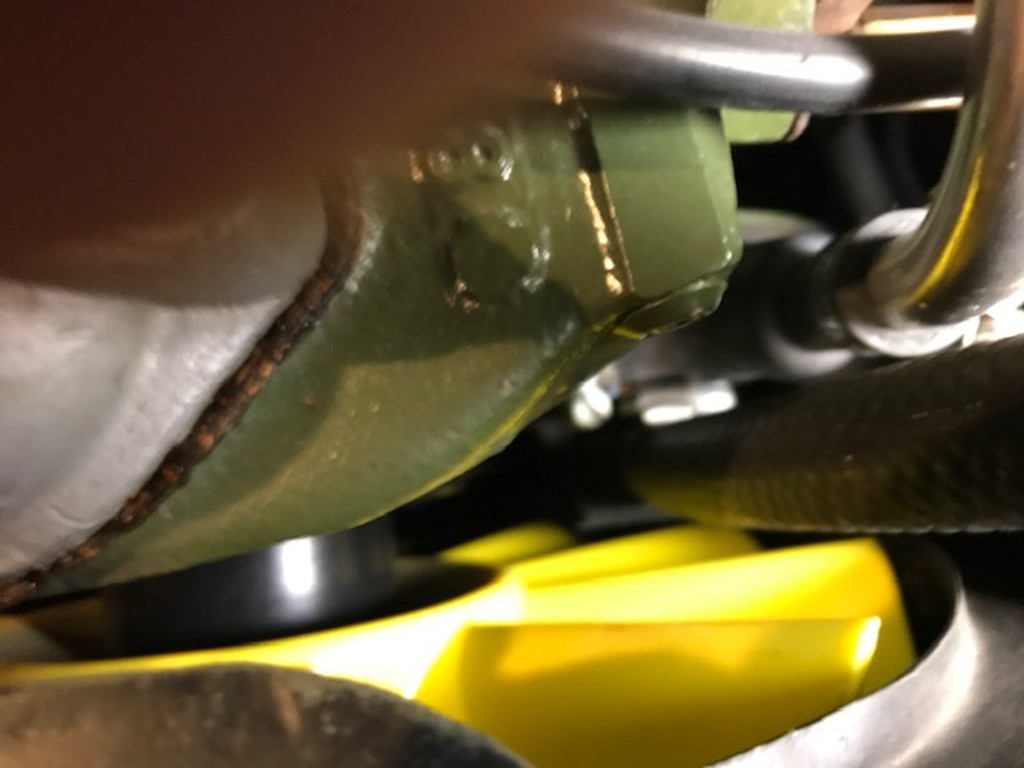

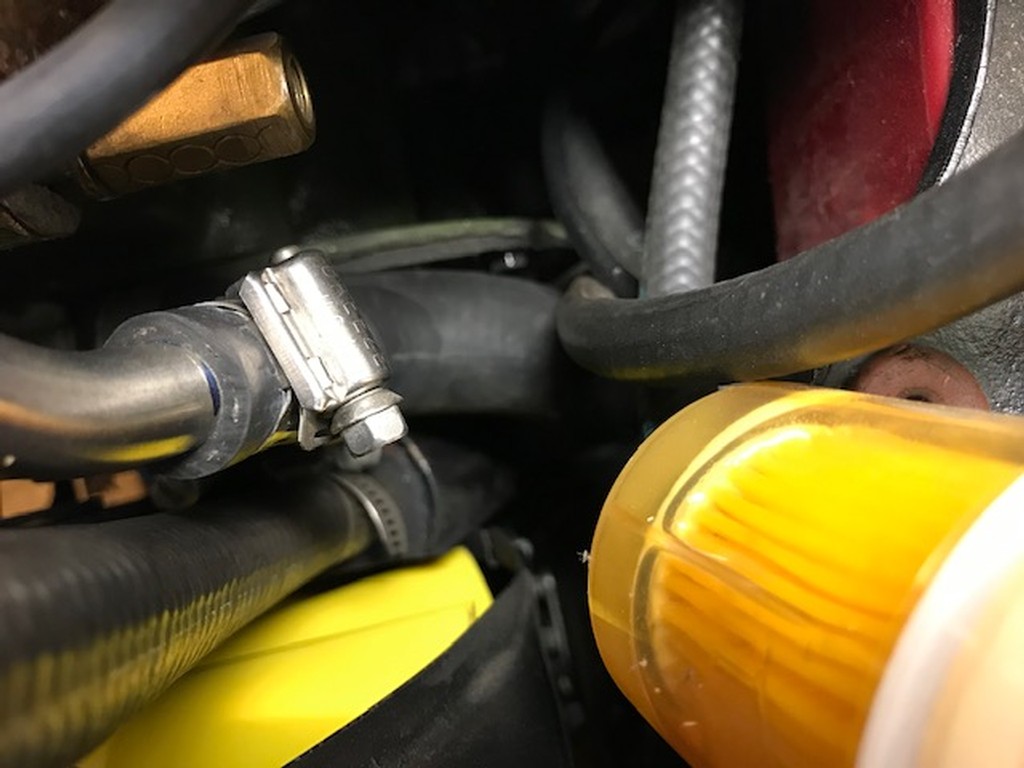

Kind of hard to get a good shot but here you go. There are other ways to make the conversion, but I used silver solder paste, you can buy on line from jewelry supply site, and a mapps gas torch, all in about $50.00 Cut as close to the nipple as you can.

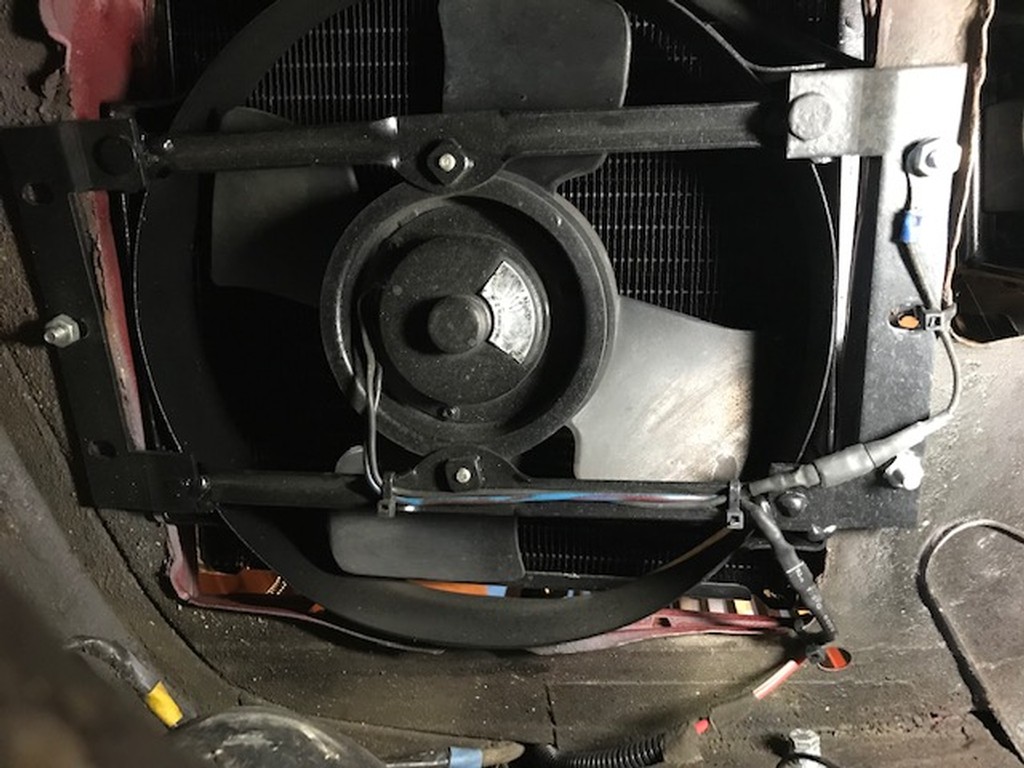

I am running a 1989 A+ 1275, in a 62 Cooper. Using a 160 Deg. thermostat with 3, 1/8th inch holes, six was too many and it could not maintain temp on cool days. Standard copper radiator, plastic fan, a new water pump and by the way there are two impeller types, and a electric fan relayed to a dash switch. The electric fan only gets used creeping around on a hot day, like Woodward dream cruise driving around for hours at 5 mph and under. At any normal speed the temp gauge shows 160, and up to 190 on a blistering hot day.
There is supposed to be a big rubber band around the radiator and body, as well as a seal at the back edge of the hood, but I don't have them on mine.
The concept on the mini when moving 25 mph or better is the entire under hood area becomes pressurized forcing air out the left wheel well that has a radiator, anything that interferes with that, like a flip front or a vented hood, will hurt it's cooling ability at speed.
I am running a 1989 A+ 1275, in a 62 Cooper. Using a 160 Deg. thermostat with 3, 1/8th inch holes, six was too many and it could not maintain temp on cool days. Standard copper radiator, plastic fan, a new water pump and by the way there are two impeller types, and a electric fan relayed to a dash switch. The electric fan only gets used creeping around on a hot day, like Woodward dream cruise driving around for hours at 5 mph and under. At any normal speed the temp gauge shows 160, and up to 190 on a blistering hot day.
There is supposed to be a big rubber band around the radiator and body, as well as a seal at the back edge of the hood, but I don't have them on mine.
The concept on the mini when moving 25 mph or better is the entire under hood area becomes pressurized forcing air out the left wheel well that has a radiator, anything that interferes with that, like a flip front or a vented hood, will hurt it's cooling ability at speed.
Total posts: 1649
Last post: Jun 22, 2022 Member since:Apr 30, 2009
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Which fan are you using?... the Tropical fans are a bugger to fit
the plastic blade fan is typically very effective in application...
Consider a Aluminum radiator upgrade too ( more capacity) better heat efficiency,... (ebay radiators are just fine) (but very hard to fit in a Mk1 with a fender shroud == also prepare to modify.
What temps are you seeing? = have you verified these tempeartures with a seperate 'temp gun' or such when running. 200 - 210 are Ok
Run less "antifreeze in your mix, More water, add water wetter too!
Keep your heater plumbed up (more water capacity)
A heater core (aftermarket) added in system is an easy extra rad too to consider = run it for the hot months,. remove for the cooler.
the plastic blade fan is typically very effective in application...
Consider a Aluminum radiator upgrade too ( more capacity) better heat efficiency,... (ebay radiators are just fine) (but very hard to fit in a Mk1 with a fender shroud == also prepare to modify.
What temps are you seeing? = have you verified these tempeartures with a seperate 'temp gun' or such when running. 200 - 210 are Ok
Run less "antifreeze in your mix, More water, add water wetter too!
Keep your heater plumbed up (more water capacity)
A heater core (aftermarket) added in system is an easy extra rad too to consider = run it for the hot months,. remove for the cooler.
Total posts: 1007
Last post: Jul 19, 2022 Member since:Jul 24, 2014
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Quote:
Originally Posted by trevor94
New to the forum. I did find that I had the fan backwards, & turned it around. There is no clearance due to the breather canister on the timing cover. I can't space it due to no room forward. I did get an idea to crush the canister to get clearance. Another idea was to go to electric fan but how would i mount the radiator since the electric fan mounts to the radiator & current cowl mounts to the frame
Total posts: 7
Last post: Jul 2, 2020 Member since:Jun 17, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
New to the forum. I did find that I had the fan backwards, & turned it around. There is no clearance due to the breather canister on the timing cover. I can't space it due to no room forward. I did get an idea to crush the canister to get clearance. Another idea was to go to electric fan but how would i mount the radiator since the electric fan mounts to the radiator & current cowl mounts to the frame
Total posts: 3523
Last post: Jul 9, 2023 Member since:Feb 26, 1999
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Quote:
Originally Posted by trevor94
can you run without a thermostat, 1275 with dual SU, i was told about drilling holes in the stat also. Can that be explained a bit more. Thanks
Total posts: 9528
Last post: Mar 27, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
What people forget is that a thermostat's first job is to bring an engine up to optimum running temperature quickly by preventing flow to the radiator until the engine is hot. At the intended temperature, the t'stat opens, but if you run into cold weather it should also modulate the temperature by closing partially or fully to keep the engine from getting cooler than optimum. The early Mini engines had a bypass hose at the water pump to allow SOME circulation through the head until the t'stat opens. It also helped circulate coolant through the heater core as the car warmed up. Later engines did away with the bypass and did things differently as in the Metros. The theory then became that you needed several small holes in the t'stat (5 or 6 1/8" holes) in a Mini to compensate for the lack of bypass. They work only until the t'stat opens, so don't improve cooling appreciably.
Applying that theory to my 1275 Metro engine with a standard Mini t'stat housing, I found the engine took far longer to warm up and in cold weather the heater wasn't a heater. In other words, the engine could not maintain proper operating temperature. I replaced the holey t'stat with a new unmolested one. Now my engine warms quickly, the t'stat opens on cue, and I get heat out of the heater.
If you are experiencing genuine overheating (not just relying on the Mini gauge), check that your t'stat is opening properly, (the upper rad hose should stay cool until the head gets hot, then when the t'stat opens, the hose should warm up quickly), that your fan belt is properly tightened, that your fan is on the right way round, that your rad and coolant are in good condition (properly filled but with about 1" of air space in the top of the rad at cold), and that our engine is properly tuned.
Applying that theory to my 1275 Metro engine with a standard Mini t'stat housing, I found the engine took far longer to warm up and in cold weather the heater wasn't a heater. In other words, the engine could not maintain proper operating temperature. I replaced the holey t'stat with a new unmolested one. Now my engine warms quickly, the t'stat opens on cue, and I get heat out of the heater.
If you are experiencing genuine overheating (not just relying on the Mini gauge), check that your t'stat is opening properly, (the upper rad hose should stay cool until the head gets hot, then when the t'stat opens, the hose should warm up quickly), that your fan belt is properly tightened, that your fan is on the right way round, that your rad and coolant are in good condition (properly filled but with about 1" of air space in the top of the rad at cold), and that our engine is properly tuned.
.
"Hang on a minute lads....I've got a great idea."
Total posts: 3919
Last post: Oct 29, 2019 Member since:Oct 4, 2013
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
You can NOT without thermo. as the water will flow too quickly and NOT cool properly.. but you can drill about 6 small holes. and will work just fine.. later bc
Total posts: 7
Last post: Jul 2, 2020 Member since:Jun 17, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
can you run without a thermostat, 1275 with dual SU, i was told about drilling holes in the stat also. Can that be explained a bit more. Thanks
