Wouldn't the "crush" force of bolts be the same for the two-bolt as for the single bolt? I'd imagine the bolts are to keep the sub-frame in position and the dynamic loads of the car on the sub-frame would be taken against the underside of the cross-member. I'd expect the greatest load the top of the cross-member would receive is when a cone compressor is in use at full compression.
.
"Hang on a minute lads....I've got a great idea."
Total posts: 1065
Last post: Feb 10, 2023 Member since:Oct 2, 2008
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|

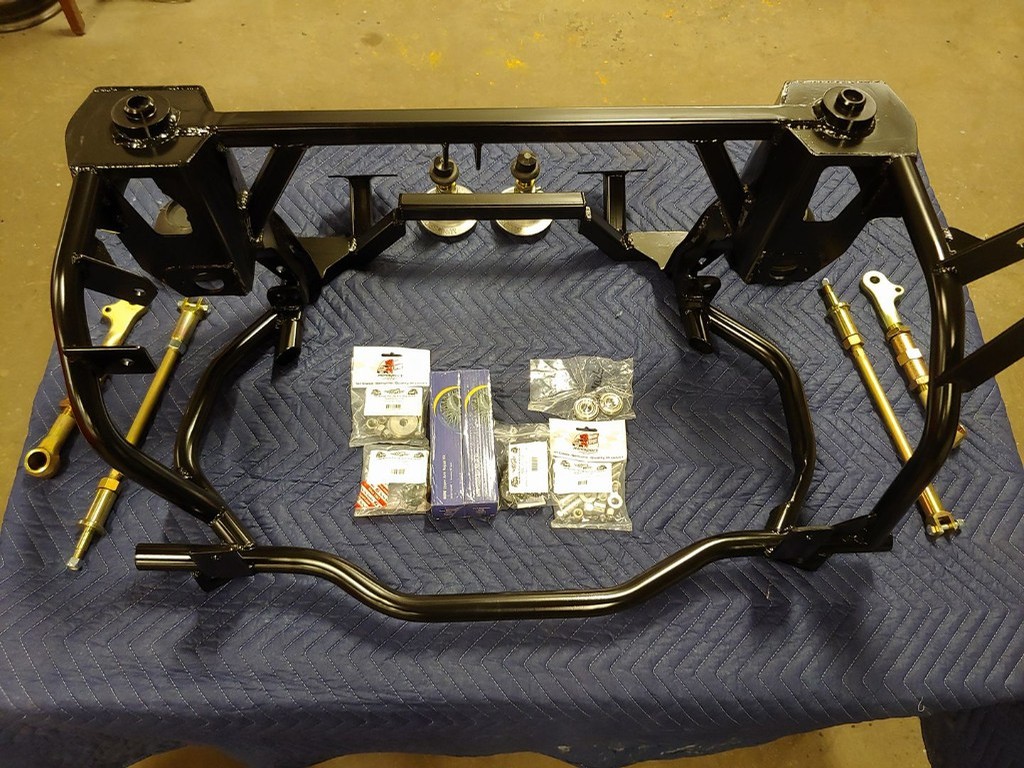

Minitec provides a kit for earlier minis, and its essentially a 3/4" unf bolt with a spreader plate. We use a machined step washer that goes into the hole and spreads it across on the top side. Have for the past few years, no issues thus far. I have seen people do as you say and weld in a tube in the bulkhead to essentially keep it from crushing the bulkhead.
Total posts: 2057
Last post: Feb 5, 2024 Member since:Sep 24, 1999
|
Cars in Garage: 1
Photos: 231 WorkBench Posts: 11 |
|
Quote:
Originally Posted by Dan Moffet
Quote:
Originally Posted by TK
How did you mount the single bolt subframe to the '64 shell?
Total posts: 9543
Last post: Apr 20, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Beauty!
.
"Hang on a minute lads....I've got a great idea."
Total posts: 1065
Last post: Feb 10, 2023 Member since:Oct 2, 2008
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Dan, you are correct.

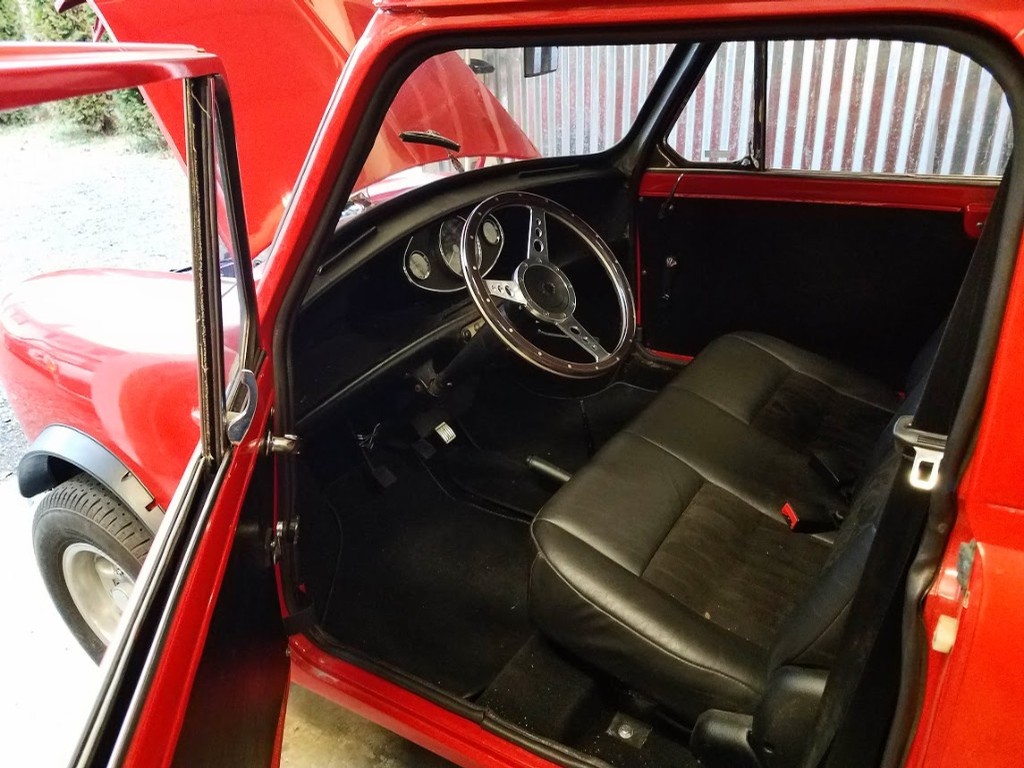

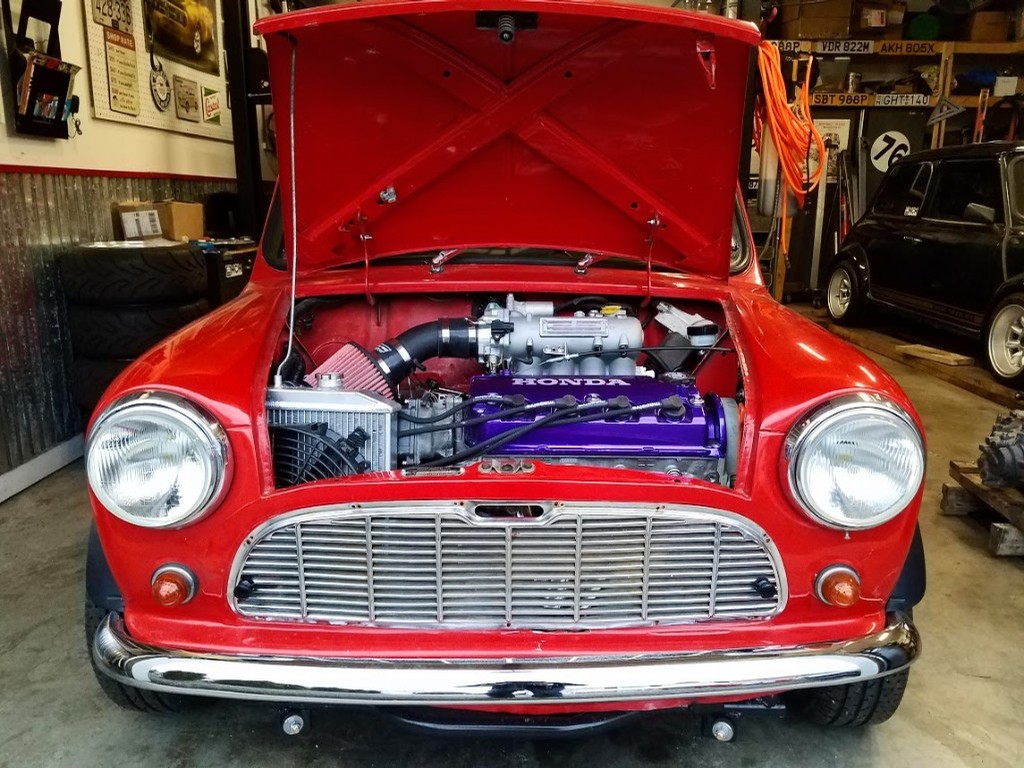

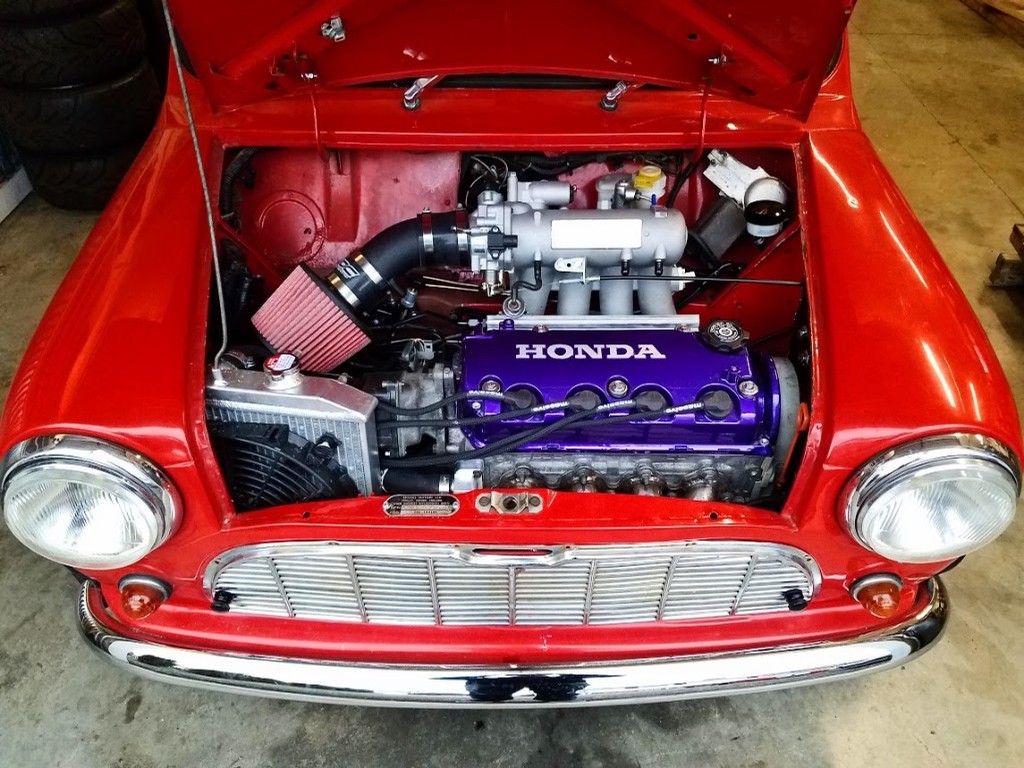

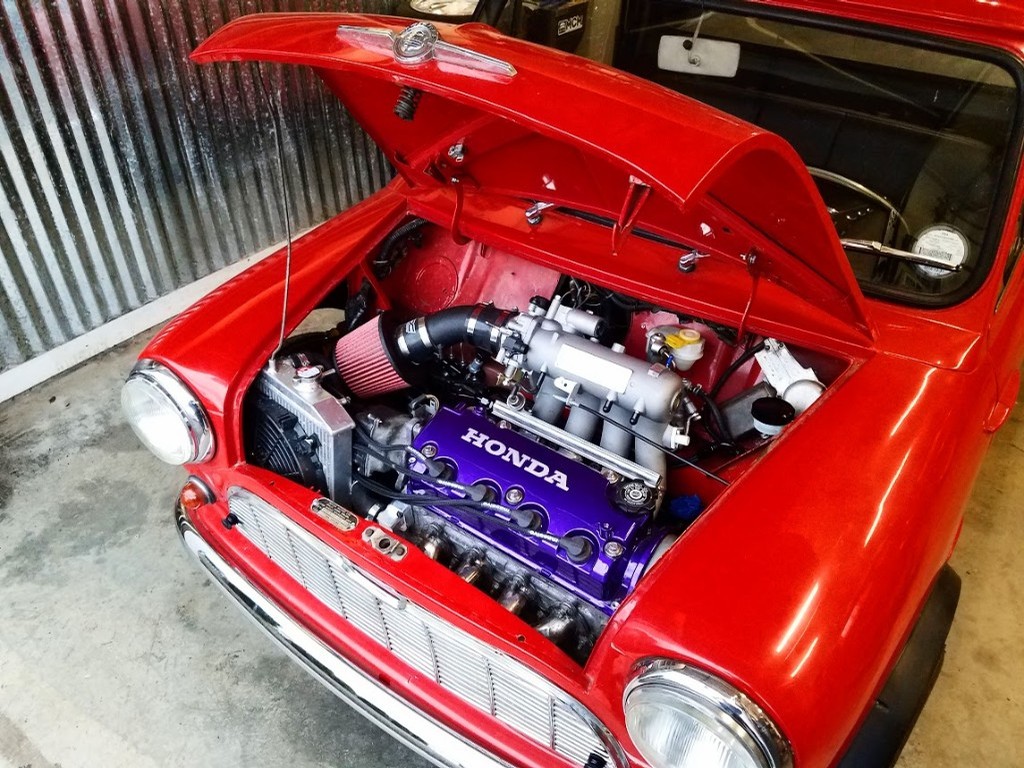

Here is some additional photos before it headed west.
Cheers.
Here is some additional photos before it headed west.
Cheers.
Total posts: 9543
Last post: Apr 20, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Quote:
Originally Posted by TK
How did you mount the single bolt subframe to the '64 shell?
.
"Hang on a minute lads....I've got a great idea."
Total posts: 1124
Last post: Jan 12, 2024 Member since:May 13, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
How did you mount the single bolt subframe to the '64 shell?
Total posts: 43
Last post: Oct 14, 2022 Member since:Jul 6, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |

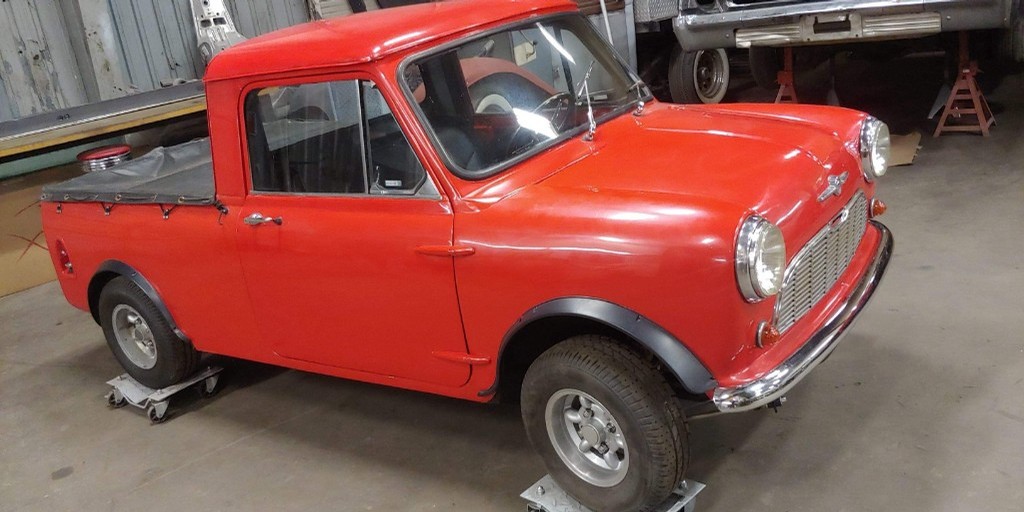

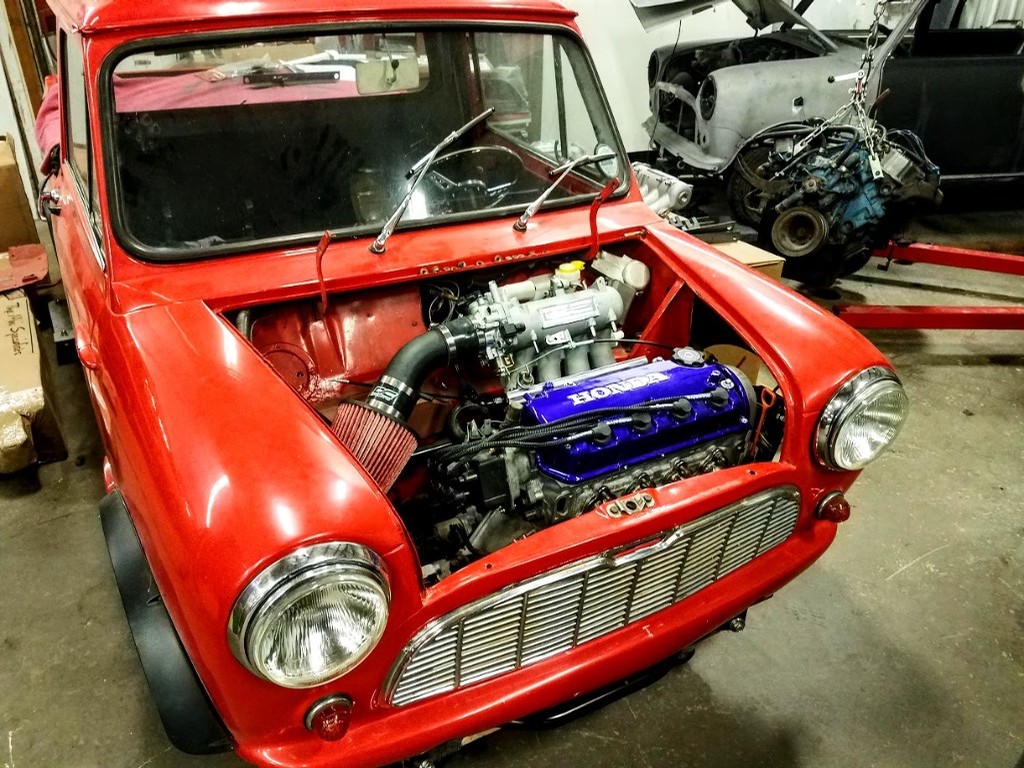

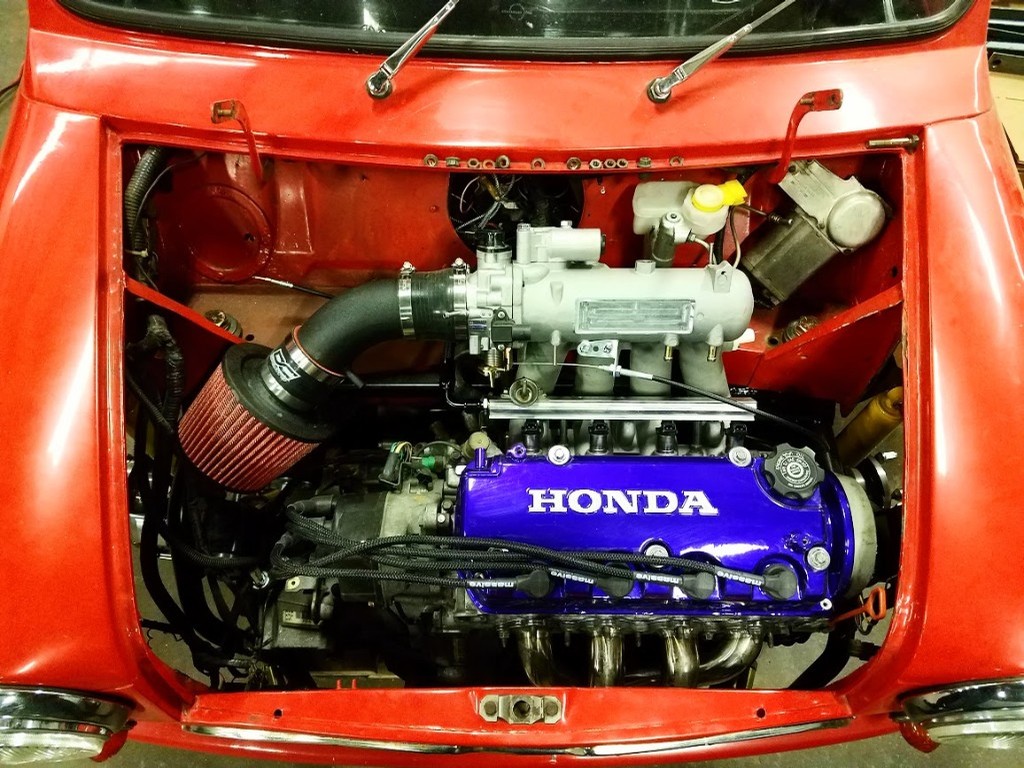

Some more pics....coming together. runs quite well...last thing is dyno...some pics are old, so things may look messy: https://photos.app.goo.gl/3G3Ha9nuPzPXT2b47
Total posts: 85
Last post: Jan 26, 2022 Member since:Mar 27, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
very cool! I've always liked the D-series in minis - even cooler in a truck!
Xavier, Sales/tech - 800-46-2642
Total posts: 70
Last post: Feb 5, 2024 Member since:Feb 29, 2016
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Looks awesome! I'm super jealous. I've coveted that truck for quite a while. Have fun!
*used to be 'nynone4' here on the board but can't seem to get back into that account
Total posts: 43
Last post: Oct 14, 2022 Member since:Jul 6, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Total posts: 4
Last post: Dec 10, 2020 Member since:Jul 3, 2018
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Where-ever wolfcox will never ever go away except to collect some cox in it's skunky place
Total posts: 2100
Last post: Oct 22, 2023 Member since:May 1, 2007
|
Cars in Garage: 1
Photos: 220 WorkBench Posts: 0 |
|
Quote:
Originally Posted by indifferent
Moderators or whoever, thank you for deleting mokehead's post.... think he/she may be a sheep in 'wolves clothing lol....
Total posts: 43
Last post: Oct 14, 2022 Member since:Jul 6, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Moderators or whoever, thank you for deleting mokehead's post.... think he/she may be a sheep in 'wolves clothing lol....
Total posts: 43
Last post: Oct 14, 2022 Member since:Jul 6, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |

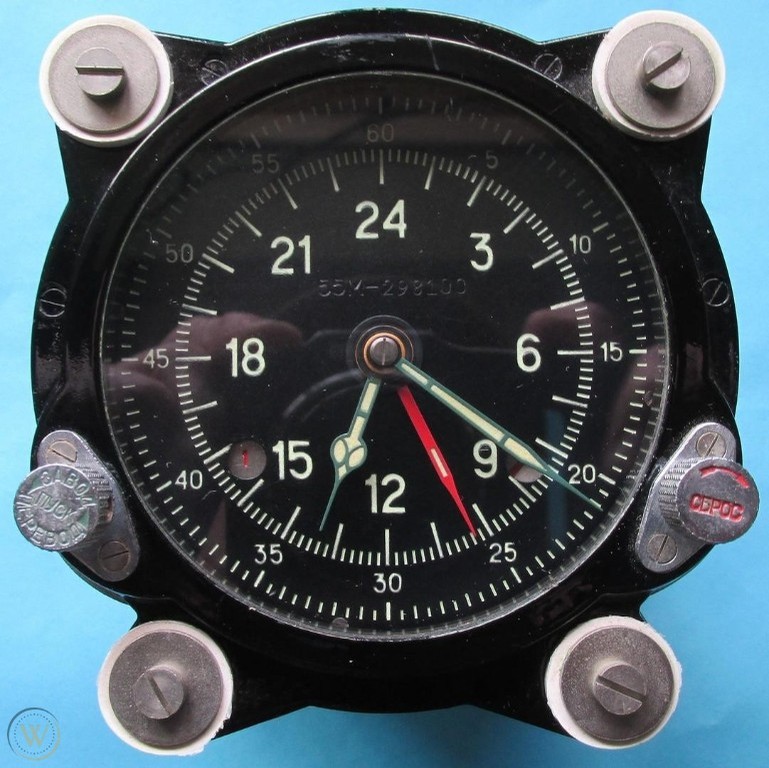

That is a nice setup, but I am going to place more smaller gauges in that space, e.g. WB AFR, a small multi gauge with oil pressure, water, oil temp, fuel, etc.), and a larger tach (sequential lights above the steering wheel though). The speedo will be a fancy GPS HUD floating above dash for the driver, so not in the cluster...hence why I was looking for the measurements to ensure what I pick up will fit. I am still trying to find a place where I can mount my Russian Doomsday Bomber clock that I used to have in my Caterham. Maybe to the side of the round dash thing with a bracket.
So if anyone has the dimensions of the round center dash, that would help a lot!
So if anyone has the dimensions of the round center dash, that would help a lot!
Total posts: 2057
Last post: Feb 5, 2024 Member since:Sep 24, 1999
|
Cars in Garage: 1
Photos: 231 WorkBench Posts: 11 |
|

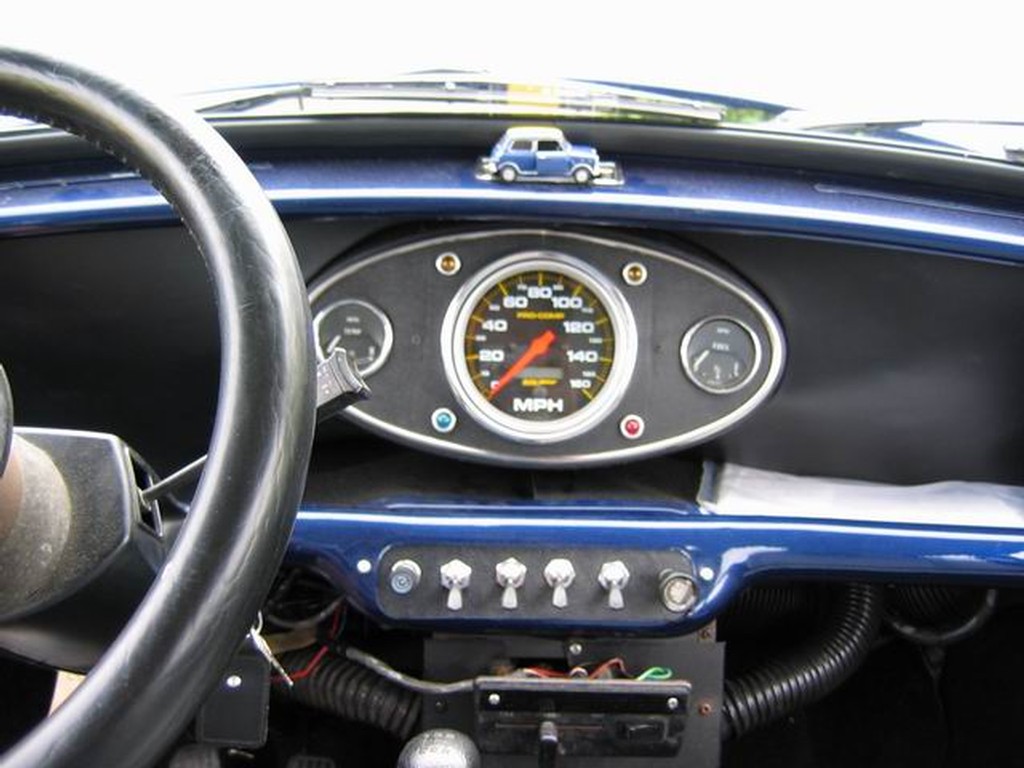

You can use a 3 clock Binnacle and replace the speedo with a large Autometer which will fit into the opening if you keep the chrome ring from the old speedo. Replace the oil gauge with a gas gauge from an MG, as its the same resistance as the Mini one, and then you can mount turn signal, alternator and high beam lights on the edges of the binnacle.. Temp gauge will work hooked up to the Honda sender..
Total posts: 43
Last post: Oct 14, 2022 Member since:Jul 6, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Planning dash out now...other half wants to keep bionical....wish I knew the dimensions of it so I can plan a layout (I will install a blank panel into the existing hole and cut out the gauge holes from that). Other than that, understanding how to tie the gauges to the custom loom will be next.
Total posts: 595
Last post: Feb 22, 2023 Member since:Apr 21, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
You will absolutely love that setup.I have the same engine/gearing etc in my car and it is awesome.The hondata s300 is very user friendly to.
Total posts: 1065
Last post: Feb 10, 2023 Member since:Oct 2, 2008
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|

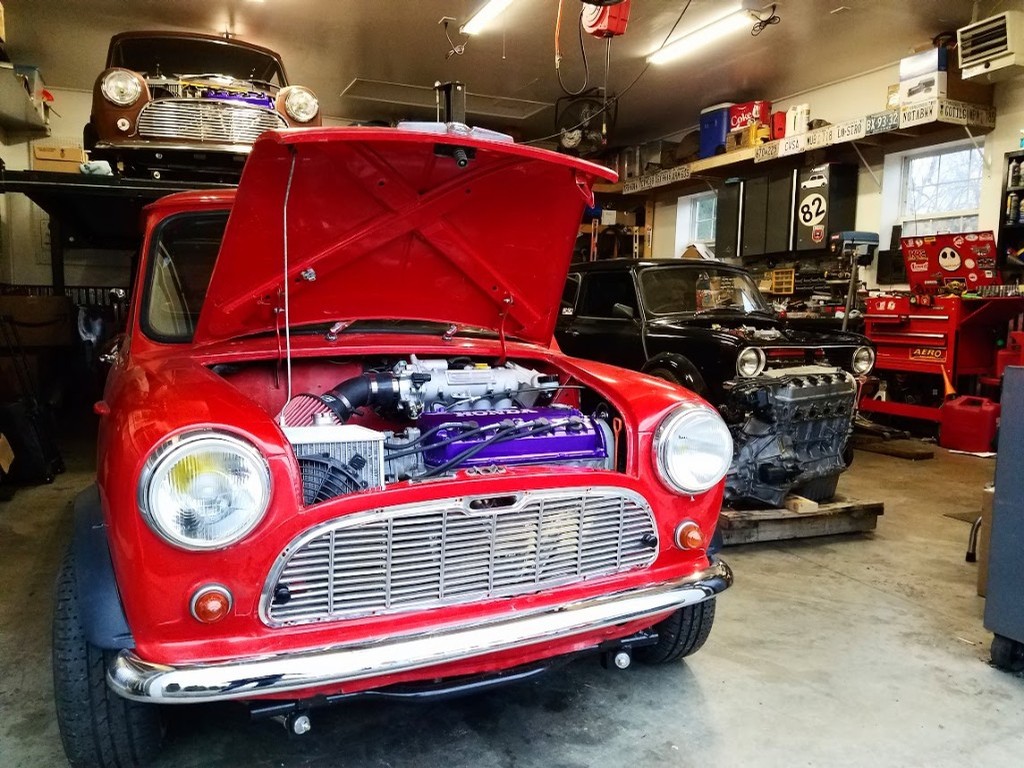

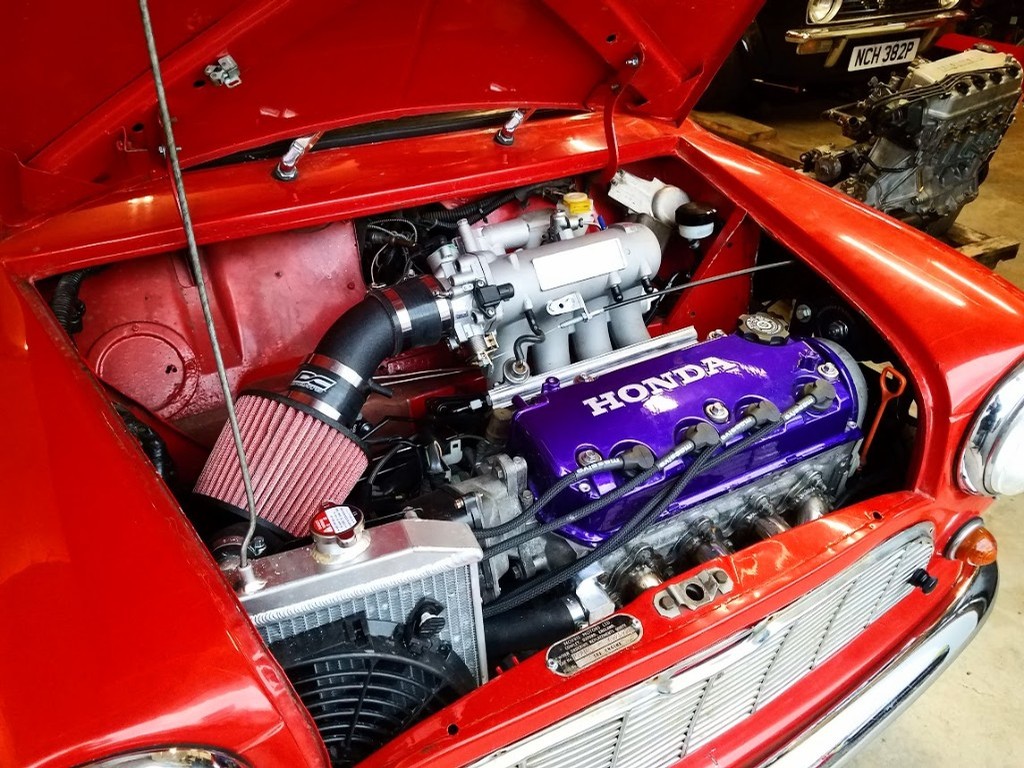

Couple more random pics. Still got to install cooling system, make up front brake lines to bias valve, and a couple other odds and ends. Getting there.
Total posts: 105
Last post: Jan 13, 2020 Member since:Dec 9, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
gone to skunk heaven
