 Posted: Oct 26, 2022 09:14AM
Total posts: 2230
Last post: Dec 5, 2022
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
Originally Posted by Retorboat
It appears like the above info is for the older wheel system not the 2010 and up system.
That is possible.

 Posted: Oct 25, 2022 11:16AM
Total posts: 3
Last post: Oct 25, 2022
Member since:Oct 24, 2022
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
It appears like the above info is for the older wheel system not the 2010 and up system.

 Posted: Oct 25, 2022 11:03AM
Total posts: 3
Last post: Oct 25, 2022
Member since:Oct 24, 2022
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Thanks for the reply. I'm a little slow I guess, where exactly is the RDC trigger transmitter ??

 Posted: Oct 25, 2022 05:41AM
Total posts: 2230
Last post: Dec 5, 2022
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Try this:

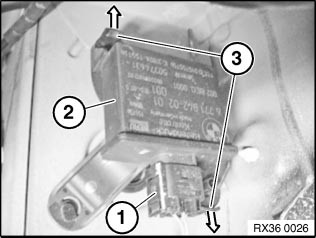

36 11 523Removing and installing/replacing an RDC trigger transmitter (rear)

With ACEA/CO2 equipment specification or aerodynamic kit, remove rear underbody panelling


Disconnect plug connection (1).

Gently press retaining tabs (3) apart in direction of arrow and remove RDC transmitter (2).

 Posted: Oct 24, 2022 10:17AM
Total posts: 3
Last post: Oct 25, 2022
Member since:Oct 24, 2022
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
I have this same issue on 2010 JCW R55. My long time Mini mechanic is stumped as well. I can easily find it on my 2009 JCW R55. Can anyone help ? This seems to be a standing issue with people, but no real answer to be found on the internet.

 Posted: Dec 19, 2019 04:36AM
Total posts: 2230
Last post: Dec 5, 2022
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
Originally Posted by LesG
Does anyone know where the TPMS RDC control module is located on a 2011 R55 Clubman?  I've been told that it's located behind the left rear trunk side panel...checked there, nothing.  I've been told that it's located behind the rear bumper, checked there and it's the TPMS receiver for the rear wheels.  Does anyone know where this module is actually located?  I have a TPMS Inactive warning light, system will not reset.
In the rear trunk area, on the drivers side (left) trunk side panel, there is a vent grille - the RDC TPMS Control Module should be just inside this vent grille.....

 Posted: Dec 18, 2019 10:21AM
Total posts: 85
Last post: Jan 26, 2022
Member since:Mar 27, 2019
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
the RDC is a few components - control unit, antenna, trigger transmitter, ect.


Xavier, Sales/tech - 800-46-2642

 Posted: Dec 18, 2019 09:58AM
Total posts: 3
Last post: Dec 18, 2019
Member since:Oct 22, 2019
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Does anyone know where the TPMS RDC control module is located on a 2011 R55 Clubman?  I've been told that it's located behind the left rear trunk side panel...checked there, nothing.  I've been told that it's located behind the rear bumper, checked there and it's the TPMS receiver for the rear wheels.  Does anyone know where this module is actually located?  I have a TPMS Inactive warning light, system will not reset.
