Found 24 Messages

Previous Set of Pages 1 | 2

 Posted: Mar 18, 2020 06:50AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
Originally Posted by Dan Moffet

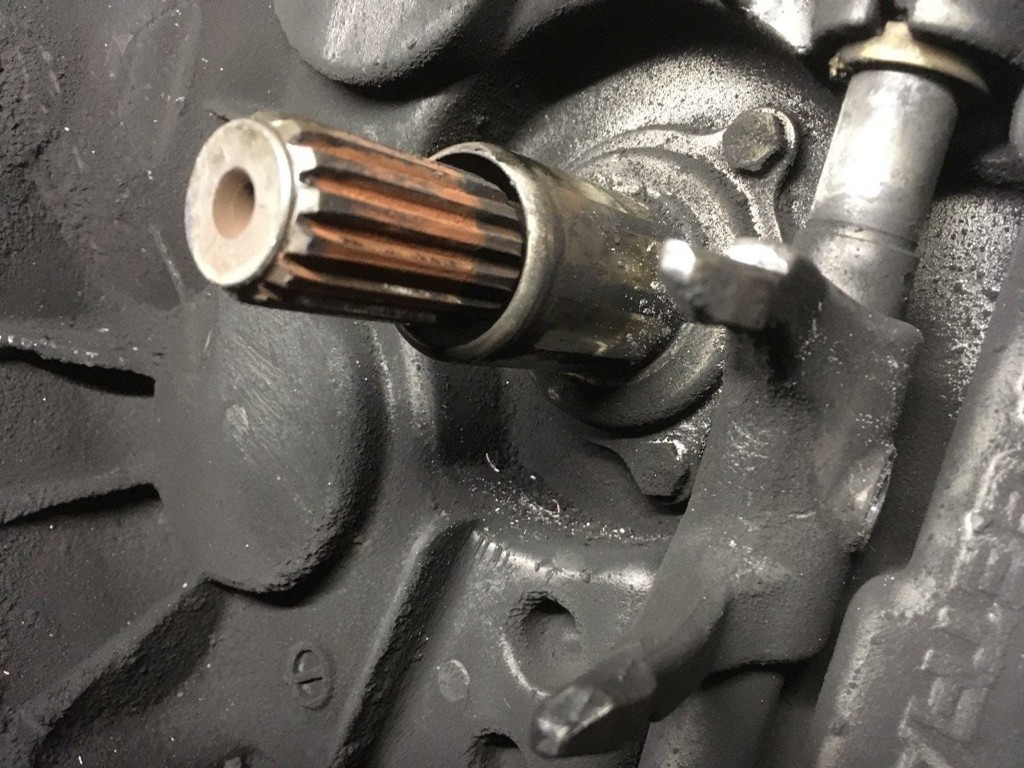

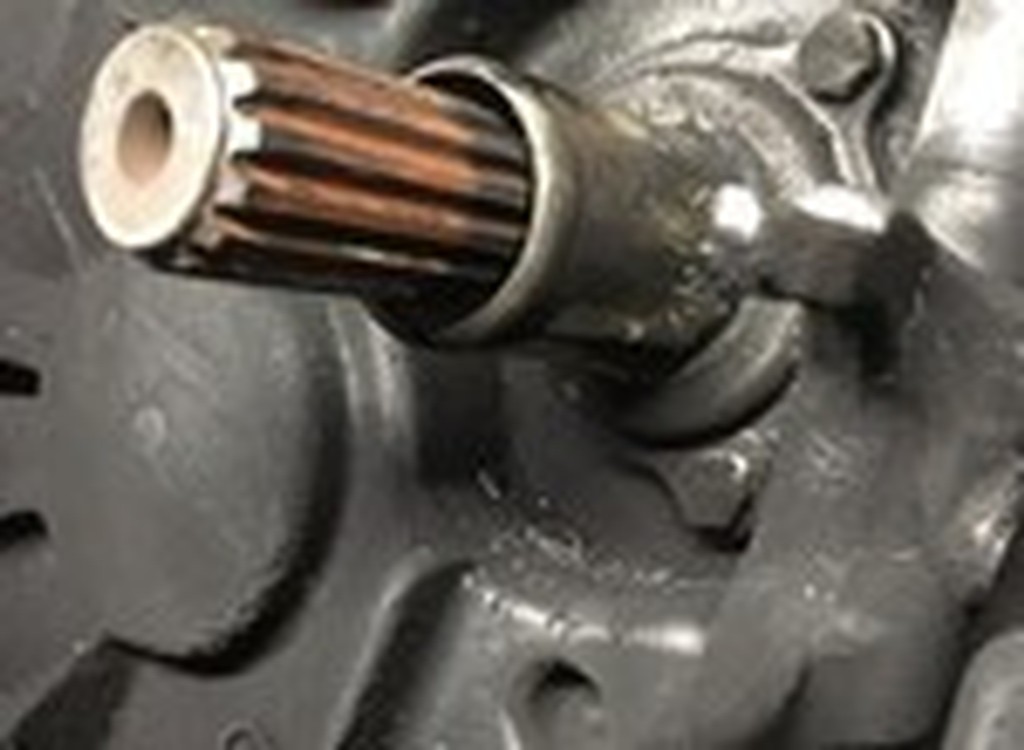

That looks a lot like rust on the splines. Assuming that is the end of the transmission input shaft and that the clutch plate is supposed to slide freely on those splines, I'd suspect your clutch plate isn't sliding and remaining in contact with the flywheel, which would keep the transmission spinning in neutral. I had a similar problem with a vehicle where the the spline tolerance was a bit tight - it would drag when cold but would be fine in warmer weather.
Good observation...

 Posted: Mar 17, 2020 06:13AM
Total posts: 8366
Last post: Mar 28, 2020
Member since:Aug 14, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
CA
That looks a lot like rust on the splines. Assuming that is the end of the transmission input shaft and that the clutch plate is supposed to slide freely on those splines, I'd suspect your clutch plate isn't sliding and remaining in contact with the flywheel, which would keep the transmission spinning in neutral. I had a similar problem with a vehicle where the the spline tolerance was a bit tight - it would drag when cold but would be fine in warmer weather.

.

"Hang on a minute lads....I've got a great idea."

 Posted: Mar 17, 2020 03:12AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
How did the flywheel look?

If the clutch is acting like it is partially engaged even with the foot off the clutch pedal - there must be something wrong with the installation. You might try unbolting the clutch slave from the housing to see if anything changes. If not, then there has to be a mechanical defect inside.

Just trying to guess what might cause this, I thought of the 1st gear synchro...  or maybe the flywheel failed and the dual mass plate may have separated changing the thickness of the flywheel?  These are pure speculations trying to find something to explain the symptoms....

 Posted: Mar 12, 2020 09:41PM
 Edited:  Mar 12, 2020 09:47PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Image Gallery
Quote:
Originally Posted by kenatminimania
Quote:
Originally Posted by raycanales
Quote:
finally got around to looking at the transmission and the throwout bearing was in 3 pieces when we took it off

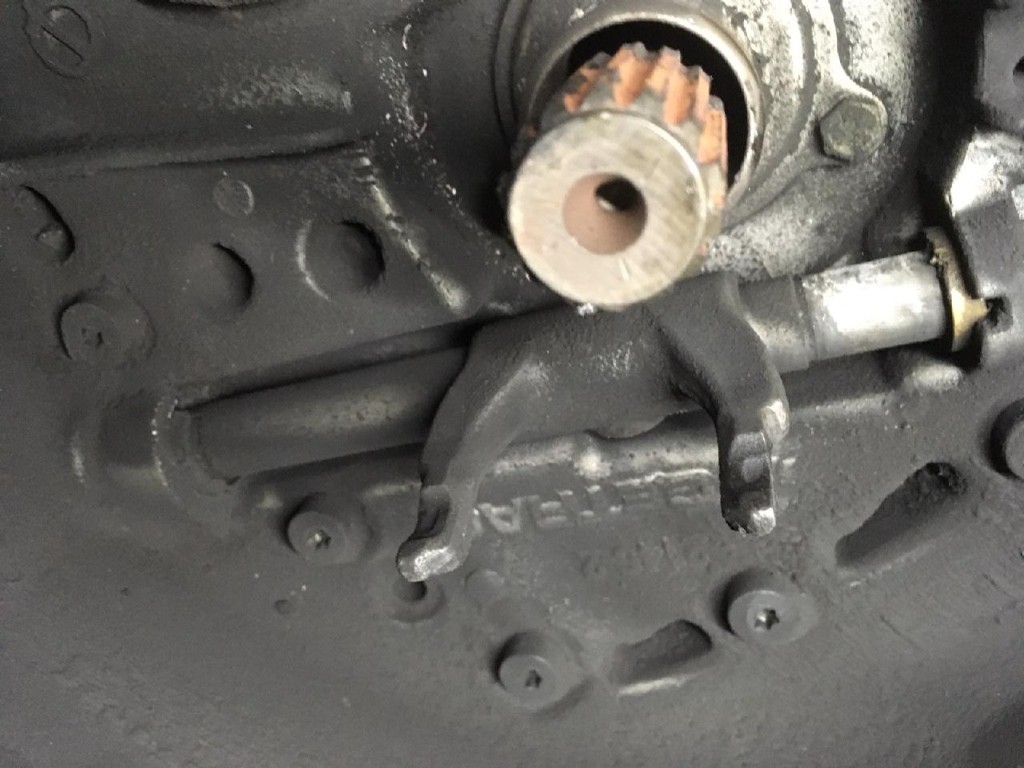

here is what the fork looks like what your thoughts?

I am gonna order the fork throwout bearing the clutch looks like it has plenty of life on it and the flywheel looks perfect

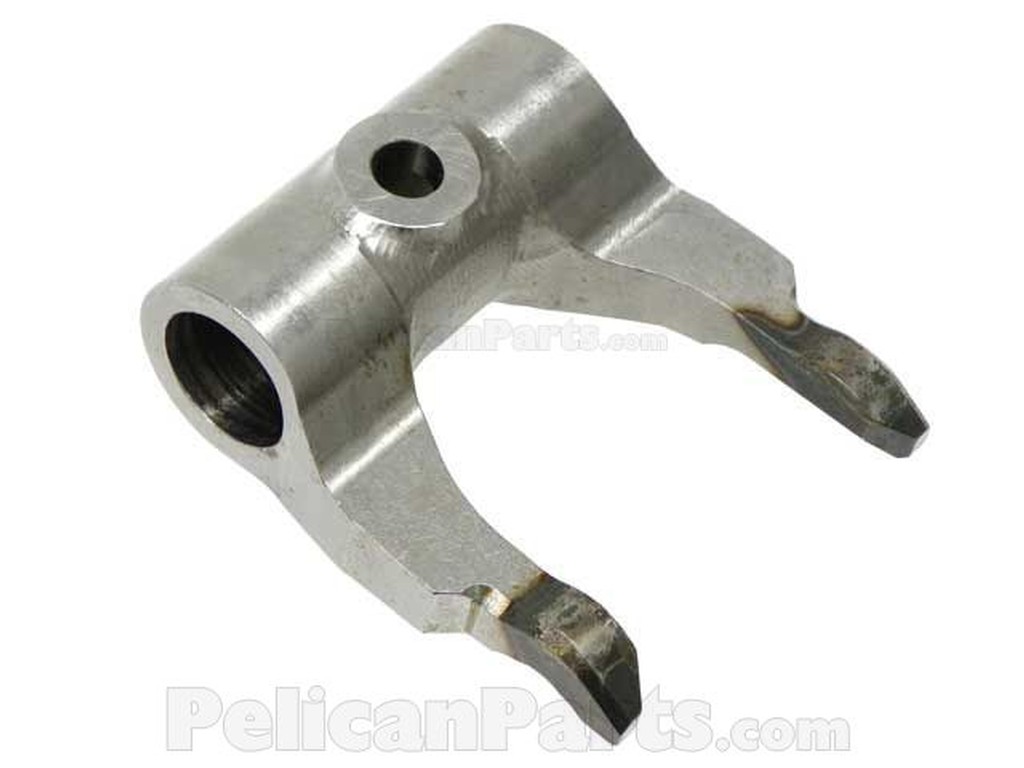

If you are replacing the throwout bearing, you might also replace the guide tube. Also check the rear main seal since it is right there. you might as well take care of these little things since you have the transmission out.

Can't see the photo of the shift fork....

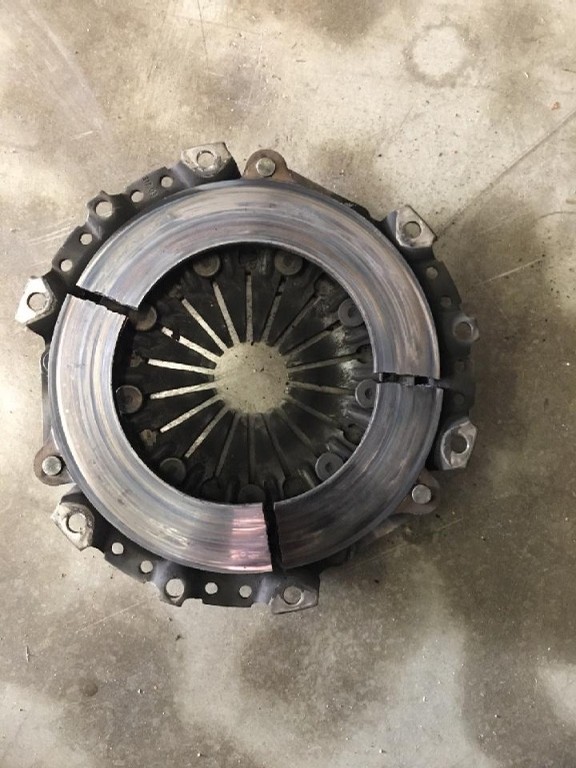

Ok replaced Pressure plate clutch guide sleeve put new oil in transmission

bled the clutch

then the fun started

it is slipping the clutch without pushing the pedal getting the pressure plate hot like something is locking up inside the transmission
but if we start it in gear it works just fine just like before
it is only when we start it in neutral


essentially same as before but she runs fine thru the gears from a dead start now we are really baffled any ideas?

 Posted: Mar 9, 2020 03:33AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
Originally Posted by raycanales
Quote:
finally got around to looking at the transmission and the throwout bearing was in 3 pieces when we took it off
here is what the fork looks like what your thoughts?

I am gonna order the fork throwout bearing the clutch looks like it has plenty of life on it and the flywheel looks perfect
If you are replacing the throwout bearing, you might also replace the guide tube. Also check the rear main seal since it is right there. you might as well take care of these little things since you have the transmission out.

Can't see the photo of the shift fork....

 Posted: Mar 7, 2020 10:27PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
Quote:
short of changing it for another transmission

how much effect could the wrong fluid in the transmission have ?

and we are dropping it tomorrow gonna look inside see if the clutch release fork or the throw out bearing are the cause or anything else in there

I spoke to a Mini Tech at Mini USA he said to read some articles he sent me

honestly we are stumped on this one its time to start taking S*** apart
I would think that the wrong fluid can cause difficulty shifting as in the gears catching / grinding when shifting but I can't see how it could prevent you from shifting...

Curious to know what you find when you drop the transmission....

finally got around to looking at the transmission and the throwout bearing was in 3 pieces when we took it off


here is what the fork looks like what your thoughts?

I am gonna order the fork throwout bearing the clutch looks like it has plenty of life on it and the flywheel looks perfect



 Posted: Feb 26, 2020 04:57AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
short of changing it for another transmission

how much effect could the wrong fluid in the transmission have ?

and we are dropping it tomorrow gonna look inside see if the clutch release fork or the throw out bearing are the cause or anything else in there

I spoke to a Mini Tech at Mini USA he said to read some articles he sent me

honestly we are stumped on this one its time to start taking S*** apart
I would think that the wrong fluid can cause difficulty shifting as in the gears catching / grinding when shifting but I can't see how it could prevent you from shifting...

Curious to know what you find when you drop the transmission....

 Posted: Feb 25, 2020 06:33PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
Quote:
Originally Posted by raycanales
Quote:
Originally Posted by kenatminimania
How many miles on the clutch?
maybe tops 13K Miles

last night we did the stick trick
where you put a stick overnight pushing the clutch to the floor see if that makes any difference
according to Pelican Parts Tech that is one step that is in their instructions and see if that works.

Im at wits end here
It still sounds like an issue with the clutch hydraulic system but I am out of ideas...

If the clutch hydraulic lines and the clutch master and slave have all been checked out, not sure where else to look.

It 'may be' possible there might be an issue with the clutch fork or pressure plate, but it seems unlikely with only 13k on the clutch...
short of changing it for another transmission

how much effect could the wrong fluid in the transmission have ?

and we are dropping it tomorrow gonna look inside see if the clutch release fork or the throw out bearing are the cause or anything else in there

I spoke to a Mini Tech at Mini USA he said to read some articles he sent me

honestly we are stumped on this one its time to start taking S*** apart

 Posted: Feb 24, 2020 04:52AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
Originally Posted by raycanales
Quote:
Originally Posted by kenatminimania
How many miles on the clutch?
maybe tops 13K Miles

last night we did the stick trick
where you put a stick overnight pushing the clutch to the floor see if that makes any difference
according to Pelican Parts Tech that is one step that is in their instructions and see if that works.

Im at wits end here
It still sounds like an issue with the clutch hydraulic system but I am out of ideas...

If the clutch hydraulic lines and the clutch master and slave have all been checked out, not sure where else to look.

It 'may be' possible there might be an issue with the clutch fork or pressure plate, but it seems unlikely with only 13k on the clutch...

 Posted: Feb 21, 2020 05:59AM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
How many miles on the clutch?
maybe tops 13K Miles

last night we did the stick trick
where you put a stick overnight pushing the clutch to the floor see if that makes any difference
according to Pelican Parts Tech that is one step that is in their instructions and see if that works.

Im at wits end here

 Posted: Feb 21, 2020 04:17AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
How many miles on the clutch?

 Posted: Feb 20, 2020 07:05PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
Quote:
Originally Posted by raycanales
Quote:
what is the correct procedure to bleed the slave are there steps that we are not following ?
Bleeding the clutch master/slave cylinders:
a. remove slave cylinder from transmission housing
b. compress slave using this tool or similar
c. open valve on slave and bleed, close valve when done
d. remove slave compression tool
e. bleed system again
f. re-install slave onto transmission housing


We put in a new MC power bled the system and still feels mushy the pedal does stay up but the car still wont go into gear like the shaft on the slave is not pushing out far enough

thoughts?

 Posted: Feb 20, 2020 05:07AM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
Quote:
Originally Posted by raycanales
Quote:
what is the correct procedure to bleed the slave are there steps that we are not following ?
Bleeding the clutch master/slave cylinders:
a. remove slave cylinder from transmission housing
b. compress slave using this tool or similar
c. open valve on slave and bleed, close valve when done
d. remove slave compression tool
e. bleed system again
f. re-install slave onto transmission housing
we are going to put in a new Master Cylinder in today


it doesnt seem that the shaft is extending far enough and feels mushy so going to power bleed the system again today



I would have never figured this could be so hard to bleed a clutch system

 Posted: Feb 20, 2020 04:14AM
 Edited:  Feb 20, 2020 04:19AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Quote:
Originally Posted by raycanales
Quote:
what is the correct procedure to bleed the slave are there steps that we are not following ?
Bleeding the clutch master/slave cylinders:
a. remove slave cylinder from transmission housing
b. compress slave using this tool or similar
c. open valve on slave and bleed, close valve when done
d. remove slave compression tool
e. bleed system again
f. re-install slave onto transmission housing

 Posted: Feb 19, 2020 01:51PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
It 'sounds like' the clutch is not fully releasing, just enough to where it prevents shifting when stopped. Once you are moving, you can still shift with the clutch not fully releasing because everything is spinning at that point.

As for the reason the clutch is not fully releasing, it can be the slave or maybe the shift lever / fork that presses against the throwout bearing might be bent...  Lets hope it is the slave.
what is the correct procedure to bleed the slave are there steps that we are not following ?

 Posted: Feb 19, 2020 01:46PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
It 'sounds like' the clutch is not fully releasing, just enough to where it prevents shifting when stopped. Once you are moving, you can still shift with the clutch not fully releasing because everything is spinning at that point.

As for the reason the clutch is not fully releasing, it can be the slave or maybe the shift lever / fork that presses against the throwout bearing might be bent...  Lets hope it is the slave.

power bled the slave and it is doing the same thing the clutch still feels mushy like there is still air in the system and the slave is not pushing the lever far enough to engage or disengage the clutch while the car is on, the next we are going to do is replace the master cylinder under the dash  any thoughts?

 Posted: Feb 18, 2020 06:13AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
It 'sounds like' the clutch is not fully releasing, just enough to where it prevents shifting when stopped. Once you are moving, you can still shift with the clutch not fully releasing because everything is spinning at that point.

As for the reason the clutch is not fully releasing, it can be the slave or maybe the shift lever / fork that presses against the throwout bearing might be bent...  Lets hope it is the slave.

 Posted: Feb 18, 2020 05:51AM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
Did the new clutch slave make a difference?

We are installing that today the better nor reconditioned part will be in today , My mechanic seems to think that is the problem.

there are no weird noises coming from the gearbox of shifter

to be honest im stumped these things are not that hard to figure out , well at least I thought they werent.

In your humble opinion what do you think it could be?

 Posted: Feb 18, 2020 04:44AM
Total posts: 1770
Last post: Mar 30, 2020
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Did the new clutch slave make a difference?

 Posted: Feb 17, 2020 12:56PM
Total posts: 13
Last post: Mar 12, 2020
Member since:Feb 15, 2020
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
Once you get going with the car in gear, are you able to shift normally?
yes I turn off the car put it in first start her up n I can go thru the gears fine its just when I come to a stop that it wont go into gear so I have to turn the car off n go on my way again.
