 Plans for cone compressor?

 Created by: MartinGreenbank
   Forum Width:     Forum Type:

 Posted: Dec 6, 2020 03:30PM
Total posts: 2424
Last post: Jan 22, 2022
Member since:Dec 1, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Maybe it was the mini.

"How can anything bigger be mini?"

 Posted: Dec 6, 2020 03:09PM
Total posts: 119
Last post: Jan 13, 2022
Member since:Feb 27, 2007
Cars in Garage: 6
Photos: 20
WorkBench Posts: 0
Brad, was it my Moke or my Red mini coupe? I took the coupe to MMW at Mt Diablo, a few years ago now!

"Nature Bats Last"
 Posted: Dec 6, 2020 03:02PM
Total posts: 2424
Last post: Jan 22, 2022
Member since:Dec 1, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
I can relate to the cheap rubbers. Got a set also several years back. Had to crank the Hi-lo's up all the way just to get by till some proper ones came.

Every time I see your screen name I recall the photos you posted of your moke in the back of your full size pickup.

"How can anything bigger be mini?"

 Posted: Dec 6, 2020 11:51AM
Total posts: 119
Last post: Jan 13, 2022
Member since:Feb 27, 2007
Cars in Garage: 6
Photos: 20
WorkBench Posts: 0
Thanks Brad!
I made one twenty years ago but forgot how to do it.
I appreciate the fast response.
I bought some cheap cones for my pickup but the durometer was too soft & the cones are now squashed.
Just bought some quality ones from our host, going to replace them in the spring.

"Nature Bats Last"
 Posted: Dec 6, 2020 11:04AM
 Edited:  Dec 6, 2020 11:20AM
Total posts: 2424
Last post: Jan 22, 2022
Member since:Dec 1, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Image Gallery

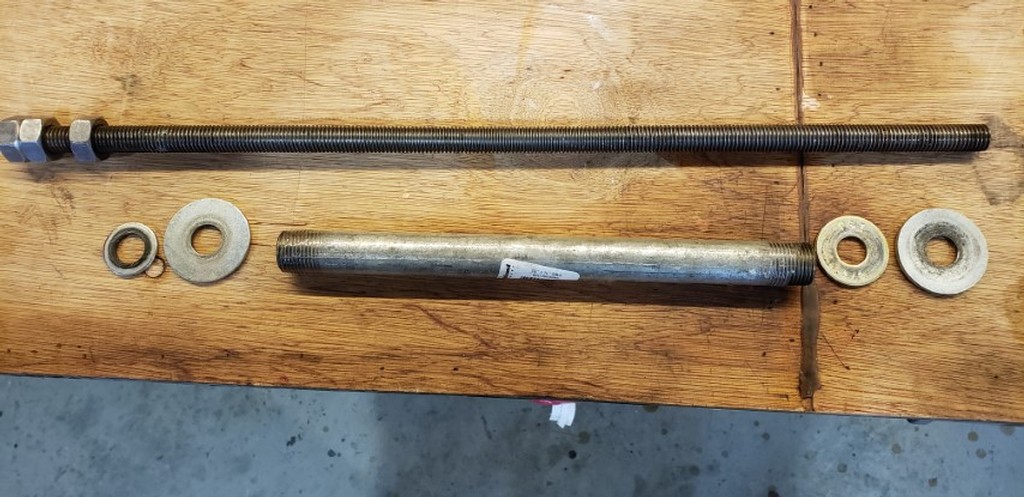

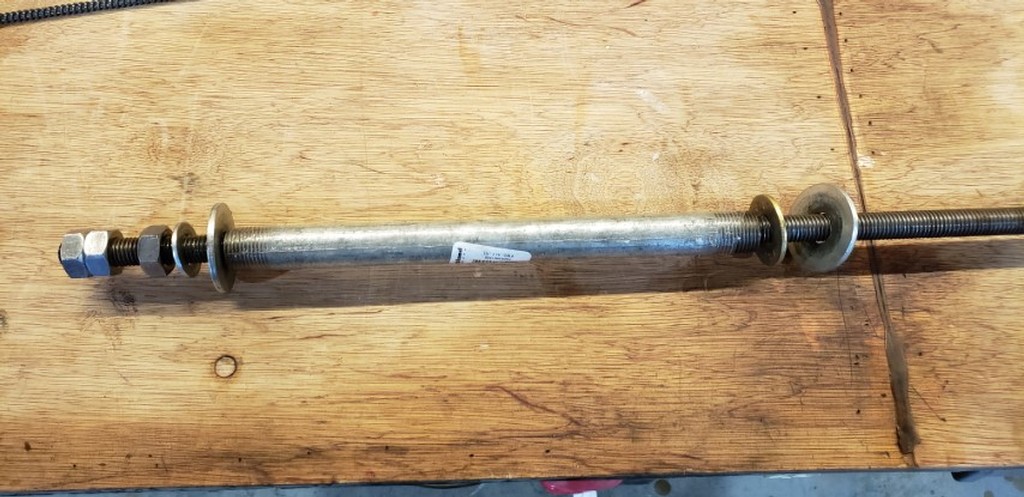

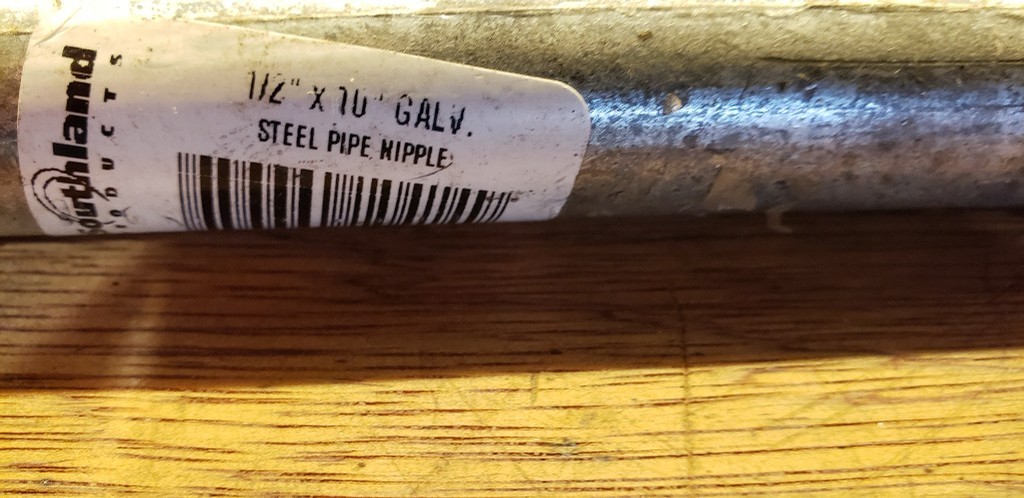

Plans? Metal pipe, threaded rod, 3 nuts and a couple of washers. I used a 10" piece of 1/2" gal pipe. Two washers on each end, the bottom one needs to large/thick enough to span the opening in the body with another smaller one to spread the load. Then two washers at the top under to single nut to make it easier to turn the nut. Then two nuts locked together on the top end. You hold the double nuts to stop the rod from turning while you crank down the single nut.

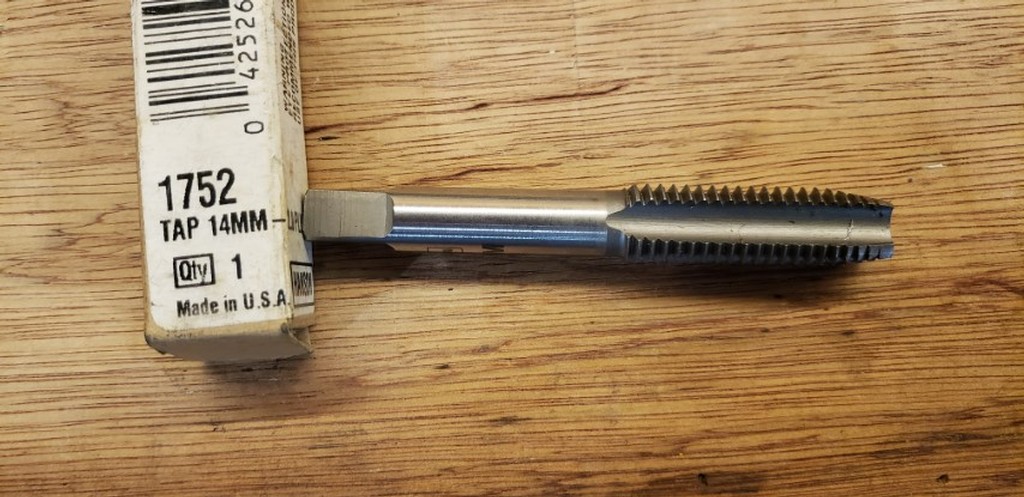

If it has been a while the threads might be gunked up/rusted so it's nice to have a tap to clean them out first.

"How can anything bigger be mini?"

 Posted: Dec 6, 2020 09:51AM
Total posts: 119
Last post: Jan 13, 2022
Member since:Feb 27, 2007
Cars in Garage: 6
Photos: 20
WorkBench Posts: 0
Looking for engineering plans for a suspension cone compressor (metric 14mm X 2mm thread).
Thanks.

"Nature Bats Last"
