Created by: | Orig. Posting Date | User Name | Edit Date |
| Jan 11, 2021 05:50PM | chichm | |
| Jan 11, 2021 09:08AM | Kermy | |
| Jan 10, 2021 10:08PM | Minimike1 | |
| Jan 10, 2021 02:16PM | JohnGadbois |
Posted:
Jan 11, 2021
05:50PM
|
Total posts: 1141
Last post: Jan 11, 2021 Member since:Feb 20, 2000
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
It's an HIF44 from a late 70's Volvo 240, maybe just Canadian spec? The US spec may have used Stromberg.
Marcel - aka VA6CCD
visit my world www.starchak.ca
|
|
Total posts: 245
Last post: Jan 13, 2022 Member since:Jan 22, 2018
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Looks like its got an internal float bowl, so NOT an HS, where the S stands for 'separate' as in separate float bowl.
|
|
Total posts: 6868
Last post: Jan 20, 2022 Member since:Feb 26, 1999
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
it's an HS internal float carb. looks like a HS 6.
|
|
Total posts: 8
Last post: Jan 10, 2021 Member since:May 7, 2019
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Image Gallery

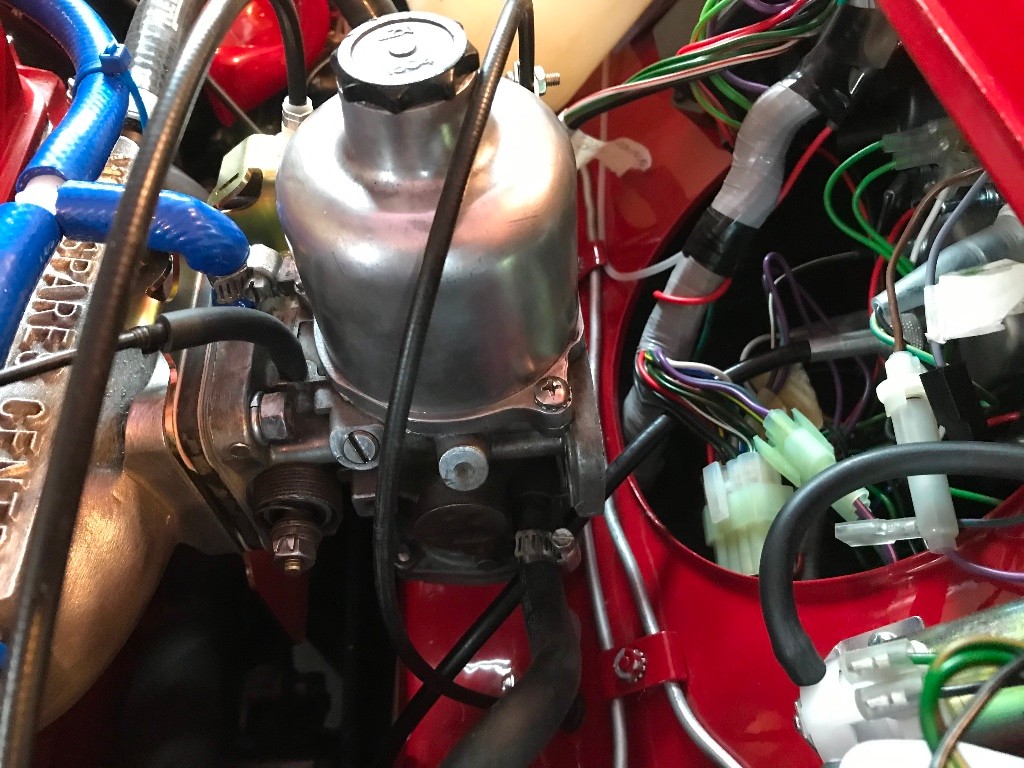

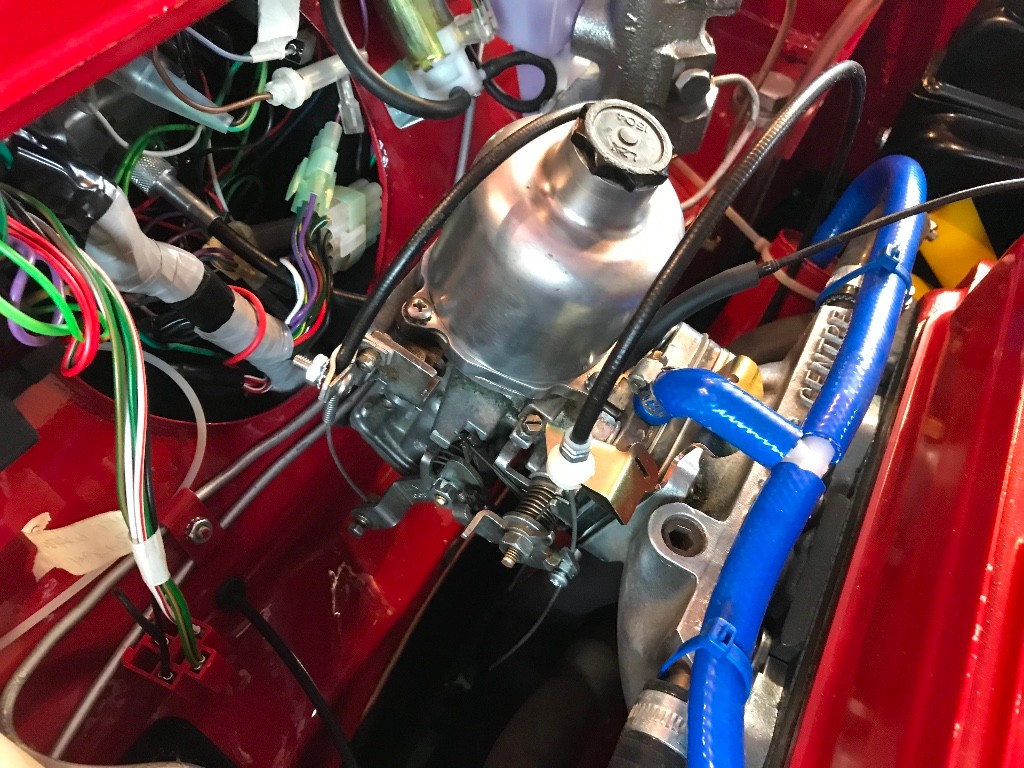

My basket case project came with a few engines, transmissions and carburetors.
Having rebuilt and installed the 1275cc 12H engine, I selected the larger HIF carb to match the engine.
However, this carburetor is different from the HIF44 carbs I'm seeing in the service manuals and all pictures on the web.
Differences: throttle and choke mechanism are on the opposite side, there is a large vacuum port at the back of the carb right next to the manifold, there is no overflow port over the feed pipe, the feed pipe is on the driver's side.
Does anyone know what model carb this is and what model it came from?
See attached pictures.
Best regards.
John G.
