 Install upper window door chrome (Cooper S -like)

 Created by: SteveP
   Forum Width:     Forum Type:

 Posted: Feb 15, 2021 12:50PM
Total posts: 7003
Last post: Jan 13, 2022
Member since:May 23, 2002
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
The early cars had larger holes with the clips you have shown, not the rivitted snap on buttons. It takes time and patience to install them but worth it in the end. I'v found it works best to install the Stainless trim with the windows and felt out. Easier to see what you're doing from the backside. Anyway, I put the top clips in (all facing the same direction) and drop them into the holes and slide into place. Of course, you also have to have the vertical ones in place but they should be facing down. After the top is secure, work the sides in one clip at a time starting at the top and work your way down. There's enough flex in the Stainless trim to do this. Good luck.

"Retired:  No Job, No Money, Wife and I!  Will travel anywhere for Minis"

 Posted: Feb 1, 2021 10:07AM
Total posts: 339
Last post: May 13, 2021
Member since:Sep 12, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Thanks onetim.

Steve

 Posted: Jan 26, 2021 05:31AM
Total posts: 995
Last post: Jan 17, 2022
Member since:Jul 24, 2014
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0

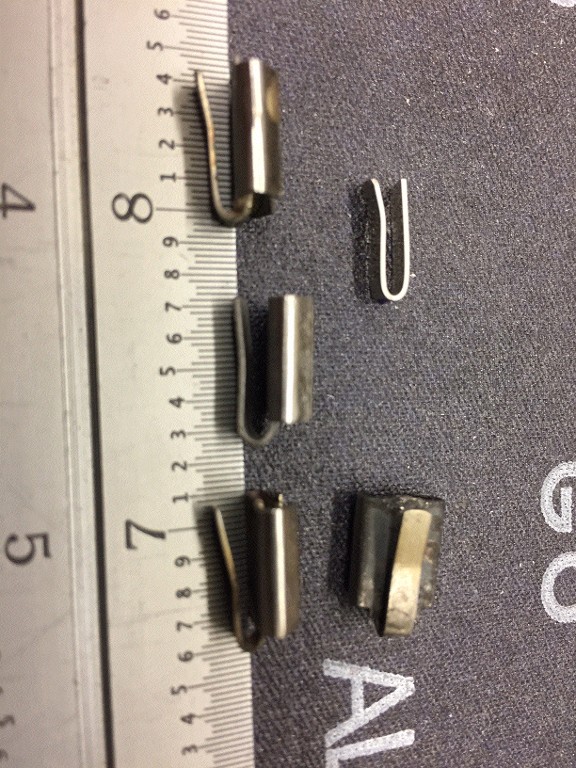

Yes your clips look correct, but hard to judge the size exactly. These are some repaired original clips I needed to have a full set.

 Posted: Jan 25, 2021 10:40AM
Total posts: 339
Last post: May 13, 2021
Member since:Sep 12, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Thanks so much for the replies.

Onetim, did your original clips resemble the Bresco clips?

 Posted: Jan 25, 2021 04:59AM
Total posts: 995
Last post: Jan 17, 2022
Member since:Jul 24, 2014
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Hi Steve,

Sorry just getting back to a PC this mourning. My strips and clips were original.

 Posted: Jan 23, 2021 03:17PM
 Edited:  Jan 25, 2021 08:33AM
Total posts: 8382
Last post: Jan 13, 2022
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by SteveP
Anything new out there in the way of installing top window door chrome? Looking for best way to install door top window chrome. Holes on door, about ¼ inch diameter, seem too big to hold rivets. Don't know if these holes are original to the doors or aftermarket. A search has come up with a few alternate methods: 1. Use of clips from Bresco, wonder how well these work. One post method mentioned they required some modification. ??? Not much info on how well these work. 2. 3m tape – purchased a roll, ½ inch diameter, this seems abit too narrow and since the chrome strip is mostly concave with only 1.4 flange at bottom and 1/16 inch at top. Not much surface for the tape to adhere to on the chrome strip. I think 3/4 inch width would be too wide. 3. RTV adhesive, is this a silicone adhesive? So far, seems like it might be the best alternative. So, wondering if there is anything in addition to consider when considering these alternatives, or anything new out there-- adhesive, clips, etc. Any input appreciated.
After struggling an almost ruining one side a friend of mine installed his with silicone and they are still on there 15 years later.
The 3m trim/emblem tape works well also, that is what they use on those plastic aftermarket window/wind guard things and they are a bear to remove after a while on the vehicle.


If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

 Posted: Jan 23, 2021 11:13AM
Total posts: 664
Last post: Dec 31, 2021
Member since:Nov 1, 2012
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
I just did the trim about a month ago and now I don't remember.  The trim goes on by hooking the outside of the window first and then PUSHING down quickly on the inside of the window.  (Or vise versa it may be inside first then push on the outside).  They will go on and it takes about 3 minutes a side to put the trim on so once you figure it out it's easy.  I think my door held 12 rivets but buy a few extra; I broke about 5.

 Posted: Jan 23, 2021 12:01AM
Total posts: 339
Last post: May 13, 2021
Member since:Sep 12, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Thank you for the replies. Yes, holes are too big to hold the back of the rivets. I may drill new holes but I'm hesitant as I've heard, as was mentioned, it can be a struggle to get the trim over the rivets.

Onetim, you said "I installed the early original strips and clips for the large holes", did you use the Bresco clips? The "chrome" strip is aftermarket and I haven't purchased the clips yet. I was hoping to get some input on the Bresco clips before I purchased them. Thanks again.

 Posted: Jan 22, 2021 08:27PM
Total posts: 664
Last post: Dec 31, 2021
Member since:Nov 1, 2012
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Same advice as 6464

 Posted: Jan 22, 2021 06:32PM
 Edited:  Jan 23, 2021 07:24AM
Total posts: 204
Last post: Jan 22, 2022
Member since:Jan 25, 2017
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Some one messed up by drilling large holes where smaller ones were needed. There is a button that snaps into the back side of the trim held in by a pop rivet. I  would drill a 1/8 hole next to the larger hole. Put some electrical or gorilla tape over the large holes. Trim will cover up. That trim piece can be a bear to put in place. You don't want to flatten or dent the trim. Take your Time.

 Posted: Jan 22, 2021 12:32PM
 Edited:  Jan 22, 2021 12:40PM
Total posts: 995
Last post: Jan 17, 2022
Member since:Jul 24, 2014
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Are your stainless strips original or aftermarket? Will the new clips snap into the chrome strip, and allow it to sit flat other than the hook portion? and will the hook part hold the strip tight to the door frame? if so you should be good with the clips you purchased, try it with just one clip. If you have aftermarket stainless strips there is a rivet kit for them. If you go with 3M emblem tape it does not need much contact area to hold, I would use the wider tape and trim it to the correct size with an exacto knife before fitting it to the car just where you want it. Use a degreaser on the paint and trim first. I installed the early original strips and clips for the large holes on my mini, the strip is hooked over the clips on the top/outside and snaps on toward the glass side.

 Posted: Jan 22, 2021 11:49AM
 Edited:  Jan 23, 2021 12:40PM
Total posts: 339
Last post: May 13, 2021
Member since:Sep 12, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US
Image Gallery
Anything new out there in the way of installing top window door chrome? Looking for best way to install door top window chrome. Holes on door, about ¼ inch diameter, seem too big to hold rivets. Don't know if these holes are original to the doors or aftermarket.

A search has come up with a few alternate methods:

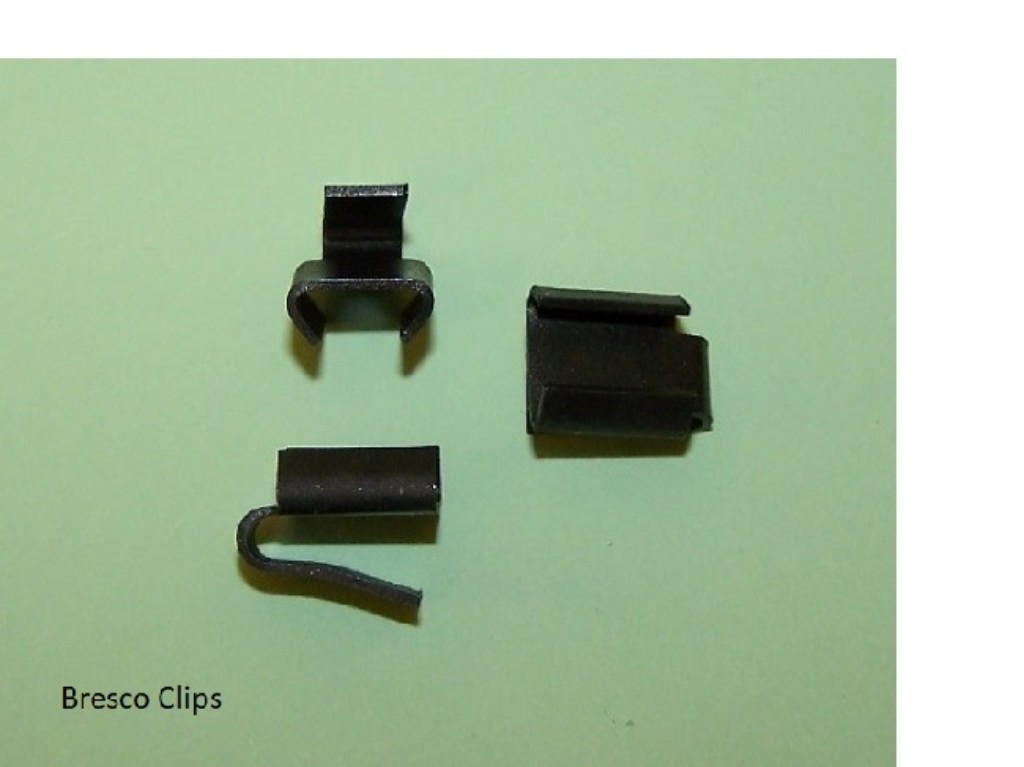

1. Use of clips from Bresco, wonder how well these work. One post method mentioned they required some modification. ??? Not much info on how well these work.

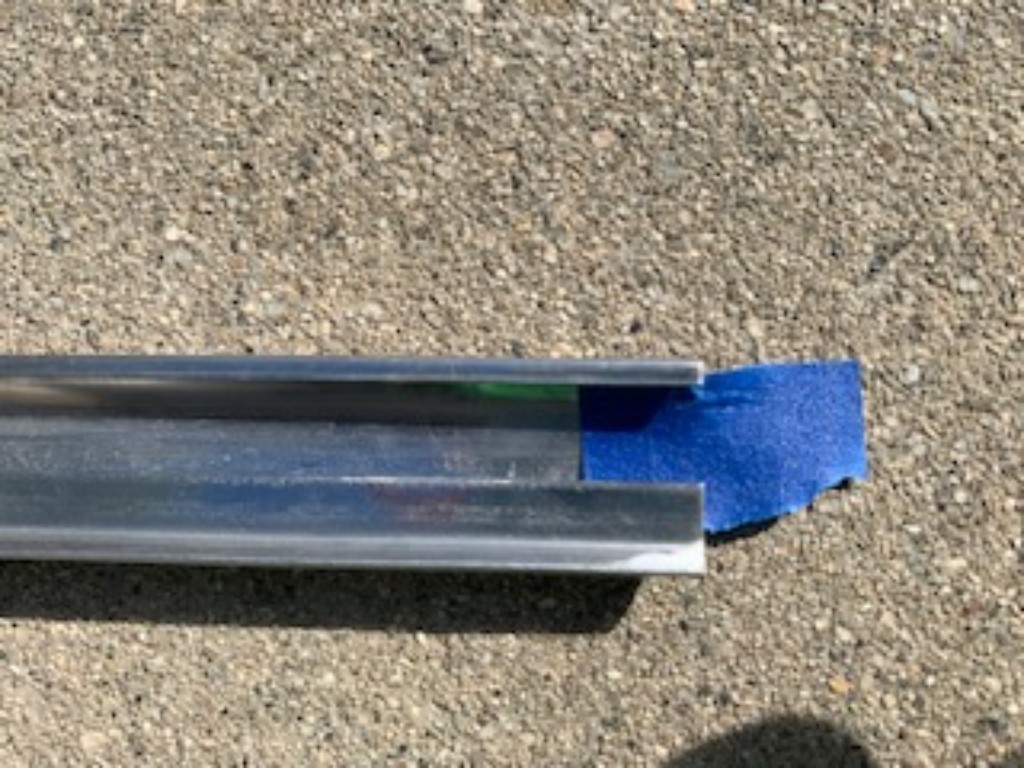

2. 3m tape – purchased a roll, ½ inch diameter, this seems abit too narrow and since the chrome strip is mostly concave with only 1.4 flange at bottom and 1/16 inch at top. Not much surface for the tape to adhere to on the chrome strip. I think 3/4 inch width would be too wide.

3. RTV adhesive, is this a silicone adhesive? So far, seems like it might be the best alternative. So, wondering if there is anything in addition to consider when considering these alternatives, or anything new out there-- adhesive, clips, etc. Any input appreciated.
