 TPMS control module location

 Created by: froggio
   Forum Width:     Forum Type:

 Posted: Jan 10, 2023 05:30AM
 Edited:  Jan 10, 2023 05:32AM
Total posts: 2249
Last post: Feb 6, 2023
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
Here are the two locations I see listed in the service manual for the RDC control unit:

Under the rear bumper:

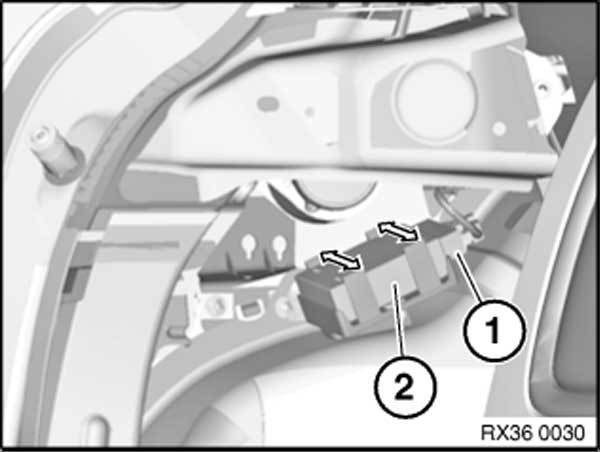

Inside the drivers side trunk panel:

 Posted: Jan 9, 2023 02:33PM
Total posts: 1
Last post: Jan 9, 2023
Member since:Jan 9, 2023
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Did you ever find your TPMS Control module. My 2010 R56 Hatchback is in the shop right now - needs the control unit, and and they can't find it.

 Posted: Jun 7, 2021 07:33PM
Total posts: 1
Last post: Jun 7, 2021
Member since:Jun 7, 2021
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Quote:
Originally Posted by kenatminimania
We don't have a 2012 R56 Hardtop to confirm but I have read several different locations for the RDC tpms receiver:

a. Behind the rear bumper frame - drivers side (access from under the car happy wheels

b. Behind the side panel in the trunk area - drivers side

c. Behind the rear inner fender liner - passenger side (next to the charcoal cannister - access from underneath)

Let us know if you find it!


i got it, thank you for the explanation.

 Posted: May 6, 2021 10:02AM
Total posts: 2249
Last post: Feb 6, 2023
Member since:Dec 29, 2004
Cars in Garage: 1
Photos: 9
WorkBench Posts: 0
We don't have a 2012 R56 Hardtop to confirm but I have read several different locations for the RDC tpms receiver:

a. Behind the rear bumper frame - drivers side (access from under the car)

b. Behind the side panel in the trunk area - drivers side

c. Behind the rear inner fender liner - passenger side (next to the charcoal cannister - access from underneath)

Let us know if you find it!



 Posted: May 5, 2021 08:48AM
Total posts: 8
Last post: Jul 16, 2022
Member since:May 3, 2021
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Hello,
I've changed all four TPMS sensors on my 2012 Mini hatchback base but the check light is still on. The mechanics says the diagnostic tool returns a control module problem.
https://www.ebay.com/itm/Mini-Cooper-TPMS-Control-Unit-OEM-Gen2-R55-R61-/402684890688
Does anyone know where that module is located for that year/model? The mechanic couldn't find it.
???????Thank you.
