Luckily I was able to find someone with a RHD car that the replaced the pedal box on. I bought their clutch pedal.

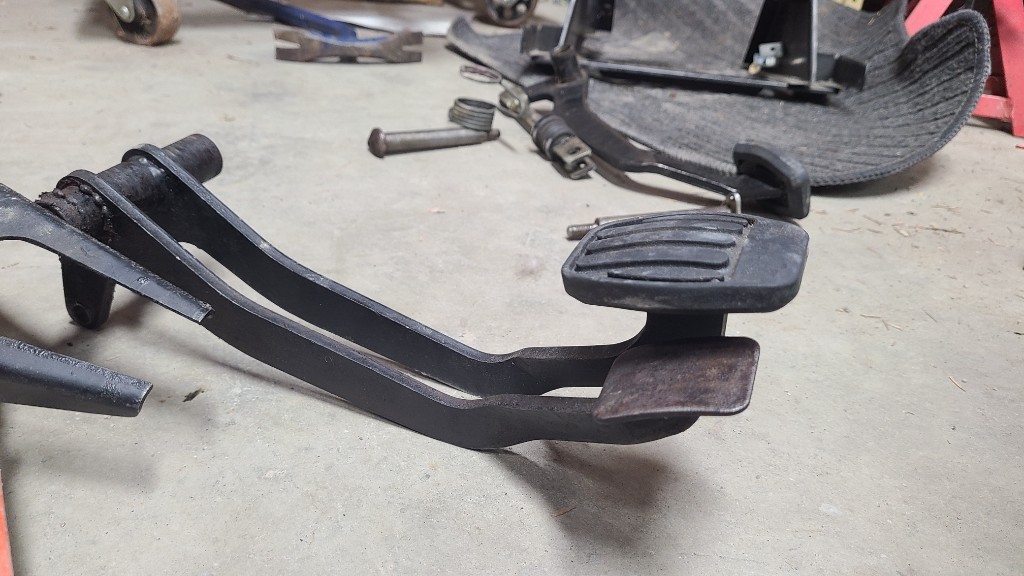

I took a picture of the difference from a MkI LHD pedal and a MkVI RHD pedal.
All installed and feels like a new car!
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
|
|
Total posts: 10150
Last post: Sep 30, 2022 Member since:Mar 24, 1999
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
I did an article on changing LHD to RHD for Mini Mag a few years ago, and I seem to remember that they are different - we ended up having the pedal box apart and scouring through boxes of treasure to try and find a RHD one.
Early/mid 2016 from memory - I'll try and check later if I remember.
|
|
Total posts: 13954
Last post: Sep 26, 2022 Member since:Jan 22, 2003
|
Cars in Garage: 4
Photos: 381 WorkBench Posts: 1 |
|
Thanks for the offer PhatGot the pedal in place . Now to put things back together.
Started pulling shyte out so I could just take out the pedal box. turns out the two bolts holding the front of it in place ( where column attaches ) were never meant to be removed.....no amount of force worked.

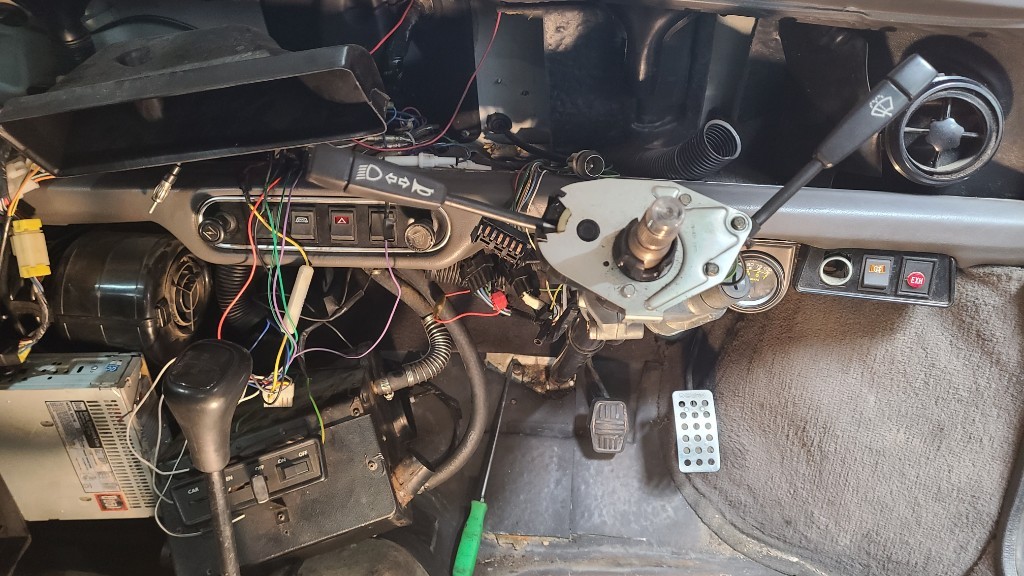

A picture of the mess I get to put back together. ( before pedal went in )
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
|
|
Total posts: 143
Last post: Oct 1, 2022 Member since:Feb 12, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
|
Total posts: 7028
Last post: Sep 26, 2022 Member since:May 23, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
"Retired: No Job, No Money, Wife and I! Will travel anywhere for Minis"
|
|
Total posts: 653
Last post: Sep 6, 2022 Member since:May 18, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
NAM3116 RHD '76 on
NAM3115 LHD '76 on
Clutch Pedals
Of course NLA.....
|
|
Total posts: 13954
Last post: Sep 26, 2022 Member since:Jan 22, 2003
|
Cars in Garage: 4
Photos: 381 WorkBench Posts: 1 |
|
Thanks guys.
The reason I ask is when I looked up "Clutch pedal" on Minispares site....it lists as RHD pedal.
I have found someone local selling a RHD brake and clutch asembly....from a 96 I believe.
They are for my 89 .....hopefully it all fits.
My car was originally an automatic.....I've been using a MkI clutch pedal. I figure as long as I'm in there checking/replacing pivot points....I put the right pedal in.
"Everybody should own a MINI at some point, or you are incomplete as a human being" - James May
"WET COOPER", Partsguy1 (Terry Snell of Penticton BC ) - Could you send the money for the unpaid parts and court fees.
Ordered so by a Judge
|
|
Total posts: 9182
Last post: Sep 30, 2022 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
I recall reading here years ago that the brake/clutch brackets were different between left and right hand cars.
I went to the on-line parts diagram our host provides:
https://www.minimania.com/catPage/6-36/6/36/1/Brake-Clutch-Pedals-and-Controls
Here's what I found:
- The brackets are different, both left/right and before/after 1988.
- the L/R pre-servo brake pedals are different
- the L/R servo type brake pedals are different
- return springs, bushings etc, do not seem to be L?R specific.
There is no mention of a clutch pedal! It is a guess, but I suspect the brake and clutch pedals for a given L/R application are the same or similar to the pre-servo L/R brake pedals, so they may be side specific. These would have brake and master cylinders with actuating rods connected by the clevis pin at the top of the pedal.
The only physical differences I imagine between clutch and brake pedals might be an offset of the sleeve the pivot shaft goes through and/or the offset bends in the pedal levers to space the pedals for foot placement.
.
"Hang on a minute lads....I've got a great idea."
|
|
Total posts: 8539
Last post: Sep 27, 2022 Member since:Sep 30, 2002
|
Cars in Garage: 4
Photos: 40 WorkBench Posts: 2 |
|
I've had both LHD and RHD Minis and don't recall any difference in angle/length/placement on floor etc.
That being said, I don't say this having them side-by-side for comparison (LHD Mini is long gone and I never compared them)
The "gas pedal" angle may have been different.
It would be great (best!) if you had someone with a both a LHD and RHD Minis to answer with authority.
I'd love to help you, but all I could say with a "some" decisiveness is they're probably the same.
