Hey 6464S,
Actually, I needed to find TDC in order to slip the Distributor back into place. But, yes, the slots do line up so that the rotor will point to Cylinder #1. Now if only I can get my new Pertronix Ignition this week we may be able to create some exhaust fumes. It will be the first time since 1999!!
Actually, I needed to find TDC in order to slip the Distributor back into place. But, yes, the slots do line up so that the rotor will point to Cylinder #1. Now if only I can get my new Pertronix Ignition this week we may be able to create some exhaust fumes. It will be the first time since 1999!!
Total posts: 606
Last post: Jun 2, 2025 Member since:Jan 25, 2017
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Check your rotor position. Should be at the #1 position on the cap.
Total posts: 36
Last post: Sep 22, 2022 Member since:Jun 18, 2016
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks Dan, much appreciated.
Total posts: 9845
Last post: May 23, 2025 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
![]() |
Confirmed.
It is marked 1 and 4 because both those cylinders' pistons are fully up at that time and 2 and 3 are fully down.
As you have determined, both valves for No. 1 must be fully closed to set ignition timing.
It is marked 1 and 4 because both those cylinders' pistons are fully up at that time and 2 and 3 are fully down.
As you have determined, both valves for No. 1 must be fully closed to set ignition timing.
.
"Hang on a minute lads....I've got a great idea."
Total posts: 36
Last post: Sep 22, 2022 Member since:Jun 18, 2016
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |

Hello,

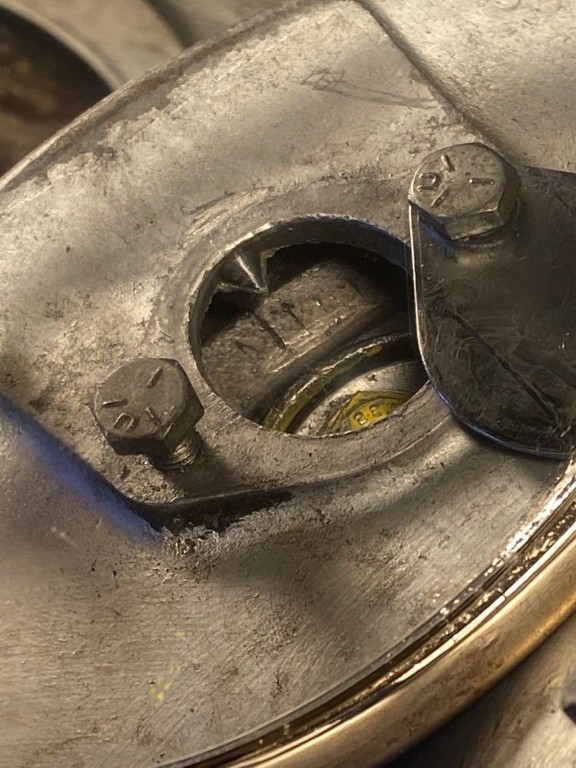

Can anyone here confirm that this marking is Top Dead Center? I turned the the engine over manually for hours yesterday trying to find all proper markings. ( 1/ 4 ). I had to clean the flywheel every half inch with grit paper until I came across this lonely mark. I can say that the # 1 piston was at the top of it's stroke and that both valves were closed.
Has anybody seen this before?
Sorry for the photo quality, it's the best of the lot.
