How to loosen front rubber brake line
Created by: capitolatim
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks, I've ordered new cylinders and the circlip installation tool...
Total posts: 2037
Last post: Mar 29, 2024 Member since:Aug 29, 2001
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
You said Now found that rear bleed screws are not allowing brake fluid out, I'm now ready to replace the rear brake cylinders.
I had a bleed screw new out of the box that would not bleed . The wheel cylinder hole for the screw not been drilled out deep enough during manufacturing. So before you replace the rear wheel cylinders you might check that possibility. Long shot that both would be bad.
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Here's the access port cover installed
https://photos.app.goo.gl/rEgNrRPLSRpSCgSMA
https://photos.app.goo.gl/rEgNrRPLSRpSCgSMA
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
BTW, the securing nut on the front rubber brake line is 15/16 but a 1 incher will loosen it.
Found the rear lines were blocked as well, getting to the drivers side was difficult as a fuel filter is in the way.
Now found that rear bleed screws are not allowing brake fluid out, I'm now ready to replace the rear brake cylinders.
What fun.
Found the rear lines were blocked as well, getting to the drivers side was difficult as a fuel filter is in the way.
Now found that rear bleed screws are not allowing brake fluid out, I'm now ready to replace the rear brake cylinders.
What fun.
Total posts: 2524
Last post: Apr 18, 2024 Member since:Dec 1, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Nice access hole, for now and the future. Well done.
"How can anything bigger be mini?"
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Got it, a used a hole saw to make an access port, something I've done on a few race cars. I will make a cover plate that is removable, but hopefully the next owner will appreciate the effort. Found the brake line completely blocked, now on to the drivers side, the brake line nut looks rounded off, fun and games.
Photos here: https://photos.app.goo.gl/AryYvjaP3yZhg8Ag6
Photos here: https://photos.app.goo.gl/AryYvjaP3yZhg8Ag6
Total posts: 379
Last post: Feb 6, 2024 Member since:Jul 26, 2010
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
If you shift the ECU it will give you a clear path from above to the hose nut. 2 x M10 nuts to undo the ECU bracket and it's out of the way. You don't even need to unplug the ECU or butcher the inner wing.
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks, will do
Total posts: 236
Last post: Apr 9, 2024 Member since:Feb 27, 2007
|
Cars in Garage: 6
Photos: 20 WorkBench Posts: 0 |
Quote:
Originally Posted by capitolatim
I was able to get the banjo fitting off by weighing around the sheet metal but no way to get to the top nut. I see on the drivers side there is a nice access port but none on the passenger side. I'm ready to cut one in tomorrow, probably means creating a cover plate but I can do that for sure. Any advice before I attack with my cut off wheel?
"Nature Bats Last"
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |

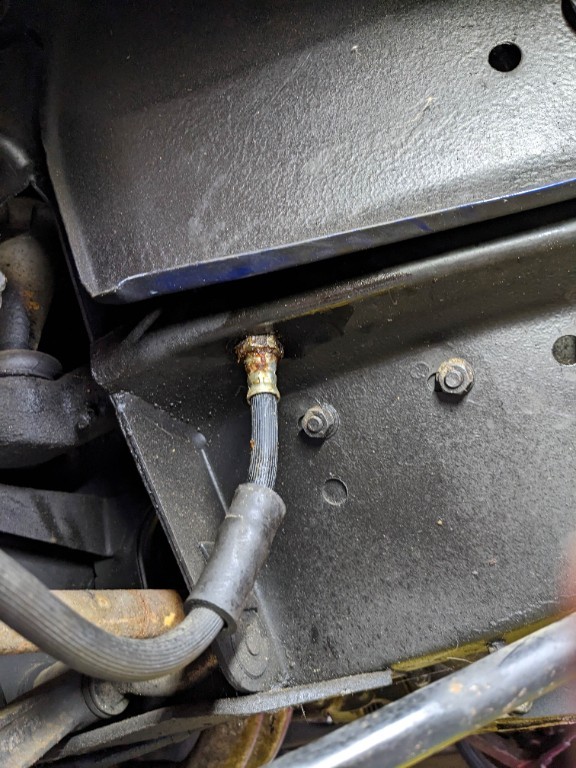

I was able to get the banjo fitting off by weighing around the sheet metal but no way to get to the top nut. I see on the drivers side there is a nice access port but none on the passenger side. I'm ready to cut one in tomorrow, probably means creating a cover plate but I can do that for sure. Any advice before I attack with my cut off wheel?
Photos here:
https://photos.app.goo.gl/5X4prKmzS4yHaop97
Cheers Tim
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks, that might be better than removing the brake booster and ECU, wow things are tight in there...not like my MGB
Total posts: 9543
Last post: Apr 20, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
In the photo you posted, the inner wing is not fully lined up with the top of the subframe and there is a small kink in its flange. That suggests that someone may have been there before you and bent the inner wing away enough to gain access to the fitting and nut. My Mini has a similar deformity, not by me. If all else fails you might try that.
.
"Hang on a minute lads....I've got a great idea."
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks, I will try that tomorrow
Cheers
Tim
Cheers
Tim
Total posts: 7
Last post: May 5, 2023 Member since:Nov 12, 2021
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
After disconnecting and removing the brake light switch, Use an 11/16" socket with a very long extension attached. You will need to push the banjo fitting and brake line out of the way.
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Thanks, it is a 1996 with a booster and ECU ( Spi), anyway to do it without getting to the top nut?
Total posts: 2524
Last post: Apr 18, 2024 Member since:Dec 1, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
This is a parts diagram of what is there. I don't know the year of your car. The parts in the center left side are what is there. https://www.minimania.com/catPage/6-38/6/38/1/Brake-Pipes-and-Fittles
Access can be a pain if you have a brake booster or ECU and other items in the way. The booster will have to be moved, though you can do that without dis-connecting the lines.
"How can anything bigger be mini?"
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
I don't see how to get it the top nut.
Total posts: 2524
Last post: Apr 18, 2024 Member since:Dec 1, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
There is a large nut on top, and that is under a fitting for the brake line coming down to it and also the line to the other side.
"How can anything bigger be mini?"
Total posts: 18
Last post: Jan 20, 2023 Member since:Nov 20, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
