 Help identifying pistons please.

 Created by: MartinGreenbank
Orig. Posting Date User Name Edit Date
Feb 10, 2023 08:35AM Alex
Feb 7, 2023 11:32AM MartinGreenbank
   Forum Width:     Forum Type:

 Posted: Feb 10, 2023 08:35AM
Total posts: 10238
Last post: Apr 26, 2024
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB
They look like 1098 5-ring pistons.

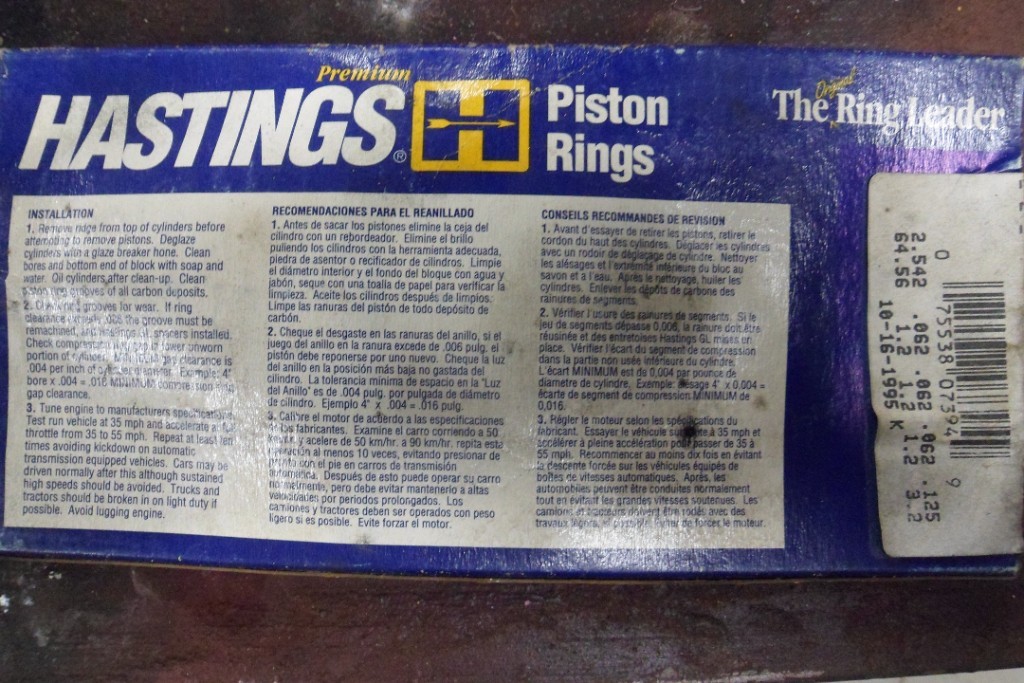

2.542" is std bore, and 2.562" is +.020" - by your measurements it looks like they are std and +.010" give or take a bit of error.

 Posted: Feb 7, 2023 11:32AM
Total posts: 236
Last post: Apr 9, 2024
Member since:Feb 27, 2007
Cars in Garage: 6
Photos: 20
WorkBench Posts: 0
Image Gallery

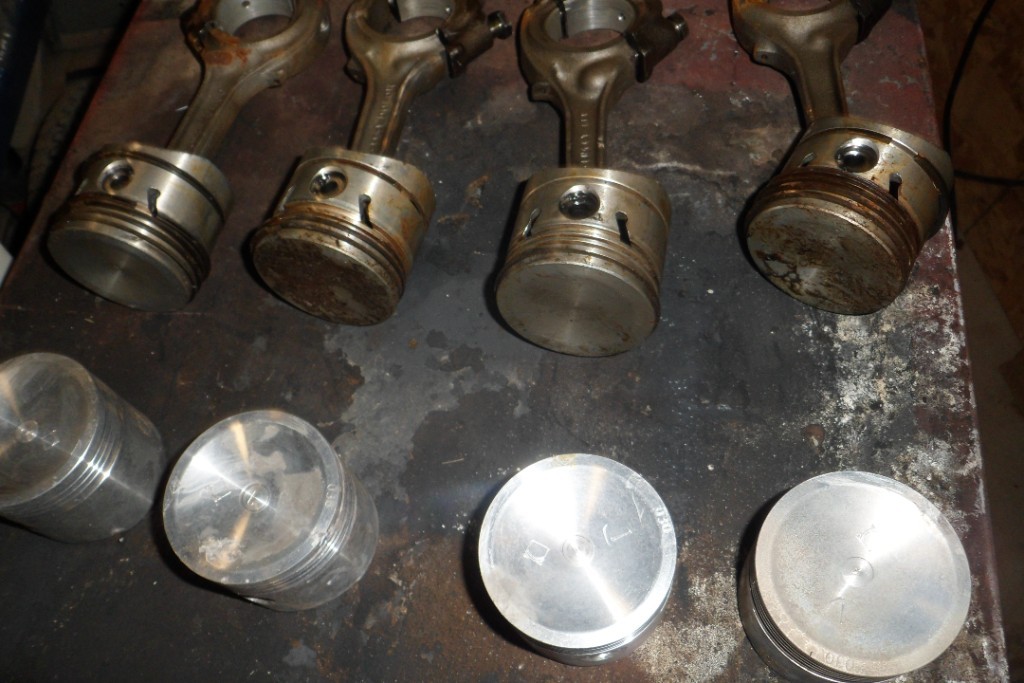

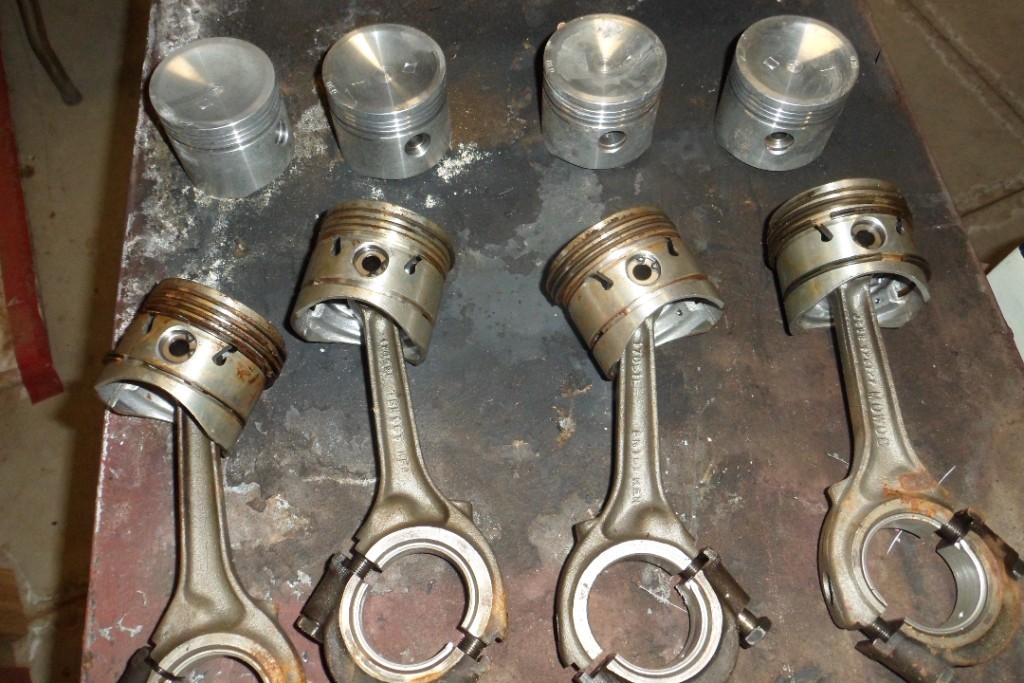

Many years ago (about 15) I scored two Mini engines from a swap-meet in Sacramento, one was a runner (998) which I put in a Coupé, the other was an unknown pedigree. Every nut, bolt, part, you name it was disassembled in a storage tote, no cylinder head or block for identification just these pistons & con rods.

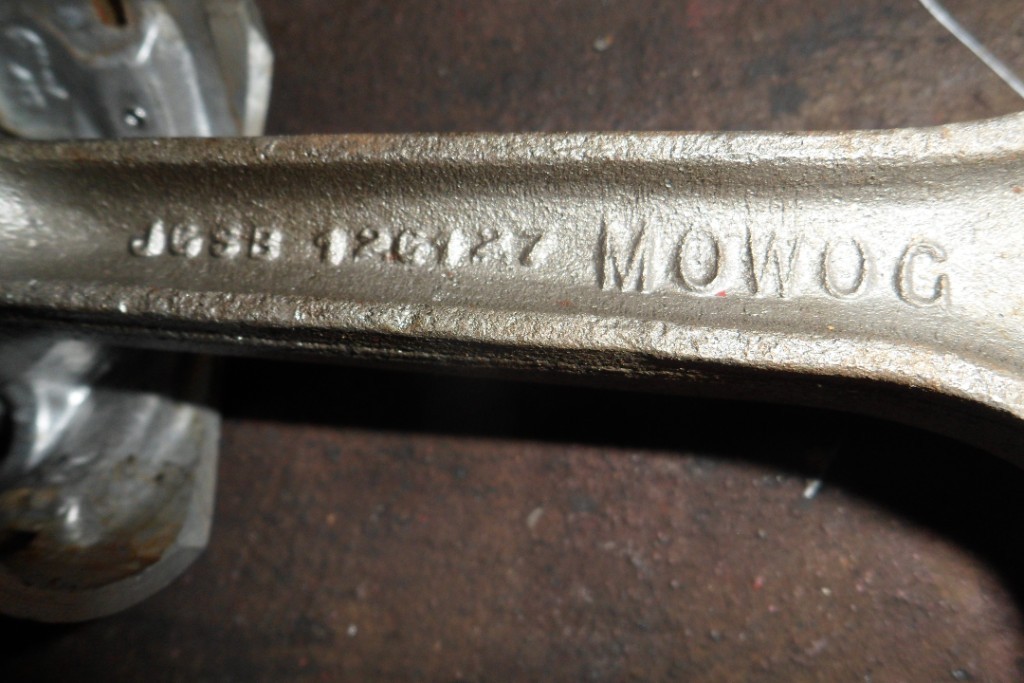

The four pistons with rods measure 64.61mm diameter and the others 64.81mm, any clue to that block they would fit? I'm not sure how to measure the con rods.
Thanks, Martin.

"Nature Bats Last"
