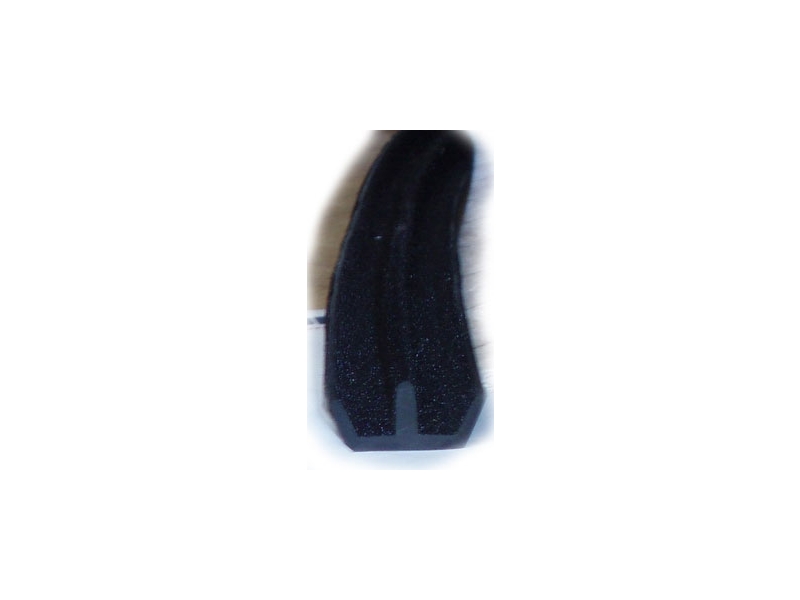

Classic Mini Lower Channel - Front Door Sliding Windows

Classic Mini Lower Channel - Front Door Sliding Windows

Classic Mini Lower Channel - Front Door Sliding Windows

Classic Mini Lower Channel - Front Door Sliding Windows

Classic Mini Lower Channel - Front Door Sliding Windows
Qty:
$24.25
Part No: 24A88
In Stock
SALE Price $24.25
List: $26.95
You save: $2.70
Alternate Products
Classic Mini Lower Door Sliding Window Channel Mk1 And Mk11
$37.76 Classic Mini Lower Door Sliding Window Channel Mk1 And Mk11
The MK1/2 Mini with sliding door glass is considered the classic of all the original Minis. The glass slides inside a felt covered dual channel. This channel works great when in good shape but will deteriorate after years of exposure to weather, dirt, and the sliding motion. Replacing it should be an hour long task that will renew a 'classic' feature of your Mini! 32.75" long FITTING INSTRUCTIONS 24A88 Mini front door window channel This window channel is now supplied without water drain holes. The drain holes can be identified as the larger 6.5mm holes in the chromium plated glazing strip. The smaller holes in the glazing strip are used for fastenings to affix channel and glazing strip to door frame. TO MAKE DRAIN HOLES IN THE CHANNEL: 1.Use chromium plated glazing strip as template. Mark drain holes on closed face of channel. 2.Using a 3mm drill bit, carefully drill pilot holes through closed face of channel as marked. 3.Using a 5mm drill bit, drill open from side of channel through pilot holes. (This de-burrs pilot holes allowing window glass to slide freely). New fixing holes may be drilled (using correct size for desired fixing) through open side of channel into glazing strip and appropriate area in door frame.


Question:
59 mk1 austin mini door water channel, how do they come out also is there a replacement part for the door? thanks
Answer:
The window channels are held in place with screws going downward through the channel. If you need new channels, see part numbers 24A88, 24A88_ORIGINAL and MMKT0202. It's helpful to read the Description below the photos.


Loading...
Loading...
Loading...
Related Technical Articles:
Classic Mini Cooper Door Handles & Hinges page 54
Created: January 09, 2019
Door hardware for the Classic Mini includes inside & outside handles, window locks, external hinges and more. Complete selections for all Minis from 1959 thru 2000. Technical support on-line, e-mail or phone.
How To: Removing sliding glass windows in a Mini Cooper
Created: September 22, 2010
Dig along the the bottom of the sliding window channel and you will find two or three phillips head screws. Get them out however you can and this is sometimes difficult because the original screws are steel and they rust.
