Classic Mini Cooper - Chapter 3 Pages 6-7

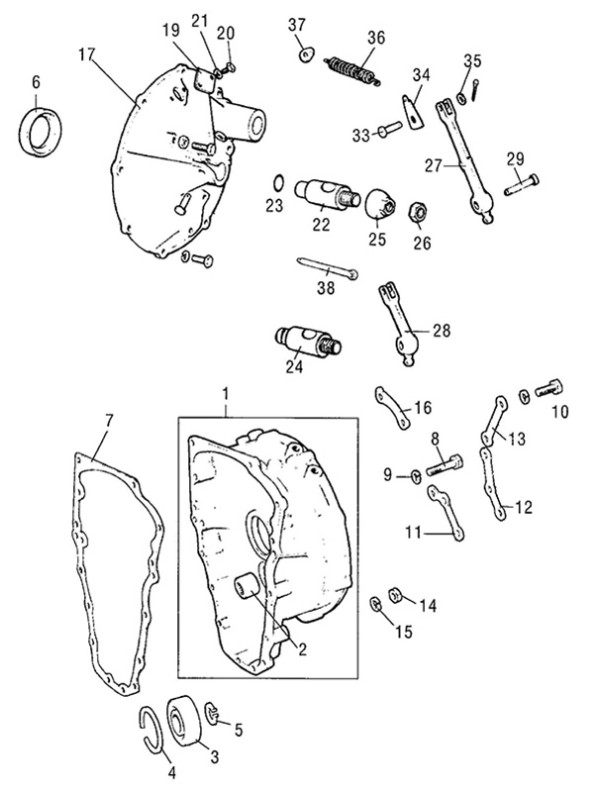

MINI Catalog Page 3-7
Records - of

#

Part No

Qty

Description


with AAU8424
22G1837 1
Flywheel housing
NLA, use FAM6257/9
DAM6074 1
Flywheel housing
Turbo only
DAM6259 1
Flywheel housing - use with AHU1707 or DAM3745
998cc,
TRD10015 1
Flywheel housing, was DAM6257, use with AHU1707
1300cc (Breather hole)
AHU1707 1
Idler bearing 1.375" 34.92mm O/D
.875" I/D
DAM3745 1
Idler bearing 1.375" 34.92mm O/D
.750" I/D
13H7848 1
Idler bearing 1.065" 27.05mm O/D
4 synchro early
88G302 1
Idler bearing 1.004" 25.5mm O/D
3 synchro
AAU8424 1
1st motion shaft nose bearing, was 13H6080
13H6080 not interchangable
ADU6033 1
1st motion shaft nose bearing 1.692" 42.98mm O/D
Turbo only
2A3643 1
Circlip for AAU8424 in flywheel housing
ADU7194 1
Circlip for ADU6033 in flywheel housing
Turbo only
CCN110 1
Circlip for holding 1st motion shaft bearing
13H2934 1
Clutch oil seal (DAM2821 seal protector available)
LVF10005 1
Clutch oil seal (reluctor type flywheel)
Injection only
22A2237 1
Flywheel casing gasket
BH605141 3
Clutch case screw, long was BH605141
DAM7758 bolt, alternative
GHF332 3
Clutch case washer was LWZ305
10  GHF103 3
Screw, short was SH605081
DAM7753 bolt, alternative
11  22A1762 1
Locktab
Part of 18G8086
12  22A1761 1
Locktab
Part of 18G8086
13  2A3521 1
Locktab
Part of 18G8086
14  FNZ505 9
Nut
15  GHF332 4
Washer was LWZ305
16  22A1241 1
Locktab
Part of 18G8086
17  88G300 1
Cover, with timing hole
17  AHU1106 1
Cover - Verto with no timing hole
18  DAM7755 8
Bolt - clutch cover
19  2A3635 1
Cover for timing hole
20  SH604041 2
Screw for timing hole cover
21  GHF331 2
Washer
22  22A180 1
Plunger, press fit for release bearing GRB201
22  DAM1955 1
Plunger, which takes GRB238 and DAM2413
Release bearing fit loose on plunger
23  DAM2413 1
Clip, to hold GRB238 to DAM1955
24  DAM5353 1
Plunger verto clutch
1982 on
25  22A427 1
Plunger stop
26  NT610041 1
Nut, was FNZ210
27  22A2204 1
Clutch arm, was 2A3518, pre Verto
28  DAM5355 1
Clutch arm short verto only
1982 on
29  CLZ628 1
Clevis pin, lever to case
30  GHF302 1
Washer, was PWZ106
31  GHF101 1
Adjusting screw was HZS409
32  FNZ604 1
Locking nut
33  CLZ518 1
Clevis pin, lever to push rod
34  2A3601 1
Spring anchor
35  GHF301 1
Washer was FWZ105
36  1G5999 1
Clutch spring
37  2A3600 1
Anchor spring end
Pre Verto
38  13H396 1
Slave cylinder push rod
All Minis
