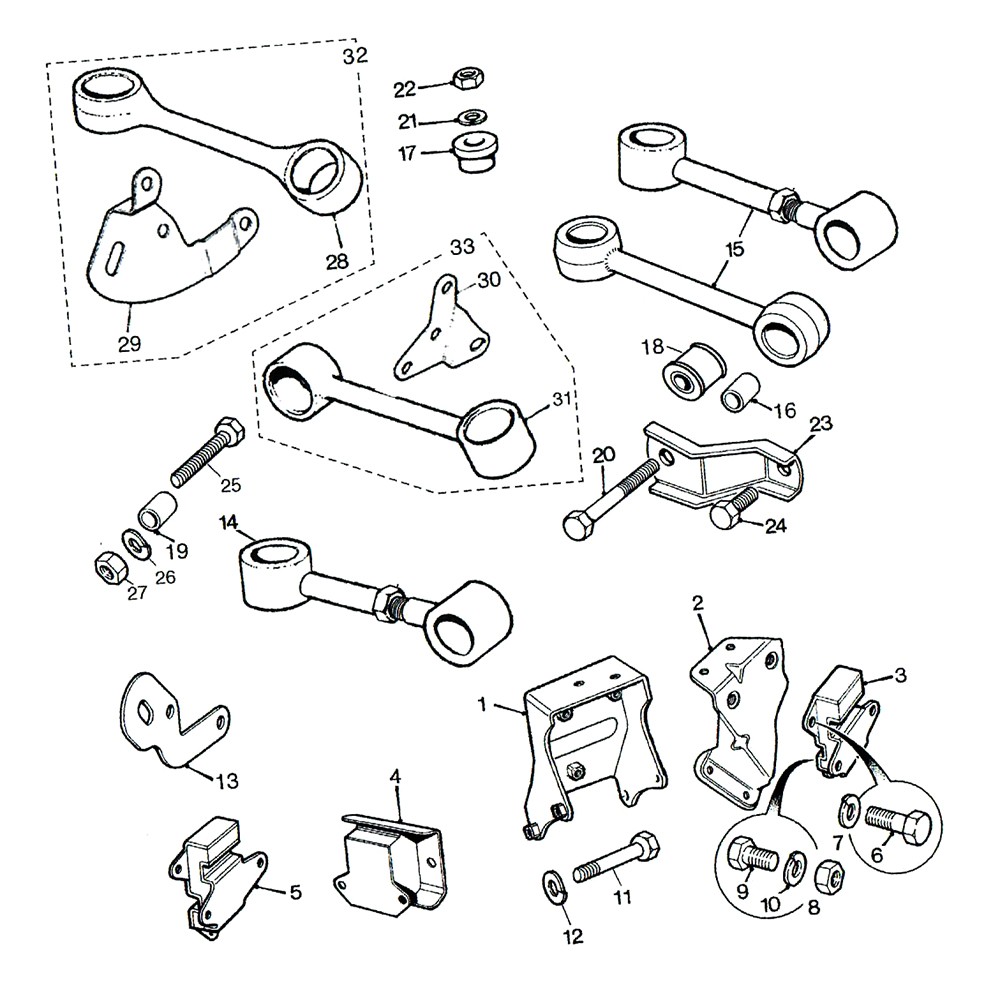

Classic Mini Cooper Engine Mountings - Chapter 1 Pages 12-13

MINI Catalog Page 1-13
Records - of

#

Part No

Qty

Description

  **
KKF101320 & KKF101320EVO can be used instead of 2-CRC5329
bushes on either end as an upgrade and no longer requires the spacer.
12A361 1
Engine to radiator mounting bracket
22A1274 1
Engine to radiator mounting bracket Auto only
Use U-22A1274
21A1902MS 2
Engine mount Non-Genuine
21A1902 2
Engine mount Genuine
21A1902ST 2
Engine mount with captive nuts
21A1902POLY 2
Engine mount Poly With Quick-release
22A917 1
Engine mount Right hand side Auto only
22A1018 1
Engine mount Left hand side Auto only
GFK5184 3
Setscrew 5/16”UNF x 1” long mounts to 12A361
WL2051 3
Spring washer
GHF201 2
Plain nut 5/16” mounting to subframe
SH605051 2
Bolt 5/16”UNF x 5/8
Use HF0505
10  WL2051 2
Spring washer 5/16”,mounting to subframe
11  HBZ534 2
Bolt 5/16”UNF x 4 3/8”, holds 12A361 to 12G1318
12  WL2051 2
Spring washer for HBZ534
13  NAM3760 1
Bracket for lower R/H engine steady rod 998
14  FAM2758 1
Engine lower R/H steady rod 998cc, Forward facing
Original equipment
14  KKH10013 1
Engine lower R/H steady rod 1275cc,1/4”shorter than FAM2758
Use FAM2758
15  21A1109 1
Engine upper steady rod 998cc
15  21A1817 1
Engine upper steady rod 1275cc 1990 on, 1/2”longer
15  MSSK1305 1
Engine upper adjustable steady rod ERA and any Mini
16  21A1108 2
Spacer for upper engine stabiliser 2 piece rubber bushes
17  KKF100390 4
Stabiliser rubber bush pre 1996 Genuine
Or as required
17  CRC5329 4
Stabiliser rubber bush pre 1996
Or as required
17  CRC5329POLY 4
Stabiliser polyurethane bush pre 1996
Or as required
17  C-STR630 1
Polyurethane upper steady rod bush kit
17  SBK1 1
Stabiliser bush kit with SC2 plastic inserts includes 4 bushes
17  SBK2 1
Stabiliser bush kit with metal inserts includes 4 bushes
18  KKF101320** 2
Stabiliser one piece bush with built in spacer, from 1996
Or as required
18  KKF101320EVO** 2
Stabiliser upgraded version one piece bush, from 1996
Or as required
19  31G1085 2
Spacer for lower steady rod
20  BH605151 1
Bolt 5/16” UNF x 1 7/8” long, upper steady rod to block
21  WL2051 1
Lock washer 5/16”
Or as required
22  GHF201 1
Plain nut 5/16” unf or GFK3322 locknut
Or as required
23  21A2387 1
Bracket for upper engine steady to engine block
24  GFK5184 1
Bolt 5/16”UNF X 3/4” long, bracket to block
Use GHF120
25  BT606171 2
Bolt 3/8”UNF X 2 1/4” long, lower steady rods
Use HF0615
26  GFK1126 2
Lock washer 3/8”
Use GHF333
27  GFK3213 2
Plain nut 3/8” unf or GFK3323 locknut
28  21A2569 1
Engine lower steady extra rod R/H backwards
Part of MSSK kit
28  21A2787 1
Engine lower steady extra rod L/H backwards
Part of MSSK001 kit
29  C-STR401 1
Bracket for 21A2569 rod to gearbox
Part of MSSK kit
30  21A2785 1
Bracket for 21A2787 rod to gearbox
Part of MSSK001 kit
  NOTE:
MSSK and MSSK001 are great extra engine stabilisers and were fitted as standard to previous models but deleted in the 70s
