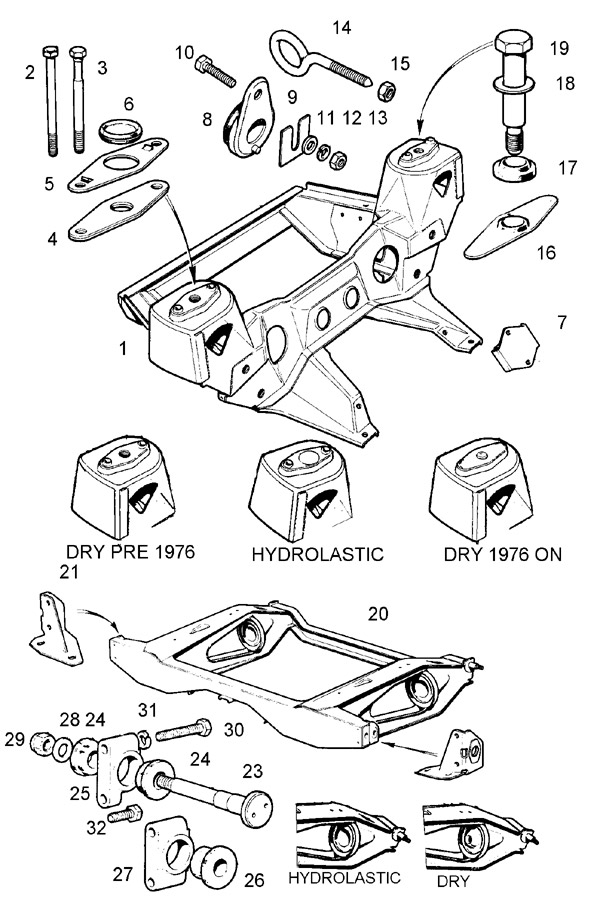

Classic Mini Cooper Subframes - Front & Rear - Chapter 12 Pages 22-23

MINI Catalog Page 12-23
Records - of

#

Part No

Qty

Description

  C-STR640 1
Upper turret solid mount kit
Not Shown
21A1846 1
Front subframe, hydrolastic
No Longer Available
21A1733 1
Front subframe, hydrolastic, automatic only
No Longer Available
21A2570 1
Front subframe, dry suspension to 1976
21A1816 1
Front subframe, dry, automatic only to 1976
No Longer Available
21A2774 1
Front subframe, rubber mounted 1976 on
KGB10022 1
Front subframe, genuine 1976 on 1000cc
KGB10027 1 1990 on
Front subframe, 1300cc SPI 1990-96
Engine is .5" further forward
ERA1062 1
Front subframe, ERA Turbo
No Longer Available
21A1694 4
Tower bolt for hydrolastic s/frame, was 53K1483 stud
21A90 4
Tower bolt for dry subframe, pre 1976
21A2341 2
Pad between subframe and body, pre 1976
21A1470 2
Locktab for bolts dry suspension, to 1976
RFR220 2
Plug for 21A1470 lock tab
Use GMT549
21A2599 2
Mounting subframe rear, 1976 on
21A2624 2
Mounting subframe front, 1976 on
2A4292 A/R
Packing piece between subframe/front panel, 76 on
10  GHF120 2
Bolt, 5/16UNF x 1"
11  WU2041 2
Washer, plain
12  WL2051 2
5/16 Lock Washer
13  GHF201 2
Nut
14  21A1220 A/R
Eyebolt for towing
15  NT606041 A/R
Nut for eyebolt (alternative to GHF202)
16  21A2598 2
Tower to body pad, 1976 on
16  21A2598-POLY 2
Tower to body pad, poly, 1976-on
17  21A2597 2
Upper tower bolt bush, 1976 on
17  21A2597-POLY 2
Upper tower bolt bush, Poly, 1976-on
18  53K3755 2
Plain washer, 1976 on
19  21A2596 2
Tower bolt rubber mounted subframe, 1976 on
20  MS45H 1
Rear hydrolastic subframe
20  MS45D 1
Rear subframe dry
21  21A195 1
Radius arm bracket, right hand side (fitted to new subframe)
22  21A197 1
Radius arm bracket, left hand side (fitted to new subframe)
23  21A1440 2
Front support pins, was 2A5815
24  2A5818 A/R
Bush when using twin bush type, qty reduced 76 on
24  2A5818-POLY A/R
Bush, Poly subframe, all front and rear up to 1976
25  2A5819 2
Trunnion for Rear Subframe
26  21A2560 2
Bush, large single for 21A2558, 1976 on
26  C-STR639 2
Poly Bush 21A2560
27  21A2558 2
Trunnion for front support pin, 1976 on
28  PWZ207 4
Washer For Support pin
29  GHF224 4
Nyloc Nut
30  SH605181 2
Long trunnion bolt
31  WL2051 8
Washer
32  GHF120 2
Bolt, short for 2A5819
