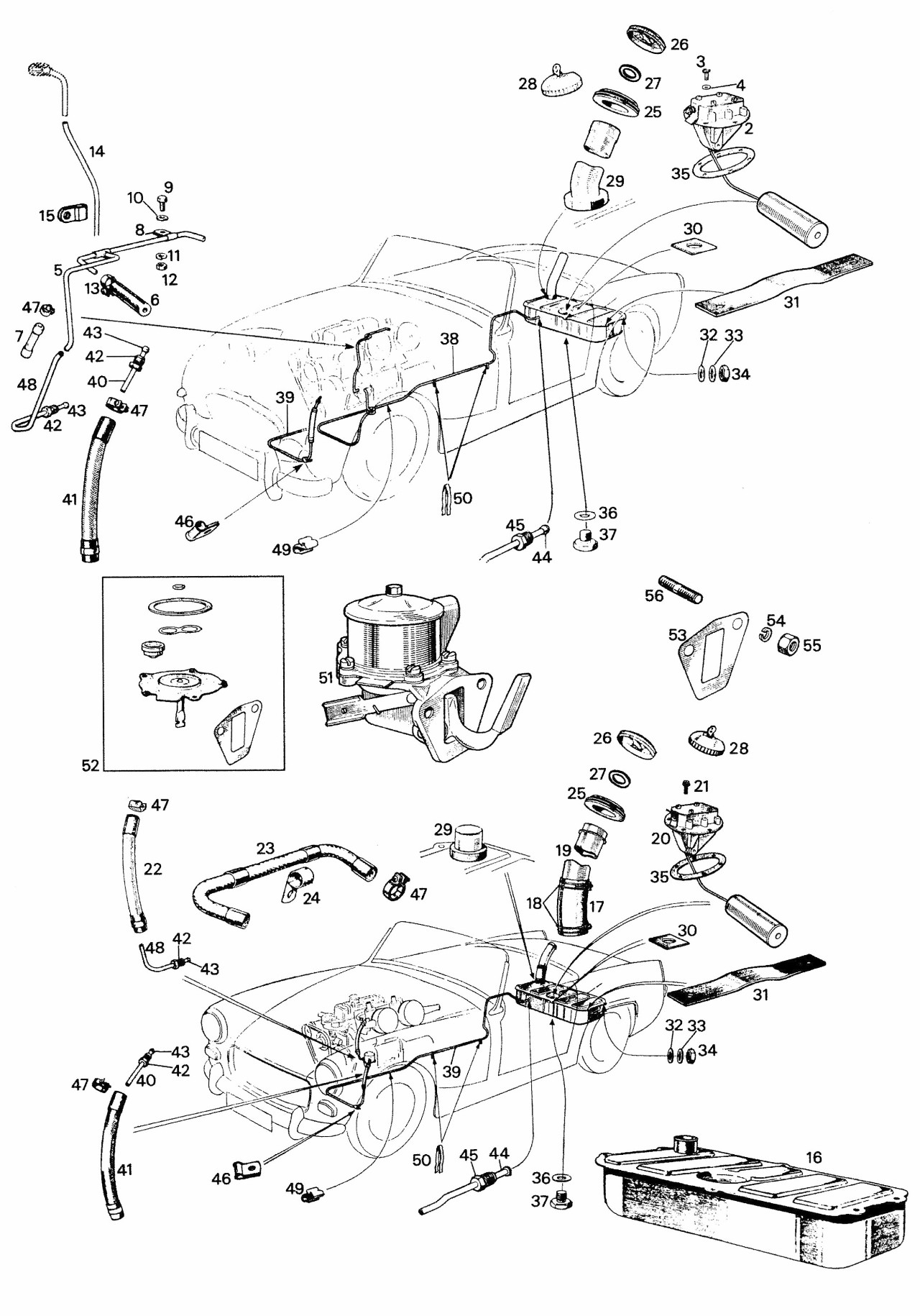

Sprite/Midget Sprite Mk I, II & III Midget Mk I & II Fuel Tank, Senders, Lines, and Pumps
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| AUF214 | 1 | POINTS TYPE OEM SU FUEL PUMP POSITIVE OR NEGATIVE GROUND NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AUF214EN | 1 | SU SOLID STATE FUEL PUMP NEGATIVE GROUND ONLY NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AUB663 | 2 | BANJO FOR FUEL PUMP NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AHH6708 | 1 | FULL PUMP RUBBER MOUNT USE ACB9252 - NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| 1 | ARA77 | 1 | FUEL TANK SPRITE MKI 1958-1961 Not Numbered In Diagram |
| 2 | 2A404 | 1 | FUEL SENDING UNIT - MKI SPRITE BUGEYE |
| 3 | 53K165 | 6 | SCREW FOR SENDING UNIT |
| 4 | 2A2088 | 6 | COPPER WASHER No Longer Available |
| 5 | AEA393 | 1 | FUEL PIPE No Longer Available |
| 6 | AEC992 | 2 | PETROFLEX FUEL HOSE 2.5" USE FAB101 |
| 7 | GGT102 | 1 | PETROFLEX FUEL HOSE 5 USE FAB102 - SPRITE MK I, II & III, MIDGET I & II |
| 8 | PCR409 | A/R | CLIP, FUEL LINE TO MANIFOLD |
| 9 | SH604041 | 2 | BOLT, 1/4" UNF X .50" LONG |
| 10 | GHF300 | 2 | WASHER, PLAIN 1/4" |
| 11 | GHF331 | 2 | LOCK WASHER, 1/4" |
| 12 | GHF200 | 2 | NUT, 1/4" UNF |
| 13 | AEC2003 | 4 | CLAMP, FUEL HOSE USE CC6 |
| 14 | AEC985 | 2 | OVERFLOW PIPE No Longer Available |
| 15 | AEH550 | 1 | CLIP FOR OVERFLOW PIPES No Longer Available |
| 16 | NRP9 | 1 | FUEL TANK 61-69 SPRITE MIDGET SPRITE II & III, MIDGET I & II |
| 17 | AHA5663 | 1 | FILLER PIPE RUBBER SPRITE II & III, MIDGET I & II |
| 18 | CS4042 | 2 | CLAMP No Longer Available |
| 18 | GHC1622 | 2 | HOSE CLAMP WIRE TYPE SPRITE II & III, MIDGET I & II |
| 19 | AHA5662 | 1 | FILLER TUBE No Longer Available |
| 20 | 21A168 | 1 | SENDING UNIT SPRITE II & III, MIDGET I & II |
| 21 | 53K126 | 6 | SCREW, SENDING UNIT SPRITE II & III, MIDGET I & II |
| 22 | FAB104 | 1 | PETROFLEX FUEL HOSE 10 SPRITE II & III, MIDGET I & II |
| 23 | FAB106 | 1 | PETROFLEX FUEL HOSE 14.25" SPRITE II & III, MIDGET I & II |
| 24 | 12H1001 | 2 | CLIP, FUEL LINE TO MANIFOLD SPRITE II & III, MIDGET I & II |
| 25 | AHA5445 | 1 | FUEL FILLER GROMMET ALL MODELS |
| 26 | 18G8601 | 1 | FILLER CAP STAINLESS USE WLD100350 - ALL MODELS |
| 27 | 27H3573 | 1 | FILLER CAP SEAL No Longer Available - ALL MODELS |
| 28 | AKF1439 | 1 | GAS CAP LOCKING - VENTED PERIOD STYLE USE GSS154A - ALL MODELS |
| 28 | GSS154 | 1 | GAS CAP LOCKING - VENTED USE WLD100660 - ALL MODELS |
| 29 | 2A2069 | 1 | SEAL, FILLER NECK TO FLOOR |
| 30 | 2A2070 | 2 | SEAL, TANK MOUNTING SMALL ALL MODELS |
| 31 | 2A2071 | 2 | SEAL, TANK MOUNTING LARGE ALL MODELS |
| 32 | GHF301 | 6 | PLAIN WASHER 5/16" USE WU2041 -ALL MODELS |
| 33 | GHF322 | 6 | SHAKEPROOF WASHER, 5/16" ALL MODELS |
| 34 | GHF201 | 6 | NUT, 5/16" UNF |
| 35 | 2H1082 | 1 | FUEL SENDING UNIT GASKET ALL MODELS |
| 36 | ARA967 | 1 | WASHER DRAIN PLUG (FACTORY TANKS ONLY) No Longer Available |
| 37 | ARH672 | 1 | TANK DRAIN PLUG (FACTORY TANKS ONLY) No Longer Available |
| 38 | AHA5469 | 1 | FUEL PIPE TANK TO PUMP TO AN5-41014 |
| 39 | AHA5536 | 1 | PIPE TANK TO FLEXIBLE HOSE AN5-41015 TO 1964, SHAPE TO SUIT APPLICATION |
| 40 | AHA5535 | 1 | PIPE, FLEXIBLE HOSE TO PUMP SPRITE MK I & II, MIDGET I |
| 41 | GGT102 | 1 | PETROFLEX FUEL HOSE 5" USE FAB102 - SPRITE MK I, II & III, MIDGET I & II |
| 42 | 6K648 | 2 | NUT FOR PIPE TO PUMP SPRITE MK I & II, MIDGET I |
| 43 | TL7 | 2 | COMPRESSION SLEEVE TO FUEL PUMP USE 21A2771 -SPRITE MK I & II, MIDGET I |
| 44 | 21A2771 | 1 | COMPRESSION SLEEVE TO FUEL TANK |
| 45 | 21A2770 | 1 | NUT FUEL LINE-TANK USE 6K648 |
| 46 | PCR411 | 1 | CLIP, FUEL PIPE (FRONT) SPRITE MK I & II, MIDGET I |
| 47 | ACH5854 | 4-6 | HOSE CLAMP FUEL OEM ALL MODELS |
| 48 | AHA5535 | 1 | PIPE, FLEXIBLE HOSE TO PUMP SPRITE MK I & II, MIDGET I |
| 49 | 17H9603 | 3 | CLIP FUEL LINE FRONT TO REAR ALL MODELS |
| 50 | 6K35 | 2 | CLIP FOR FUEL LINES AND BRAKE LINES ALL MODELS |
| 51 | 17H98 | 1 | FUEL PUMP MANUAL SPRITE MK I & II, MIDGET I |
| 52 | BAU5077 | 1 | KIT REBUILD MECH PUMP No Longer Available |
| 53 | 2A113 | 1 | GASKET MECH FUEL PUMP USE CAM6657 - SPRITE I-II, MIDGET MK I |
| 54 | GHF332 | 2 | LOCK WASHER, 5/16" SPRITE MK I & II, MIDGET I |
| 55 | GHF201 | 2 | NUT, 5/16" UNF SPRITE MK I & II, MIDGET I |
| 56 | 53K525 | 2 | STUD, MECHANICAL FUEL PUMP USE CHS2515 - SPRITE MK I & II, MIDGET I |
| AHA7381 | 1 | FUEL PIPE TANK TO PUMP FLEXIBLE HOSE NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| GWW201M | 1 | BREATHER TUBE FOR FUEL PUMP 22" NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AUB676 | 2 | WASHER FOR BANJO NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AHA7384 | 1 | FUEL PUMP MOUNTING BRACKET NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AUF214EP | 1 | SU SOLID STATE FUEL PUMP POSITIVE GROUND ONLY NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AUF214G | 1 | AFTERMARKET FUEL PUMP GERMAN MADE NOT SHOWN - SPRITE MK III, MIDGET MK II |
|
| AUB6106 | 1 | REPLACEMENT POINTS FOR FUEL PUMPS NOT SHOWN - SPRITE MK III, MIDGET MK II |
