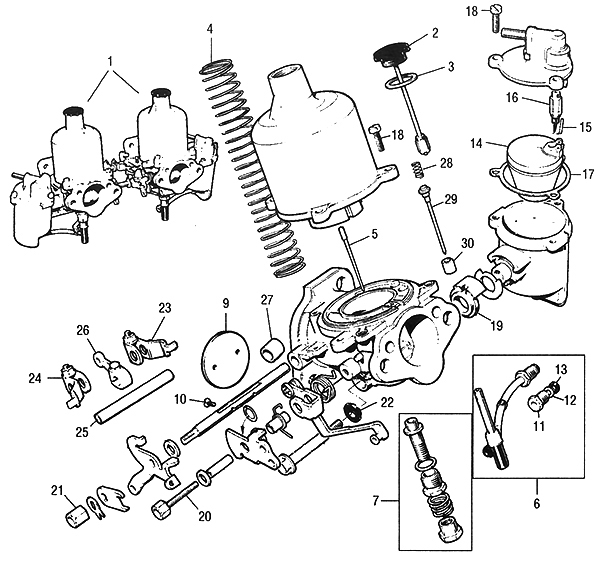

Twin HS4 Carburettor - Chapter 6 Pages 12-13
MINI Catalog Page 6-13
Records - of

#

Part No

Qty

Description

  WZX1859 1
Twin carburettor service kit, jet needle valve gaskets
C-AUD640 1
Su Hs4 1.50 Inch New Twin Carburetors (pair)
AUC8103 2
Dashpot damper
AUC4900 2
Dashpot damper seal, when required
AUC4587 2
Dashpot spring blue, 2.5oz
AUC4387 2
Dashpot spring red, 4.5oz
AUD1006 2
Fixed needle number 7
AUD9141A 1
Jet assembly L/H (0.09
AUD9142A 1
Jet assembly R/H (0.09
WZX1341 2
Jet bearing assembly fixed needle
WZX1442 2
Jet bearing assembly swinging needle
WZX1177 2
Spindle
WZX1177A 2
Modified 1.5 Inch Hs4 Su Carburettor Spindle With O-rings
WZX1323 2
Butterfly disc with screws
10  RTC5965 4
Butterfly screw
11  AUD2129 2
Nut
No longer Available
12  AUD2193 2
Washer
Supplied with jet assembly
13  AUD2194 2
Rubber seal
14  WZX1300 2
Float
15  AUC1152 2
Pin
16  CA90 2
Needle and seat, float valve
17  AUD9096GR 2
Needle & Seat, float valve, Grose Jet
Alternative
17  2535 2
Float gasket
18  JZX1394 12
Float and dashpot gasket screw
19  AUC1366 1
Grommet, rubber R/H fixed needle
With AUD9102
19  AUC1316 1
Grommet, rubber L/H fixed needle
With AUD9098
19  AUD2676 1
Grommet, rubber R/H 20° angle
When using AUD9142
19  AUD2677 1
Grommet, rubber L/H 20° angle
When using AUD9141
20  AUC1426 2
Pivot bolt
21  AUC1424 2
Pivot nut
No longer Available
22  AUC1318 2
Float chamber bolt seal
23  AUE586 2
Lever assembly R/H
24  AUE587 2
Lever assembly L/H
25  AUC1457 2
Connecting rod 2.200"
26  AUC1501 1
Lever alternative to AUE180
27  AUD3080 2
Spindle repair bush .3125" I/D, ream body to 9.5mm
28  AUD3306 2
Spring for swinging needle
29  CUD1018 2
Swinging needle AAU
30  AUD4288 2
Swinging needle guide
