Classic Mini Cooper Brake Pipes and Fittles
Records - of
# |

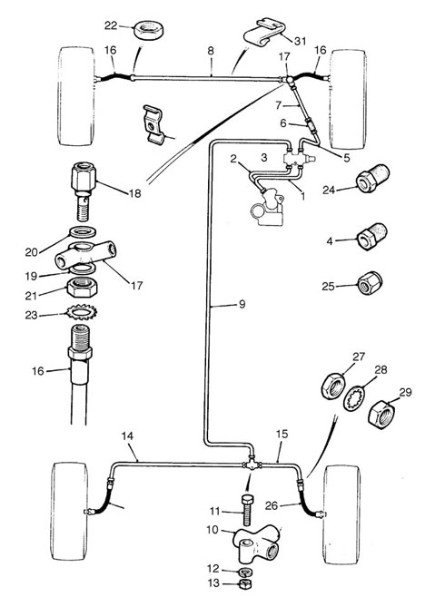

Part No |
Qty |
Description |
|---|---|---|---|
| NOTE: | HF Male unf and male unf ends |
||
| NOTE: | HF Male unf and male unf ends |
||
| NOTE: | HD Male unf and female unf ends |
||
| 1 | HMK009 | 1 | Pipe, valve to GMC227 master cylinder top R/H/D Pre servo |
| 1 | HMK026 | 1 | Pipe, valve to GMC90376 master cylinder R/H/D With servo 19988 on |
| 2 | HMK014 | 1 | Pipe, valve to GMC227 master cylinder bottom R/H/D Pre servo |
| 2 | SEN45 | 1 | Servo easy move braided hose kit for GMC90376 Replaces numbers 1 & 2 |
| 3 | BAU5654 | 1 | Pipe kit, pre shaped for GMC227 master cylinder R/H/D pre-servo Use BAU5654MS |
| 3 | BAU5655 | 1 | Pipe kit, pre shaped for GMC227 master cylinder L/H/D Pre servo Use BAU5655MS |
| 4 | TM110051 | A/R | Male union, M10 metric thread As required |
| 5 | HMK009 | 1 | Pipe, valve to BMK2466 connector when fitted |
| 6 | BMK2466A | 1 | Female union M10 metric thread |
| 7 | HMV013 | 1 | Pipe, connector to front hose banjo, was 11”long Fits less connector also |
| 8 | HF44 | 1 | Pipe, front hose bridging pipe Use SPA44 |
| 9 | HMV102 | 1 | Pipe, valve to rear 3 way union Pre servo |
| 9 | HMV96 | 1 | Pipe, valve to rear 3 way union use HMV102 With servo 1988 on Use HMV102 |
| 10 | 3H2424 | 1 | Union, 3 way UNF thread |
| 11 | SH604091 | 1 | Bolt 1/4” UNF x 1 1/8” long, 3 way to rear subframe No Longer Available |
| 12 | GHF331 | 1 | Lock washer 1/4" |
| 13 | GFK3211 | 1 | Plain nut 1/4” UNF |
| 14 | HD26 | 1 | Pipe, 3 way to L/H hose Use SPB26 |
| 15 | HD6 | 1 | Pipe, 3 way to R/H hose Use SPB6 |
| 16 | GBH249 | 2 | Front rubber brake hose See also GBH249KIT |
| 16 | C-AJJ4030 | 1pr | Front braided brake hose set See also C-AJJ4026/7 |
| 17 | 21A654 | 1 | Connecting banjo |
| 18 | C5192A | 1 | Banjo bolt |
| 19 | 233220A | 1 | Sealing washer for banjo |
| 20 | 3H550 | 1 | Sealing washer for banjo bolt |
| 21 | 21A228 | 1 | Nut for locking front hose to subframe R/H Use 2K8686 |
| 22 | 21A228 | 1 | Nut for locking front hose to subframe L/H |
| 23 | WE600101 | 2 | Shake proof washer |
| 24 | TM606031 | A/R | Male union 3/8”unf As required |
| 25 | TN606031 | A/R | Female union 3/8”unf As required |
| 26 | GBH250 | 2 | Rear rubber brake hose See also GBH249KIT |
| 26 | C-AJJ4031 | 1pr | Rear braided hose kit See also C-AJJ4026/7 |
| 27 | NT606041 | 2 | Hose to radius arm half nut 3/8” UNF |
| 28 | GHF323 | 6 | Shake proof washer 3/8” |
| 29 | GFK3213 | 2 | Plain nut 3/8” UNF Use NT606041 |
| 30 | 21A2912 | 2 | Clip for retaining brake lines No Longer Available |
| 31 | 11K9181 | 1 | Clip, pipe to subframe |
| 31 | GB4999 | 1 | Copper non rust easy bend brake pipe kit less servo Pre 1988 |
| 31 | GB5000 | 1 | Copper non rust easy bend brake pipe kit with servo 1988 on |
| 32 | NOTE: | Code prefix to help identify end on brake pipes and number indicates length, ie. HD6 =6”long |
|
| NOTE: | HMK Male metric and male metric ends |
||
| NOTE: | HMV Male metric and male unf ends |
