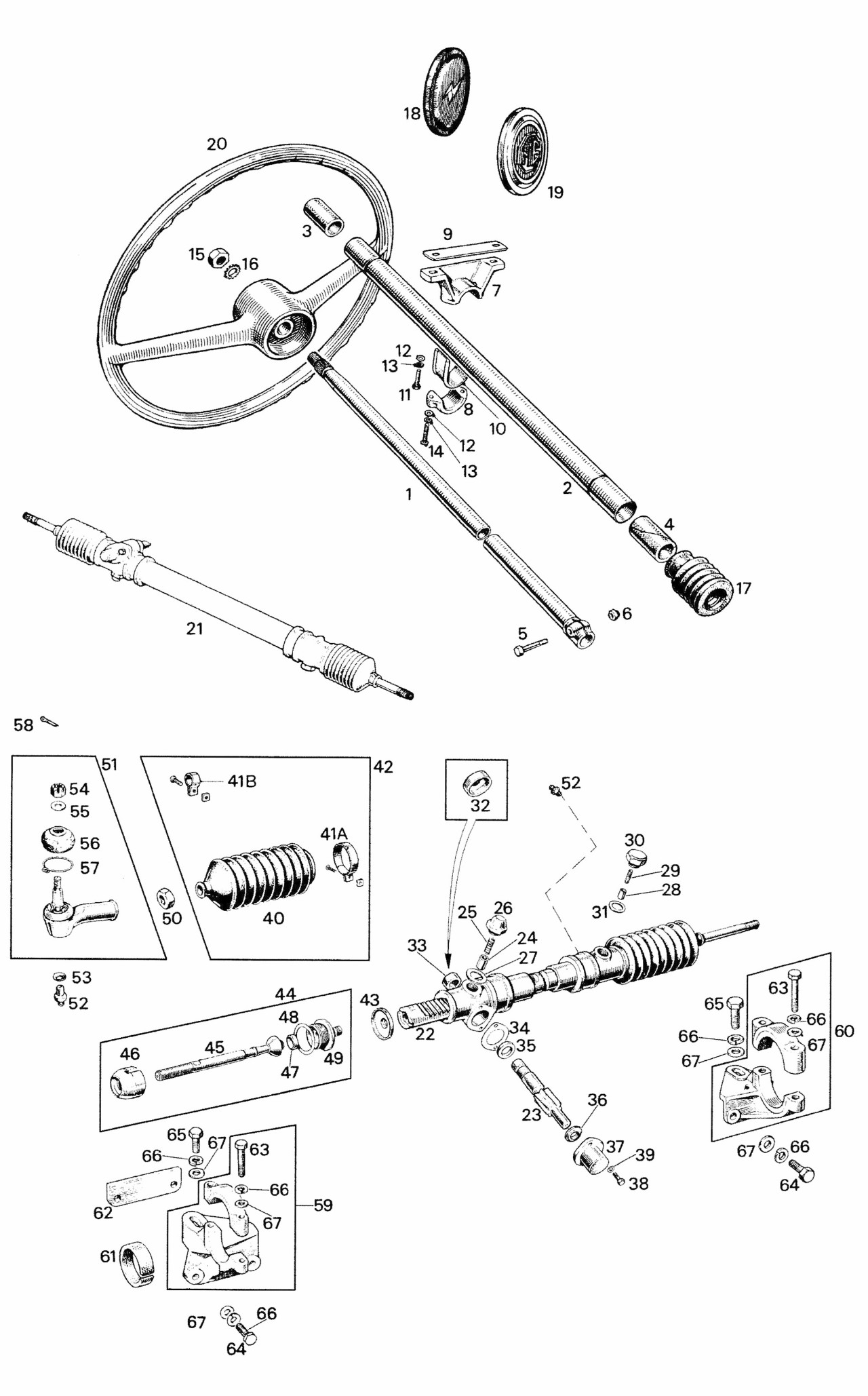

Sprite/Midget Sprite Mk I & II, Midget Mk I Steering Rack, Mountings, Column & Steering Wheel
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| NOTE: | RACK MOUNTING CAPS ARE NOT AVAILABLE SEPARATELY AS THEY ARE MACHINED AS ONE WITH THE RACK MOUNTING BRACKET. WARNING: THESE CAPS CRACK IF OVER TIGHTENED |
||
| 1 | 2A6136 | 1 | INNER COLUMN No Longer Available |
| 2 | AHA5967 | 1 | OUTER COLUMN No Longer Available |
| 3 | AHA5893 | 1 | UPPER FELT BUSH |
| 4 | 17H6565 | 1 | LOWER FELT BUSH |
| 7 | 2A6132 | 1 | TOP BRACKET No Longer Available |
| 8 | 2A6133 | 1 | BRACKET CAP No Longer Available |
| 9 | 2A6144 | A/R | PACKING PIECE No Longer Available |
| 10 | 4B2502 | 1 | SEATING RUBBER No Longer Available |
| 17 | AHA5435 | 1 | DUST BELLOWS STEERING COLUMN |
| 18 | AHA6481 | 1 | HORN PUSH SPRITE ALL 948CC MODELS - MK I & II |
| 19 | AHA6371 | 1 | HORN PUSH MG MIDGET FOR ALL 948CC MIDGETS |
| 20 | 2A6156 | 1 | SPRITE STEERING WHEEL No Longer Available |
| 20 | AHA6372 | 1 | MIDGET STEERING WHEEL No Longer Available |
| 20 | STEERINGHUB-P | 1 | AFTERMARKET STEERING HUBS FOR NEW TOURIST TROPHY & MOTO-LITA STEERING WHEELS |
| 20 | WOODWHEEL-P | 1 | WOOD STEERING WHEELS FOR SPRIDGETS |
| 20 | LEATHERWHEEL-P | 1 | LEATHER WRAPPED STEERING WHEELS FOR SPRIDGETS |
| 21 | ACG6010 | 1 | STEERING RACK USE STR102 - RIGHT HAND DRIVE |
| 21 | ACG6009 | 1 | STEERING RACK USE STR101 - LEFT HAND DRIVE |
| 22 | ACA6026 | 1 | STEERING RACK BAR No Longer Available |
| 23 | ACA6028 | 1 | PINION No Longer Available - Right Hand Drive |
| 23 | ACA6027 | 1 | PINION LHD OR RHD - ALSO MORRIS MINOR RHD |
| 24 | ACA5244 | 1 | RACK DAMPENING PAD |
| 25 | ACA5248 | 1 | SPRING |
| 26 | ACA5245 | 1 | CAP |
| 27 | ACA5275 | A/R | RACK DAMPER SHIM .010" No Longer Available |
| 27 | ACA5249 | A/R | RACK DAMPER SHIM .003" |
| 28 | ACA5284 | 1 | DAMPENING PAD, SECONDARY |
| 29 | ACA5286 | 1 | SECONDARY PAD SPRING No Longer Available |
| 30 | ACA5285 | 1 | SECONDARY DAMPENER CAP |
| 31 | ACA5283 | 1 | WASHER No Longer Available |
| 32 | AHA5496 | 1 | PINION SEAL COVER No Longer Available |
| 33 | ACA5261 | 1 | SEAL STEERING PINION MIDGET TO 60440 SPRITE TO 72033, thru approx. ‘67 |
| 34 | ACA5260 | A/R | PINION SHIM .005" No Longer Available |
| 34 | ACA5320 | A/R | PINION SHIM .010" No Longer Available |
| 35 | ACA5257 | 1 | TOP PINION THRUST |
| 36 | ACA5258 | 1 | LOWER PINION THRUST No Longer Available |
| 37 | ACA5307 | 1 | BOTTOM PINION COVER No Longer Available |
| 38 | AJD6155Z | 2 | BOLT, 1/4" BSF X 5/8" |
| 39 | GHF331 | 2 | LOCK WASHER, 1/4" |
| 40 | STR137 | 2 | BOOT STEERING RACK EACH |
| 42 | SRG100 | 2 | STEERING RACK BOOT UNIVERSL GAITOR PAIR COMPRISES OF (40) PLUS 2 CLIPS |
| 43 | ACA5247 | 2 | INNER TIE ROD LOCK WASHER |
| 44 | ACA6018 | 2 | TIE ROD ASSY, INNER No Longer Available |
| 45 | ACA6015 | 2 | INNER TIE ROD 5/8" No Longer Available |
| 46 | ACA5304 | 2 | FEMALE BALL JOINT HOUSING |
| 47 | ACA5246 | 2 | BALL JOINT SEAT (SOCKET) |
| 48 | ACA6017 | A/R | BALL JOINT SHIM, .002" No Longer Available |
| 48 | ACA5301 | A/R | BALL JOINT SHIM, .003" |
| 48 | ACA5302 | A/R | BALL JOINT SHIM, .005 |
| 48 | ACA5303 | A/R | BALL JOINT SHIM, .010" |
| 49 | ACA6031 | 2 | BALL JOINT MALE |
| 50 | NT610041 | 2 | NUT, 5/8" UHF THIN |
| 51 | STR136 | 2 | TIE ROD (TRACK ROD) END 5/8" |
| 52 | UHN305 | 2 | GREASE NIPPLE - ORIGINAL TIE ROD END No Longer Available |
| 53 | ACH6173 | 2 | FIBER WASHER No Longer Available |
| 54 | NL607041 | 2 | NUT, CASTELATED 7/16" |
| 54 | GHF224 | 2 | NUT, 7/16" NYLOCK ALTERNATIVE |
| 55 | GHF303 | 2 | WASHER, PLAIN 7/16" |
| 56 | 7H3762 | 2 | STEERING TIE ROD BOOT OUTER ALL |
| 57 | 7H3565 | 2 | CLIP, TIE ROD END BOOT (GAITER) |
| 58 | GHF504 | 2 | COTTER PIN |
| 59 | AHA5391 | 1 | RIGHT HAND STEERING RACK BRACKET No Longer Available |
| 60 | AHA5392 | 1 | LEFT HAND STEERING RACK BRACKET No Longer Available |
| 61 | 2A6128 | 2 | SEATING RACK TO BRACKET No Longer Available |
| 62 | AHA8718 | A/R | NEAR SIDE PACKING SHIMS No Longer Available |
| 63 | BH505121 | 4 | BOLT, 5/16" UNC X 1.5" |
| 64 | GHF120 | 4 | BOLT, 5/16" UNF X .75" HORIZONTAL BOLTS |
| 65 | GHF103 | 2 | BOLT, 5/16" UNF X 1" USE HF0508 - VERTICAL BOLT |
| 66 | GHF332 | 10 | LOCK WASHER 5/16" USE WL2051 |
| 67 | GHF301 | 10 | PLAIN WASHER, 5/16" USE WU2041 |
| 68 | 07-035 | 1 | BALL JOINT SPLITTER, LEVER NOT ILLUSTRATED |
| 41A | BMK924A | 2 | STEERING BOOT CLAMP, LARGE |
| 41B | 3H2963 | 2 | STEERING BOOT CLAMP, SMALL |
