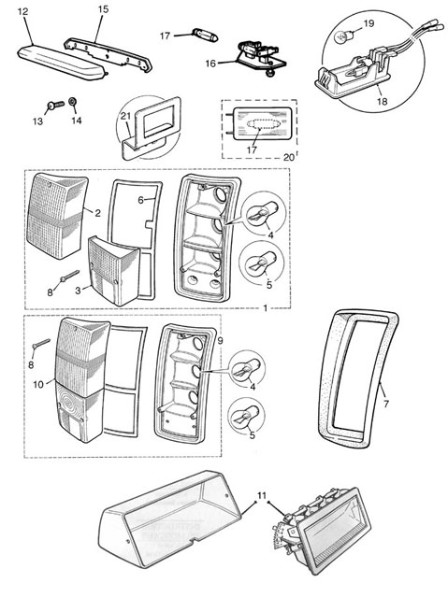

Classic Mini Cooper Rear and Interior Lighting
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | XFB101200 | 1 | Rear lamp assembly R/H with reverse lamp |
| 1 | XFB101210 | 1 | Rear lamp assembly L/H with reverse lamp |
| 2 | XFJ10026 | 1 | Lens R/H upper, red and orange stop, tail & indicator |
| 2 | XFJ10026WHITE | 1 | Lens L/H upper, all white stop, tail & indicator Use Red and Orange bulbs |
| 2 | XFJ10027 | 1 | Lens L/H upper, red and orange stop, tail & indicator |
| 2 | XFJ10027WHITE | 1 | Lens L/H upper, all white stop, tail & indicator Use Red and Orange bulbs |
| 3 | XFJ10028 | 1 | Lens R/H lower, white reverse lens and red reflector |
| 3 | XFJ10029 | 1 | Lens L/H lower, white reverse lens with red reflector |
| 4 | GLB380 | 2 | Bulb Clear, 21/5 watt for use with red/orange lens Stop and Tail |
| 4 | GLB380RED | 2 | Bulb Red, 21/5 watt for use with all white lens Stop and tail |
| 5 | GLB382 | 2/4 | Bulb Clear, 21/5 watt for use with red/orange lens Indicator and Reverse |
| 5 | GLB343 | 2 | Bulb Orange, 21 watt for use with all White lens Indicator |
| 6 | XFH100460 | 2 | Gasket between lens and lamp body except altissimo |
| 7 | 37H2692 | 1 | Seal R/H between lamp and body except Altissimo |
| 7 | 37H2691 | 1 | Seal L/H between lamp and body except Altissimo |
| 8 | XYP100310 | 6 | Screw for lens fitting |
| 9 | ADU2478 | 1 | Rear lamp assembly R/H Altissimo No Longer Available |
| 9 | ADU2479 | 1 | Rear lamp assembly L/H Altissimo No Longer Available |
| 10 | AAU4946 | 1 | Lens assembly R/H Altissimo No Longer Available |
| 10 | AAU4947 | 1 | Lens assembly L/H Altissimo No Longer Available |
| 11 | XFN100160 | 1 | Rear high mounted stop lamp kit, Genuine Rover No Longer Available |
| 12 | 13H6900 | 1 | Number plate Housing for boot lid, needs painting See notes below |
| 13 | PMZ305 | 3 | Screw 3/16” UNF 1/2” long for housing, (cut down SE910161) No Longer Available |
| 14 | WA1090 | 3 | Plain washer 3/16” was LWZ403 shake proof washer |
| 15 | 13H6010 | 1 | Sealing rubber for number plate housing |
| 16 | PRC1230A | 2 | Lens and bulb holder for number plate housing Use PRC1230 |
| 17 | GLB239 | 2 | Festoon bulb, 5 watt for number plate lens |
| 18 | AFU4092 | 1 | Interior courtesy lamp in headlining with bulb |
| 19 | GLB207 | 1 | Bulb 5 watt for interior lamp, small glass head |
| 20 | ADU2066 | 1 | Interior footwell lamp, Rover Cabriolet No Longer Available |
| 21 | TKC6319 | 1 | Bracket for footwell lamp, Rover Cabriolet No Longer Available |
| NOTE: | We have Rovers complete stock of painted number plate housings. Your original factory may be available. |
