 Posted: May 20, 2014 12:01PM
Total posts: 1677
Last post: Aug 26, 2021
Member since:Apr 21, 2004
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0

Missing both...in fact we are missing just about everything that used to be attached to the front sub frame. must have put it in a box and then....can't find the box anywhere.

good thing we have lots of spares on hand for the suspension.

I also need the 4 bolts but should be able to source those locally (have a fastnel warehouse in the city)

They were not stuck to bottom of cross member, car has been on a spit for 3 years getting the rust removed.






Once you replace everything that is attached to something else. It will all be fixed.

 Posted: May 20, 2014 06:49AM
Total posts: 4141
Last post: Jul 28, 2024
Member since:Oct 8, 2011
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
US

No you would not want to use rubber. Are you missing one or both? Did you look to see it they stuck to the bottom of the cross member? I cut ones out of aluminium plate and drill holes as required. Steve (CTR)

 Posted: May 20, 2014 05:53AM
Total posts: 6469
Last post: Sep 29, 2022
Member since:Nov 2, 2006
Cars in Garage: 4
Photos: 1354
WorkBench Posts: 2
CA

The rubber replacement in '76 went together with the rubber ear mounts on the front subframe (steel/rubber/steel) and the BIG rubber bushes in the forward rear subframe mounting to try and take some of the harshness out of the Mini ride.  Cost less precise handling.

Aluminum spacers have been manufactured to replace the rubber for the one bolt sub frame towers, can't say if the same has been done for the earlier two bolt towers...never had occasion to look.

 Posted: May 20, 2014 05:45AM
Total posts: 1677
Last post: Aug 26, 2021
Member since:Apr 21, 2004
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0

Thanks hunter You were posting when I was typing. so they are metal not rubber? what would happen if one used rubber? wouldn't rubber be better?

I can still make out of metal.




Once you replace everything that is attached to something else. It will all be fixed.

 Posted: May 20, 2014 05:42AM
Total posts: 1677
Last post: Aug 26, 2021
Member since:Apr 21, 2004
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0

Yes sorry it is a 1973 that we are putting back together. we do have a couple of the single bolt frames on hand that we could switch to but I don't see how they work at all.  I am guessing that the hole in the "firewall bulkhead" would need to be smaller or there is a washer needed.

I just am hoping that the spacer is made out of rubber and is the same thickness as the rubber conveyor belt that I have here. don't really want to pay $90 bucks for the little pads if I have material on hand that I can make one from (and really don't have a lot of time to order anything right now)




Once you replace everything that is attached to something else. It will all be fixed.

 Posted: May 20, 2014 05:40AM
Total posts: 6469
Last post: Sep 29, 2022
Member since:Nov 2, 2006
Cars in Garage: 4
Photos: 1354
WorkBench Posts: 2
CA

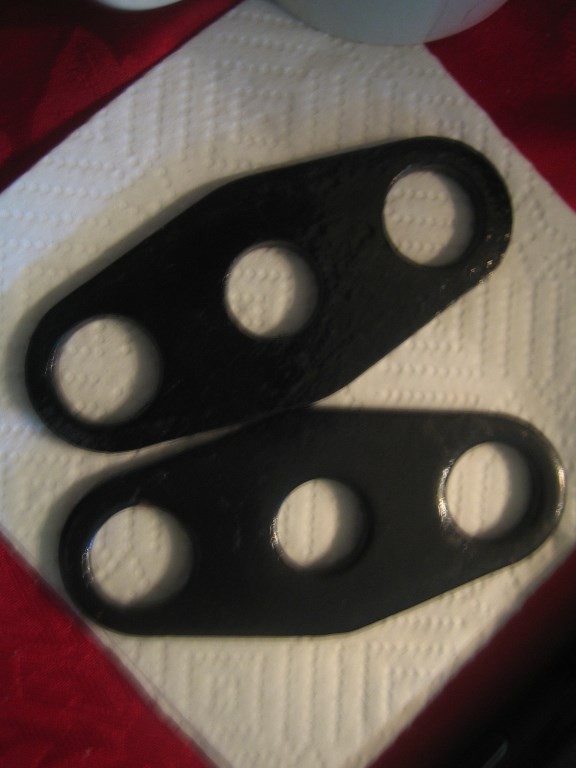

The iron pads are 3/16" thick.

 Posted: May 20, 2014 04:56AM
 Edited:  May 20, 2014 05:01AM
Total posts: 2022
Last post: Jan 14, 2022
Member since:Mar 8, 2002
Cars in Garage: 0
Photos: 1
WorkBench Posts: 1
GR

if you mean two bolts per tower, they use a metal washer as far as i m concerned..



//www.minimania.com/part/21A1470/Washer-Front-Subframe-Mini-Cooper

and the pad : //www.minimania.com/part/21A2341/Mini--Mini-Cooper-Spacer-Front-Subframe-To-Body



if you mean the later after '76 its :



//www.minimania.com/part/21A2598/Subrfame-Pad-mount-Bolt-Lower-Mk4





 Posted: May 20, 2014 04:45AM
Total posts: 1677
Last post: Aug 26, 2021
Member since:Apr 21, 2004
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0

Ok So it has only been 3 years since we took it apart. frame is a 2 bolt. can not find the pad that goes between frame and body. how thick is it and what is it made out of? I have a piece of conveyor belt that might work. only have 10 days to get car running




Once you replace everything that is attached to something else. It will all be fixed.
