 Its the small details - is there diff with LHD vs RHD OE pedal box?

 Created by: thebluepotato
Orig. Posting Date User Name Edit Date
May 22, 2016 11:31PM Alex
May 22, 2016 05:08AM thebluepotato
May 20, 2016 02:22AM RedRiley
May 19, 2016 08:44PM Alex
May 19, 2016 08:04AM smurf
May 19, 2016 05:39AM malsal
May 19, 2016 04:22AM thebluepotato
May 19, 2016 04:20AM malsal
May 19, 2016 03:56AM thebluepotato
   Forum Width:     Forum Type:

Return to Forum Quote Post Reply
 Posted: May 22, 2016 11:31PM
Alex
Total posts: 10292
Last post: Apr 14, 2025
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB

Glad the article helped !
If even one person get something from it it makes it worthwhile.

I'm running standard drum brake pedals of several vintages on disc braked cars with no ill effects.

Return to Forum Quote Post Reply
 Posted: May 22, 2016 05:08AM
thebluepotato
Total posts: 288
Last post: Jun 9, 2020
Member since:May 13, 2010
Cars in Garage: 1
Photos: 17
WorkBench Posts: 1
US
Quote:
Originally Posted by Alex
The pedals are different right to left, but the pedal box is the same.

I did the conversion in about 9 hours a month or two back for a magazine article - have a look for the April issue of Mini Magazine.
Thanks Alex - learned a lot in that article.  IN fact, it appears that I already had the RHD box in my mini when previous owner converted it to LHD for states.  Still trying to understand if my brake pedal/arm is the right contact angle for a disc setup (post '76).  But I think so...really happy I only have to invest in the RHD steering rack and various hardware (excluding wipers, acc pedal, etc).

-------------------------------------------------------------------------------
Check out my Classic Mini Podcast - Classic Mini Breakdown, www.classicminibreakdown.com
Basil - 1974 Mini 1000 /// THE BLOG: www.thebluepotato.net/blog
-------------------------------------------------------------------------------

Return to Forum Quote Post Reply
 Posted: May 20, 2016 02:22AM
RedRiley
Total posts: 2103
Last post: Dec 11, 2024
Member since:May 1, 2007
Cars in Garage: 1
Photos: 220
WorkBench Posts: 0
US
Of course they're different! Everyone knows that when you shift with your left hand, you work the clutch pedal with your right foot and the gas with your left.

Return to Forum Quote Post Reply
 Posted: May 19, 2016 08:44PM
Alex
Total posts: 10292
Last post: Apr 14, 2025
Member since:Mar 24, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
GB
The pedals are different right to left, but the pedal box is the same.

I did the conversion in about 9 hours a month or two back for a magazine article - have a look for the April issue of Mini Magazine.

Return to Forum Quote Post Reply
 Posted: May 19, 2016 08:04AM
smurf
Total posts: 1959
Last post: Sep 5, 2020
Member since:Jul 13, 1999
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
Well on a mk1 the pedals are different right vs left

Return to Forum Quote Post Reply
 Posted: May 19, 2016 05:39AM
malsal
Total posts: 8382
Last post: Jan 13, 2022
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
It may be something as simple as the later ones had a hole drilled so they could mount the brake light switch wheras the early ones had the hydraulic switch mounted on the sub frame . The earlier ones also had a different clutch and brake pedal pad, they were more square 4 sided than the later six sided ones as you have.

If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

Return to Forum Quote Post Reply
 Posted: May 19, 2016 04:22AM
thebluepotato
Total posts: 288
Last post: Jun 9, 2020
Member since:May 13, 2010
Cars in Garage: 1
Photos: 17
WorkBench Posts: 1
US
Yup - got one of those and the rack....but wonder why two diff part #'s, etc.

-------------------------------------------------------------------------------
Check out my Classic Mini Podcast - Classic Mini Breakdown, www.classicminibreakdown.com
Basil - 1974 Mini 1000 /// THE BLOG: www.thebluepotato.net/blog
-------------------------------------------------------------------------------

Return to Forum Quote Post Reply
 Posted: May 19, 2016 04:20AM
malsal
Total posts: 8382
Last post: Jan 13, 2022
Member since:Feb 7, 2006
Cars in Garage: 0
Photos: 0
WorkBench Posts: 0
AFAIK the pedal boxes are the same the only difference is the accelerator pedal.

If in doubt, flat out. Colin Mc Rae MBE 1968-2007.

Give a car more power and it goes faster on the straights,
make a car lighter and it's faster everywhere. Colin Chapman.

Return to Forum Quote Post Reply
 Posted: May 19, 2016 03:56AM
thebluepotato
Total posts: 288
Last post: Jun 9, 2020
Member since:May 13, 2010
Cars in Garage: 1
Photos: 17
WorkBench Posts: 1
US
Image Gallery

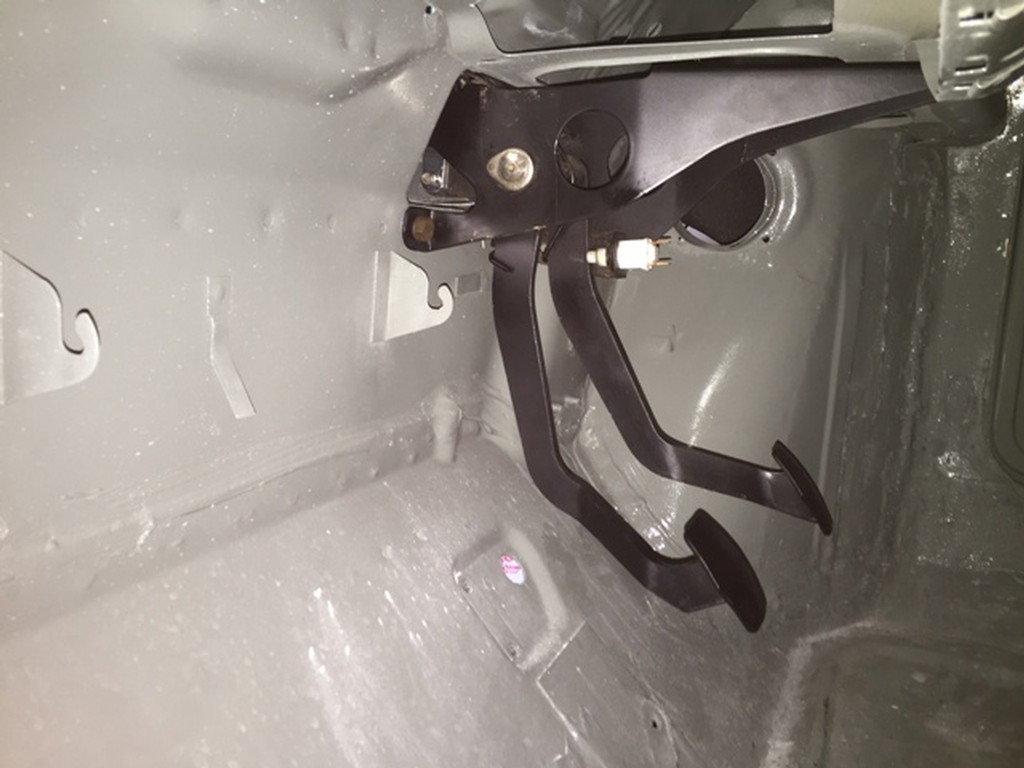

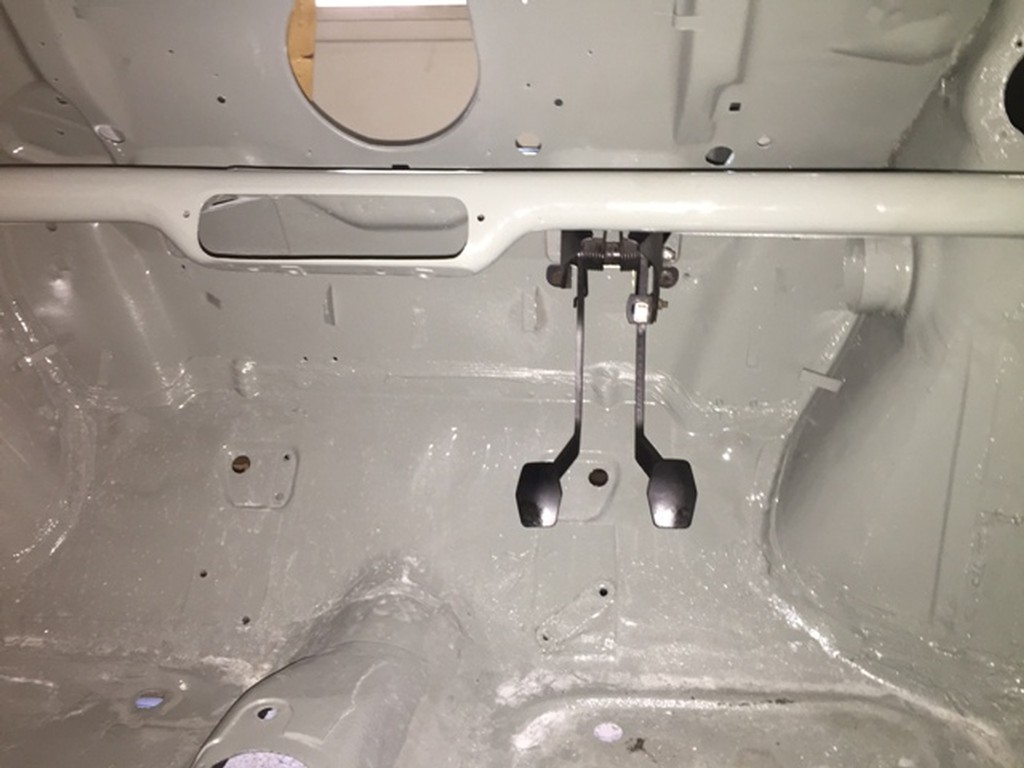

So I am converting my Mk4 back to RHD here in Atlanta and just noticed there are two OE part numbers for the standard pedal box.  Anyone know what the difference may be?  I am not even sure of the pedal box pictured was in fact a RHD and put on left side when I bought it years ago.  Maybe someone can let me know the subtle differences here - assume it may be the slight bends or position of the clutch pedal. TIA!

-------------------------------------------------------------------------------
Check out my Classic Mini Podcast - Classic Mini Breakdown, www.classicminibreakdown.com
Basil - 1974 Mini 1000 /// THE BLOG: www.thebluepotato.net/blog
-------------------------------------------------------------------------------
