Anyone have a picture of a LHD/RHD pedal assembly?
Created by: JerseyMini
Total posts: 236
Last post: Apr 9, 2024 Member since:Feb 27, 2007
|
Cars in Garage: 6
Photos: 20 WorkBench Posts: 0 |
Quote:
Originally Posted by JerseyMini
Ive had cars that had the High beam switch on the floor like that. Not sure if that's what it is?
Martin.
"Nature Bats Last"
Total posts: 20
Last post: Mar 27, 2023 Member since:Dec 5, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
How much?
Total posts:
Last post: Dec 10, 2023 Member since:Jul 16, 2001
|
Cars in Garage: 0
Photos: 18 WorkBench Posts: 0 |
|
Total posts: 400
Last post: Jan 11, 2023 Member since:Sep 27, 2000
|
Cars in Garage: 0
Photos: 1 WorkBench Posts: 0 |
|
I have LHD throttle pedals available.
Total posts: 7051
Last post: Apr 26, 2024 Member since:May 23, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
The clutch pedal is the same on LHD as it is on RHD. The brake pedals are different though. LHD is straight and RHD is bent near the bottom. The throttle pedal for LHD and RHD are different as well. The LHD pedal is straight whereas the RHD pedal is bent near the bottom. What many folks don't realize, is how those pedal geometries affect your seating position. A RHD car sits the driver squarely in relationship to the steering wheel. On LHD Minis, you actually have the steering wheel sitting slightly on an angle. If you primarily drive LHD you don't realize it. If you primarily drive a RHD Mini then drive a LHD car you realize it right away.
"Retired: No Job, No Money, Wife and I! Will travel anywhere for Minis"
Total posts: 595
Last post: Feb 22, 2023 Member since:Apr 21, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Ive had cars that had the High beam switch on the floor like that. Not sure if that's what it is?
Total posts: 236
Last post: Apr 9, 2024 Member since:Feb 27, 2007
|
Cars in Garage: 6
Photos: 20 WorkBench Posts: 0 |
Quote:

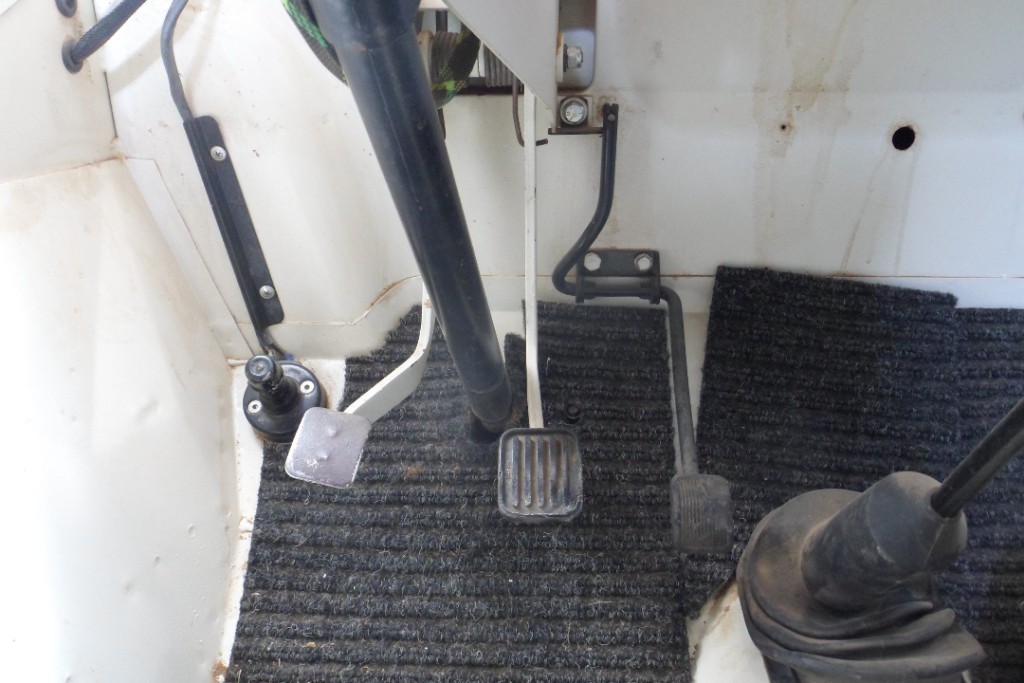

I wonder if those of younger generations would know what, in the 4th photo, the black device to the left of the clutch pedal does.
"Nature Bats Last"
Total posts: 9547
Last post: Apr 26, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Martin:

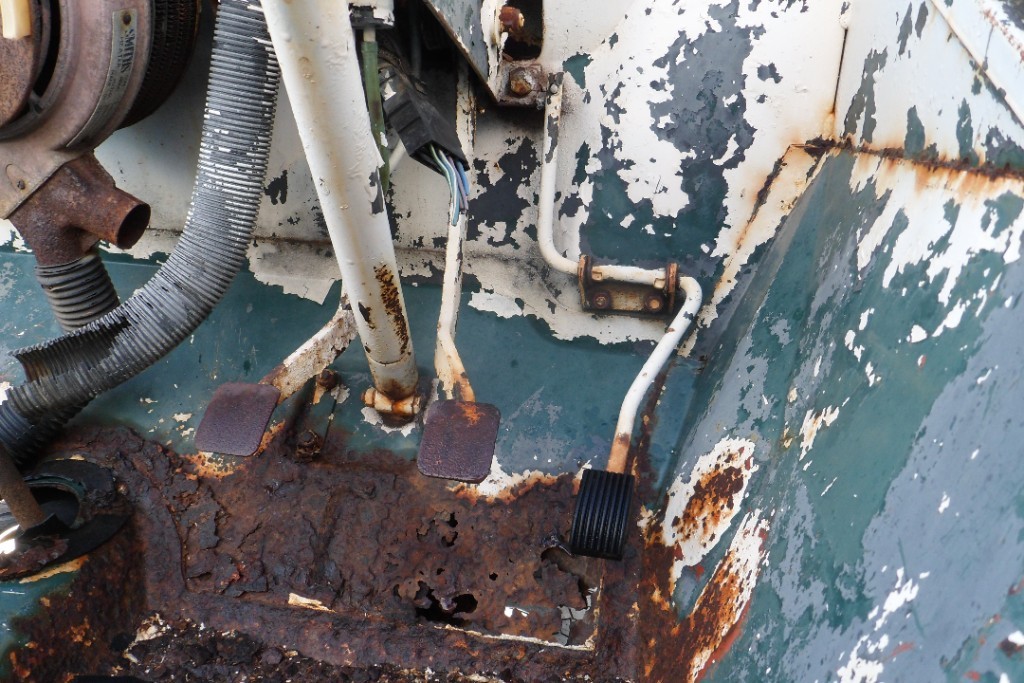

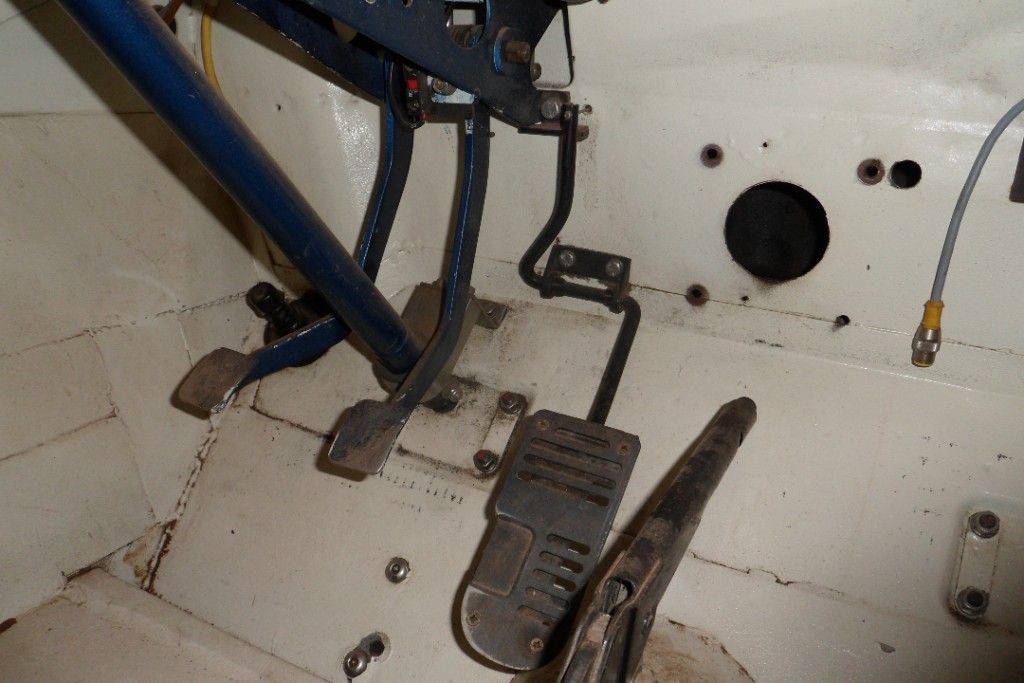

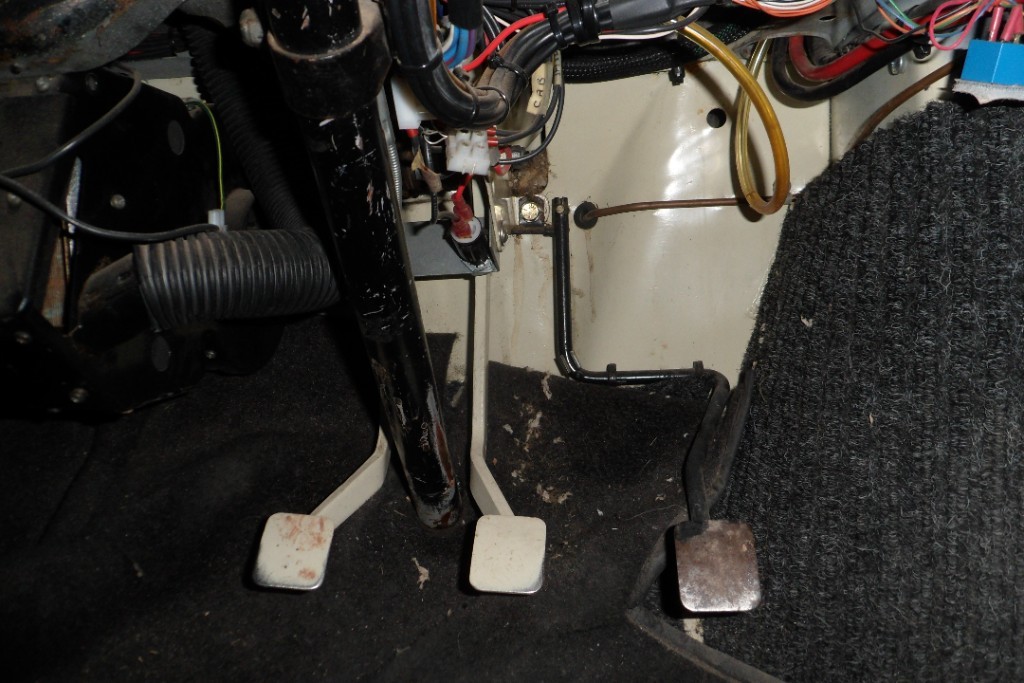

The variations in bends and brackets is interesting.
I wonder if those of younger generations would know what, in the 4th photo, the black device to the left of the clutch pedal does.
(I know... don't give it away!)
The variations in bends and brackets is interesting.
I wonder if those of younger generations would know what, in the 4th photo, the black device to the left of the clutch pedal does.
(I know... don't give it away!)
.
"Hang on a minute lads....I've got a great idea."
Total posts: 236
Last post: Apr 9, 2024 Member since:Feb 27, 2007
|
Cars in Garage: 6
Photos: 20 WorkBench Posts: 0 |
Total posts: 20376
Last post: Jan 7, 2023 Member since:Feb 20, 2001
|
Cars in Garage: 0
Photos: 39 WorkBench Posts: 2 |
|
Quote:
Originally Posted by auto-union
I've converted right to left, pedal box is universal, throttle pedal is different but you can modify the existing one. Moke box is different lh and rh drive.
--------------------
Got Parts? Need Parts?
"I'm Looking For A Small British Car Running Project"
Quicksilvercars.VillageHeadMaster.Com
"I'm Looking For A Small British Car Running Project"
Quicksilvercars.VillageHeadMaster.Com
Total posts: 293
Last post: Jan 30, 2023 Member since:Feb 12, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
my problem with driving LHD .. my PHAT foot hits the tunnel box.. real bad on the LHD early chokes.. later PHD
Total posts: 595
Last post: Feb 22, 2023 Member since:Apr 21, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
Thanks guys.
My gas pedal was modified to work on the Left side. Im just learning this now and ive read some people say the clutch/brake had changes for LH/RH. Was hoping someone may have a side by side so i can see what i have and maybe put together something ideal for my tall ass lol
Total posts: 328
Last post: Feb 2, 2024 Member since:Jun 23, 2001
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
I've converted right to left, pedal box is universal, throttle pedal is different but you can modify the existing one. Moke box is different lh and rh drive.
Total posts: 293
Last post: Jan 30, 2023 Member since:Feb 12, 2022
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
Never owned LHD mini.. I was told the accelerator pedal is different.. and you can cut and weld to make it work PHD.
Total posts: 9547
Last post: Apr 26, 2024 Member since:Aug 14, 2002
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
I Googled around but did not find any photos to indicate a difference between left and right setups. There did seem to be a difference between pedal boxes for single and tandem brake cylinder setups. Even the accelerator pedal seemed the same. I did watch a video about how to remove the pedal assembly from a right hand drive car, though the guy seemed to be discovering how to do it himself.
From the parts diagram, there seems to be a difference between LHD and RHD pedals themselves pre- and post- 1976. Later ones have an offset to space the pedals differently. I suspect the pedals were re-spaced to make more room at the accelerator pedal, which seemed to change in 1976 also.
Part numbers seem to be different LHD to RHD.
From the parts diagram, there seems to be a difference between LHD and RHD pedals themselves pre- and post- 1976. Later ones have an offset to space the pedals differently. I suspect the pedals were re-spaced to make more room at the accelerator pedal, which seemed to change in 1976 also.
Part numbers seem to be different LHD to RHD.
.
"Hang on a minute lads....I've got a great idea."
Total posts: 595
Last post: Feb 22, 2023 Member since:Apr 21, 2012
|
Cars in Garage: 0
Photos: 0 WorkBench Posts: 0 |
|
So after putting up a post about my throttle pedal spacing in my LHD mini, im just now realizing my car was converted at one point and they used a RHD throttle pedal and cut the upper portion to make it work..
Are the Brake and clutch pedal much different from a LHD/RHD pedal assembly? Does anyone have a picture of each? Trying to figure out what i have going on here. Lol
