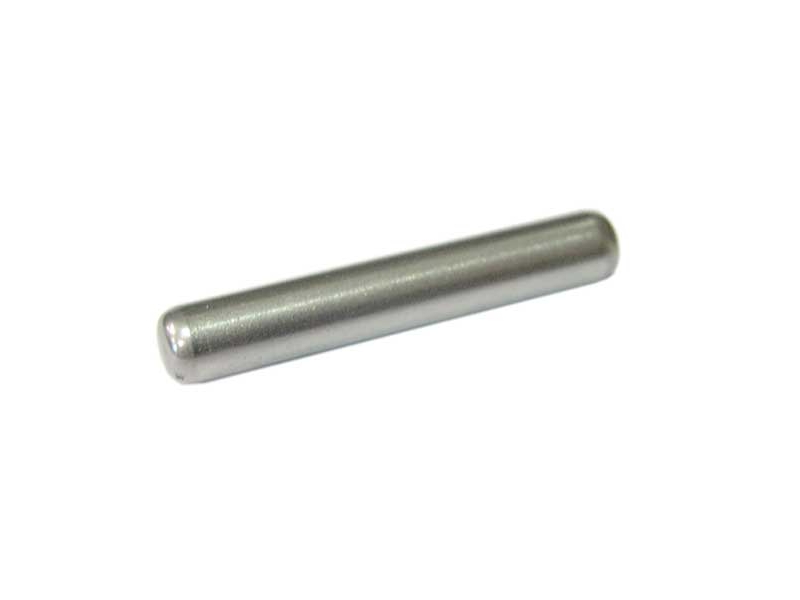

These needle rollers were fitted under 2nd and 3rd gears on the 3 synchro B type gears gearbox only. 26 per gear and used on MG midgets also. Fits the rib case .
Question:
Would this fit on a 62 Austin Healey Sprite with a 948cc motor and smooth case gearbox?
Would not happen to have the measurement on the bearings so I can compare with what I have just to be sure it is the right application?
Answer:
Yes, those are the rollers for 2nd/3rd gear in your smoothcase gearbox. While the later gearboxes use a total of 52 of these, your gearbox should use a total 56, 28 per gear instead of 26.
These measure:
OD = 0.136"
length = 0.852"
Spridget Mania Tech Team
The Spridget Parts and Accessories Experts
These needle rollers were fitted under 2nd and 3rd gears on the 3 synchro B type gears gearbox only. 26 per gear and used on MG midgets also. Fits the rib case .
Question:
Would this fit on a 62 Austin Healey Sprite with a 948cc motor and smooth case gearbox?
Would not happen to have the measurement on the bearings so I can compare with what I have just to be sure it is the right application?
Answer:
Yes, those are the rollers for 2nd/3rd gear in your smoothcase gearbox. While the later gearboxes use a total of 52 of these, your gearbox should use a total 56, 28 per gear instead of 26.
These measure:
OD = 0.136"
length = 0.852"
Spridget Mania Tech Team
The Spridget Parts and Accessories Experts
