Modern high lift, short duration camshafts have posed quite a few problems for the general public in recent years. Widely available performance valve springs were outdated overnight, as it became necessary to reduce spring crush. This, in turn, caused low valve seat pressures creating valve float at high rpm. Mini Spares has massively simplified these problems by introducing a small range of springs that covers any engine size twin valve spring models dependent on camshaft used. Manufactured from super quality silicone wire imported from Switzerland, their resistance against fading and breaking is extremely high. They are also designed to take standard type top caps. They can be fitted directly to the head with no fear of spring crush.

200lb Dual springs for use up to 8000 rpm and 515 thou lift.

The standard fitted length of springs is 1.375". Spacer shims are available to increase valve seat poundage and overall spring rate. If the spring or valve seats in the head have already been machined, it will be necessary to re-shim to the correct fitted length. Developed by Minispares technical department and used in all our own performance road cylinder heads.The bottom collars for the inner springs are No Longer Required when using our C-AEA526 and C-AEA527 range of silicone wire springs as they are a slight interferance fit and friction damped.

 Also fits the Sprite , and MG Midget .

How to fit these Valve Springs

This valve spring set has been developed to fit standard sized top caps, and cope with high rpm and high valve lifts without crushing of up to 0.570” without modifications, when fitted to a cylinder head that has standard or near standard valve spring heights. However, where possible, it is always advantageous to correct and match the valve spring heights (measured from the spring seat in the head to the underside of the spring retainer cap), as these will vary particularly where new valve seats are cut. The standard heights for pre-A+ heads are approximately 1.32” to 1.37” for small-bore types, 1.40” to 1.42” for large-bore types, and A+ heads 1.35” to 1.38” for small-bore types and 1.35”-1.37” for large-bore types. However, it must be stressed that these values are entirely dependant on the components used and machined condition of the head. Adjustments can be made by machining the spring seats, using shims of varying thickness or a mixture of both to achieve equalisation. Shims are available in 0.010”. 0.030” and 0.060” thickness.

At 1.40” fitted height, these springs will give a seat load of approximately 82.08-psi. 80-90- psi being preferred for super-sports road/track day type use, but dependant on valve lift. The aforementioned applies to valve lifts in the region of 0.400”. To calculate different loads for different height add/subtract 3.23-psi per 0.010” difference – for either seat or valve lift at the tip values. Set at the aforementioned seat pressure this will give a nominal at the valve pressure for the intended installation/use of approximately 200lb at 0.400” lift.

To calculate approximate seat load at 1.35” fitted length:

1.40”-1.35” = 0.050”
0.050” divided by 0.010” = 5
5 x 3.23-psi = 16.15-psi
Therefore new seat load at 1.35” will be -
82.08-psi + 16.15-psi = 98.23-psi

To calculate approximate load at the valve tip at any given valve lift - for example 0.500”:

0.500” divided by 0.010” = 50
50 x 3.23-psi = 161.5-psi
Therefore load at 0.500” valve lift, where fitted height is 1.40”, will be -
161.5-psi + 82.08-psi = 243.58-psi

Note: Valve lift value will obviously change with change in fitted height load, so make this calculation first. Rocker gear ratio will also alter over-all rate/load as seen by the cam/follower. To assess this, multiply valve tip load by actual rocker ratio – i.e. for 1.5 actual ratio with above 0.500” value – 1.5 x 243.58-psi = 365.37-psi.

It is ABSOLUTELY ESSENTIAL that the fitted height is NOT MORE than 1.42”. This will give a seat pressure of approximately 75-psi – the absolute minimum advised for fast road use, and where spring shuffle is to be avoided.

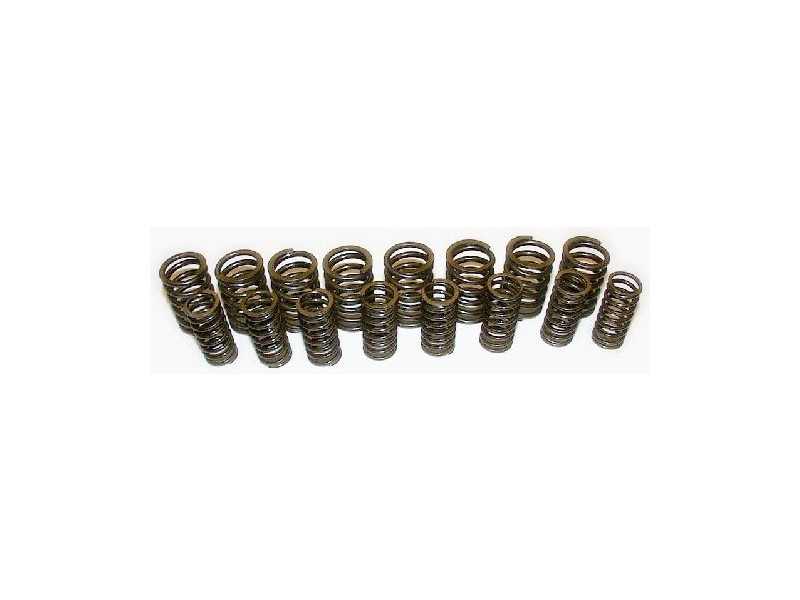

Classic Austin Mini valve spring set 200lbs at 515 thou lift at 8000 rpm

Classic Austin Mini valve spring set 200lbs at 515 thou lift at 8000 rpm

Classic Austin Mini valve spring set 200lbs at 515 thou lift at 8000 rpm
Part No: C-AEA526
$69.95
Qty:
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
PayPal Pay Later
Alternate Products
Classic Austin Mini Dual Valve Spring Valve Set
$40.95 Classic Austin Mini Dual Valve Spring Valve Set

Modern high lift, short duration camshafts have posed quite a few problems for the general public in recent years. Widely available performance valve springs were outdated overnight, as it became necessary to reduce spring crush. This, in turn, caused low valve seat pressures creating valve float at high rpm. Mini Spares has massively simplified these problems by introducing a small range of springs that covers any engine size twin valve spring models dependent on camshaft used. Manufactured from super quality silicone wire imported from Switzerland, their resistance against fading and breaking is extremely high. They are also designed to take standard type top caps. They can be fitted directly to the head with no fear of spring crush.

200lb Dual springs for use up to 8000 rpm and 515 thou lift.

The standard fitted length of springs is 1.375". Spacer shims are available to increase valve seat poundage and overall spring rate. If the spring or valve seats in the head have already been machined, it will be necessary to re-shim to the correct fitted length. Developed by Minispares technical department and used in all our own performance road cylinder heads.The bottom collars for the inner springs are No Longer Required when using our C-AEA526 and C-AEA527 range of silicone wire springs as they are a slight interferance fit and friction damped.

 Also fits the Sprite , and MG Midget .

How to fit these Valve Springs

This valve spring set has been developed to fit standard sized top caps, and cope with high rpm and high valve lifts without crushing of up to 0.570” without modifications, when fitted to a cylinder head that has standard or near standard valve spring heights. However, where possible, it is always advantageous to correct and match the valve spring heights (measured from the spring seat in the head to the underside of the spring retainer cap), as these will vary particularly where new valve seats are cut. The standard heights for pre-A+ heads are approximately 1.32” to 1.37” for small-bore types, 1.40” to 1.42” for large-bore types, and A+ heads 1.35” to 1.38” for small-bore types and 1.35”-1.37” for large-bore types. However, it must be stressed that these values are entirely dependant on the components used and machined condition of the head. Adjustments can be made by machining the spring seats, using shims of varying thickness or a mixture of both to achieve equalisation. Shims are available in 0.010”. 0.030” and 0.060” thickness.

At 1.40” fitted height, these springs will give a seat load of approximately 82.08-psi. 80-90- psi being preferred for super-sports road/track day type use, but dependant on valve lift. The aforementioned applies to valve lifts in the region of 0.400”. To calculate different loads for different height add/subtract 3.23-psi per 0.010” difference – for either seat or valve lift at the tip values. Set at the aforementioned seat pressure this will give a nominal at the valve pressure for the intended installation/use of approximately 200lb at 0.400” lift.

To calculate approximate seat load at 1.35” fitted length:

1.40”-1.35” = 0.050”
0.050” divided by 0.010” = 5
5 x 3.23-psi = 16.15-psi
Therefore new seat load at 1.35” will be -
82.08-psi + 16.15-psi = 98.23-psi

To calculate approximate load at the valve tip at any given valve lift - for example 0.500”:

0.500” divided by 0.010” = 50
50 x 3.23-psi = 161.5-psi
Therefore load at 0.500” valve lift, where fitted height is 1.40”, will be -
161.5-psi + 82.08-psi = 243.58-psi

Note: Valve lift value will obviously change with change in fitted height load, so make this calculation first. Rocker gear ratio will also alter over-all rate/load as seen by the cam/follower. To assess this, multiply valve tip load by actual rocker ratio – i.e. for 1.5 actual ratio with above 0.500” value – 1.5 x 243.58-psi = 365.37-psi.

It is ABSOLUTELY ESSENTIAL that the fitted height is NOT MORE than 1.42”. This will give a seat pressure of approximately 75-psi – the absolute minimum advised for fast road use, and where spring shuffle is to be avoided.



Question:
Do you folks have I.D, O.D. Dimensions on both the outer and inner springs?
Answer:


Here you go:
1.15" OD Large OUTER
.857" ID Large OUTER

.854" OD SMALL INNER
.623" ID SMALL INNER


Recommended items for: C-AEA526
