# Classic Austin Mini Upgraded Verto Flywheel For Spi Injected Cars

### Classic Austin Mini Upgraded Verto Flywheel For Spi Injected Cars

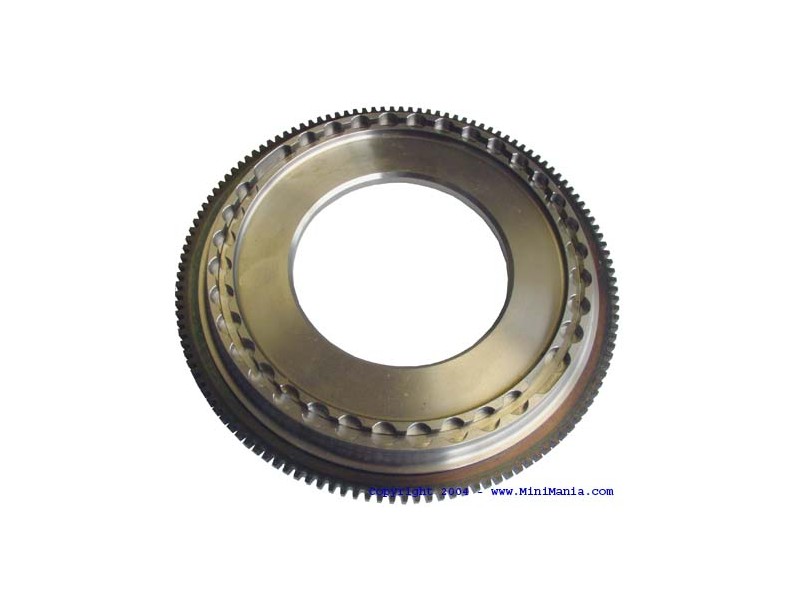

Light steel outer section for Verto type assembly, SPi cars only.
See C-AEG422 for pre-injection verto and C-AEG424 for MPi.
Weighs approx. 8.84.bs. Effects of lightening rotating engine components: (0.5 x n2 x r2 + R2) / R2 n = total gear ratio (gear ratio x diff ratio) r = radius of gyration R = Radius of wheel/tyre This formula gives what accelerative weight the engine sees of the car per lb. Radius of gyration of a transverse engine's flywheel is approx. 3.75" So to determine "weight loss" for a flywheel weight of say 18 lb to 10 lb, the engine would see an overall weight loss of the car to accelerate in first gear of: 3.33 = 1st gear of 4 synchro 'S' box 3.44 = diff ratio (0.5 x (3.33 x 3.34)2 x 3.752 + 9.52) / 9.52 = (0.5 x 131.2 x 14.06 + 90.25) / 90.25 = 1012.59 / 90.25 = 11.22 lbs So for every 1 lb removed from the flywheel, the engine sees 11.22 lbs less to accelerate off of the total car. Therefore by lightening the flywheel by 8 lb, the engine sees a total reduction of the cars accelerative weight of 89.68 lb.
C-AEG423 - LIGHTWEIGHT STEEL OUTER FLYWHEEL SECTION, VERTO TYPE FOR SINGLE POINT INJECTION ENGINES ONLY - READ INSTRUCTIONS BELOW
Reduction of rotating mass releases more power to accelerate the car as the engine sees less weight to accelerate. Considering for a Mini that a mere 1lb reduction in the rotating mass of the flywheel causes a loss of accelerative weight to the tune of around 12lb - the benefits of rotating mass reduction are obvious. The C-AEG423 weighs some 4lbs less than the standard item.
To extend it's range of superior quality, light-weight steel flywheels, Mini Spares has produced this component to give the later model, SPi Mini owner the benefits from such weight saving. This component has the flywheel sensor reluctor ring machined into the flywheel itself. However, it is NOT compatible with the standard injection diaphragm/spring. The standard unit is not strong enough to cope with increased power outputs so to maximise clamping pressure this component requires a different diaphragm. It is imperative the correct diaphragm/spring unit be used (see below for part numbers) as the trigger gaps in the reluctor ring will be in the wrong position if used with the standard diaphragm/spring. The result will be an engine that will not run.
It is also strongly advised that an up-rated clutch plate is used, but NOT the sintered race type.
OU MUST USE ORIGINAL VALEO PRESSURE WITH THIS FLYWHEEL OR YOUR ENGINE WILL NOT START. This is for single point injection cars This flywheel must use a VALEO PRESSURE COVER using your centre boss or the car WILL NOT START because the timing slot will be out of line .For best results use C-AHT596 WITH CORRECT PRESSURE FOR BEST CLUTCH AVAILABLE ON VERTO MINIS this has 2 timing oval holes. Do not try to fit anything other than the Valeo type and this special flywheel is machined to increase clamping pressure reducing potential clutch slip
