Requires grille modification (cutting a slot to fit over each of the two side brackets)
Classic Mini black works-type lamp bar to 1996

Classic Mini black works-type lamp bar to 1996

Classic Mini black works-type lamp bar to 1996
User Submitted Images:
Selected: C-AJJ3329B
Classic Mini black works-type lamp bar to 1996
Black
Qty:
Internet Price $122.95
Part No: C-AJJ3329B
Internet Price $122.95
Select variations below for more information:
Alternate Products
Classic Mini black works-type lamp bar to 1996
$122.95 Classic Mini black works-type lamp bar to 1996
Classic Mini Lamp Bracket Black To Fit Wipac And Ring Lamps
$22.95 Classic Mini Lamp Bracket Black To Fit Wipac And Ring Lamps
Copy of the heavy lamp bar fitted to the Abingdon Special Tuning works cars. Black finish with three brackets.
Designed to carry up to 4 lights.
If you are looking for the classic rally look for your Mini, this light bar is the best option. Driving or fog lights mounted on the bar are easily adjusted or updated. The bar bolts to the front valance of the Mini, brackets are included, and can easily be installed or removed.

Installation Instructions

Remove grille and bumper(then discard overiders if fitted).

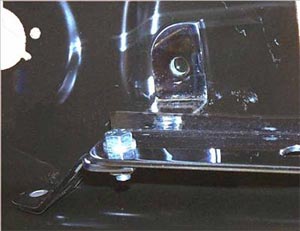

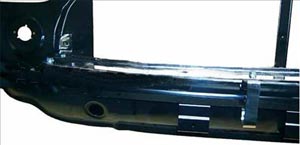

Loosely fit center bracket and lamp bar to middle bumper hole with lamp bar attached. Loosely fit outer brackets to lamp bar and line them up to front panel in the required position before drilling front panel.

The grille then needs cutting away at the bottom to slide down over the 2 outer brackets. On MK2/3 grilles the bottom finisher needs cutting away the width of the outer bar brackets and then upwards, usually to the first slat on 11 wide slat grille or about 25mm. Try not to cut all the way through the grille back panel as it supports the slats. The grille then slides down over the two outer brackets and the grille modifications are rarely noticed.

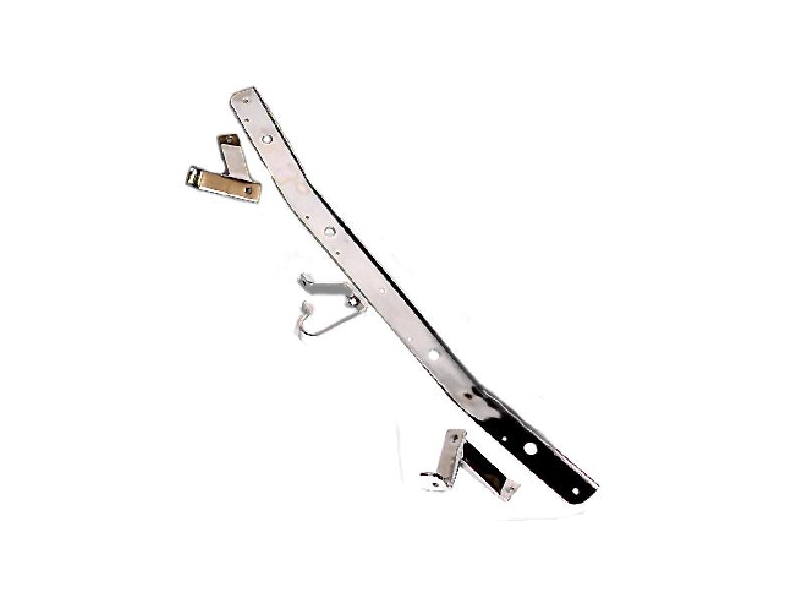

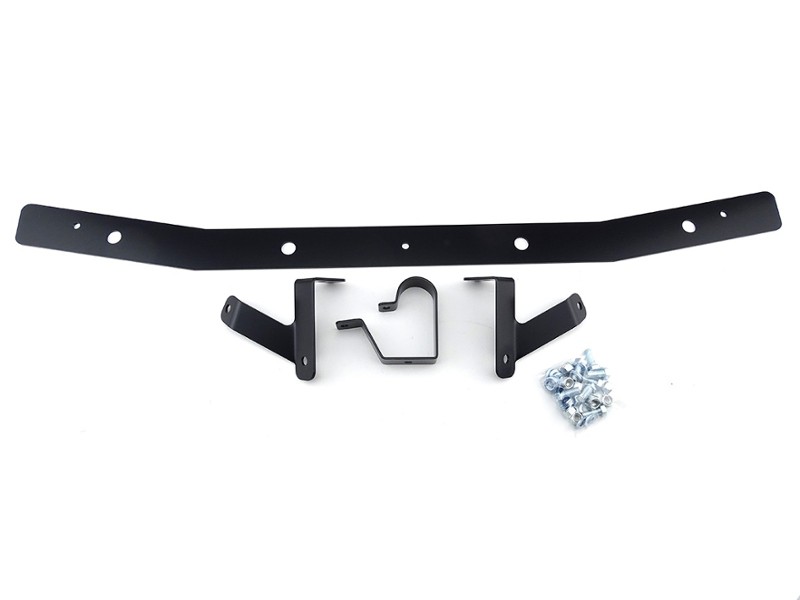

Contents:
Lamp Bar
Right Hand Bracket
Left Hand Bracket
Center Bracket
