Classic Austin Mini Thrust Washer Primary Gear For 1275 .114

Classic Austin Mini Thrust Washer Primary Gear For 1275 .114

Classic Austin Mini Thrust Washer Primary Gear For 1275 .114
Qty:
Internet Price $69.95
Part No: DAM6486
Internet Price $69.95
Alternate Products
Classic Austin Mini Thrust Washer For 1275 Primary Gear .117
$69.95 Classic Austin Mini Thrust Washer For 1275 Primary Gear .117
Classic Austin Mini Thrust Washer For The 1275 Primary Gear .112
$69.95 Classic Austin Mini Thrust Washer For The 1275 Primary Gear .112

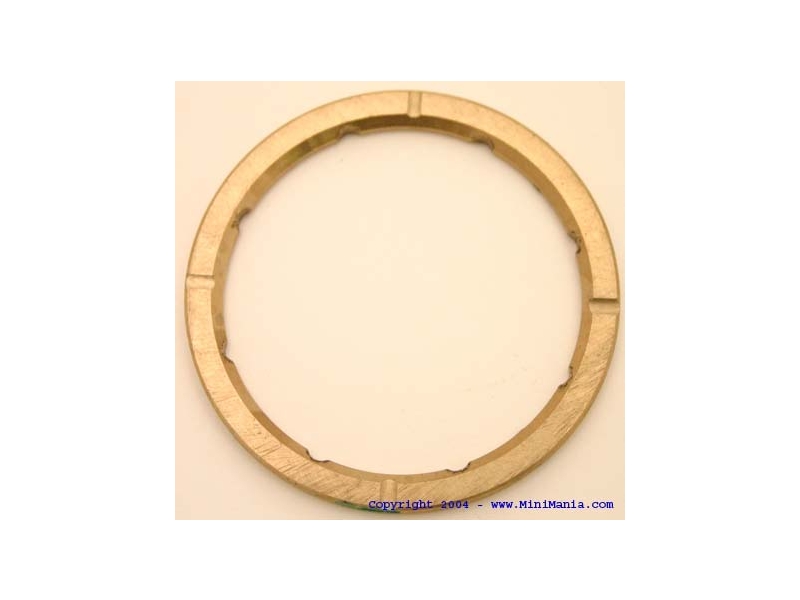

Primary gear thrust washers are made in varying sizes to take up the play when driving a MINI. Standard gap size should be between 3-6 thou. See DAM6487, DAM6488, DAM6489, DAM6490 and DAM6492 for alternatives. This type is for the 1275cc crankshaft only which has a raised step for the primary gear to sit on. Thrust washer 0.114-116”(2.89-2.94mm). The measurement is taken as plus or minus one to the size hence the two thousands  tolerance on each part number.
Loading...
Loading...
Loading...
Related Technical Articles:
ENGINE TRANSPLANTS - Engine to gearbox fitment
Created: November 01, 2000
Assembling the engine to gearbox (transmission) is explained and simplified in this article. Contrary to popular mis-guidance, all BBUs will fit all four-syncro gearboxes. It was only the three-syncro boxes that varied in casting dimensions causing hassles where 1275s were applied to 850/998 gearbox casings. The longer throw and bigger crank and rod assembly dimensions fouled the sculpted areas in the gearbox case,
