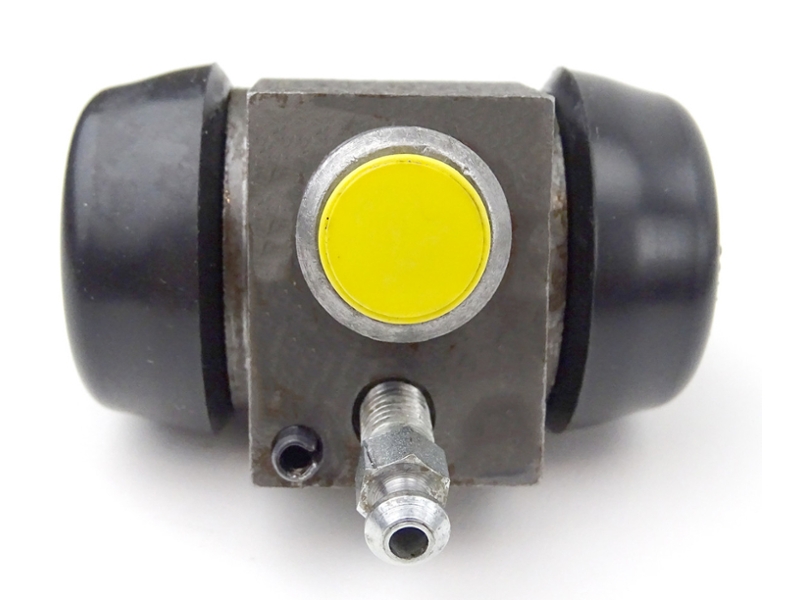

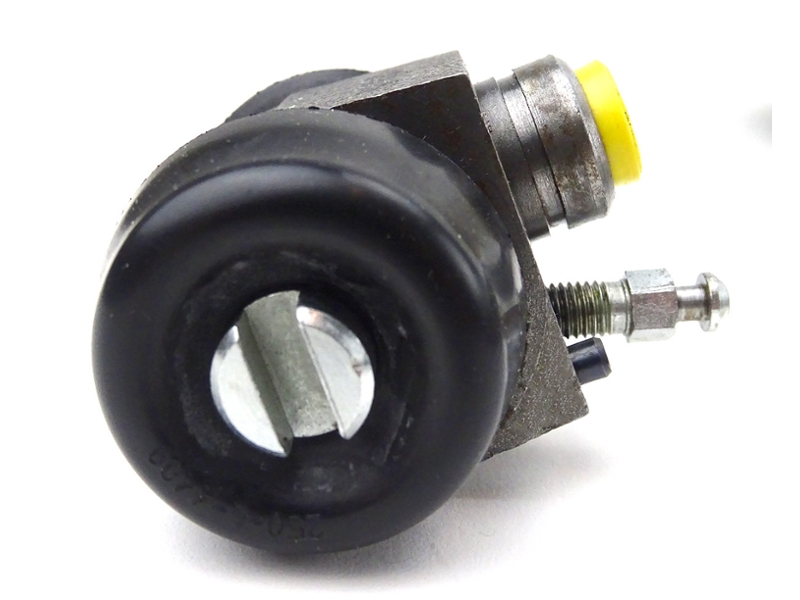

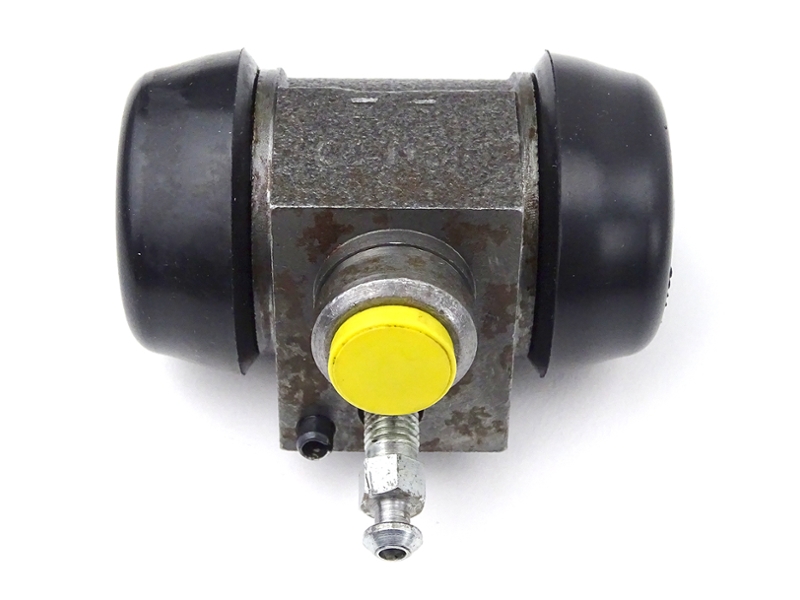

Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini
![Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini](/sysimages/dot.gif "Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini")
Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini
![Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini](/images_temp/800600001gwc1126a.jpg "Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini")
Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini
![Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini](/images_temp/800600001gwc1126b.jpg "Rear Wheel Cylinder Late Model 1/2" Bore | Classic Mini")
Rear wheel cylinder originally fitted to the 1275GT 1976/7 single line system plus NON UK 850/998 diagonal split systems for the same years. 1/2" bore size, the smallest cylinder ever used. Use one (1) per rear wheel.
Repair kit was BHM7015 which is now very scarce. Uses 513118A bleed screw.
See GWC1102 for the more commonly-used 3/4" bore size version.
Rear wheel cylinder originally fitted to the 1275GT 1976/7 single line system plus NON UK 850/998 diagonal split systems for the same years. 1/2" bore size, the smallest cylinder ever used. Use one (1) per rear wheel.
Repair kit was BHM7015 which is now very scarce. Uses 513118A bleed screw.
See GWC1102 for the more commonly-used 3/4" bore size version.
