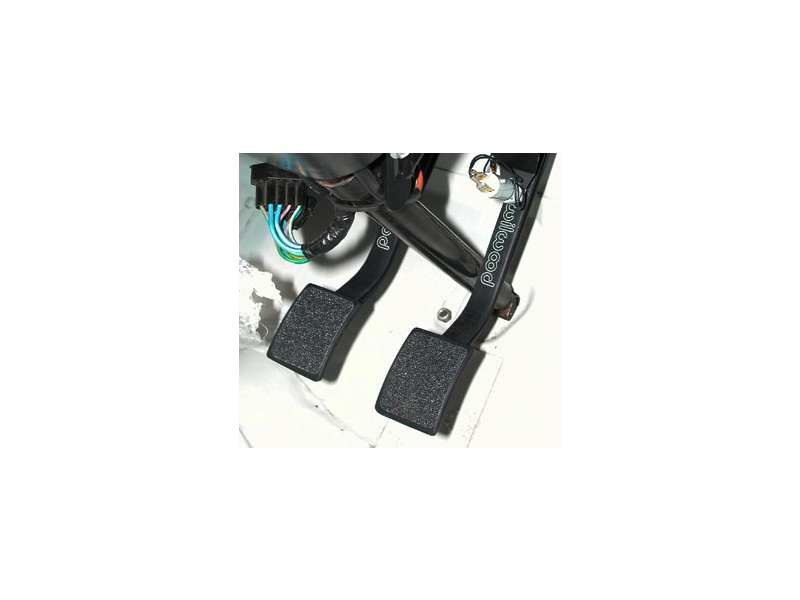

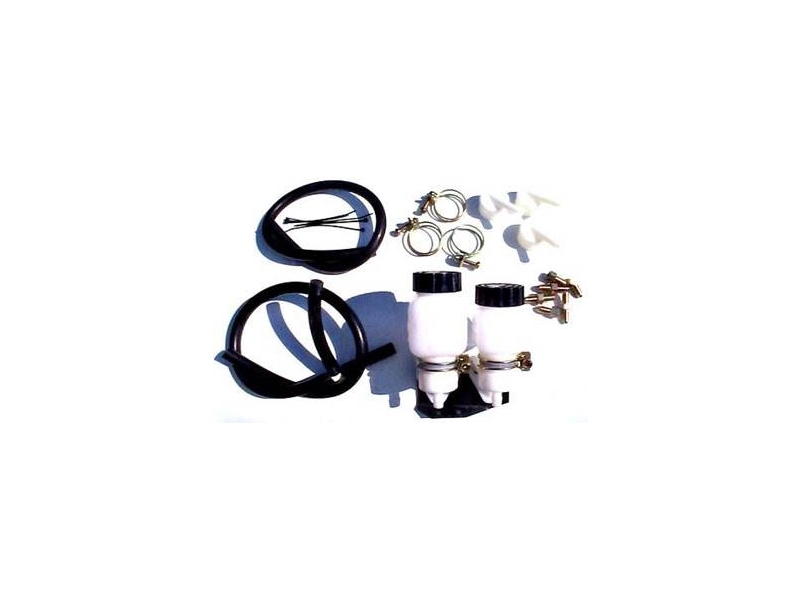

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms. The brake pedal uses a 6.25:1 ratio arm, but with a shorter 5.1:1 ratio arm on the clutch pedal for additional clearance when necessary. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This kit includes Wilwood vertical mount flange single outlet master cylinders.
Can A brake servo be integrated with this Classic Mini brake pedal system?
Can the wilwood pedals be used in a Classic Mini thats not a honda conversion? Im doing a bmw 16v head on my mini block, really like the pedals just want to know if it will work for me.
Yes, it does not matter what engine you have.
Mini Mania Tech Team
