AUTOMATIC TRANSMISSION FLUIDS
see our Mini Cooper Automatic Transmission Fluid Application Guide for more options
MANUAL TRANSMISSION FLUIDS
see our Mini Cooper Manual Transmission Fluid Application Guide for more options
For the following models equipped with the 5-speed Manual transmission:
2005-2006 R50 MINI Cooper Hatchback (non-S)
Note: Fluids cannot be shipped via air - they can be shipped by ground methods only.

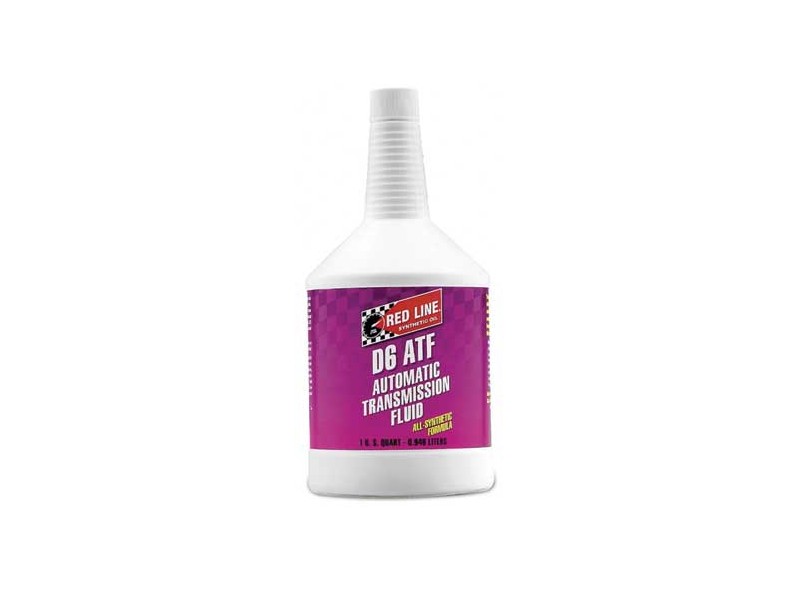

Synthetic D6 ATF is a lower viscosity version of the D4ATF and is designed for better fuel efficiency in CAFE testing. Dexron VI requires a different approach to a conventional ATF formulation. Rather than beginning with a 7.5 cSt fluid and allowing a viscosity loss in use to drop to 5.5 cSt, the Dexron VI fluid requires a starting viscosity of less than 6.4 and a final drop to no less than 5.5 cSt. Red Line D6 will drop to no less than 6.1 cSt. Since the final viscosity after use of these fluids are similar, Dexron VI fluids can be used where Dexron III fluids were previously recommended (with the exception of some manual transmission applications, our customers report).
D6 ATF also provides significantly improved gear protection and will provide a GL-4 level of gear protection. The balanced frictional characteristics provide smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.
[ ] Our lowest viscosity, most shear-stable ATF for consistent operation
[ ] Designed to satisfy Dexron-VI®, Dexron-III®, Dexron-II®, Mercon®SP and Mercedes Benz NAG-2 fluids
[ ] Also satisfies API 70W/75W/80W and GL-4 gear oil requirements
[ ] Red Line offers the widest selection of fully-synthetic ATF on the market today
[ ] Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
[ ] Reduced oxidation and lower volatility at high temperature
[ ] Allows high-temp operation without varnishing valves and clutches
[ ] Extended drain intervals
Typical Properties:
Vis @ 100°C, cSt: 6.4
Vis @ 40°C, cSt: 30.7
VI: 166
Pour Point, °C: -60
Pour Point, °F: -76
Flash Point, °C: 249
Flash Point, °F: 437
Brookfield Vis @ -40°C, P: 45
The Getrag 5-speed Manual fluid capacity is 1.7 quarts. When replacing oil sump, the capacity is 1.8 quarts.
For the following models equipped with the 5-speed Manual transmission:
2005-2006 R50 MINI Cooper Hatchback (non-S)
Note: Fluids cannot be shipped via air - they can be shipped by ground methods only.
Synthetic D6 ATF is a lower viscosity version of the D4ATF and is designed for better fuel efficiency in CAFE testing. Dexron VI requires a different approach to a conventional ATF formulation. Rather than beginning with a 7.5 cSt fluid and allowing a viscosity loss in use to drop to 5.5 cSt, the Dexron VI fluid requires a starting viscosity of less than 6.4 and a final drop to no less than 5.5 cSt. Red Line D6 will drop to no less than 6.1 cSt. Since the final viscosity after use of these fluids are similar, Dexron VI fluids can be used where Dexron III fluids were previously recommended (with the exception of some manual transmission applications, our customers report).
D6 ATF also provides significantly improved gear protection and will provide a GL-4 level of gear protection. The balanced frictional characteristics provide smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.
[ ] Our lowest viscosity, most shear-stable ATF for consistent operation
[ ] Designed to satisfy Dexron-VI®, Dexron-III®, Dexron-II®, Mercon®SP and Mercedes Benz NAG-2 fluids
[ ] Also satisfies API 70W/75W/80W and GL-4 gear oil requirements
[ ] Red Line offers the widest selection of fully-synthetic ATF on the market today
[ ] Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
[ ] Reduced oxidation and lower volatility at high temperature
[ ] Allows high-temp operation without varnishing valves and clutches
[ ] Extended drain intervals
Typical Properties:
Vis @ 100°C, cSt: 6.4
Vis @ 40°C, cSt: 30.7
VI: 166
Pour Point, °C: -60
Pour Point, °F: -76
Flash Point, °C: 249
Flash Point, °F: 437
Brookfield Vis @ -40°C, P: 45
The Getrag 5-speed Manual fluid capacity is 1.7 quarts. When replacing oil sump, the capacity is 1.8 quarts.
