MINI Cooper Supercharger Pulley Kit R52 R53

MINI Cooper Supercharger Pulley Kit R52 R53

MINI Cooper Supercharger Pulley Kit R52 R53

MINI Cooper Supercharger Pulley Kit R52 R53

MINI Cooper Supercharger Pulley Kit R52 R53

MINI Cooper Supercharger Pulley Kit R52 R53

MINI Cooper Supercharger Pulley Kit R52 R53
Part No: NMK1288
SALE Price $241.96
List: $274.95 You save: $32.99
Discounts Do Not Apply
Fits the following:
MINI (2002-Current)
Here is a great package for those looking for the 'extra' performance using the tried and true upgrades. The supercharger pulley upgrade uses a 15% smaller diameter supercharger pulley to increase the boost up to about 15 psi from a stock 10.5 psi. This results in about a 20 hp increase. The crankshaft pulley is a lightweight version that greatly reduces intertial mass and improves the throttle response.


2002-2006 R53 MINI Cooper S Hatchback
2005-2008 R52 MINI Cooper S Convertible

Professional installation strongly recommended.

Supercharger Pulley Upgrade

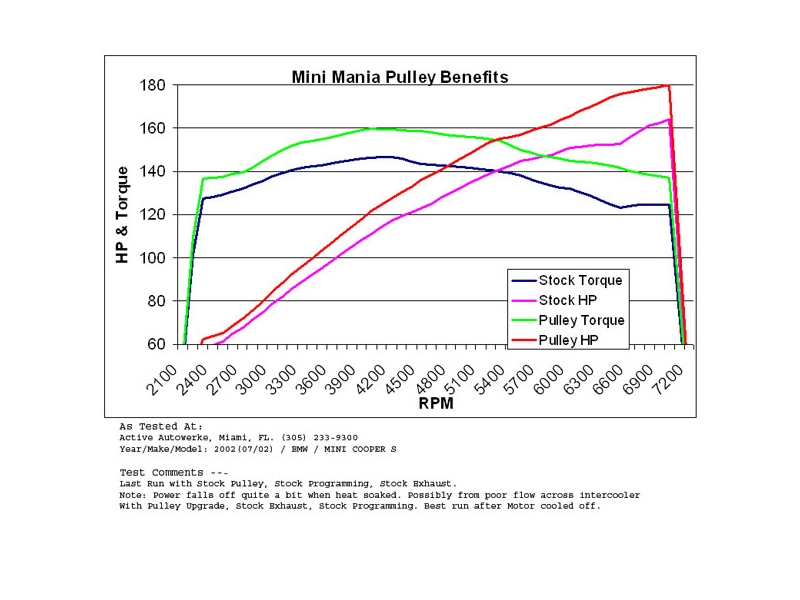

A 15% reduction in the supercharger pulley diameter of the MINI Cooper S increases the boost of your MINI Cooper S by more than 4 pounds, resulting in a dyno-measured gain of over 20 horsepower AT THE WHEELS. Maximum boost is achieved at lower RPM, giving more power in the mid-range of your MINI Cooper S.

Fits 2002-2006 R53 MINI Cooper S and 2005-2008 R52 MINI Cooper S Convertibles.

Does NOT fit 2007+ R56 MINI Cooper and S, and does NOT fit the R55 MINI CLUBMANS.

- Unique 3-piece supercharger pulley self-aligning design delivers superior clamping force, and doesn't pull back from the stop when tightened like 2-piece designs.

- The new built in stop locates the supercharger pulley in the proper position, simplifying installation.

- Optimum 15% reduction avoids over-spinning supercharger and excessive intake charge heat generated by smaller supercahrger pulley upgrades.

- Includes correct length belt for proper tensioner operation.

- Lightweight design with low rotational mass spins up faster than heavier steel supercharger pulleys.

How Small is Too Small?
Supercahrger pulleys reduced 16%, 17% or 19%, or using an oversized crank pulley, may spin the supercharger faster than our 15% pulley, but most of the additional boost cannot be used and can contrubute to engine and exhaust system damage. These smaller pulleys cause the supercharger to operate at higher RPM than it is designed to tolerate. Plus, the Roots type supercharger drastically looses efficiency at higher RPMs, generating excess heat as it tries to compress more air. In the process, it further overloads the barely adequate air-to-air intercoolers and causes the ECU to enrichen the mixture and pull back on ignition timing to preserve the engine. This results in lost power, poor fuel economy, lower reliability, the potential to 'meltdown' the catalytic converter and higher emissions.

At 15%, the ULTRIK supercharger pulley provides the most boost increase available without over-revving the supercharger at high engine RPMs. This ratio gives you added power without undue stress on the OEM supercharger or other adverse effects. Remember, if you're looking for performance increase AND reliability backed by the best Warranty in the industry, the ULTRIK 3-piece pulley upgrade system is the right choice for you and your MINI Cooper S!

And Lighter is Even Better
Compare our supercharger pulley's 7.8oz. low rotational mass design to competing all steel designs, weighing as much as 15.6oz. The ULTRIK 3-piece supercharger pulley system concentrates the weight near the treated steel center, incorporating lighter weight aluminum alloy material at the circumference, accomplishing an inertial mass 4 times lower than the 15.6oz pulleys. Ask others how much their supercharger pulley weighs. It spins very fast, so don't accept that additional mass is insignificant. Use our lightweight pulley along with our lightened crank pulley (NME5030) to really reduce rotational mass and improve acceleration.

All steel clamp design has similar thermal expansion rate as the supercharger shaft to maintain superior clamping force over entire operating temperature range.

Installation Notes
The ULTRIK three-piece unit allows easy installation of the supercharger pulley onto the shaft without a press and enables easy removal. "Three pieces for a reason", our hydraulic press tests show the ULTRIK 3-piece pulley design superior to other tested 2 and 3 piece brand name designs. We won't mention names here, but we've tested all but the cheap knock-offs.

Locating the pulley on the shaft is easy and reliable, simply run it all the way onto the shaft until it stops. Proceed with tightening the bolts in sequence and the unique 3 piece design clamps down relentlessly on the supercharger shaft, without pulling against the stop.

The NME5041 kit, which includes the correct length belt to keep the tensioner centered in its range, is best for performance and reliability. See NMK5041 for a kit that includes this pulley and the rental tool.

The kit includes high quality 3-piece self-aligning supercharger pulley (2.19" diameter) and belt. See also NME5018 for Pulley Removal Tool, and NME5990 for Belt Tensioner Tool. Just installing one pulley? You can rent a puller for just $1 ($100 refundable deposit applies). See NME5016.

We recommend the belt be inspected regularly, and replaced once a year.

Click Here for Installation Instructions 1

Click Here for Installation Instructions 2

Lightweight Crank Pulley

This Lightweight Crankshaft Pulley is stock diameter (OEM sized) crank pulley, utilizing the original belt layout. Since the crank pulley diameter is unchanged, they maintain alternator output at exactly stock output levels so you need not worry about flat batteries or weak charging capabilities. Through extensive weight savings afforded by 6061 aircraft aluminum construction, power gains of up to 10% are available depending on how your MINI is set up. CravenSpeed crank pulleys come fully balanced and counter-weighted, and feature anodizing for superb wear resistance & strength.

Releasing Power

The rule of thumb is that each pound of weight taken off the engines rotating assembly is worth approximately 2.7HP. The concept is that the crank is a parasite; it does not put power to the drivetrain but still requires the energy produced by the engine to rotate. When you reduce this parasitic weight, you release power that was previously used only for spinning the supercharger and alternator.

Is this crank pulley safe?

The pulleys on the R53's 1.6 and most new smaller engines have an elastomer (rubber ring) incorporated into the pulley that looks similar to a harmonic damper. The elastomer in the OEM pulley serves as an isolator, which is there to suppress natural vibration and noise from the engine itself, the A/C compressor, P/S pump, and alternator. The purpose of a traditional harmonic damper is to protect against crank failure from torsional movement. This is not necessary in the MINI or most modern engines because of the many advances in engine design and materials. Factors such as stroke, displacement, inline, V configurations, power output, etc., do determine when and how these harmonics and torsional movements occur.

Check local regulations on conformity for street use.

I bought the 15% pulley and belt for my 2005 Mini Cooper s and was going to install it and wondered if I needed to get my car tuned after the install ?
No tuning is necessary, MINI's engine management system is able to make adjustments automatically to maintain proper fuel and ignition trim.

Mini Mania Tech Team
