When Fitting MG brakes to Morris Minor, what is the best rear brake? Why does changing the front drum calipers take a larger volume of brake fluid? What is the distance from the pedal pad to the pivot point on the Spridget pedal boxes?
Answer:
If upgrading to front Sprite/Midget brakes there's no need to upgrade the rear drums. Neither is any change generally needed to the master cylinder. However, you may want to add the convenience of the remote reservoir - it allows easier access to the fluid top-off and adds overall fluid capacity:
The distance from the pedal pad to the pivot point on the Spridget pedal boxes is approx. 7". I hope that's what you needed.
Spridget Mania Tech Team
The Spridget Parts and Accessories Experts

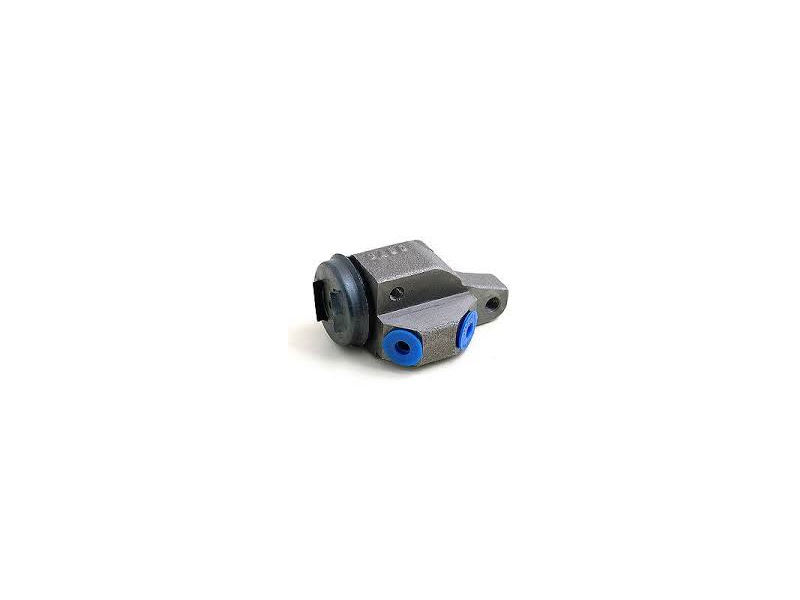

Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front, this means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71.
Two (2) are required for the right front.
Right Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardRight Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardRight Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardRight Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardRight Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 Onward
$68.90
Genuine Right Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor '54 On
Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front, this means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71.

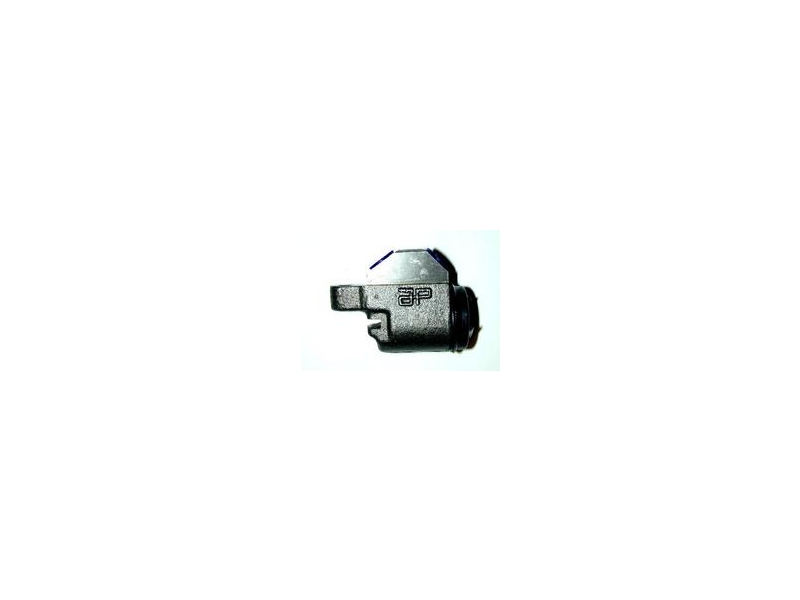

Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front. This means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71. These cylinders are the aftermarket type, for the genuine type see FBK106-ORIG.
Two (2) are required for the left front.
Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardLeft Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardLeft Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnwardLeft Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 Onward
$68.90
Genuine Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 On
Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front. This means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71. These cylinders are the aftermarket type, for the genuine type see FBK106-ORIG.

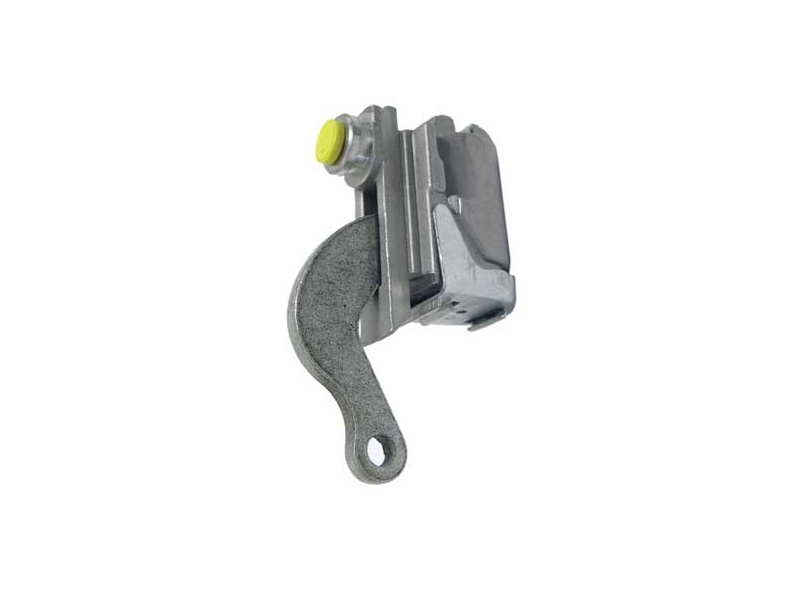

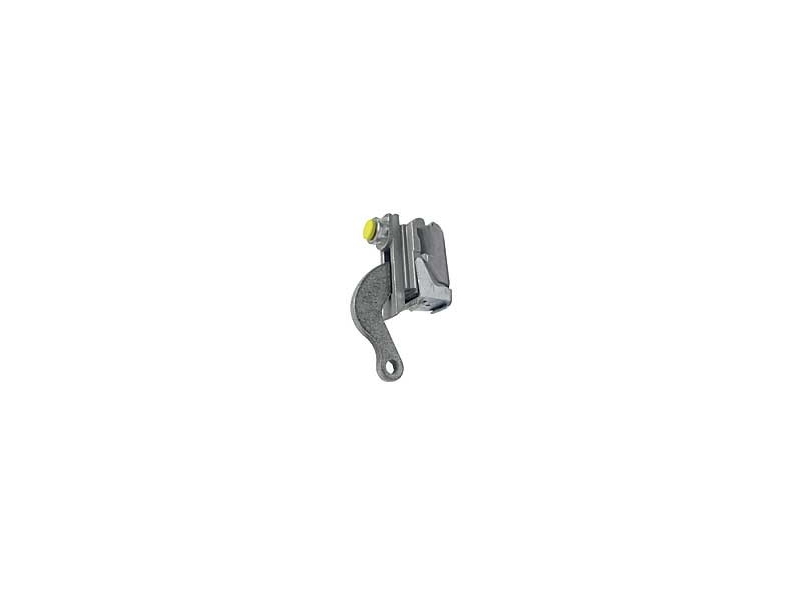

Early Morris Minors ('48-'62) used single piston rear wheel cylinders. These are noted externally by having the brake adjuster through the wheel rather than on the backplate. There is one per wheel but we recommend replacing them in pairs.
These cylinders have 7/8" bores, the later type RBK106's have 3/4" bores - they are basically interchangeable as long as both are replaced at a time.
These wheel cylinders are used in both the early Morris Minor (1948-1962) and Bugeye Sprites (1958-1961).
Rear Wheel Brake Cylinder | Morris Minor 1948-1962 Rear Wheel Brake Cylinder | Morris Minor 1948-1962 Rear Wheel Brake Cylinder | Morris Minor 1948-1962
$68.90
Genuine Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 On
Early Morris Minors ('48-'62) used single piston rear wheel cylinders. These are noted externally by having the brake adjuster through the wheel rather than on the backplate. There is one per wheel but we recommend replacing them in pairs.
These cylinders have 7/8" bores, the later type RBK106's have 3/4" bores - they are basically interchangeable as long as both are replaced at a time.

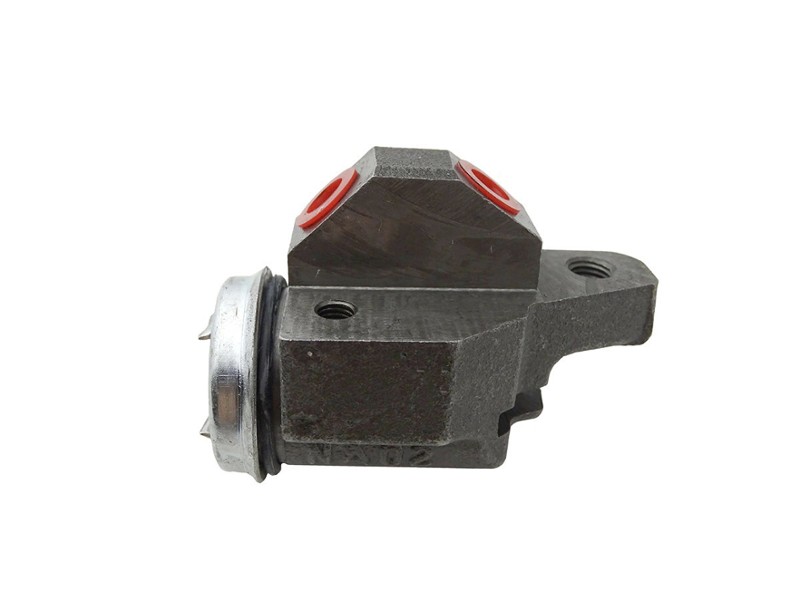

Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front. This means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71. These cylinders are the genuine type, for the aftermarket type see FBK106. Two (2) are required for the left front.
These are genuine type wheel cylinders, Made in the UK. Two (2) are required for the left front.
Genuine Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnGenuine Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 On
Genuine Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 OnGenuine Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 On
$37.90
Left Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 Onward
Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front. This means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71. These cylinders are the genuine type, for the aftermarket type see FBK106. Two (2) are required for the left front.
These are genuine type wheel cylinders, Made in the UK. Two (2) are required for the left front.

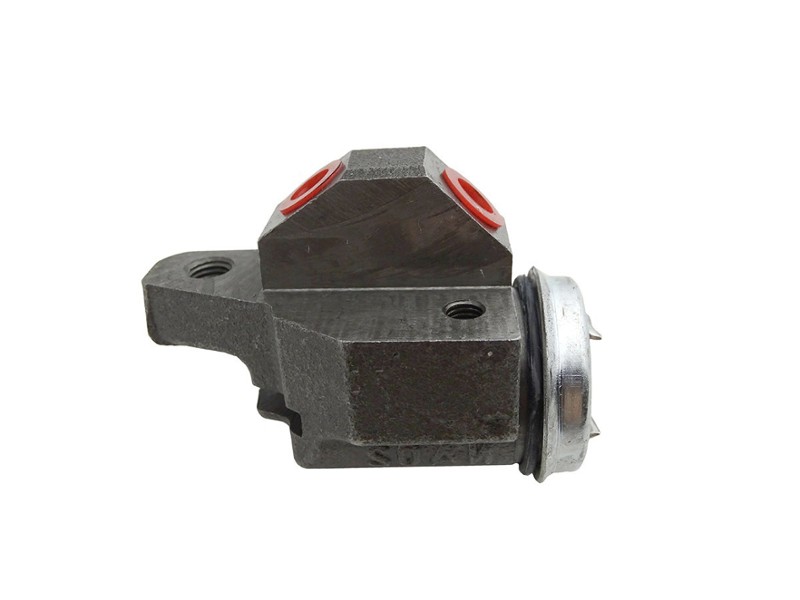

Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front. This means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71. These cylinders are the genuine type, for the aftermarket type see FBK105. Two (2) are required for the right front.
Genuine Right Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor '54 On
$37.90
Right Front Wheel Brake Cylinder | Sprite & Midget | Morris Minor 1954 Onward
Morris Minors and all drum brake equipped Sprites have what are known as dual leading shoe brakes on the front. This means that there is an individual wheel cylinder for the leading edge of each shoe. The two cylinders for the right front wheel (FBK105) are the same and the two for the left (FBK106) are mirrors of the right. These fit the fronts of Morris Minors from 1954-71. These cylinders are the genuine type, for the aftermarket type see FBK105. Two (2) are required for the right front.
