MINI COOPER S TURBO INSTALLATION HARDWARE GUIDE
For the 2nd Generation R55 Clubman, R56 Hardtop, R57 Convertible, R58 Coupe, R59 Roadster, R60 Countryman and R61 Paceman Cooper S models
Servicing the turbocharger in the 2nd generation Mini Cooper S models can be very challenging. There are the standard replacement parts that should be replaced when servicing the turbo, but there are also many other hardware parts that become unusable during dis-assembly, or you find them corroded or damaged and require replacement.
This Application Guide lists most of the common turbocharger related hardware that you 'may' need, along with a few upgrades that you may wish to consider. Click on the image or title to see more details on product page.
For Turbo replacements and upgrades, see our Mini Cooper Turbo Application Guide.

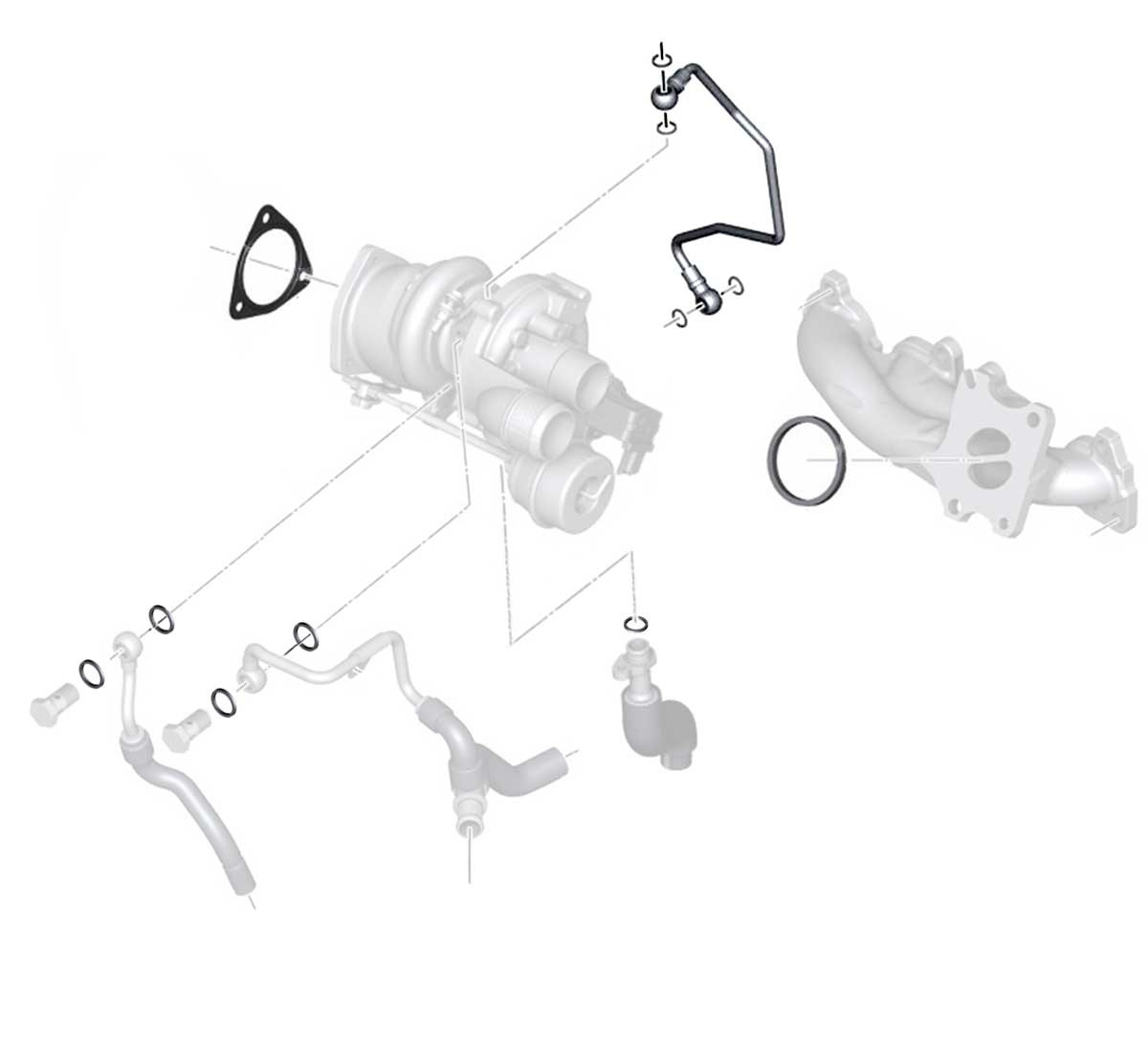

Install Kit This kit includes the ABSOLUTE MINIMUM of parts you should replace when servicing the Turbo. It is critical that you replace the Oil Feed Line is included in this kit since the old line will have 'coked' oil that can break free and clog the oil journals in the turbo. |

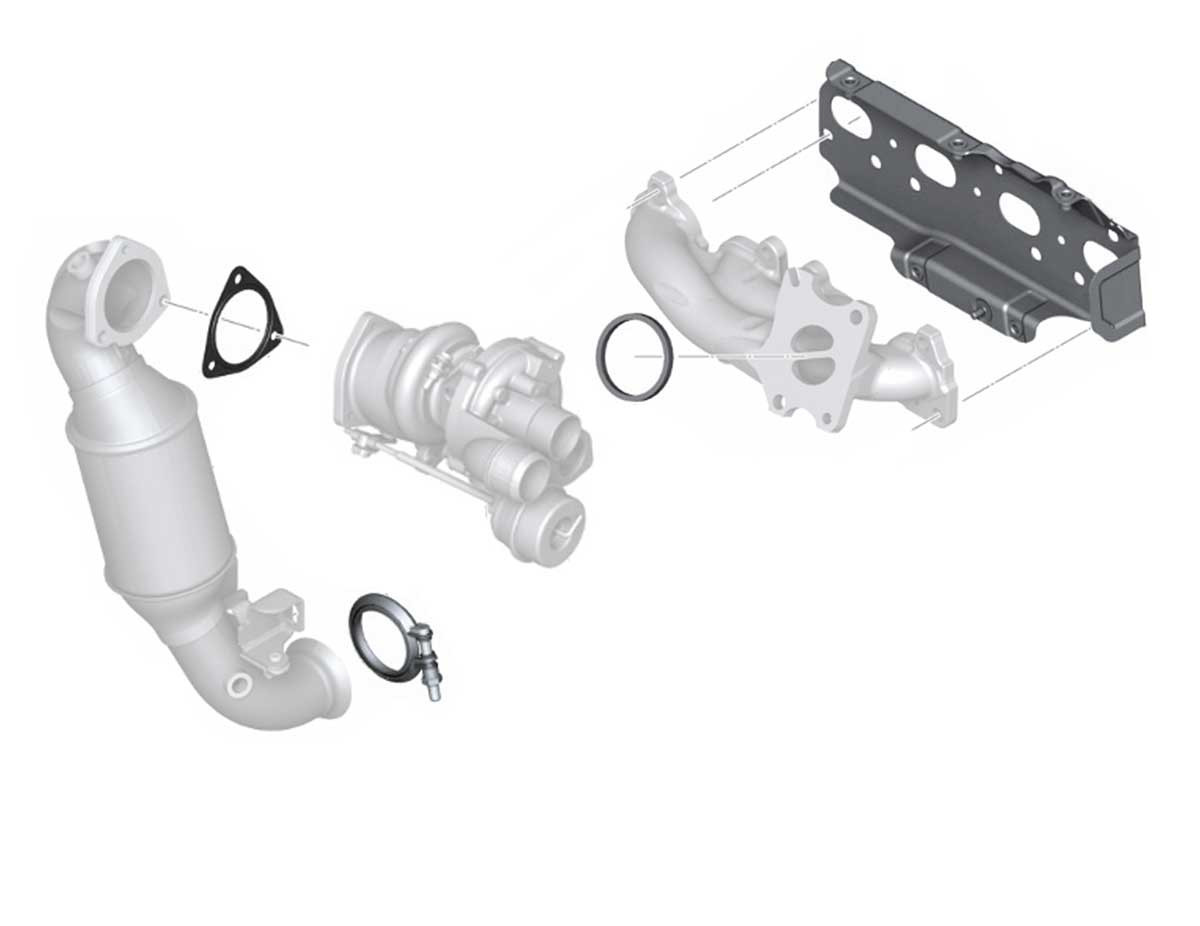

Exhaust Gasket and Seal Kit A convenient kit with factory exhaust gaskets and seals. |

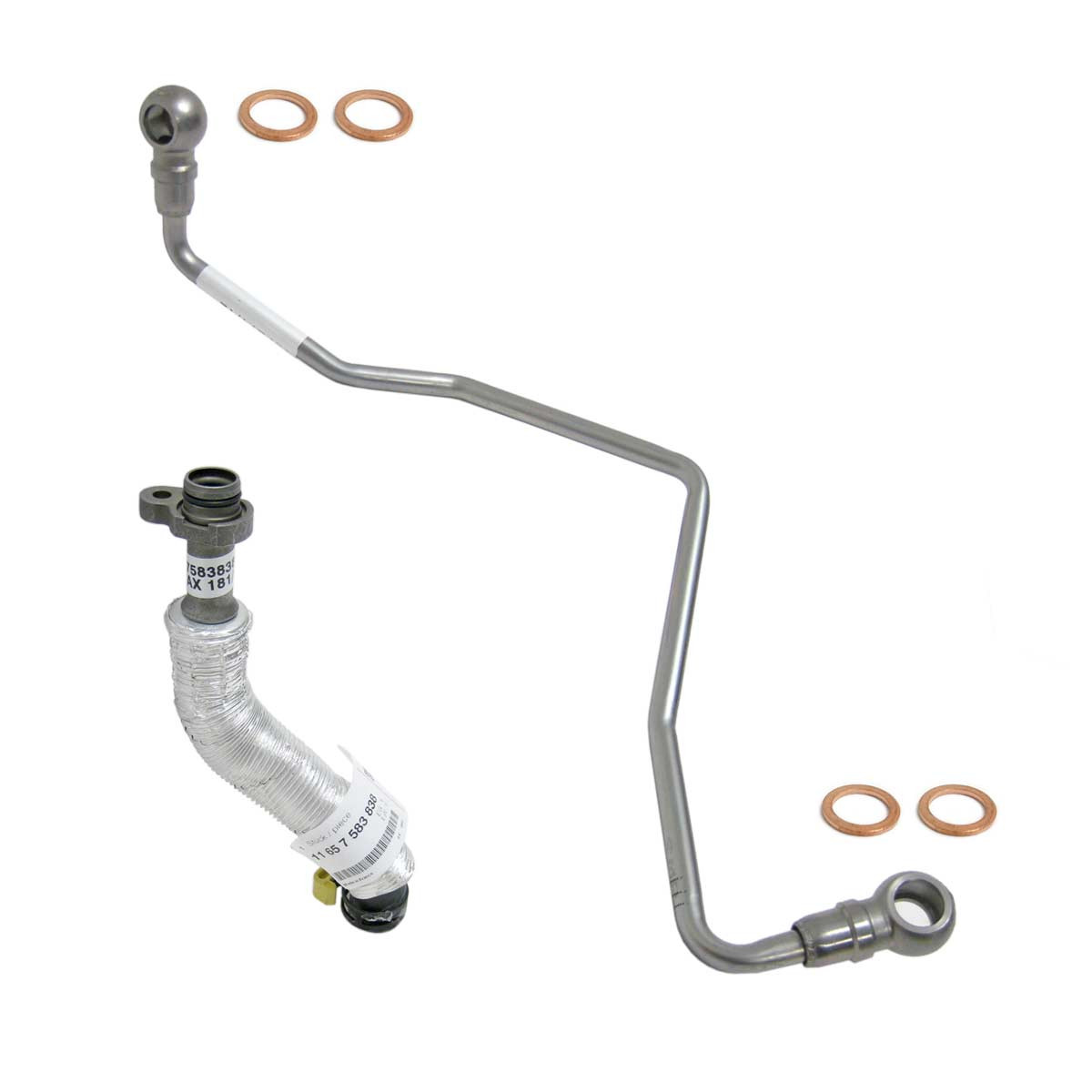

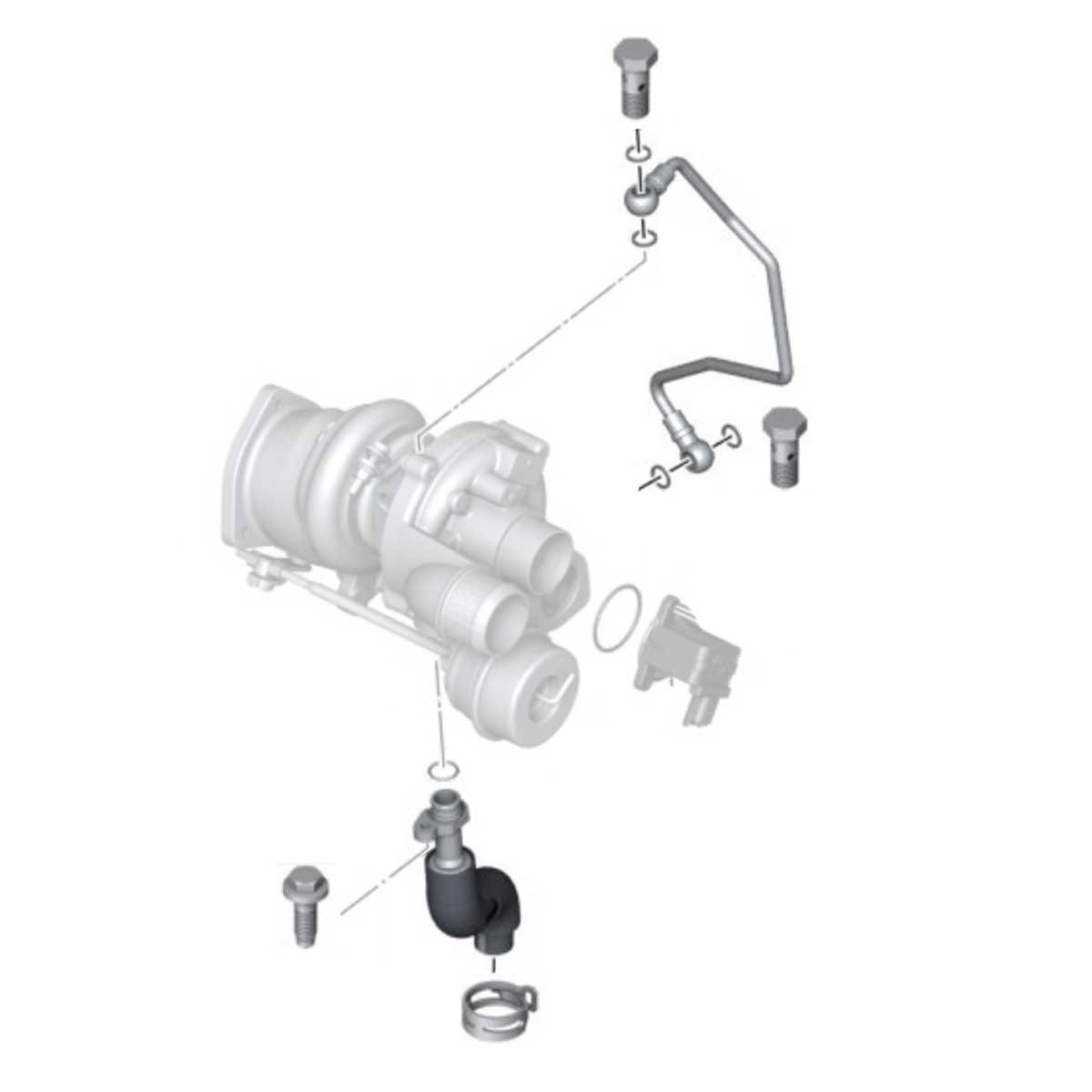

Oil Line Kit Turbo oil feed line and return line. |
Oil Feed Line Heat Shield OEM Some of the earlier models did not have this factory heat shield for the oil feed line. If your Mini does not have this, add this and/or the aftermarket heat shield |

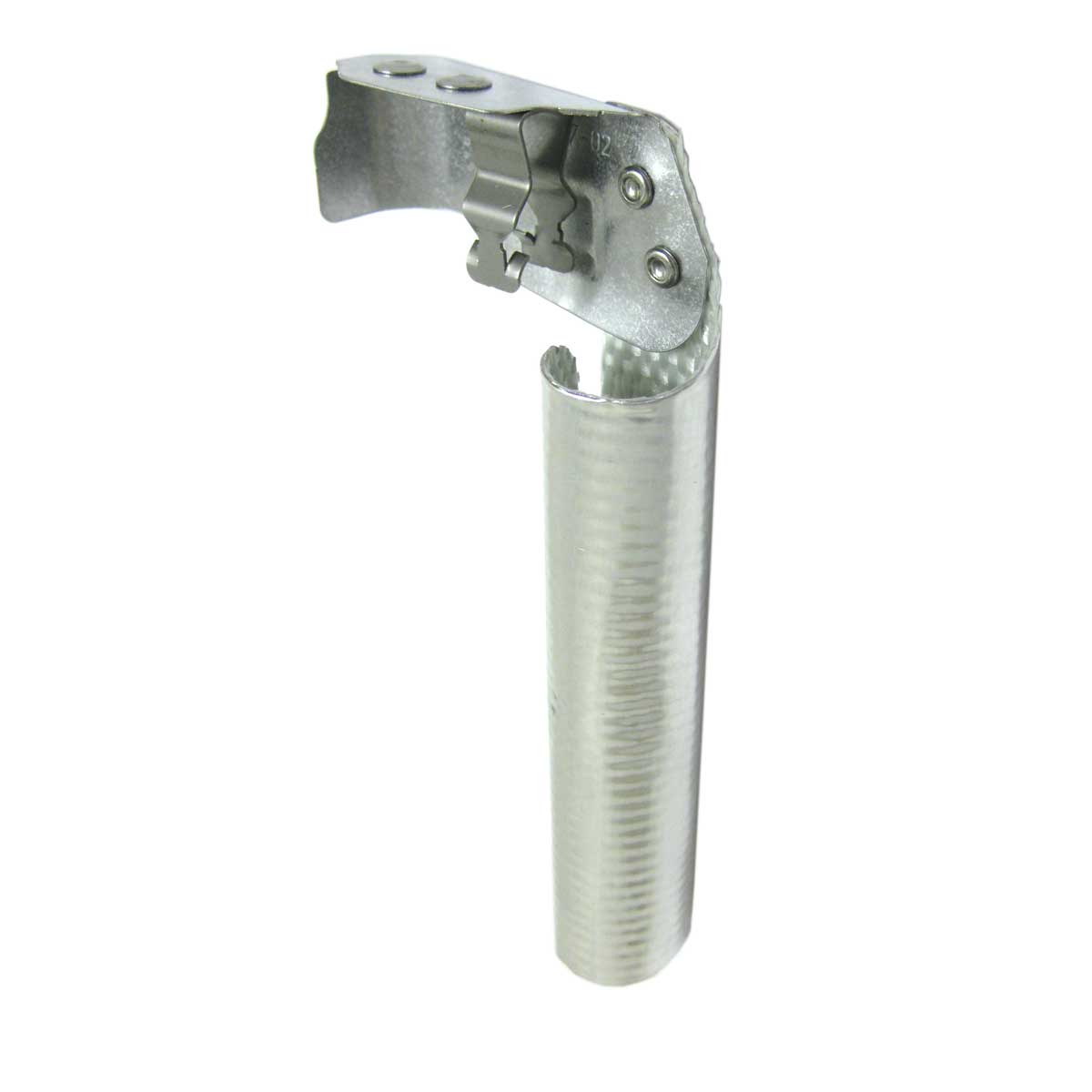

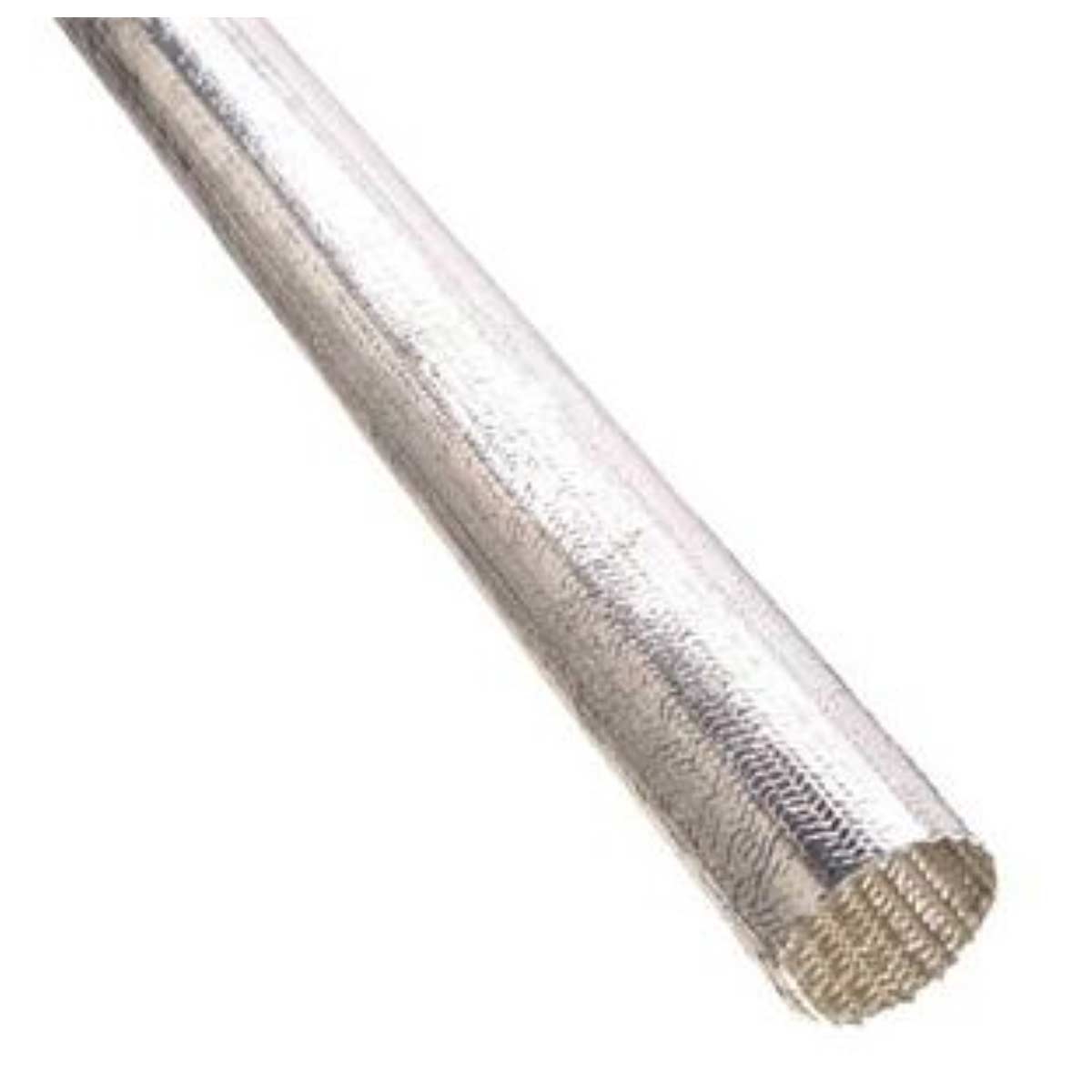

Oil Feed Line Heat Shield Aftermarket This is an aftermarket version of the heat shield for the oil feed line. Use this or the factory heat shield. For best results, use BOTH! |
Downpipe Studs Exhaust studs rust very easily, and the extreme heat makes these stud very difficult to remove. If you damage the original studs, these are the factory replacements. |

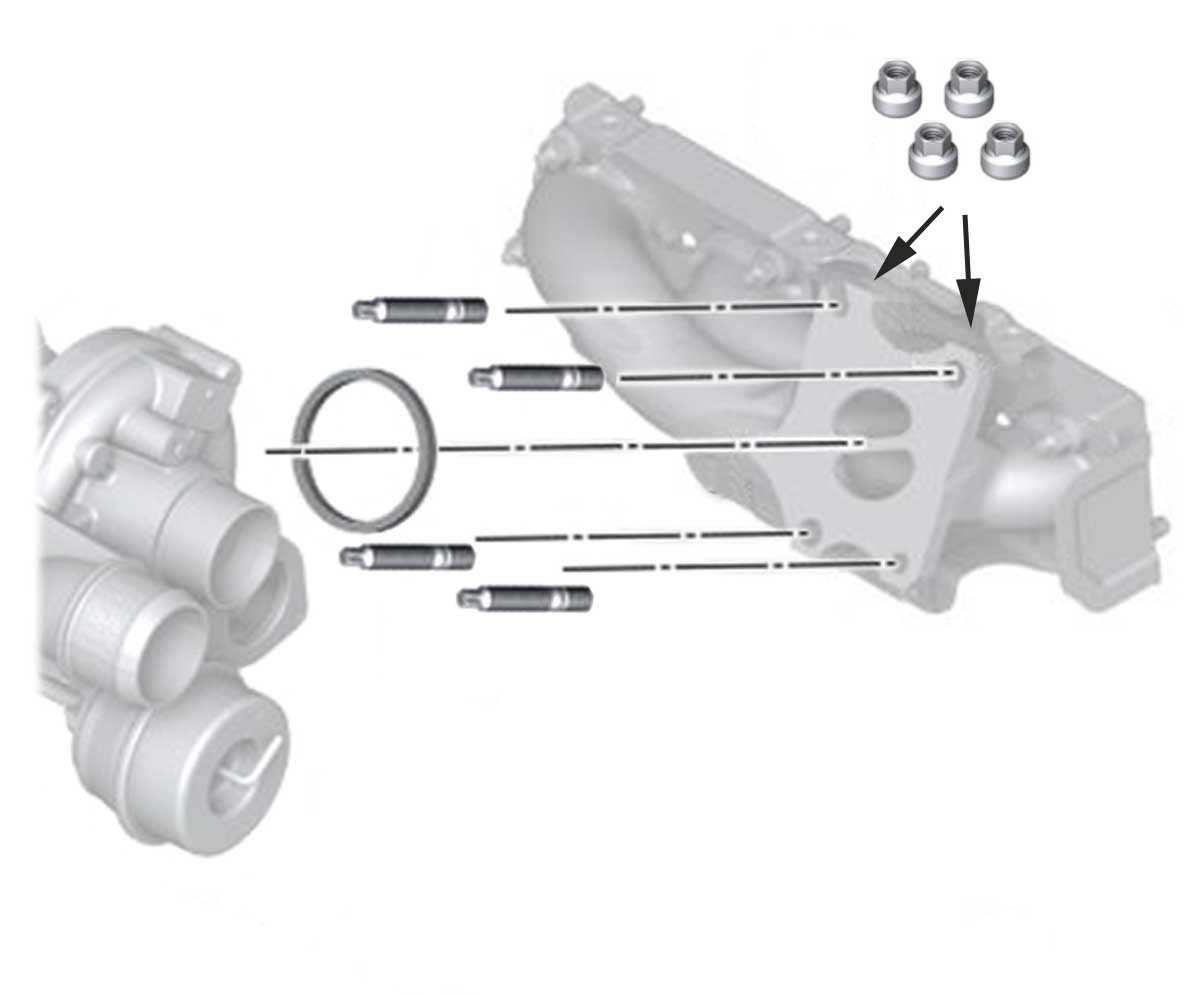

Manifold Studs and Nuts Exhaust studs rust very easily, and the extreme heat makes these stud very difficult to remove. If you damage the original studs or nuts, these are the factory replacements. |
Downpipe Components Hardware nuts and bolts for the factory downpipe. |

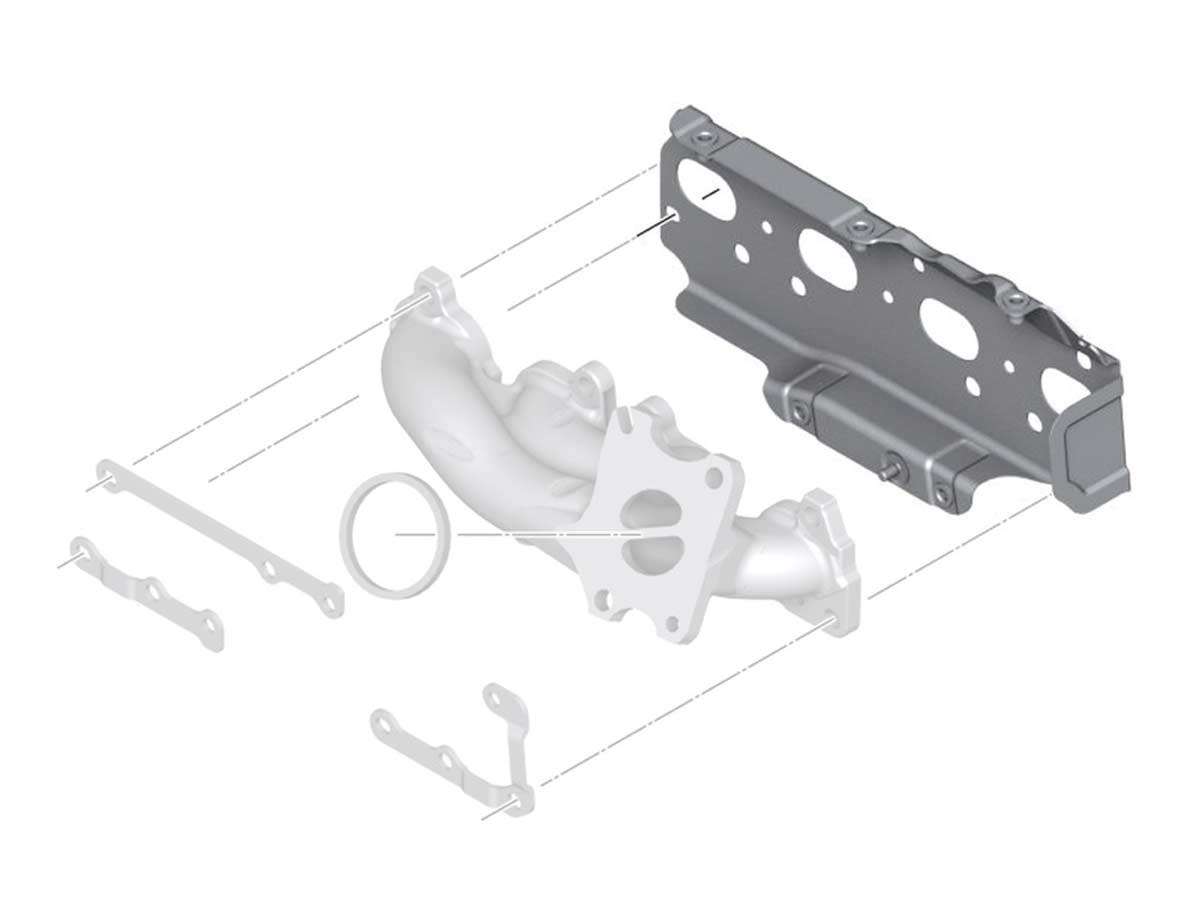

Exhaust Manifold Heat Shield & Gasket This is the factory replacement gasket for the exhaust manifold which has an integrated heat shield. |

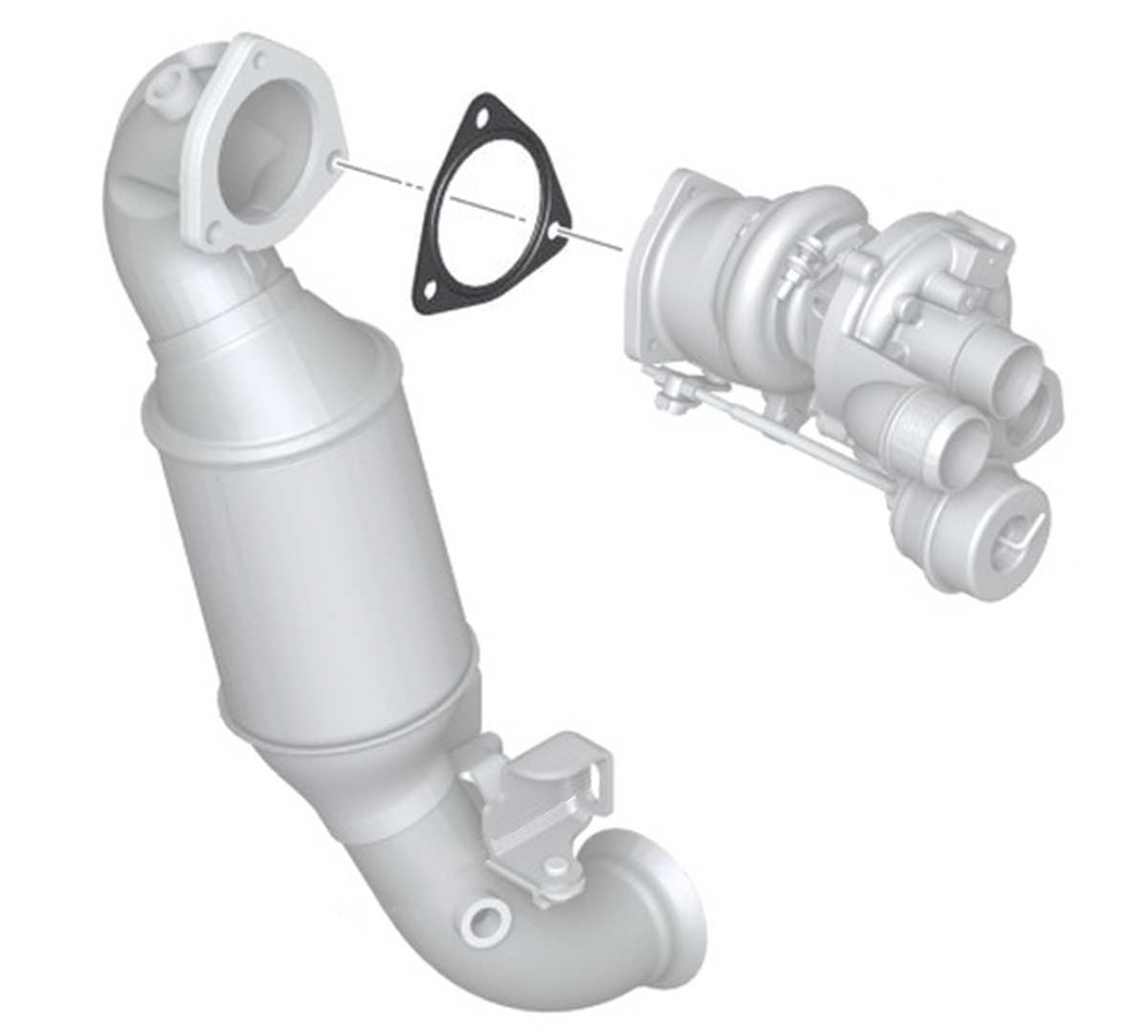

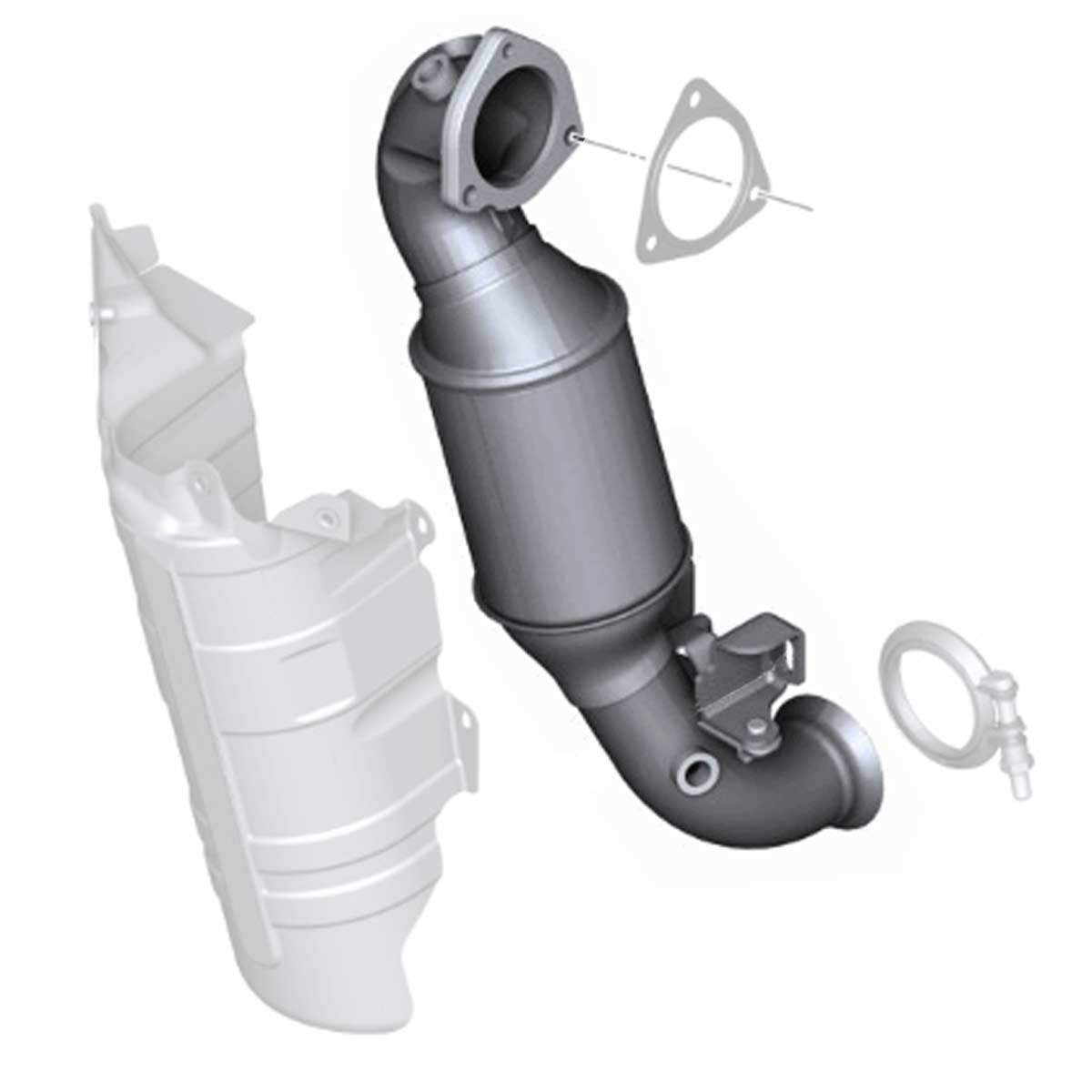

Turbo to Downpipe Gasket An essential part when servicing the Turbo |

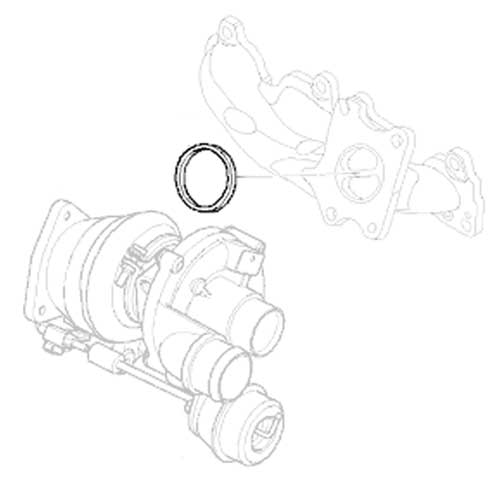

Turbo to Manifold Gasket / Seal An essential part when servicing the Turbo |
Oil Lines Turbo Oil Lines and related hardware available separately. |

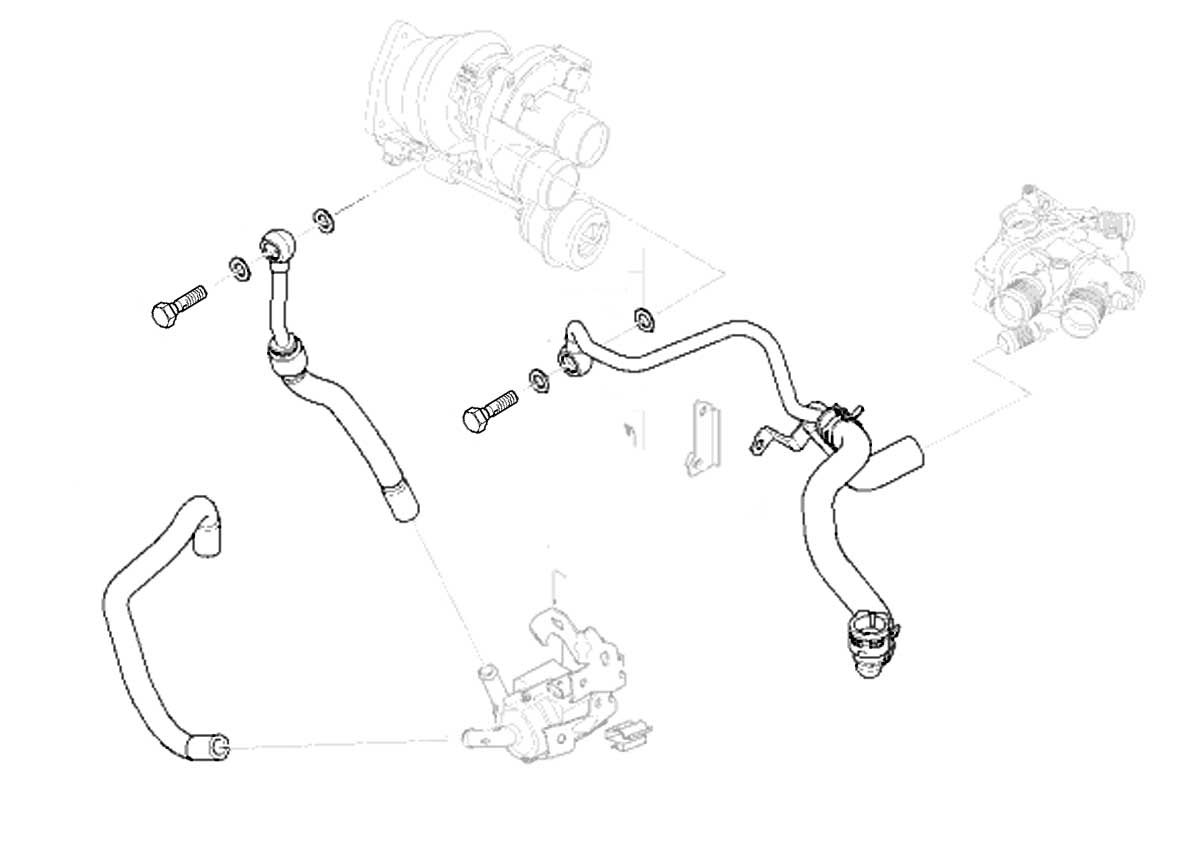

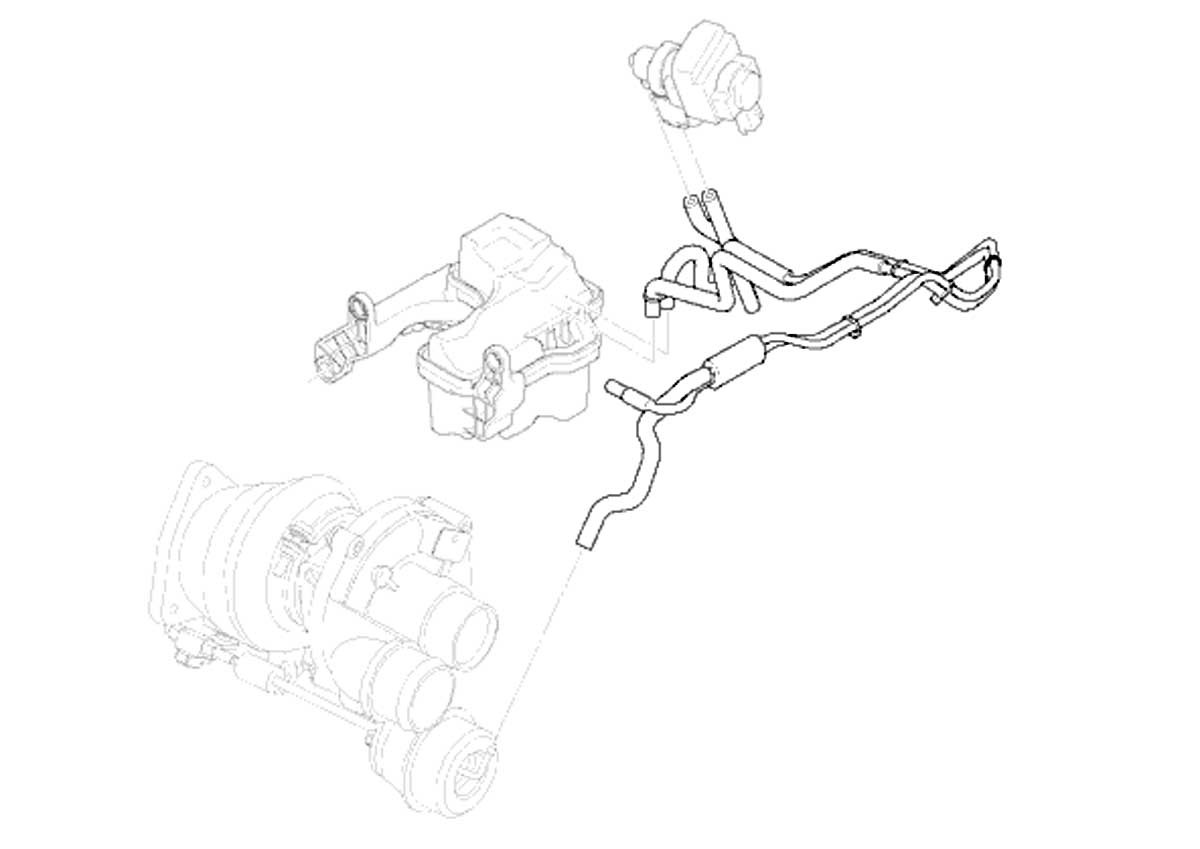

Coolant Hoses As with any coolant hoses, replace these lines as soon as you see 'cracks' in the rubber or any leaks. |
Auxiliary Water Pump OEM This is pump that circulates coolant through the turbo, even after you shut down the engine. |
Vacuum Lines If you have vacuum leaks causing rough idling or reduced power, check these lines. |
Reinxoadd Turbo Additive / Priming oil |

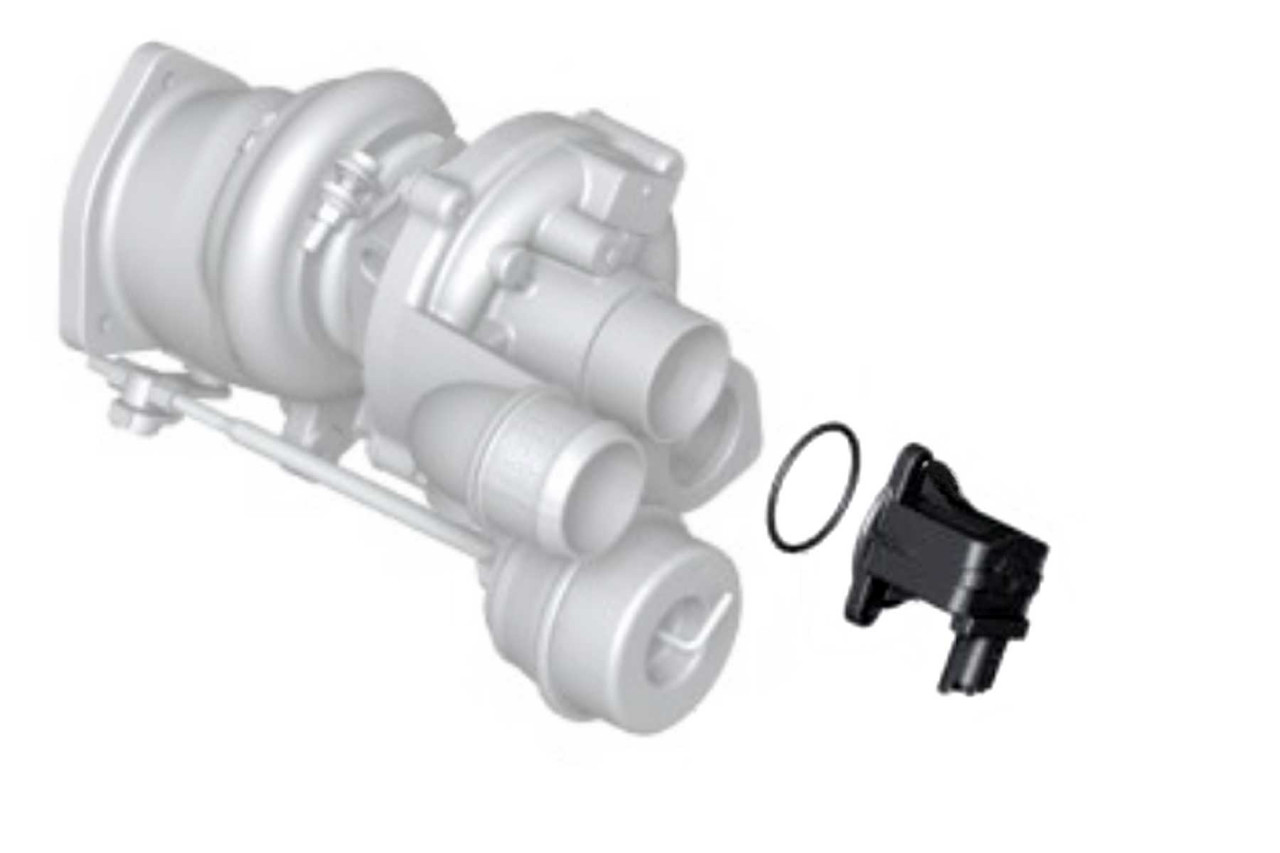

Diverter Valve OEM The diaphragm in this factory diverter valve has been known to occasionally fail leading to loss of power. This is the factory replacement, or you can install one of the upgraded versions. |
Diverter Valve Upgrade This diverter valve upgrade produces sharper throttle response and uses higher quality materials than stock. |

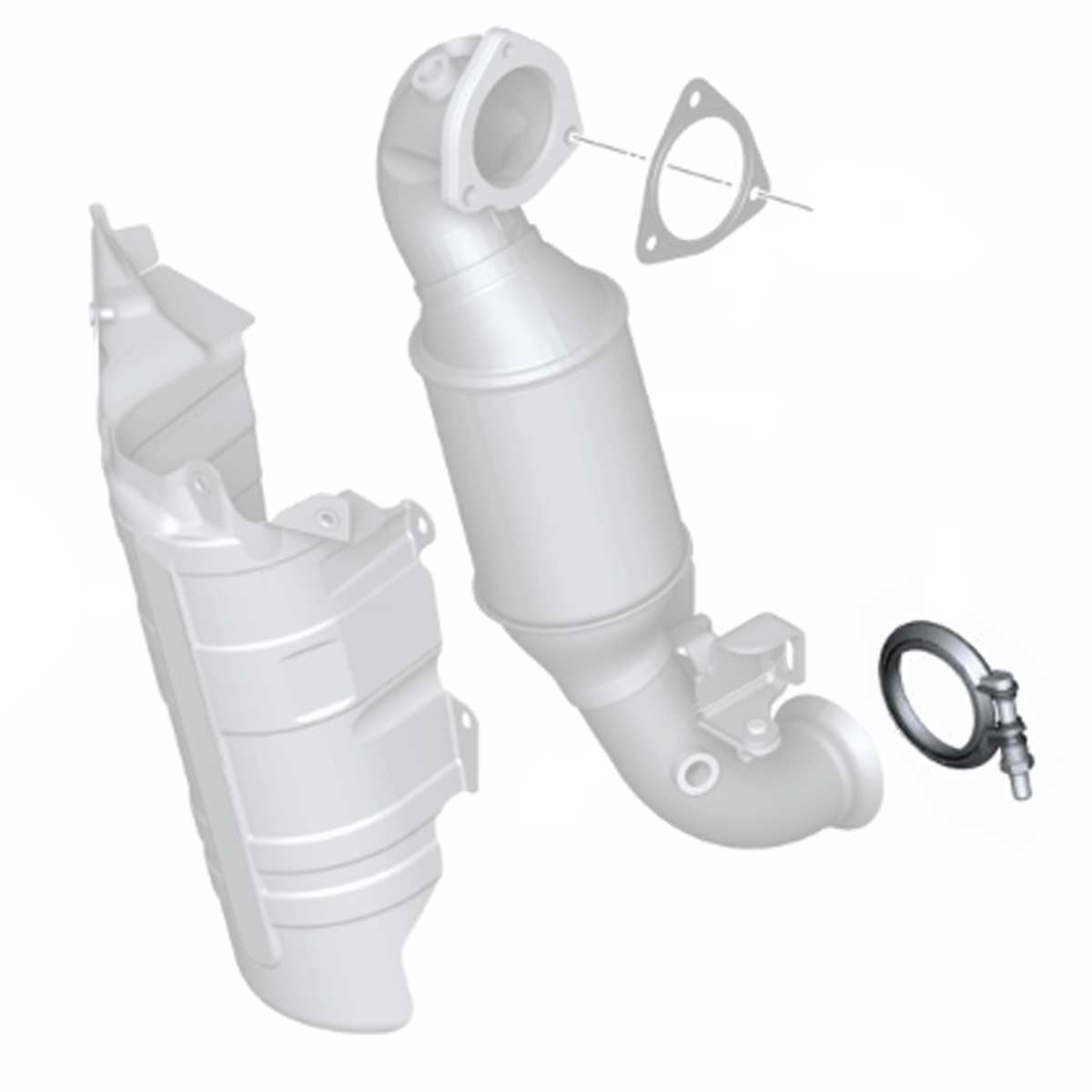

Exhaust Clamp Factory replacement clamp to secure the exhaust system to the downpipe. |

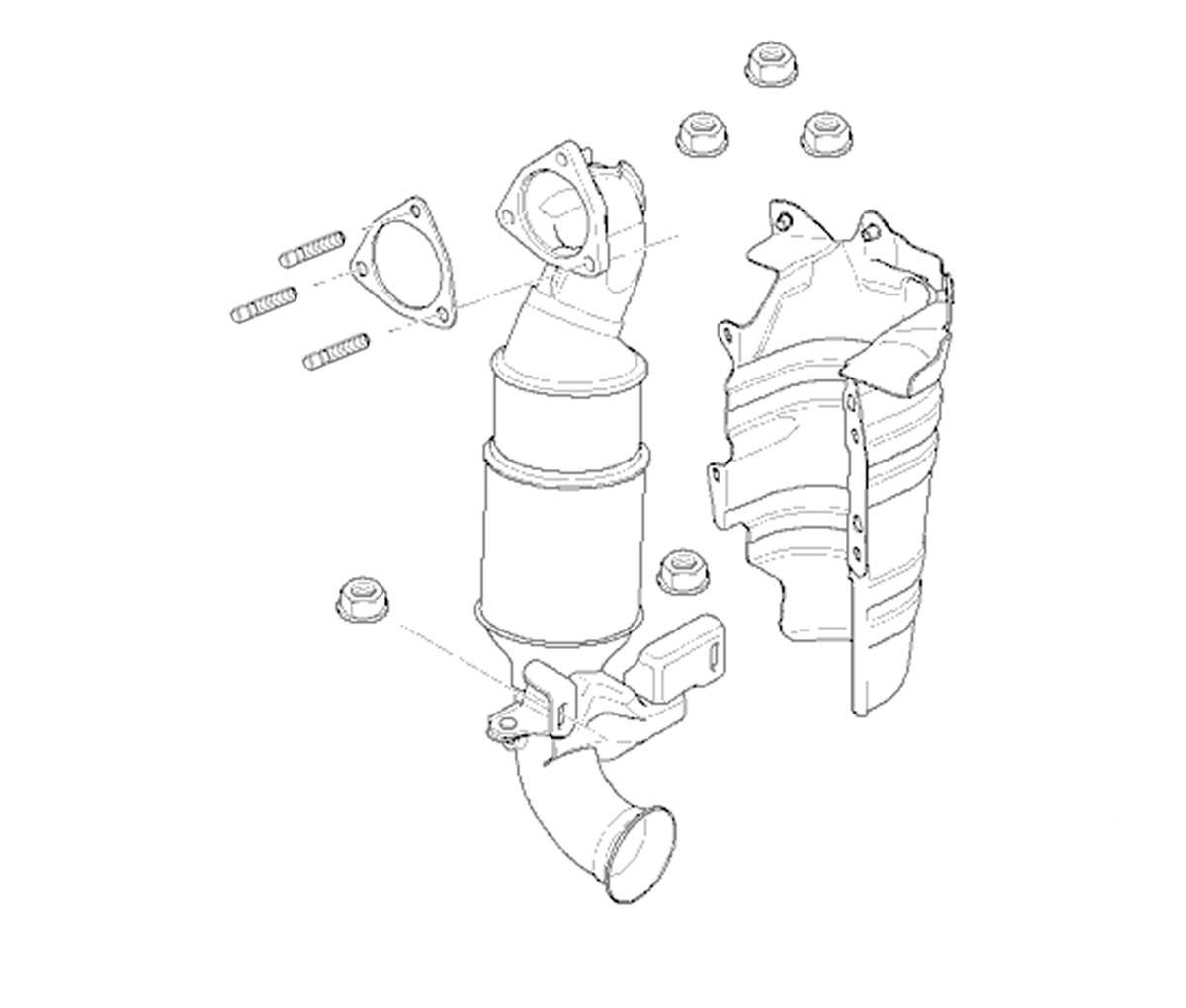

Cooper S Downpipe OEM If your turbo failed with white smoke out the exhaust, you should replace the downpipe since your old cat is contaminated and clogged with oil. This creates back pressure which will cause problems with any new turbo. |

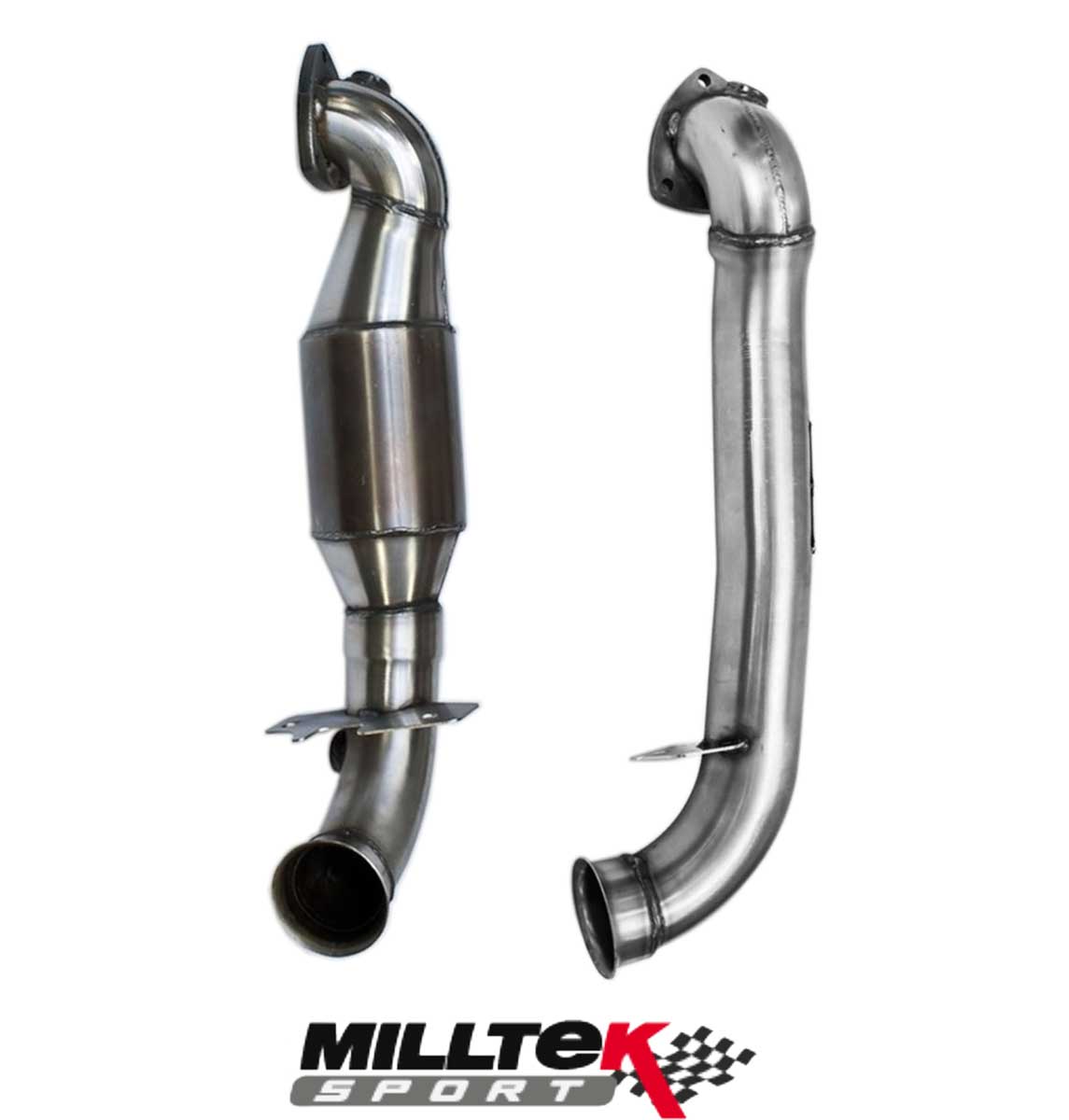

Milltek Downpipe Upgrade Larger diameter downpipes allow the turbo to spool up faster. This is almost a necessity with oversized performance turbos. Unfortunately, these aftermarket downpipes are only for off-road Minis and not legal for street use. |

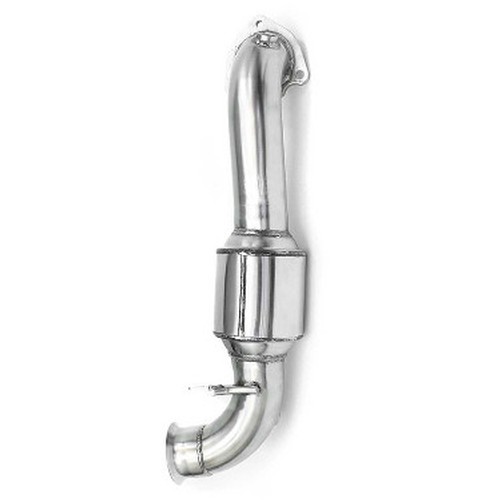

NM Downpipe Upgrade Larger diameter downpipes allow the turbo to spool up faster. This is almost a necessity with oversized performance turbos. Unfortunately, these aftermarket downpipes are only for off-road Minis and not legal for street use. |

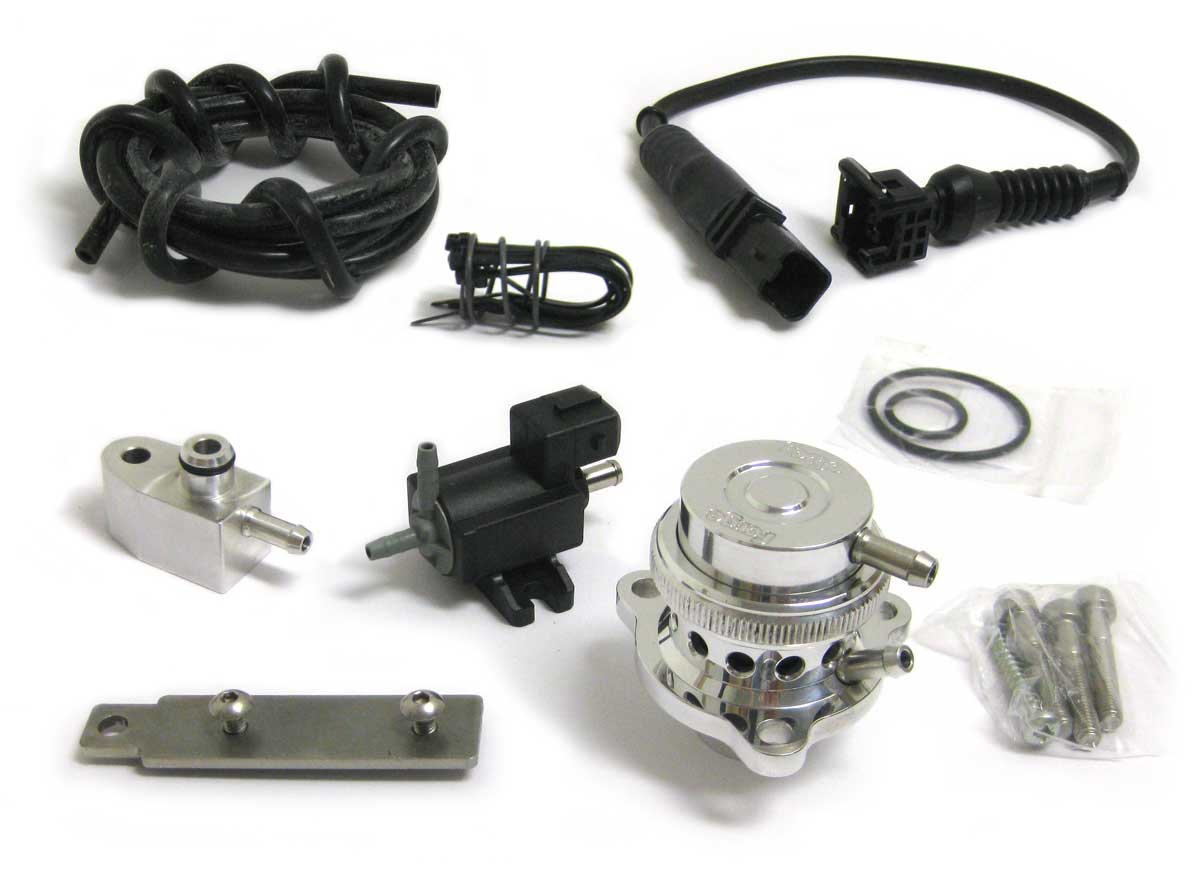

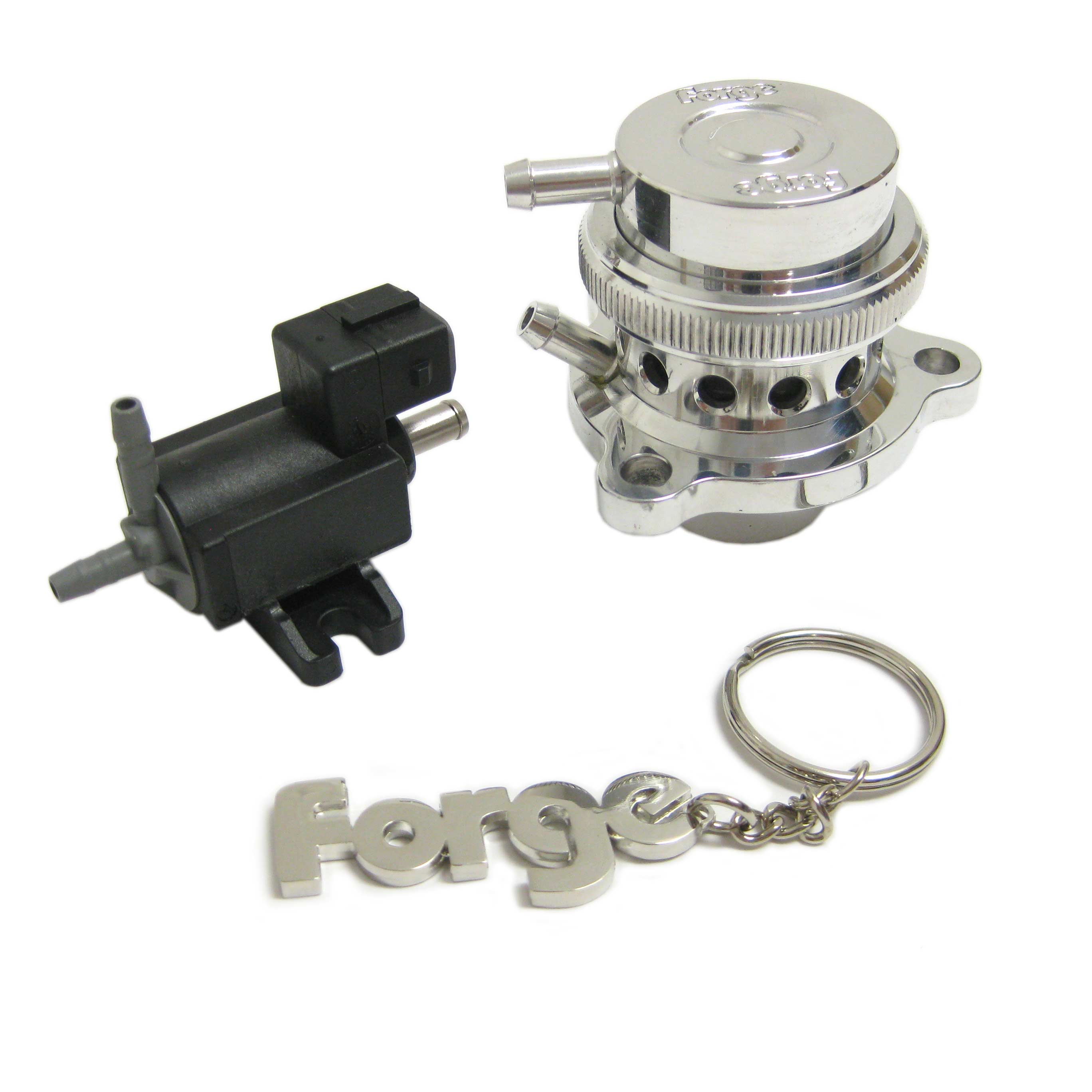

Blow Off Valve upgrade N14 Blow off valve upgrade replaces the stock bypass valve and allows the excess boost to vent into the atmosphere. Makes the 'whoosh' sound when it vents. |
Blow Off Valve upgrade N18 Blow off valve upgrade replaces the stock bypass valve and allows the excess boost to vent into the atmosphere. Makes the 'whoosh' sound when it vents. |
