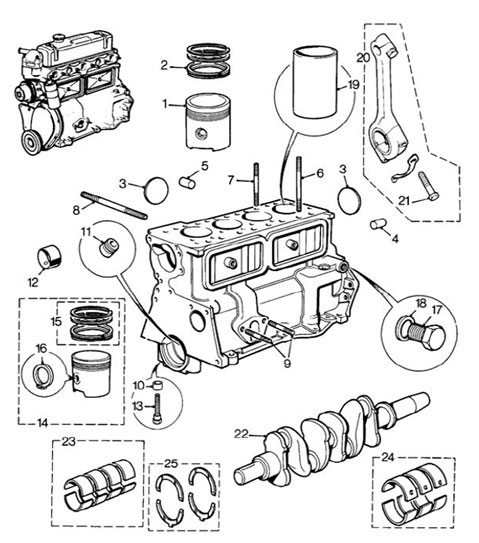

Classic Mini Cooper Engine & Block 998cc - Chapter 1 Pages 0-1

MINI Catalog Page 1-1
Records - of

#

Part No

Qty

Description

20754-STD-CO-P 4
Flat Top 998 Pistons, County Brand
Various oversizes
20773-STD-EA-P 4
998 Dished Pistons, Nural Brand (was AE) 9.1:1 Compression
Various oversizes
RE-A1118-P 4
Graham Russell 998 Flat Top Pistons
Various oversizes
22463-STD-EA-P 4
Nural Brand Dished 998cc Pistons - Each, 9.75:1
Various oversizes
22463-STD-P 1
Nural Brand Dished 998cc Piston Set, 9.75:1
Various oversizes - Set of Four
R43240-00 1
Ring set for TAM2052 original equipment was BHM1629
Use R43240-STD, Over sizes available
C-STN99-20 1
Ring set for P20950-20
Use R43240-STD, Over sizes available
AEC876 1
Core plug set
Use CP7
12G3503 2
Core plug for oil galleries
2K1345 A/R
Plug for oil release valve 6mm or CDU2601 rivet 6.3mm
As required
CAM150 4
Stud 3/8”unc 53/4”long for block rear to head .
CAM151 5
Stud 3/8”unc 4”long for block front to head .
CHS2613 2
Stud 3/8” UNC x 1 5/8” long for oil filter head to block
Uses GFK3213 nuts
LYG10008 2
Bolt 3/8"UNC x 1" alternative bolts for oil head
CHS2515 2
Stud 5/16”unc x 1 15/16” long fuel pump to block
Uses GFK3212 nuts, also thermostat housing studs
10  2A54 6
Dowel for main bearing caps
11  1A1964 1
Oil restrictor for camshaft . . .
No Longer Available
12  AEC3046 1
Camshaft liner bearing set
Use VPC956
13  12A1910 6
Bolt 7/16”unf x 2 1/2” long main cap to block
No Longer Available
14  ADU3490-P 1
High Compression piston sets, flat top with circlips
Various oversizes
15  R39400-00 1
Ring set for ADU3490 and ADU4203
Use R33636-P, Various sizes
16  CCN210 8
Circlips
No Longer Available
17  53K2853 1
Plug 1/4”bsp for block drain off .
18  6K638 1
Washer for plug
19  12G164 4
Liner for piston bore
20  12G123 2
Con rod No 2 and 4 for circlip type pistons pre 1988
No Longer Available
20  12G126 2
Con rod No 1 and 3 for circlip type pistons pre 1988
No Longer Available
20  12A1997 2
Con rod No 2 and 4 for press fit gudgeon pin 1988 on
No Longer Available
20  12A1999 2
Con rod No 1 and 3 for press fit gudgeon pin 1988 on
No Longer Available
21  CAM6126 8
Con rod bolt (2A660 locktab deleted)
No Longer Available
22  BHM1436 1
Crankshaft
No Longer Available
23  OEM_ROD-P 1
Con rod bearing set
Various sizes
23  BI_ROD-P 1
Bi-Metal Rod Bearings
Various sizes
23  TRI_ROD-P 1
Tri-Metal Rod Bearings
Various Sizes
24  OEM_MAINS1.75-P 1
Main Bearing Set, OEM Type
Various sizes
24  TRI_MAINS1.75-P 1
Main bearing set, Tri-Metal
Various sizes
24  BI_MAINS1.75-P 1
Main bearing set, Bi-Metal
Various sizes
25  VPW81 1
Thrust washers set for crankshaft, Standard
25  VPW81-005 1
Thrust washers set for crankshaft, +.005"
