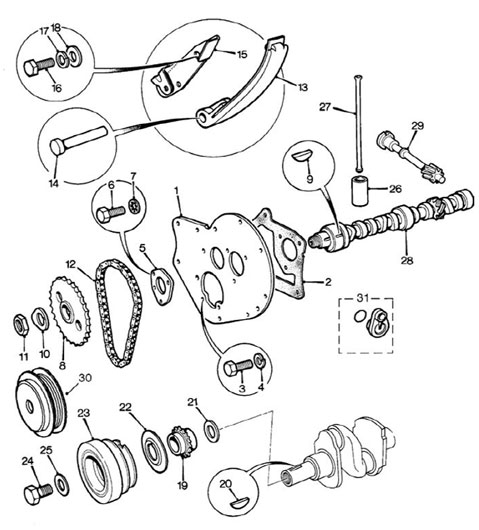

Classic Mini Cooper Camshaft & Timing Chain
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | 12G2626 | 1 | Front plate Use U-12G2626 |
| 2 | CAM4700B | 1 | Gasket for front plate to block |
| 2 | GUG705554GM | 1 | Gasket for front plate to block Genuine Rover |
| 3 | 53K2016 | 2 | Screw 1/4”unf 5/8” long for front plate to bearing main cap |
| 4 | GHF321 | 2 | Shake proof washer 1/4” |
| 5 | AHU2379 | 1 | Camshaft retainer plate |
| 6 | GFK5179 | 3 | Setscrew 1/4”unf 3/4”long, camshaft retainer plate to block |
| 7 | GHF321 | 3 | Shake proof washer 1/4” |
| 8 | 12G4337 | 1 | Gear for camshaft |
| 9 | WKN505 | 1 | Woodruff key for camshaft |
| 10 | 2A759 | 1 | Locktab for camshaft retaining nut |
| 11 | 6K629 | 1 | Nut for retaining camshaft |
| 12 | 3H2127 | 1 | Timing chain single row |
| 13 | 12G2621 | 1 | Tensioner pad |
| 14 | 12G2629 | 1 | Pin to retain tensioner pad |
| 15 | 12G2628 | 1 | Mounting plate for tensioner |
| 16 | GFK5184 | 2 | Bolt 5/16”unf 3/4”long, tensioner mounting plate to block |
| 17 | WL2051 | 2 | Spring washer 5/16” |
| 18 | WU2041 | 2 | Plain washer 5/16” |
| 19 | 8G725 | 1 | Gear for crankshaft |
| 20 | 6K836 | 1 | Woodruff key for crankshaft |
| 21 | 6K628 | 1 | Shim 5 thou, for packing crank gear to correct alignment As required |
| 22 | 12A1148 | 1 | Oil thrower plate |
| 23 | AHU1878 | 1 | Crank Pulley and torsional vibration damper except MPI Rebuilt version only |
| 23 | CAM4929 | 1 | Damper Pulley New |
| 24 | TAM2019 | 1 | Bolt for crankshaft pulley Performance upgrade |
| 25 | TAM2020 | 1 | Lock washer for crankshaft bolt |
| 26 | 2A13 | 8 | Tappet-camshaft follower without oil hole |
| 26 | 2A13EVO | 8 | Tappet-camshaft follower without oil hole, Genuine AE AE now Federal Mogul |
| 26 | AEG584 | 8 | Tappet-camshaft follower with oil hole |
| 26 | C-AEG579 | 1 | Tappet-camshaft follower set, lightened with oil hole |
| 27 | 2A14 | 8 | Push rod Small bore engines only |
| 27 | AEG314 | 8 | Push rod 1275cc only |
| 28 | CAM6648 | 1 | Camshaft Cooper with HIF44 NLA F53/GO1 engine numbers |
| 28 | LGC10231 | 1 | Camshaft 1275cc pre injection No Longer Available |
| 28 | LGC10230 | 1 | Camshaft SPI injection (See MD274 for upgrade alternative) Not MPI |
| 28 | LGC105380 | 1 | Camshaft MPI Only Not SPI |
| 29 | 12G3560 | 1 | Distributor drive spindle Not MPI CWE |
| 30 | LHF100130 | 1 | Crank Pulley and torsional vibration damper, multi V groove No Longer Available |
| 31 | LDT100030 | 1 | Blanking plug for camshaft sensor No Longer Available |
