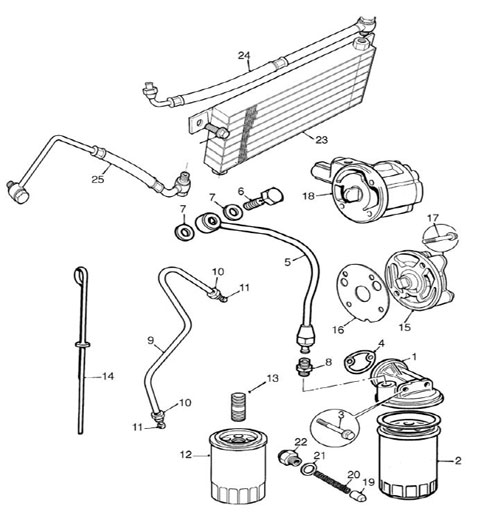

Classic Mini Cooper Oil Pumps, Filters & Coolers
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | TAM2097 | 1 | Filter head, pre 1990 |
| 1 | LPX10026 | 1 | Filter head, 1990 on with 12A engine numbers Use LPX10026RACE |
| 2 | GFE166 | 1 | Oil filter cartridge, spin on Except MPI |
| 3 | LYG10008 | 2 | Bolt 5/16”unc 1”long, oil filter head to block Or CHS2613 stud |
| 4 | 12A2035 | 1 | Gasket, filter head to block |
| 4 | GUG705553GM | 1 | Gasket, filter head to block Genuine |
| 5 | TAM2106 | 1 | Pipe, filter to block-NLA- use TAM2106BRAIDED pipe Flexible Hose alternative |
| 6 | 2A715 | 1 | Banjo Bolt, pipe to block pre 1990 |
| 7 | LYF10017 | 2 | Washer with internal seal Alternative AED172 |
| 8 | TAM2119 | 1 | Union for filter head Use with TAM2097 heads |
| 9 | LQP10033 | 1 | Pipe, filter to block 12A engines only from 1990 on NLA Use MOC1018 Braided |
| 10 | LYH10014 | 2 | Nut for seal to oil pipe 12A engines only from 1990 on No Longer Available |
| 11 | LZB10017 | 2 | Seal o-ring for oil pipe 12A engines only from 1992 on |
| 12 | GFE280 | 1 | Oil filter cartridge, direct to block MPI only 1996 on See Premium filter GFE26 |
| 13 | CAM5331 | 1 | Union for filter to block MPI only 1996 on |
| 14 | LQM100380 | 1 | Dipstick |
| 15 | GLP139 | 1 | Oil pump, slot drive 998cc only |
| 15 | GLP138 | 1 | Oil pump, slot drive 1275cc only Use AHU1048-MS |
| 15 | GLP110MS | 1 | Oil pump, slot drive 1275cc Turbo Use CAM6614MS |
| 16 | 12G730B | 1 | Gasket for oil pump |
| 16 | GUG705560GM | 1 | Gasket for oil filter Genuine |
| 17 | GFK5170 | 2 | Bolt 1/4” UNF x 1 1/2” oil pump to block except CAM6614MS Or as required |
| 17 | BH604131 | 2 | Bolt 1/4” UNF x 1 5/8” oil pump to block for CAM6614MS Or as required |
| 17 | BH604141 | 2 | 1/4" UNF x 1.75" Bolt Also used for block to geabox |
| 18 | GLP107 | 1 | Oil pump, slot drive Automatic only No Longer Available |
| 19 | 12H865 | 1 | Plunger oil release valve See BLS916 also |
| 20 | 6K853 | 1 | Spring for plunger valve, AEA536 alternative for 1275cc SEE 6K853KIT also |
| 21 | 6K431 | 1 | Washer for oil release valve cap |
| 22 | 12A1851 | 1 | Cap nut for oil release valve spring |
| 23 | PBC10057 | 1 | Oil cooler 8 row, Cooper and single point Special fitment Factory original |
| 24 | PBP10019 | 1 | Pipe, oil cooler to filter for PBC10057 No Longer Available |
| 25 | PBP10020 | 1 | Pipe, oil cooler to block for PBC10057 No Longer Available |
| 25 | MOC1015 | 1 | Pipe kit, oil cooler for MOC10ROW and C-ARH221 Pre 12A engines |
| 25 | MOC1014 | 1 | Pipe kit, oil cooler for MOC10ROW and C-ARH221 12Aengines 1992 on |
